Manufacturer: Teltonika

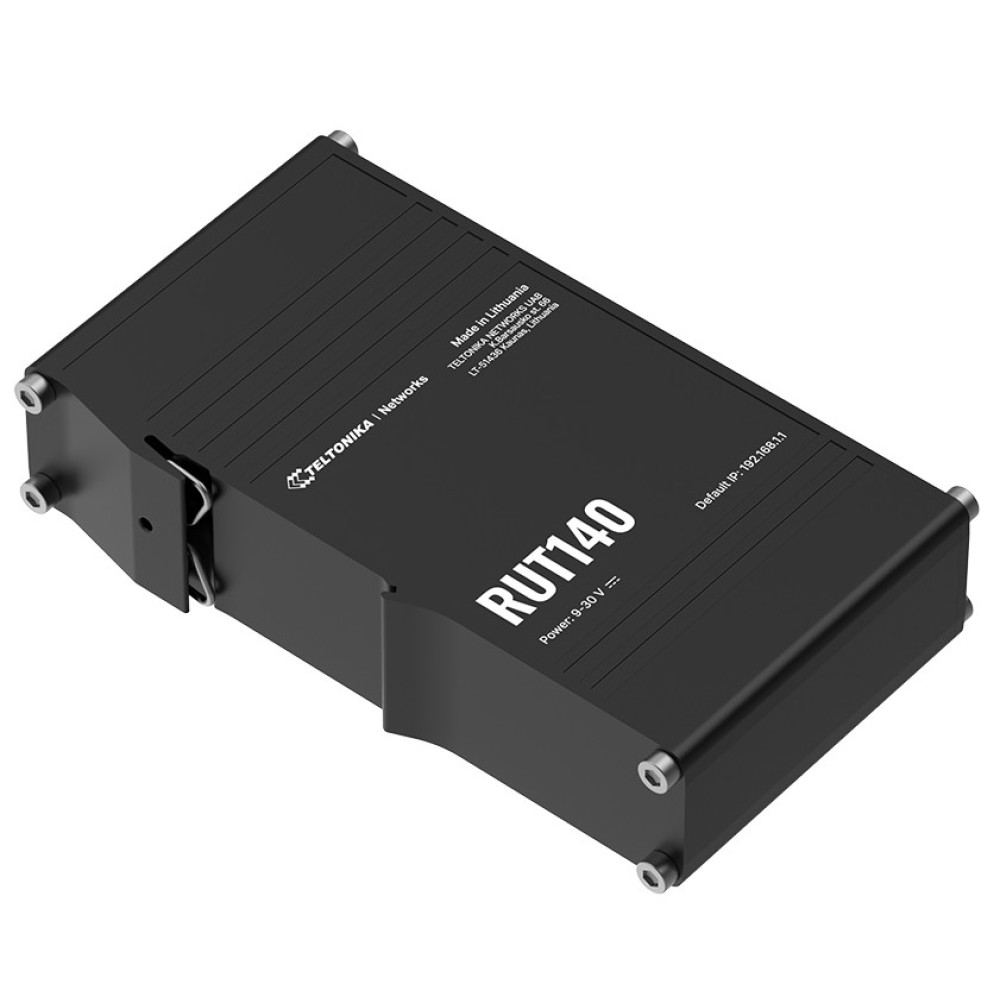

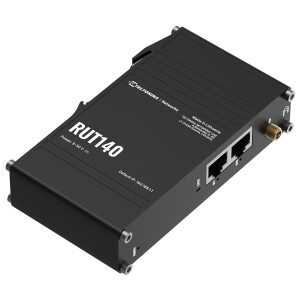

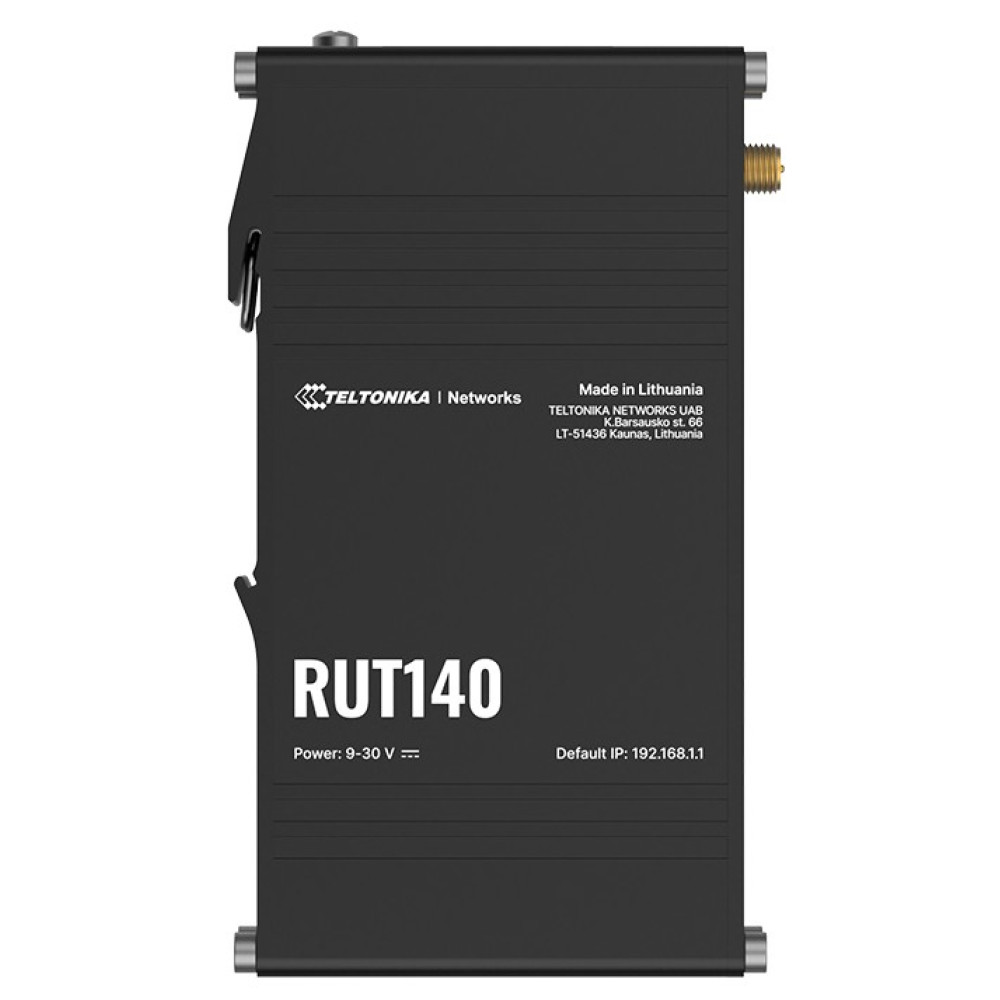

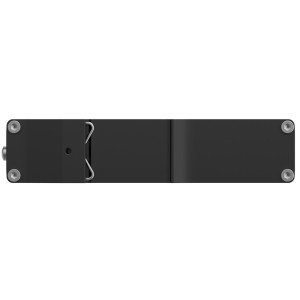

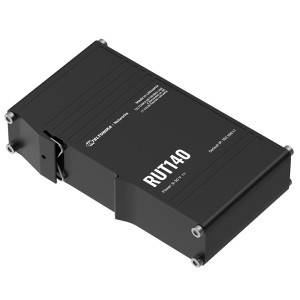

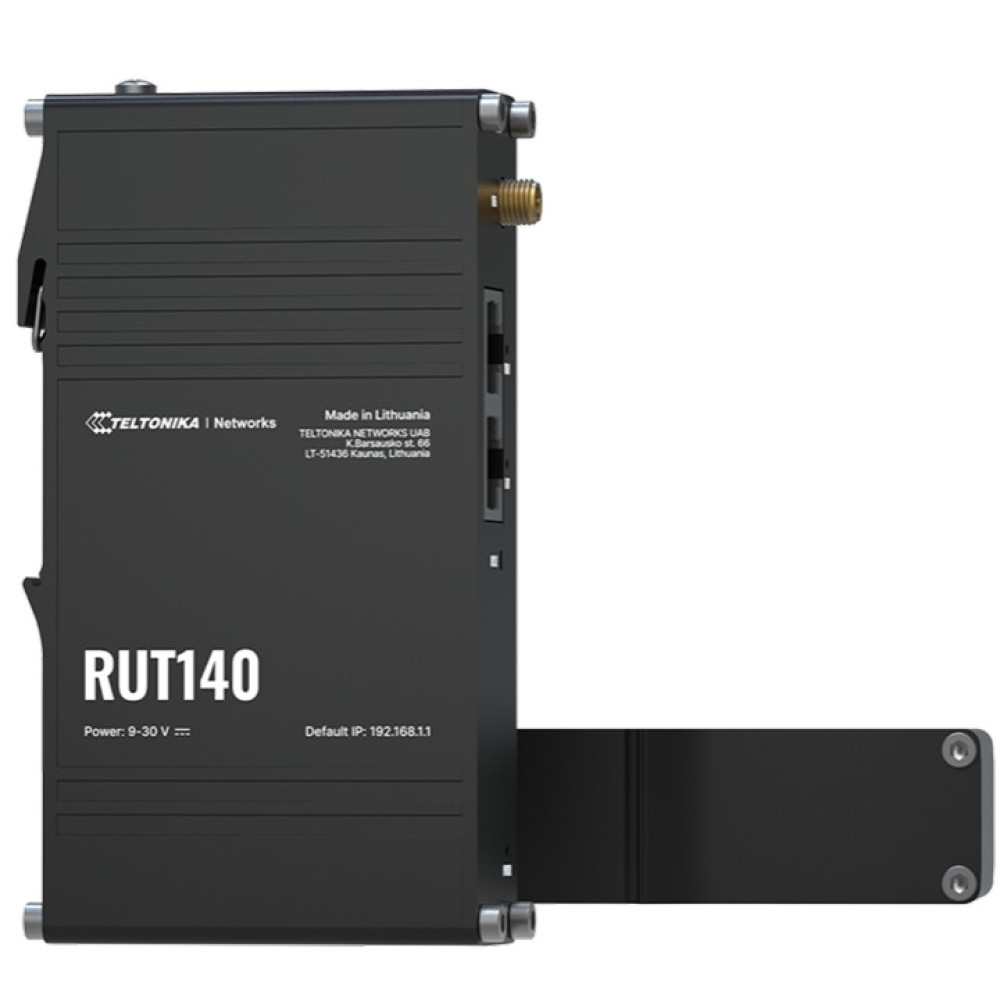

The Teltonika RUT140 is a compact industrial Ethernet router, enhancing security through network isolation for end devices. Equipped with two Ethernet ports, DIN rail bracket, and an industrial 3-pin connector, it ensures seamless connectivity and easy installation. The router comes with RutOS, Wi-Fi 4, and supports industrial protocols such as Modbus, DLMS, DNP3, and OPC UA, and is compatible with RMS for efficient remote and on-site management.
The RUT140 is a simple solution designed for secure network segmentation. Want the rest of your hardware to live up to those expectations? There is networking equipment for every need and purpose but finding it can take a lot of time. Let us save you that time. A simple phone call will connect you with one of our experts. We’ll help you navigate the catalogs, so you can spend less time shopping and more time doing what you do best.
| Technology | |
| Category | Router |

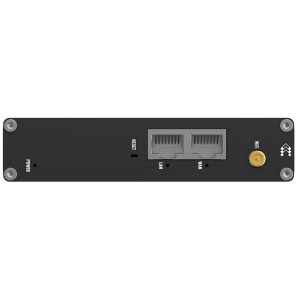

| Ethernet Ports | 2 Fast Ethernet (10/100TX) |
| Industrial Protocols | MODBUS TCP |
| Computing | |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| System Memory Configuration | 128 MB DDR2 RAM |
| Operating Systems | RutOS (OpenWrt based Linux OS) |
| Network Management | |
| Firewall Features | Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64 |
| Authentication | Pre-shared key, digital certificates, X.509 certificates |
| VPN Features | Multiple clients and a server can run simultaneously, 27 encryption methods |
| QoS | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| System Configuration | WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS |
| Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN |
| Reliability | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Wireless | |
| WLAN Operation Mode | 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA) |
| Wireless Security | WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) |
| Interfaces | |
| LAN Ports | WAN and LAN |
| Wireless | IEEE 802.11b/g/n, up to 50 simultaneous connections |
| Power | |
| PoE Power Output | Passive PoE over spare pairs. Possibility to power up through LAN1 port, NOT compatible with IEEE802.3af, 802.3at and 802.3bt standards |
| Power Consumption | Idle: < 1 W / Max: < 2 W |

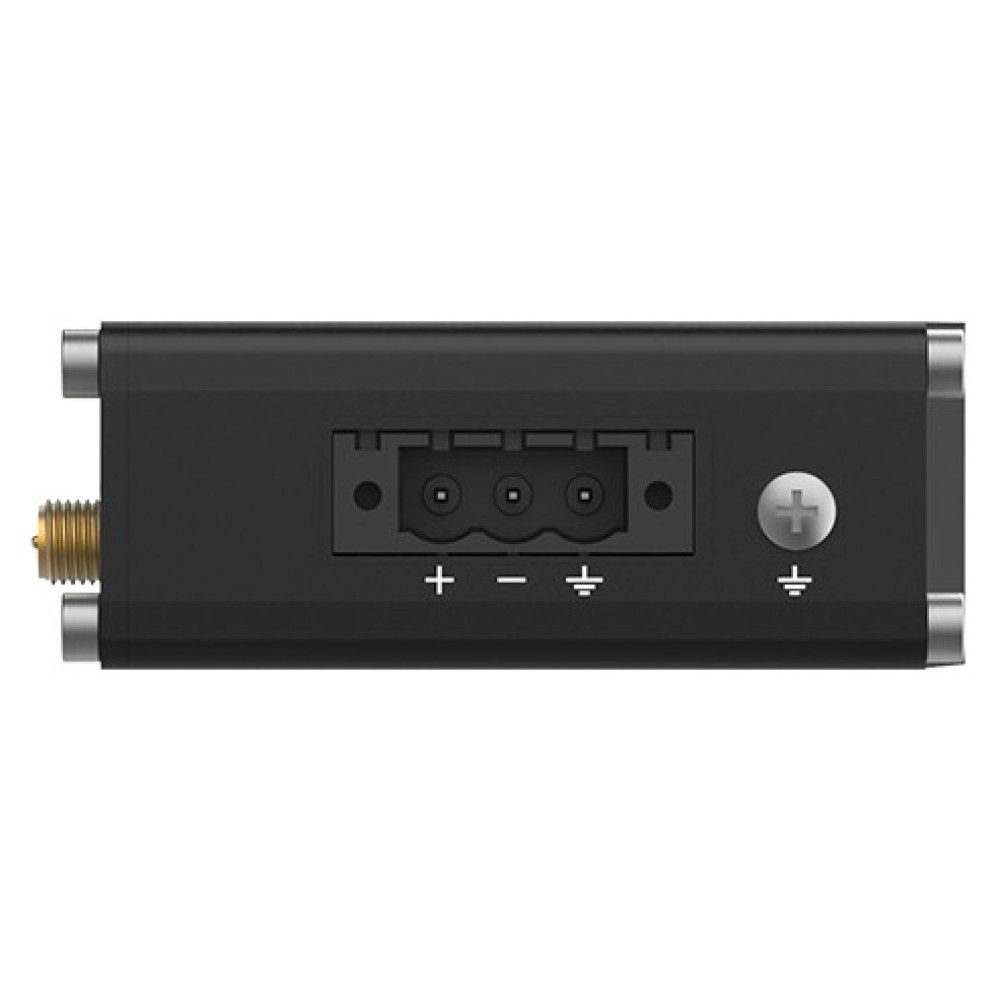

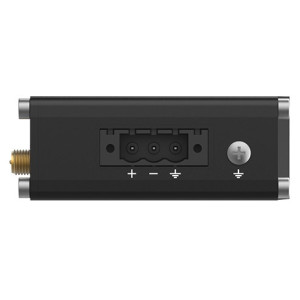

| Connection | 3-pos pluggable terminal block |
| Input Voltage | 9 to 30 VDC |
| Mechanical | |
| Enclosure | Aluminum housing, IP30 |

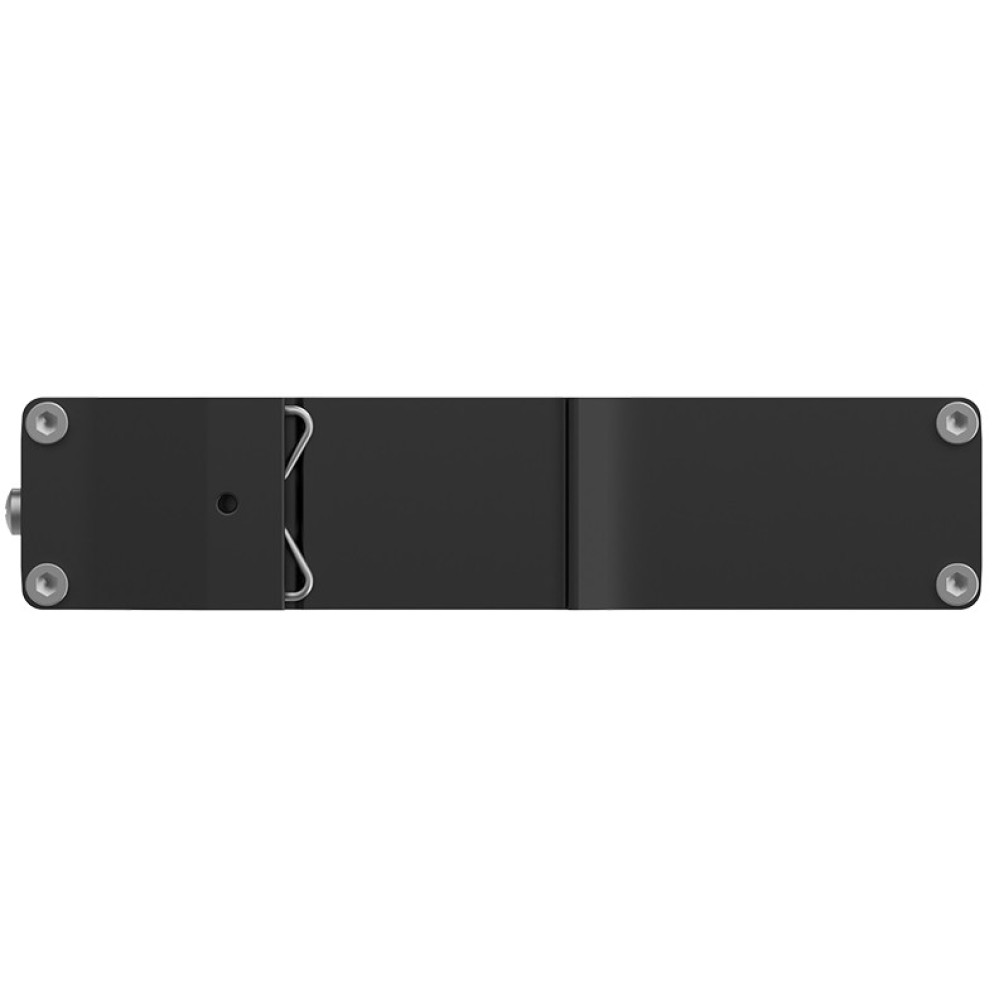

| Mounting | Integrated DIN rail bracket; wall mount and flat surface (additional kit needed) |

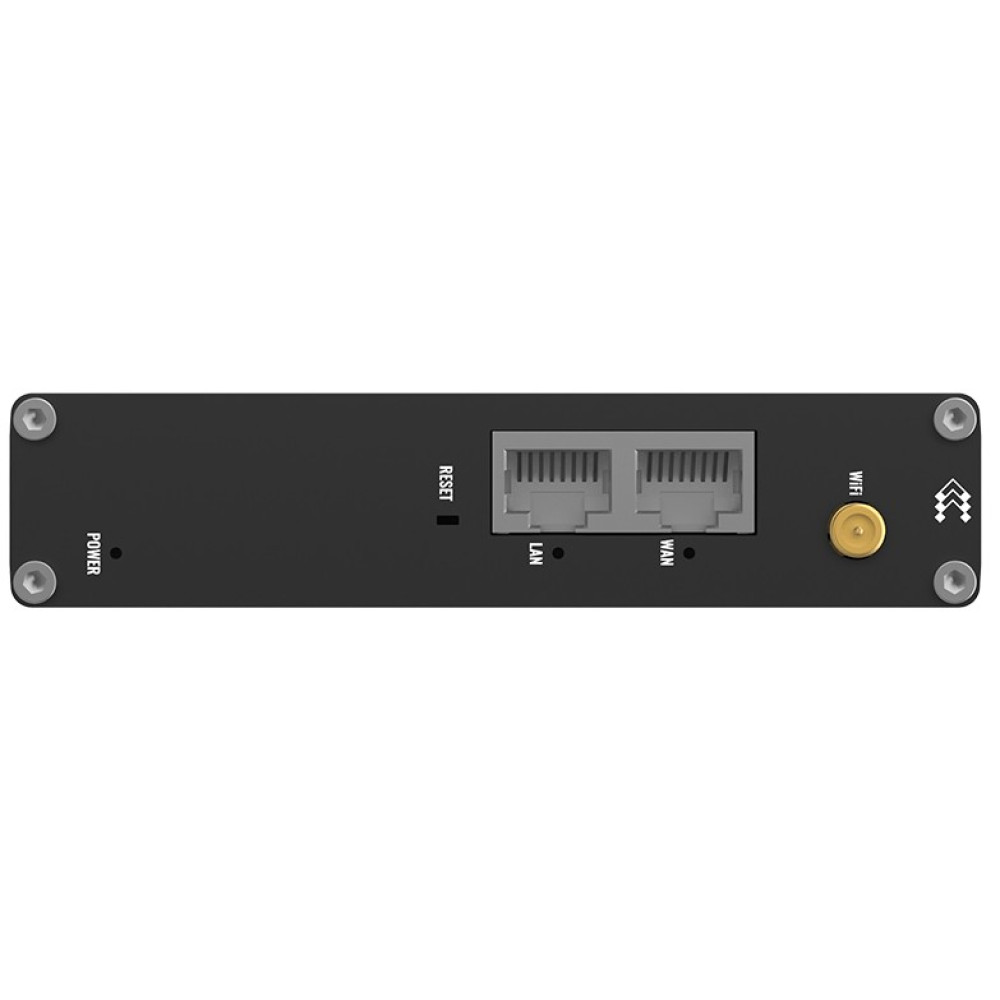

| LED Indicators | 1 x WAN type LED, 1 x LAN type LED, 1 x Power LED |
| Antenna Connection | 1 x RP-SMA for Wi-Fi |
| Weight | 142.3 g |
| Dimensions | 113.10 x 25 x 68.6 mm (W x H x D) |
| Ratings | |
| Operating Temperature | -40° to 75°C |
| Humidity | 10 to 90% non-condensing |
| Certifications | CE, UKCA, RCM, FCC, IC, CB, WEEE, RoHS, REACH |
| EMC | EN 55032:2015 + A11:2020 + A1:2020 EN 55035:2017 + A11:2020 EN 301 489-1 V2.2.3 EN 301 489-17 V3.2.4 |
| RF Standards | EN 300 328 V2.2.2 |
| Warranty | 2 years |
| Download Name | File Size |
| Teltonika RUT140 Datasheet | 2.9MB |
| Teltonika RUT140 Flyer | 1.5MB |
