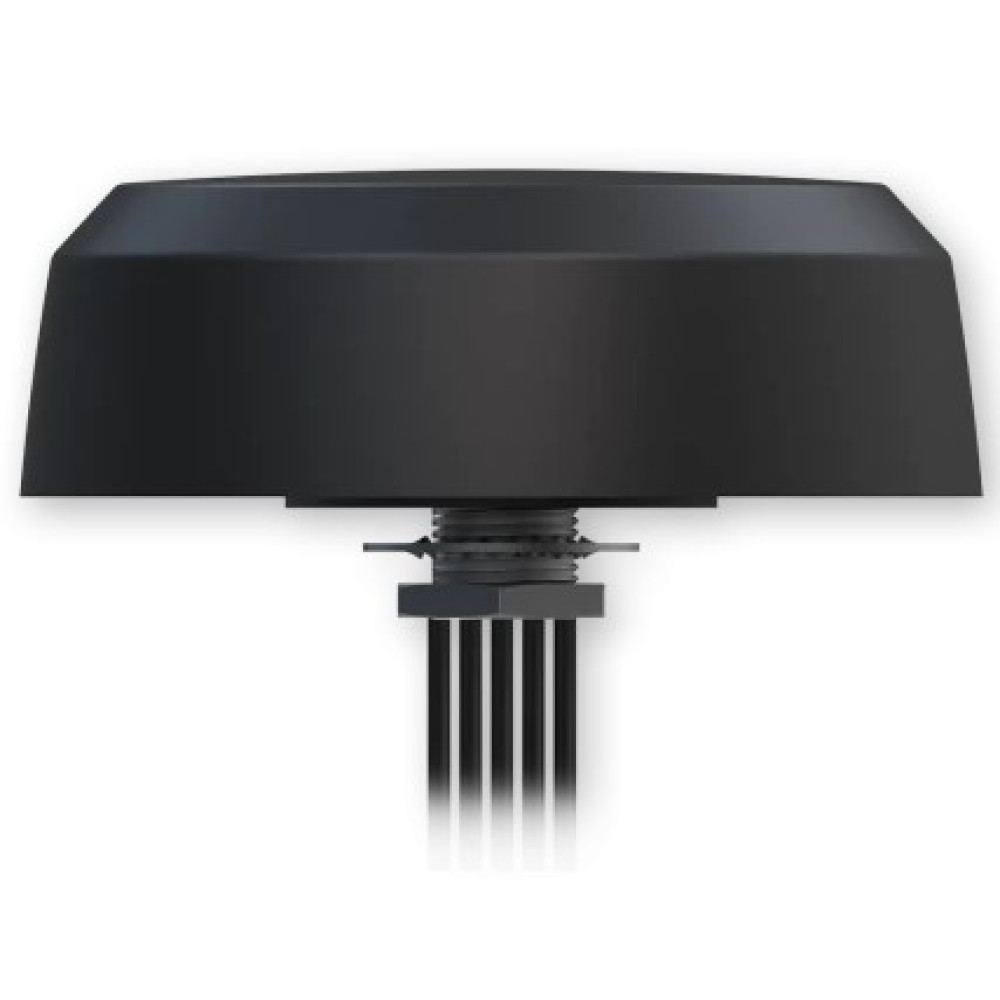

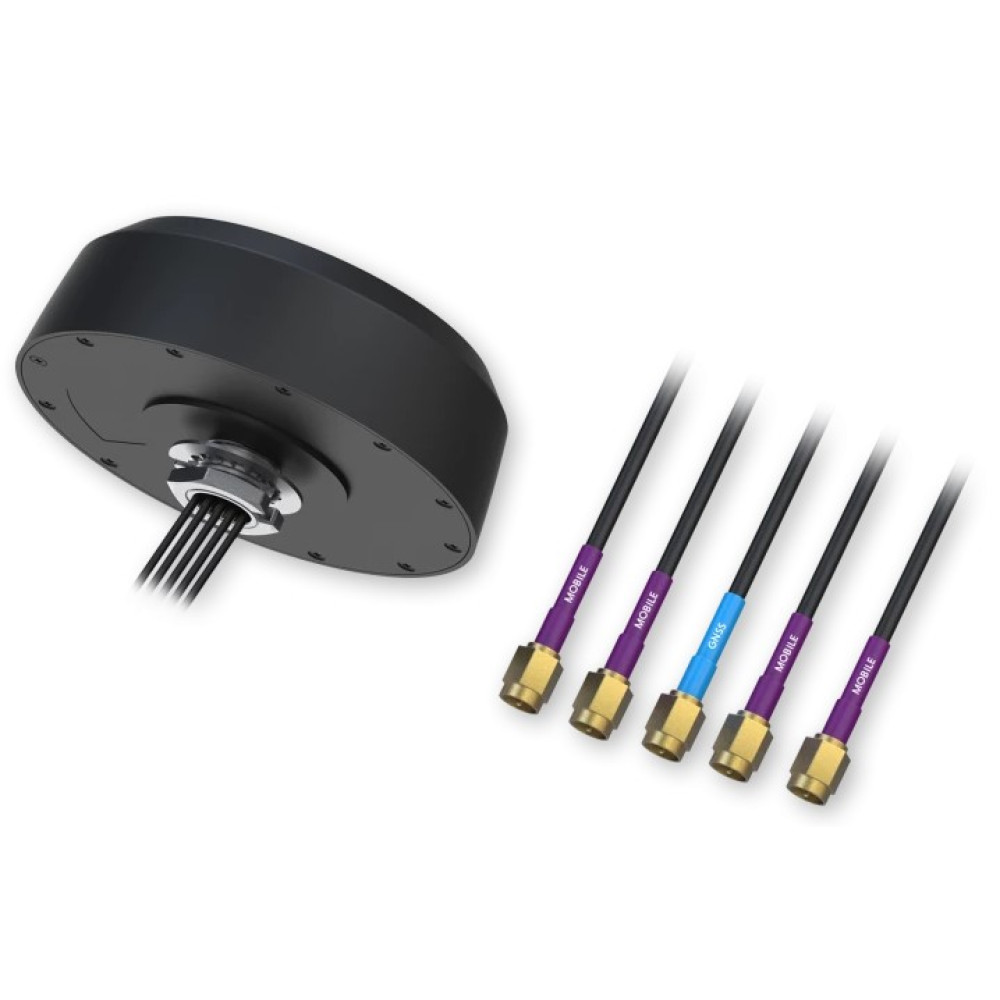

The PR1KCL28 integrates five antennas into a single black radome - 4x4 MIMO 5G LTE and GNSS. The antenna is 5G ready with coverage over the 600 - 960 MHz, and 1400 - 6000 MHz cellular frequencies. It also features GNSS supporting 1164 - 1189 and 1559 - 1606 MHz bands.

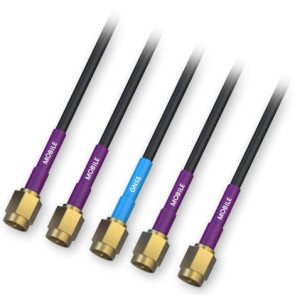

It operates safely between -40 and 85°C, making it tougher than most outdoor temperatures worldwide. It also has an IP67 / IP69K rating. The PR1KCI49 antenna includes four ALS302 and one RG174 cables that are 3000 mm in length.
| Technology | |
| Category | Antenna |
| Wireless | |
| 5:1 Combination Antennas | 5:1 (4 LTE, GPS) |
| Pattern | Omnidirectional |
| Cellular Frequencies | 600 - 960 / 1400 - 6000 MHz |
| VSWR | ≤ 3.2 (mobile), < 2.0 (GNSS) |
| Gain | 4.9 dBi |
| Polarization | Cellular: Linear, GNSS: RHCP |
| Electrical | |
| Impedance | 50 ohms |
| Interfaces | |
| GPS | 1164 - 1189, 1559 - 1606 MHz |
| Mechanical | |
| Cabling | 4x ALS302, 1x RG174, 3000 mm |
| Connector Type | SMA male |
| Mounting | Screw (M27 nut) |
| Color | Black |
| Material | UV resistant plastic and cable |
| Weight | 780 g |
| Dimensions | Ø 167 x 57 mm |
| Ratings | |
| Operating Temperature | -40 °C - +85 °C |
| RoHS Compliant | Yes |
| Certifications | IP67 / IP69K |
| Download Name | File Size |
| Teltonika PR1KCI49 Datasheet | 496.18KB |
