Manufacturer: Teltonika

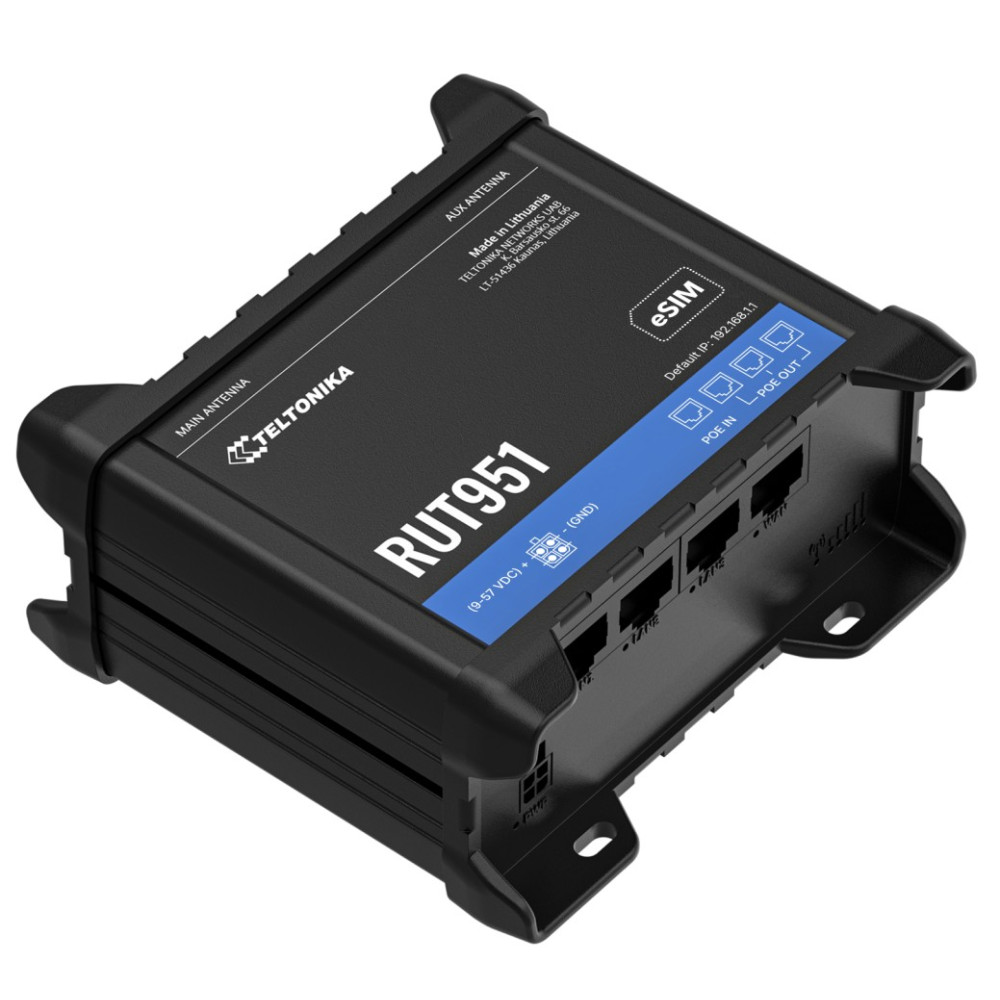

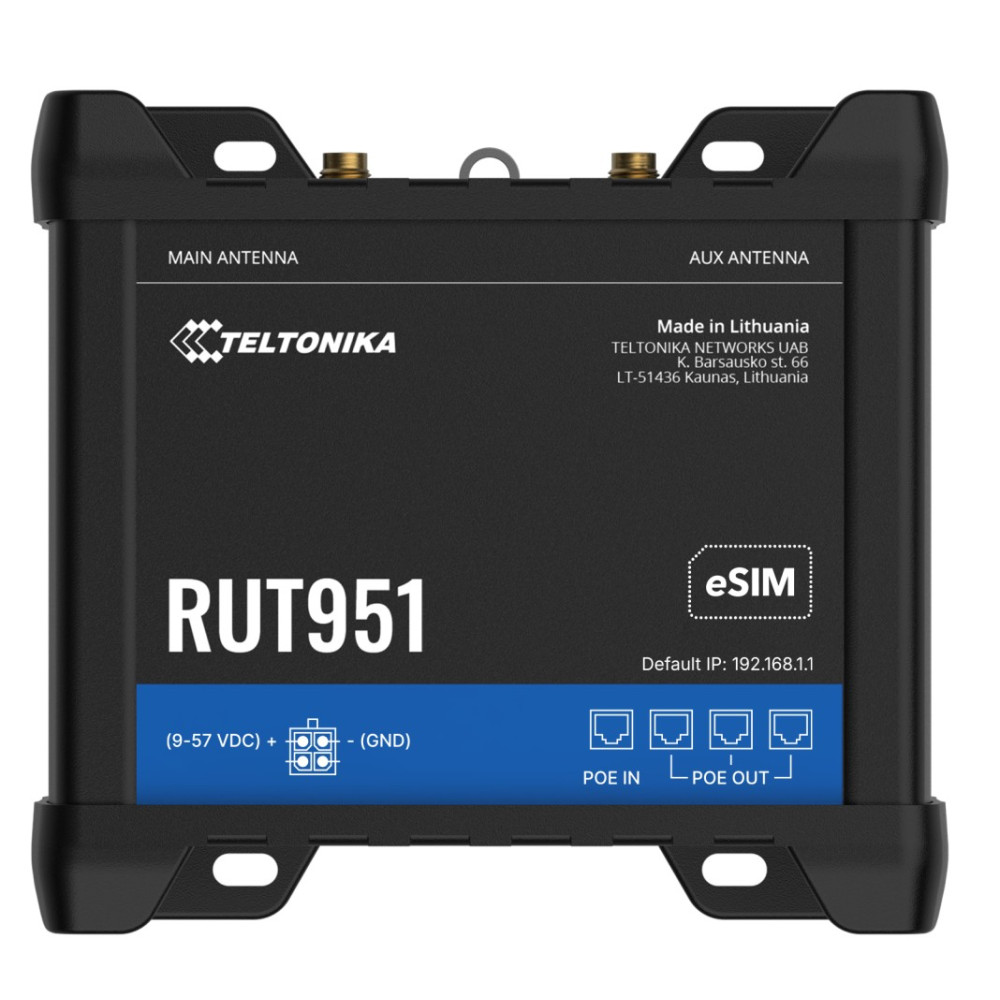

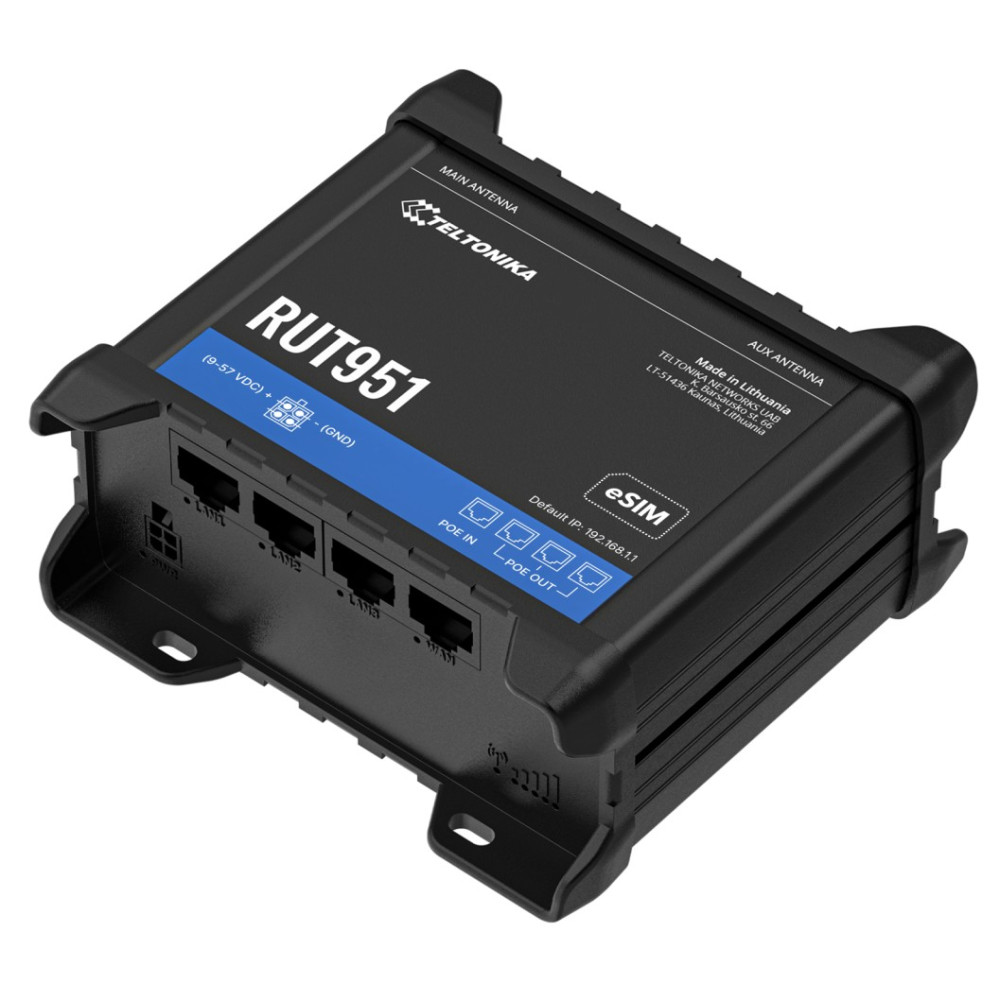

Teltonika RUT951PoE+ Industrial PoE+ 4G Cellular Router, 4 Fast Ethernet, Wi-Fi, Digital I/O
Building on the success of the RUT951 4G router, this enhanced version, the RUT951PoE+, now features versatile Power over Ethernet (PoE+) capability. This robust router boasts dual SIM and eSIM, reliable Wi-Fi, and four PoE+ Ethernet ports. Powered by RutOS and designed for diverse IoT deployments, and with a total PoE power budget of 90 W, the RUT951 PoE+ ensures seamless data transmission and simplifies power management for your connected IoT solutions. It contains a powerful chipset from MediaTek, and has a 580 MHz CPU.
Its single PoE-in LAN1 port allows the router to draw power directly from a PoE source, enabling setups in space or power-constrained environments. At the same time, the three PoE-out ports (LAN2, LAN3, and WAN) can power other connected devices such as IP cameras. The RUT951 PoE+ further enhances flexibility with PoE passthrough, allowing it to extend power to an additional device and reduce the need for separate power infrastructure.
Fully compliant with the IEEE 802.3af/at standard, this router is particularly suited for deployments where 220 VAC is unavailable, but power from a PoE source - typically 48 VDC - is accessible.
Automatic WAN failover to an available backup connection ensures network continuity and eliminates downtime. The RUT951PoE+ is powered by RutOS that offers customization options for professional use, automation features, and top-level security for your solution. Compatibility with the Teltonika Networks Remote Management System (RMS) enables secure remote management to save time and expenses.
The RUT951 PoE+ router features dual SIM support, providing both robust failover capabilities and extended benefits for diverse connectivity needs. With two SIM card slots, users can take advantage of different mobile operators or data plans - choosing the most cost-effective, high-performing, or geographically optimal option depending on the situation. This flexibility is especially useful in cross-border deployments, mobile applications, or remote locations where one provider may have limited coverage. Dual SIM also simplifies logistics for integrators, allowing them to preload routers with different operator options to streamline deployments. In addition, the RUT951 PoE+ router now also supports eSIM functionality with up to 7 eSIM profiles. Leveraging the GSMA SGP.22 standard, eSIM management is seamlessly integrated into the WebUI for straightforward local configuration. This feature enhances reliability by enabling quick switching between mobile operator profiles - an essential capability where uninterrupted connectivity is critical.
This reliable LTE router embeds industry-standard security options. Private connections can be secured via OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, and SSTP. Standard wireless security is integrated into the system, and VLAN allows for another layer of protection. Robust access control, DDOS prevention, quota control, and pre-configured firewalls complete the web of security that keeps your network safe.
What might be most impressive about the RUT951PoE+ is that these features are packed into a robust industrial grade frame. The router is DIN-rail mountable, shock resistant, and built to operate nominally at temperatures between -40 and 75 degrees Celsius. This one cellular router can simultaneously handle your intense networking demands, robust security needs, and harsh industrial environment.
RUT951A10P00, Router with power supply
RUT951A10J00, Router without power supply
Enable your RUT951PoE+ with a cost-effective monthly data plan to ensure your router is ready to deploy. Select Verizon, T-Mobile, or AT&T, and the data plan size from 100 MB to Unlimited GB. You are billed monthly; there’s no long-term contract. Plus, manage all of your fielded gateways from a single cloud-based web portal.
You can purchase a SIM card from this page. It will be mailed to you in 2 to 3 business days. After you receive your card, sign up for a data plan at Mobility Help Desk. The set up instructions are on this page.
The RUT951PoE+ includes two LTE swivel antennas for the Main and Aux connectors and two swivel WiFi antennas. For mobile and industrial applications, consider these high-performance antennas listed on these pages:
2-in-1 (MIMO LTE) combo antennas
3-in-1 (MIMO LTE and WiFi) combo antennas
4-in-1 (MIMO LTE and MIMO WiFi) combo antennas
The RUT951PoE+ satisfies your networking needs without breaking the bank. If you’d like to see that principle applied to all of your networking equipment, then spend a little time with one of our expert representatives. With a wide variety of hardware devices, we save you the monotony of browsing catalogs. We’ll strive to get a perfect equipment match to your requirements, every time.
| Technology | |
| Category | Cellular Router |

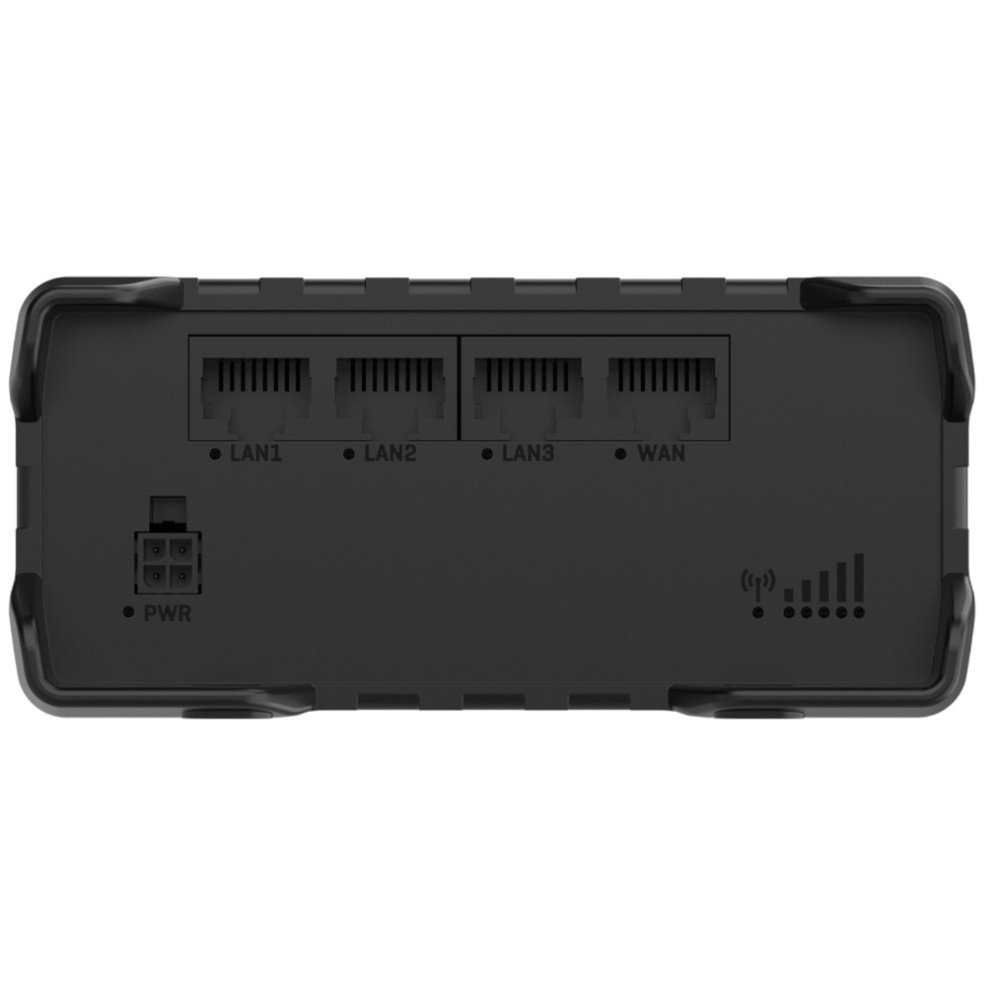

| Ethernet Ports | 4 Fast Ethernet (10/100TX) (1 PoE in, 3 PoE+ Out) |
| Computing | |
| CPU | Mediatek MIPS 24Kc 580 MHz |
| System Memory Configuration | 128 MB, DDR2 |
| Operating Systems | RutOS (OpenWrt based Linux OS) |
| Cellular Interface | |
| Carrier | AT&T, T-Mobile, and Verizon |

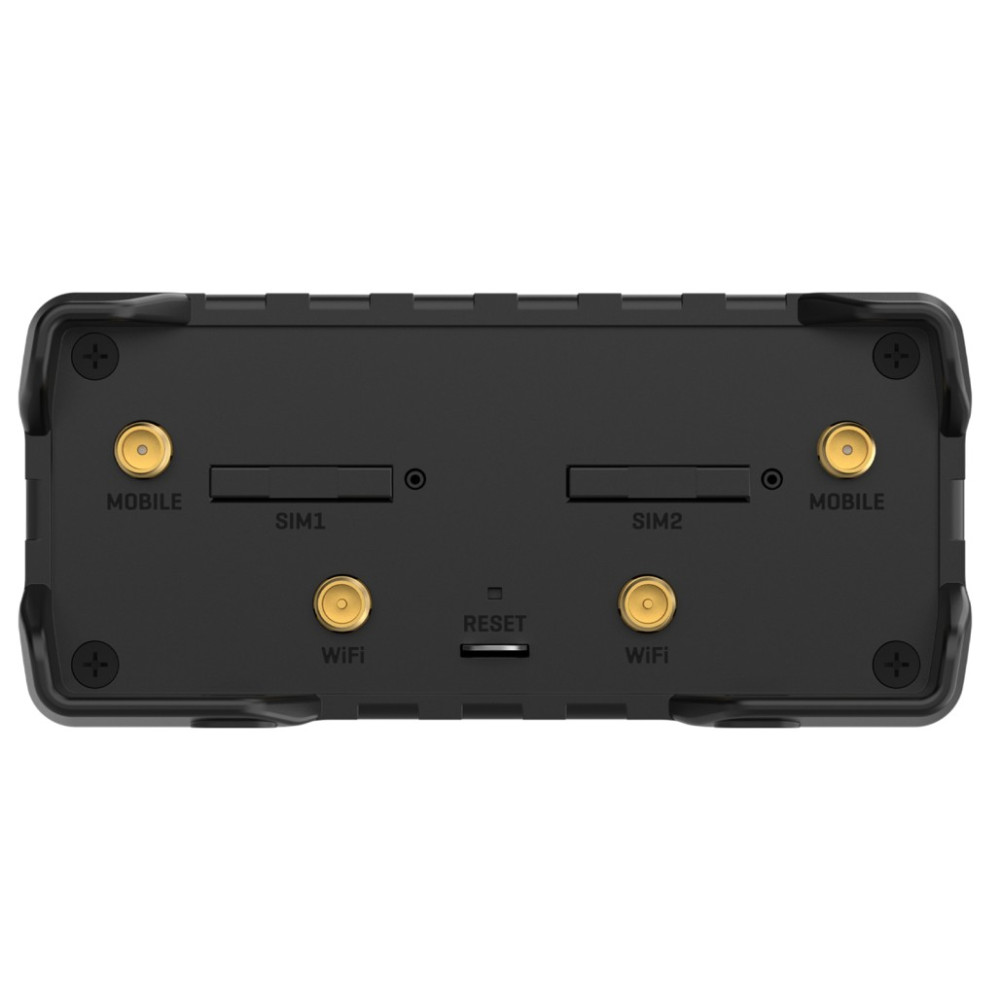

| SIM Holder | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional different hardware required) |
| Networks | 4G (LTE) - Cat 4 up to 150 Mbps, 3G - Up to 42 Mbps, 2G - Up to 236.8 kbps |
| Network Management | |
| Firewall Features | Port forward, traffic rules, custom rules, TTL target customization |
| Authentication | Pre-shared key, digital certificates, X.509 certificates |
| VPN Features | Multiple clients and a server can run simultaneously, 27 encryption methods |
| QoS | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| System Configuration | WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS |
| Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN |
| Reliability | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Wireless | |
| Antenna Type | 2x LTE antennas (swivel, SMA male), 2x WiFi antennas (swivel, RP-SMA male) |
| WLAN Operation Mode | IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
| Wireless Security | WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) |
| Interfaces | |
| LAN Ports | 1 WAN and 3 LAN |
| Wireless | IEEE 802.11b/g/n, up to 100 simultaneous connections |
| Digital IO | 1 digital output and 1 digital input on 4-pin connector |
| Power | |
| PoE Power Output | 30 W per port |
| Power Consumption | Idle: < 5 W, Max: < 6.5 W, PoE Max: 100 W |
| Connection | 4-pin industrial DC power socket |
| Input Voltage | 9 to 57 VDC |
| Mechanical | |
| Connector Type | 2 SMA for LTE, 2 RP-SMA for WiFi |
| Enclosure | Aluminum with plastic panels, fanless cooling |
| Mounting | Wall mount, DIN-rail, flat surface (not included) |
| LED Indicators | 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power |
| Weight | 287 g |
| Dimensions | 50 x 110 x 100 mm (H x W x D) |
| Ratings | |
| Operating Temperature | -40° to 75°C |
| Humidity | 10 to 90% non-condensing |
| Certifications | CE, FCC, IC, PTCRB, RoHS, WEEE, Wi-Fi Alliance, IP30 |
| Safety Standards | EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017 |
| RF Standards | EN 300 328 V2.2.2, EN 301 511 V12.5.1, EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1 |
| Warranty | 2 years |
| Download Name | File Size |
| Teltonika RUT951PoE+ Datasheet | 3.38MB |
| Teltonika RUT951PoE+ Flyer | 3.98MB |
