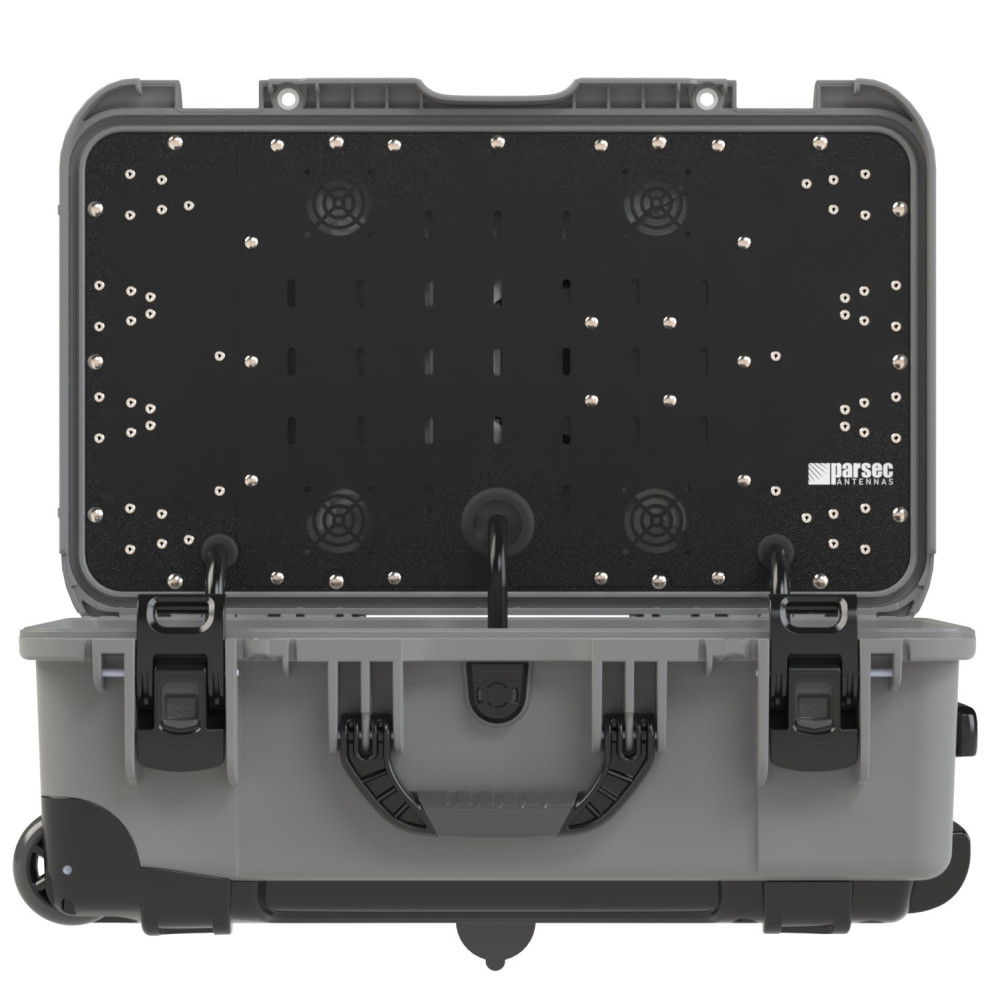

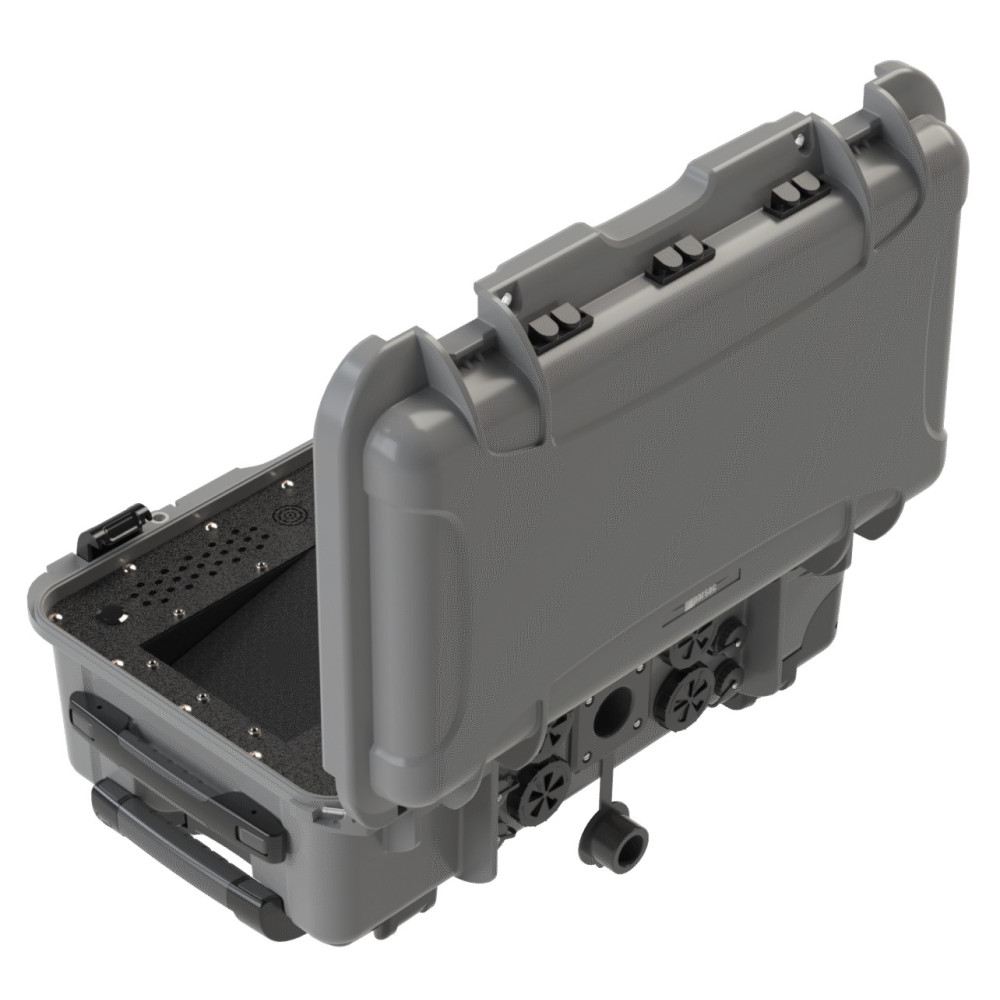

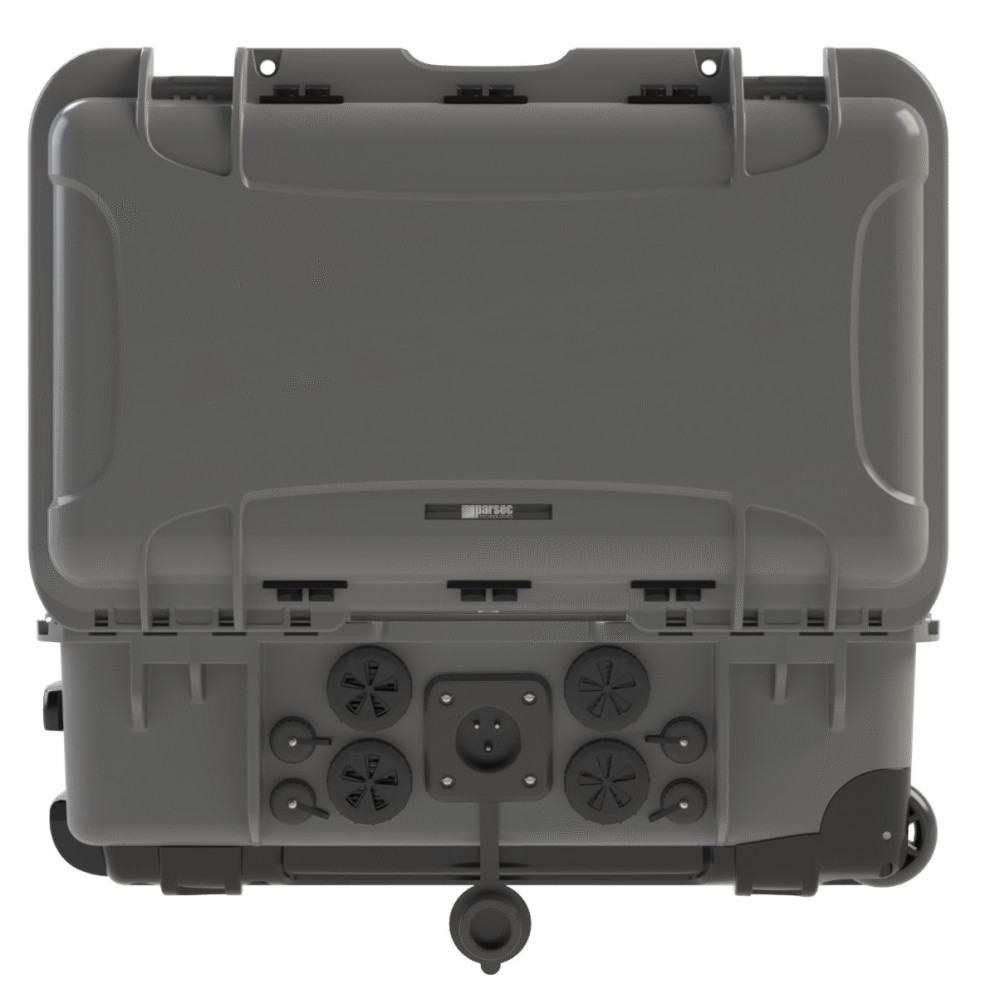

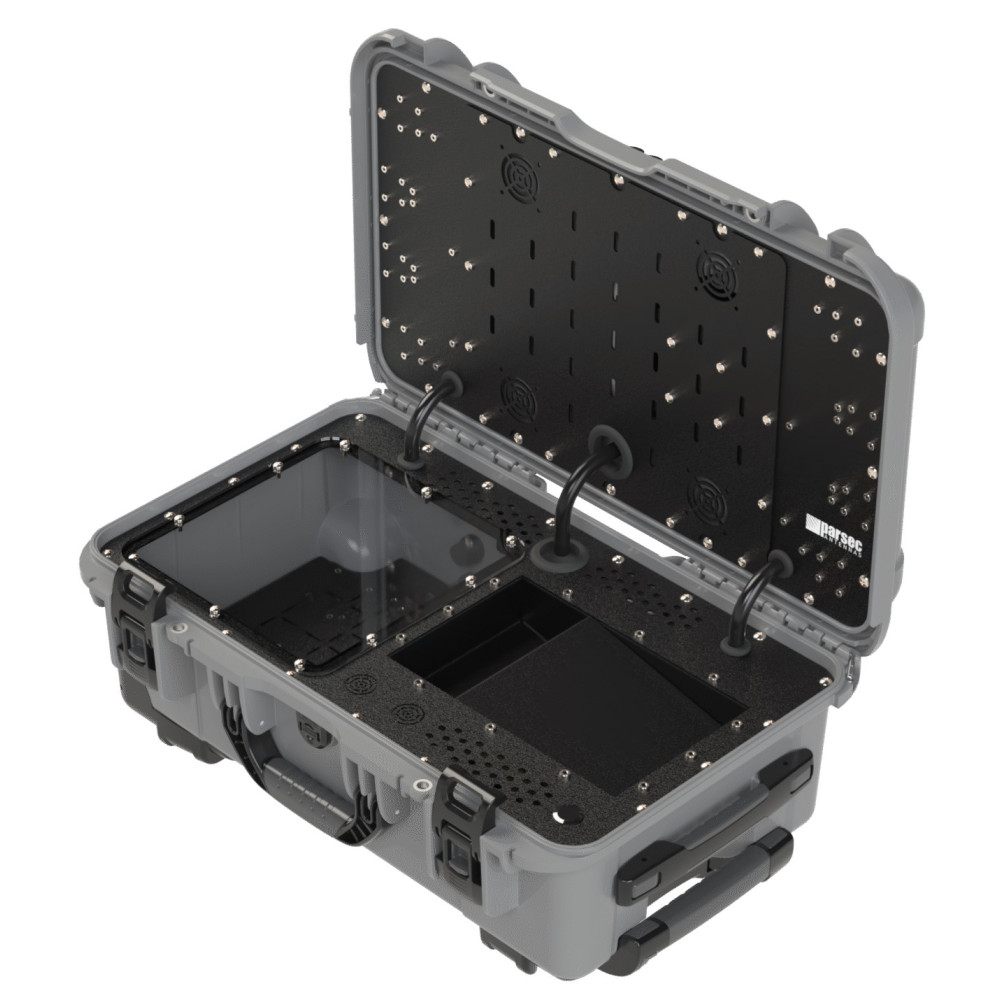

The Pitbull PRO8PB4L2WBG brings Starlink’s Satellite Internet to your portable 5G case antenna. This Pitbull configuration deploys 4x4 MIMO Cellular, 2x2 MIMO Wi-Fi, Bluetooth, GPS, and Starlink Satellite Internet. This omnidirectional travel friendly case antenna is built to provide optimal support for emergency responders and enterprise systems reliant on failover connectivity in even the most remote of locations.
This rugged case antenna will extend the range to cover more area for remote cameras for security or able to run both Starlink Mini and cellular networks at the same time. The Pitbull series is a rugged, IP67-rated case with an AC adapter and customizable ports such as RJ45s, with a specialized Starlink Mini mount on the lid of the case it is a great all-in-one packaged solution to meet all your connectivity needs.
The Starlink Mini, cellular router, and SIM cards are not included with the Pitbull antenna case. These items may be purchased separately or included in a turnkey system from Westward Sales. Contact us for a list of compatible routers and options needed to complete an emergency industrial WiFi hotspot.
Description | PRO8PB4L2WBG-G2B (Omnicharge Ultimate Custom Battery) | PRO8PB4L2WBG-L (AC powered) |
PRO8PB4L2WBG | ✓ | ✓ |
Fan and Vent | 2 | 2 |
A/C Adapter | ✓ | ✓ |
RJ45 Connectors | 4 | 4 |
Router Mount Plate | ✓ | ✓ |
Top Cover Plate | ✓ | ✓ |
Starlink Mini Mount | ✓ | ✓ |
Accessory Tray | ✓ | |
Omni Ultimate Custom Battery installed | ✓ | |
Omni Ultimate Custom Battery Tray | ✓ |
Working remotely has been an emerging trend in recent years. While many of us work from one specific location, mobile workers have now become a critical factor in employment decisions, thanks to the digital revolution and the transformation of our economy. A mobile workforce isn’t limited by a central physical location and is instead connected by different types of mobile technology. It is natural for technology companies to deliver devices that are more portable, affordable, and easy to set up.
Mobile hotspot cases are an example of this rapid evolution in technology. Battery-powered and standalone, these mobile hotspot cases can connect to the Internet via a 4G or 5G network through their multiple antennas and are easy to deploy.
Our mobile hotspot cases with built-in antennas implement the latest generation of 5G-ready LTE, CBRS, LTE LAA, and WiFi technology to create a portable office or portable communication system. The PRO8PB offers reliability, high-performance, and quick deployment; however, it’s only a starting point.
For a finished, turnkey mobile hotspot, consider the WSH line of hotspots from Westward Sales. We integrate an Ericsson Cradlepoint, Semtech or Peplink cellular router into the PRO8PB antenna system and add AC power or rechargeable battery pack and cabling. It’s fully assembled, tested, and ready to deploy! Ask about our managed data plans with an activated SIM card, which enables true plug-and-play operation. Contact Westward Sales to see how a 5G-ready hotspot can boost your mobile communications.
Technology | |
Category | Antenna |
Wireless | |
8:1 Combination Antennas | 8:1 (4 LTE 2 WiFi GPS BT) |
Pattern | Omnidirectional |
Cellular Frequencies | 617 - 894 MHz, 1710 - 2700 MHz, 3400 - 4000 MHz, 5150 - 5925 MHz |
Wi-Fi Frequencies | 2.4 - 2.48 GHz, 4.9 - 5.9 GHz |
Bluetooth Interface | Yes |
Polarization | Linear |
GPS Interface | Yes |
Mechanical | |
Cabling | 30 inch pigtails |
Connector Type | SMA male, RP-SMA |
Mounting | Case |
Dimensions | 22" X 14" X 9" |
Ratings | |
Operating Temperature | -40 to 85°C |
Warranty | 1 year |
Download Name | File Size |
Parsec Pitbull Datasheet | 4.85MB |
