Manufacturer: Axiomtek

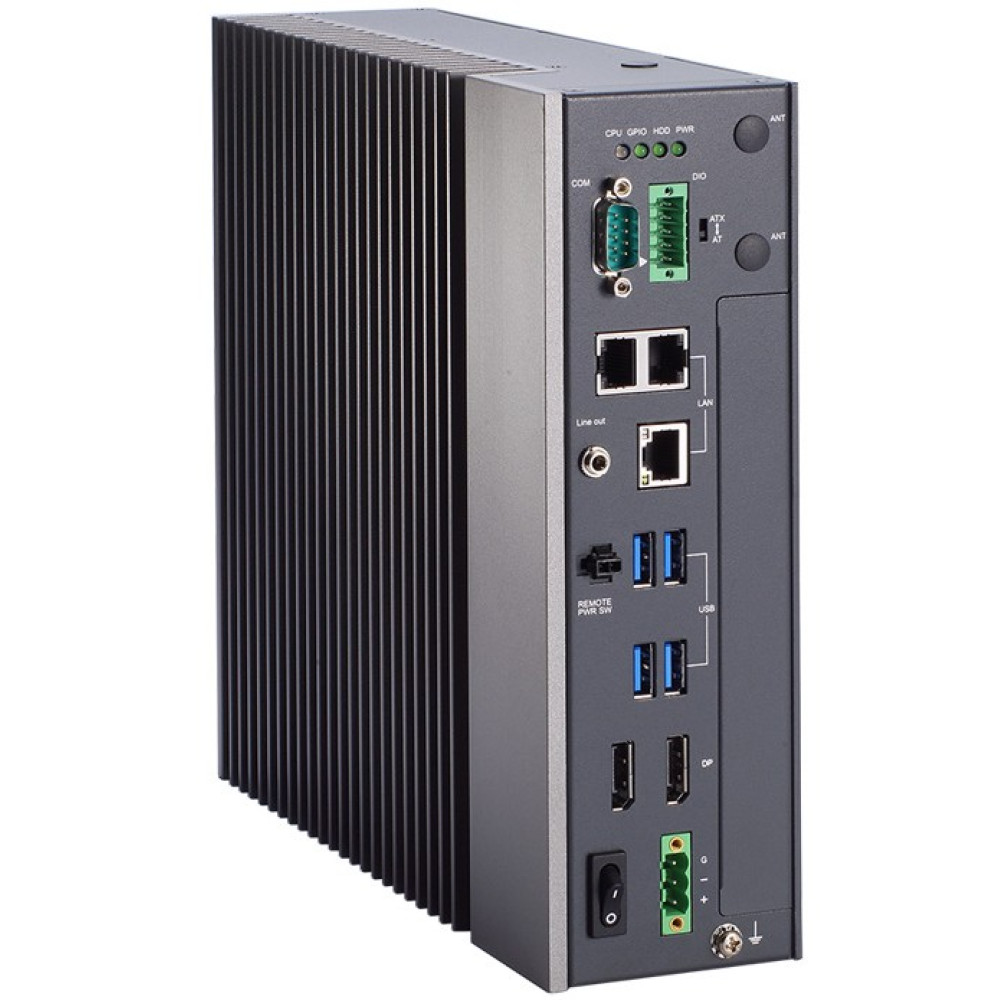

The IPC950 is a fanless, expandable and compact industrial computer powered by the 11th generation Intel Core i7-1185G7E processor. The compact industrial computer is designed to deliver powerful computing to handle heavy loading and multi-task applications in factory or machine automation.
The IPC950 supports Intel AMT for real-time remote device monitoring and management and Trusted Platform Module 2.0 (TPM 2.0) for security through major data encryption priorities. Moreover, the powerful industrial system supports DIN-rail, bookshelf and wall mounting. It is built to withstand harsh operating environments with a wide operating temperature range of -20°C to +50°C and a power input of 24V DC. Axiomtek’s IPC950 has a flexible extension I/O window slot with four choices of I/O modules including a four-port RS-232/422/485 module (AX93511); a four-port isolated RS-232/422/485 module (AX93516); a one-port GbE Ethernet, two-port USB 3.0 and two-port RS-232/422/485 module (AX93519); and a two-port isolated RS-232/422/485 and 8-in/8-out DIO module (AX93512).
The IPC950 adopts the 11th generation Intel Core processor which features Intel Iris Xe graphics, allowing it to deliver massive improvements in processing, graphics and AI performance. This fanless industrial computer is built for AI, deep learning and similar applications requiring high-speed processing, computer vision and low-latency deterministic computing. The ruggedized IPC950 provides a full-size PCIe Mini Card slot and one SIM card slot for Wi-Fi, Bluetooth as well as 4G/LTE modules, and an M.2 Key E 2230 socket for wireless connection. One 2.5" HDD/SSD bay and one M.2 Key B+M 2280 socket for extensive storage needs are also available.
The Intel Core-based all-in-one computer supports two DDR4-3200 unbuffered SO-DIMM slots with a maximum of 64GB system memory. It comes with front-facing I/O connectors including one 2.5GbE LAN port with Intel Ethernet Controller I225-LM, two GbE LAN ports with IntelEthernet Controller I211-AT, one RS-232/422/485 port, 8-CH programmable DIO, four USB 3.1 ports, one internal USB 2.0 port, two DisplayPort++, and one audio (line-out), one 3-pin terminal block.
2.5” SATA HDD/SSD
M.2 Key M 2280 NVMe SSD
DDR4-3200 MT/s un-buffered SO-DIMM, up to 64GB
DIN-rail mounting kit
Wall mount kit
Adaptor 24V/120W, wire only
Contact Westward Sales today for optional modules and accessory pricing on this Fanless Industrial System.
| Computing | |
| System Type | Industrial PC |
| CPU | Intel Core i9/i7/i5/i3 |
| CPU Chipset | SoC integrated |
| System Memory Configuration | 2 x DDR4-3200 MT/s un-buffered SO-DIMM, up to 64GB |
| Maximum System Memory | 64 GB |
| Drive Storage | 1 x 2.5" HDD/SSD bay, 1 x M.2 Key B+M 2280 socket (SATA interface) for SSD |
| Expansion Slots | M.2 Key E 2230 socket, 1 SIM slot |
| Operating Systems | Win 10, Win 11, Win 10 IoT, Win 11 IoT, and Linux OS |
| Interfaces | |
| USB | 4 x USB 3.1 (10G) Type A, 1 x internal USB 2.0 for license key usage, up to 20 mm |
| Serial | 1 x RS-232/422/485 (default RS-232, BIOS selection) |
| Video Ports | 2 x DisplayPort++ 1.2 |
| Audio | 1 x Line-out |
| Power | |
| Power Consumption | 15 W |
| Input Voltage | 24 VDC |
| Mechanical | |
| Enclosure | Aluminum extrusion heavy-duty cold-rolled steel |
| Mounting | DIN-rail, Wall mount |
| Weight | 4 kg (8.82 lb) |
| Dimensions | 69.5 x 225 x 230 mm (2.73" x 8.85" x 9") |
| Ratings | |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
| Humidity | 10 to 95% non-condensing |
| Certifications | CE (EN 61000-6-4/EN 61000-6-2), FCC |
| Download Name | File Size |
| Axiomtek IPC950 Datasheet | 380.88KB |
| Axiomtek IPC950 User's Manual | 2.43MB |
