Axiomtek IPC980 Fanless Computer, Intel Core Series 2 & 14th/13th/12th Gen Core i

Name: Axiomtek IPC980 Fanless Computer, Intel Core Series 2 & 14th/13th/12th Gen Core i
Brand: Axiomtek
SKU: IPC980
Price: 0.01 USD
Availability: OnlineOnly

New

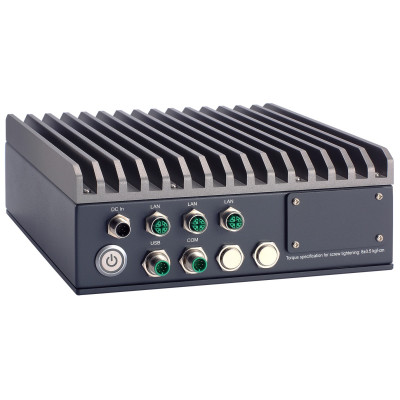

Axiomtek IPC980 Fanless Computer withIntel Core Procesors Series 2 & 14th/13th/12th Gen Intel i, Intel H610E, LGA-1700 socket

Model: IPC980
Availability: Contact Westward Sales

Manufacturer: Axiomtek

Standard Shipping & Handling

NCNR: YES

Qty: Request a Quote

Add to Wish List Add to Compare

Description Specifications Downloads

Axiomtek IPC980 Fanless Computer, Supports LGA1700 Socket for 14th/13th/12th Gen Intel Core i, H610E

The IPC980 is a fan-less systems that can support LGA1700 socket for Intel Core Series 2 Processors (Bartlett Lake-S) and 14th/13th/12th Generation Intel Core i9/i7/i5/i3 processors, up to 65W. The IPC980 is also built with a rugged design that makes the system suitable for the most endurable operation. For operation systems, the IPC980 not only supports Windows 11 64-bit, Windows 10 64-bit and Ubuntu, but also supports embedded OS.

Key Features

Intel Core Processors Series 2 & 14th/13th/12th Gen Intel Core i processor
LGA1700 Socket
Intel H610E chipset
Intelligent power management: Ignition and USB power on/off control

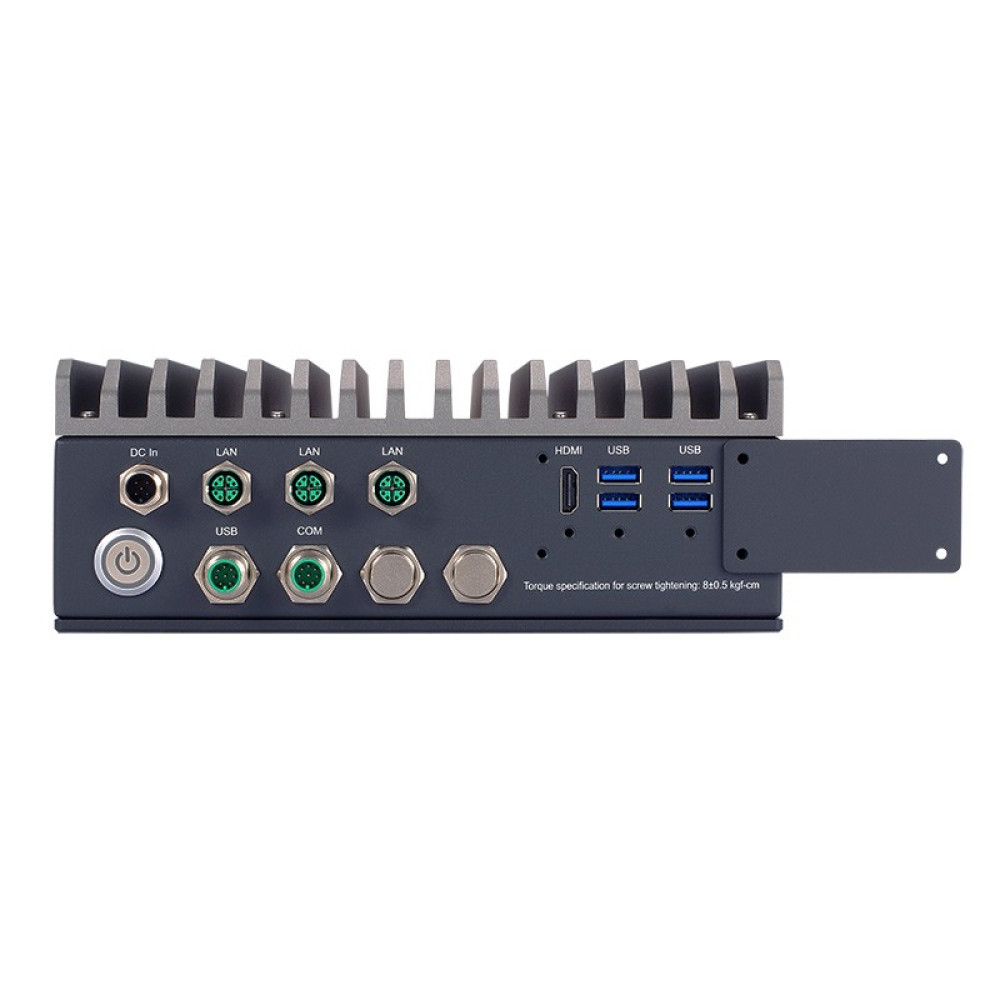

Easy expansion via flexible I/O window
Optional wall mount kit
IP67 rated
EN 61000-6-2 certified

Accessories Available

2.5” SATA HDD/SSD
DDR5 5600/4800 non-ECC SO-DIMM
Wall mount kit

Call Westward Sales today for customized pricing on this Industrial PC.

Computing
System Type	Industrial PC
CPU	Intel Core i9/i7/i5/i3 \| Intel Core Ultra
CPU Chipset	Intel H610E
System Memory Configuration	2 x 262-pin DDR5 5600/4800 non-ECC SO-DIMM, up to 96GB
Maximum System Memory	96 GB
Drive Storage	1 x SSD/HDD drive bay (7/9.5/15 mm height), 1 x SSD/HDD drive bay (optional, 7/9.5/15 mm height, project-base support)
Expansion Slots	1 x full-size PCI Express Mini Card slot (USB & PCIe interface) with SIM slot, 2 x blank I/O openings are reserved for expansion
Operating Systems	Windows 10, Windows 11, Windows 10 IoT, Windows 11 IoT, Linux OS
Interfaces
USB	2 x USB 2.0 (M12 A-coded), 4 x USB 3.2 Gen 1 (5G) Type-A, 1 x USB 2.0 (internal, up to 30 mm) 180D Type-A
Serial	1 x RS-232 (4-wire)/RS-422/485 (default: RS-232, M12 A-coded)
Video Ports	1 x HDMI 1.4b with 4096 x 2160 resolution supported
Power
Power Consumption	65 W
Input Voltage	18-36 VDC
Mechanical
Enclosure	Aluminum extrusion heavy-duty cold-rolled steel, IP67
Mounting	Wall mount
Weight	4.8 kg (10.58 lbs.)
Dimensions	255 x 230 x 86.5 mm (10.04 x 9.06 x 3.41 in.)
Ratings
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +80°C
Humidity	10 to 90% non-condensing
Certifications	CE (EN 61000-6-4/EN 61000-6-2), FCC

Download Name	File Size
Axiomtek IPC920 Datasheet	566.67KB
Axiomtek IPC920 User's Manual	3.8MB

Tags: IPC980, IPC980-H-F1
