Manufacturer: Axiomtek

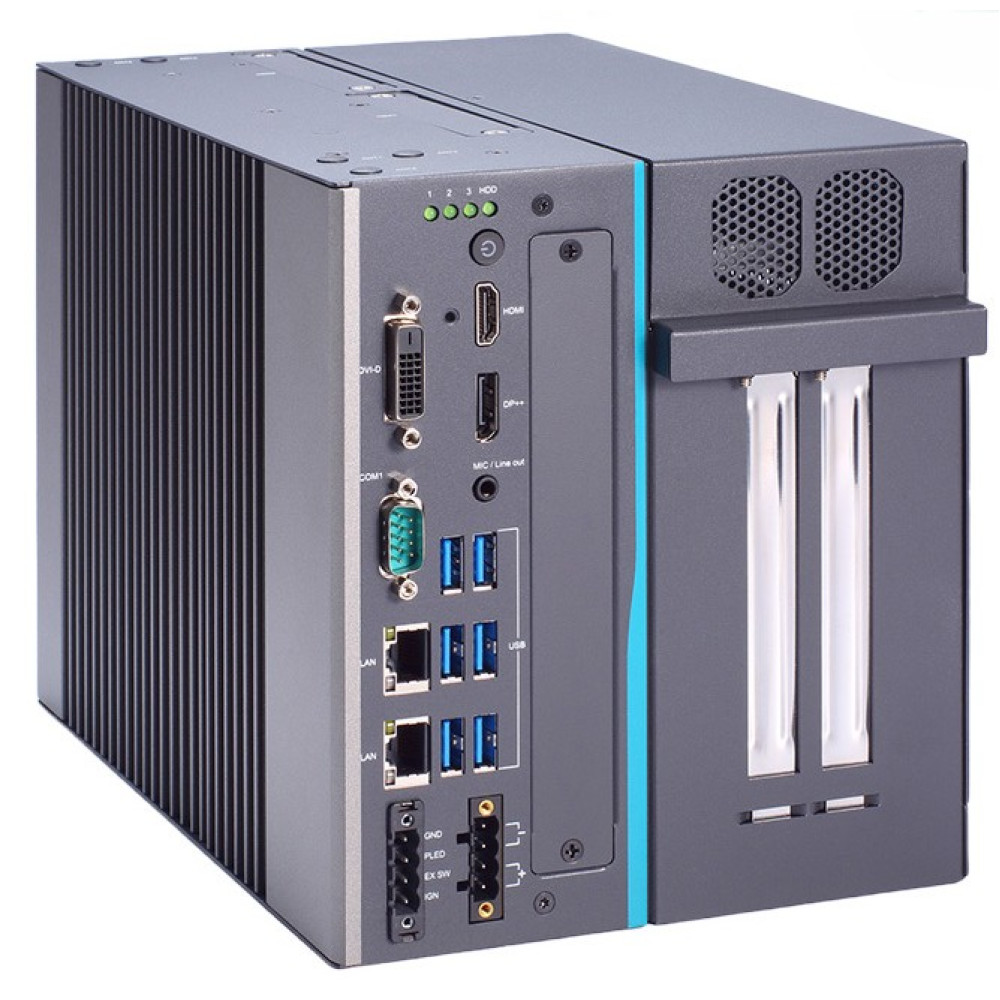

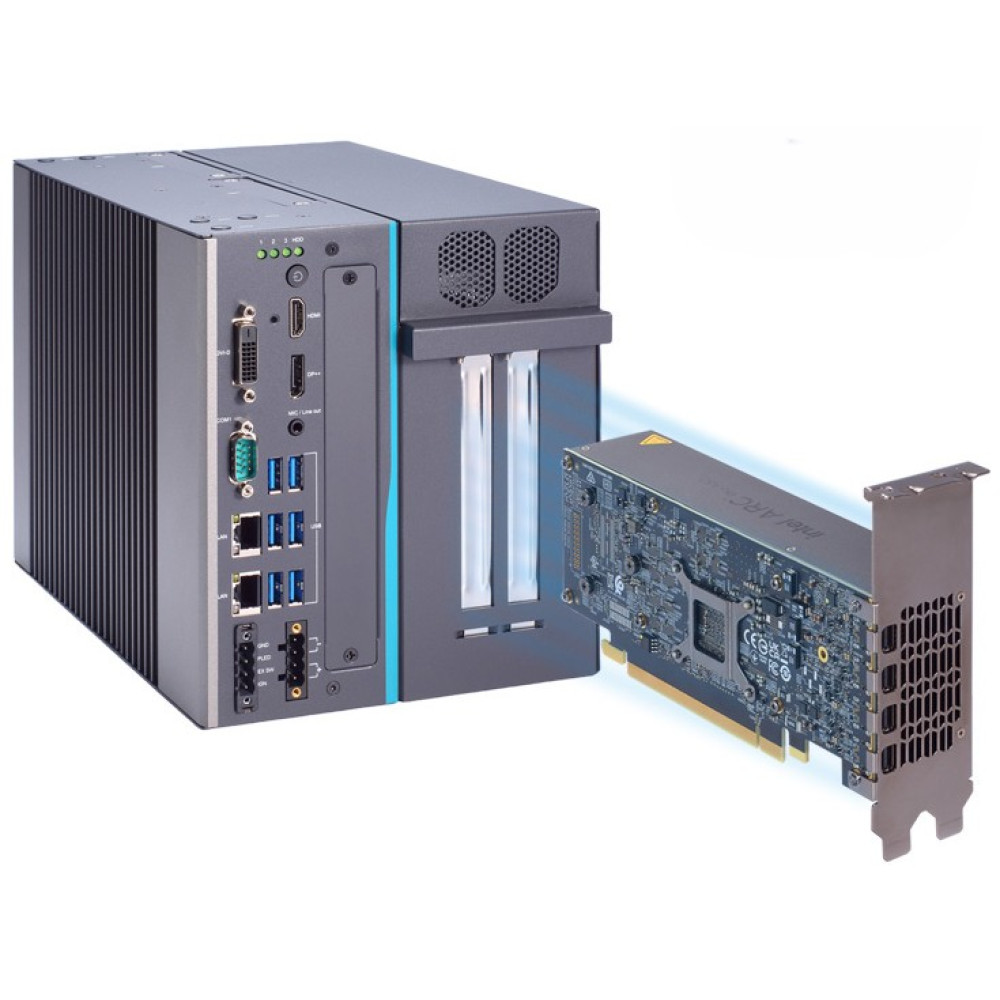

The IPC962A is a robust, fanless 2-slot industrial embedded PC built for AI, machine vision, and automation that supports LGA1700 socket 14th, 13th, and 12th generation Intel Core i9/i7/i5/i3, or Celeron processors. It features two DDR5 SO-DIMM slots, supporting up to 96GB of non-ECC 4800 MHz memory. It is highly expandable, offering one high-speed PCIe x16 Gen 4 slot plus one PCIe x8 (x4 signal) Gen 4 slot or an optional PCI slot, allowing for the addition of various cards like GPUs, vision, or motion cards. It also includes a full-size Mini PCIe slot and M.2 sockets for optional Wi-Fi or 5G modules.
Built with heavy-duty, cold-rolled steel and aluminum extrusion construction, it has a wide operating temperature range of -20°C to +60°C (-4°F to 140°F). It is also certified to industrial standards for electromagnetic compatibility (EN61000-6-2).
IPC962A-Q-E1F5, Industrial system with Intel Q670E, 2 PCIe slots, and blank extension system I/O cover
IPC962A-H-E1F5, Same as above with Intel QH610E
Contact Westward Sales today for optional modules and accessory pricing on this Fanless Industrial System.
| Technology | |
| Ethernet Ports | 1 x 2.5GbE LAN, 1 x 1GbE LAN |
| Computing | |
| System Type | Industrial PC |
| CPU | Intel Core i9/i7/i5/i3 | Intel Celeron |
| CPU Chipset | Intel H610E/Q670E |
| System Memory Configuration | 262-pin DDR5 4800 non-ECC SO-DIMM, up to 96GB |
| Maximum System Memory | 96 GB |
| Drive Storage | 2 x 2.5" HDD/SSD bay (Intel H610E), 2 x 2.5" HDD/SSD bay, 1 x M.2 Key M 2280 socket (Q670E) |
| Expansion Slots | UP to 230W power for add-in card, 1 x USB 2.0 (180D Type-A), 1 x PCIe x16 Gen 4 + 1 x PCIe x8 (x4 signal) Gen 4, 1 x full-size PCI Express Mini Card slot (USB & PCIe interface) with SIM slot |
| Operating Systems | Win 10, Win 11, Win 10 IoT, Win 11 IoT, and Linux OS |
| Interfaces | |
| USB | 2 x USB 3.2 Gen2 (10G) Type-A, 2 x USB 3.2 Gen1 (5G) Type-A, 2 x USB 2.0 |
| Serial | 1 x RS-232/422/485 (default RS-232, COM1) |
| Video Ports | 1 xDisplayPort++, 1 x HDMI, 1 DVI-D |
| Audio | 1 x 3.5mm jack for Mic-in and Line-out |
| Power | |
| Power Consumption | 65 W |
| Input Voltage | 18 to 36 VDC |
| Mechanical | |
| Enclosure | Aluminum extrusion and heavy-duty steel |
| LED Indicators | 1 x HDD/SSD access LED, 3 x User's LED, power |
| Weight | 5.1 kg (11.24 lb) |
| Dimensions | 170 x 192 x 260 mm (6.69" x 7.56" x 10.24") |
| Ratings | |
| Operating Temperature | -20°C to +60°C |
| Humidity | 10 to 90% non-condensing |
| Certifications | CE/FCC |
| Download Name | File Size |
| Axiomtek IPC962A Datasheet | 447.97KB |
| Axiomtek IPC96xA Series User's Manual | 4.1MB |
