WSH05B-I600 Portable WiFi Hotspot, Powered by Ericsson Cradlepoint IBR600 Router

Portable Wireless Hotspot with Ericsson Cradlepoint IBR600, MIMO LTE, WIFI, & GPS Antennas
Model: WSH05B-I600
Availability: 3 - 4 Weeks or Less
Brand: Westward Electronics
Standard Shipping & Handling

Choose Options


* Cloud Management:

* Power:

Qty: Add to Cart

Mobile Network w/Ericsson Cradlepoint IBR600 and High-Performance Antennas, Battery Powered

Quickly deploy an emergency hotspot or portable wifi device with the high-performance WSH05B-I600 mobile communication case from Westward Sales. This portable cellular hotspot case, outfitted with a Ericsson Cradlepoint IBR600 router and Parsec Technologies’ high-performance antennas, delivers Internet connectivity through cellular and Wi-Fi connections to users in the field. It’s designed for remote or congested areas where the cellular coverage is poor or compromised. The self-contained system provides instant communications to first responders, government agencies, and rescue units facing emergencies and disaster relief. The portable cellular hotspot case is also ideal for security and surveillance, pop-up broadband, temporary monitoring, outdoor events, construction sites, and other mobile networking applications.

The protective antenna case provides 2x2 MIMO LTE, dual-band 2x2 MIMO Wi-Fi, and GPS/GNSS elements in the lid. A Ericsson Cradlepoint IBR600C cellular router is mounted on the bottom panel and powered by an internal 12 VDC rechargeable battery. One powered by 110 VAC is available by request. The impact and water-resistant shipping case protects against harsh outdoor conditions and transportation risks.

Components of the WSH05B-I600 Portable Cellular Hotspot Case

The portable cellular hotspot case comes fully wired and tested. All you need to do is provide a SIM card with a data plan*. The kit includes the IBR600C cellular router, high-performance antennas, a rugged carrying case, internal cabling, and a rechargeable battery for power.

Onboard Ericsson Cradlepoint IBR600 Cellular Router
  • Advanced 4G LTE router (Cat 4) with NetCloud management
  • Verizon, AT&T, and T-Mobile support
  • 2 SIM card slots with automatic carrier switching
  • Ethernet, WiFi, and passive GPS interfaces
Cradlepoint IBR600C Cellular Router
IBR600 LTE Router
Antennas (built into case lid)
  • Omnidirectional LTE, Wi-Fi, and GPS (5 total antennas)
  • 2x2 MIMO LTE frequencies from 600 MHz to 6 GHz
  • 2x2 MIMO Wi-Fi support 2.4 and 5 GHz frequencies
  • GPS tracking
  • Superior isolation and efficiency
Parsec Beagle Antenna Case

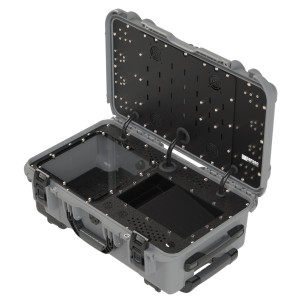

Rugged Carrying Case
  • Waterproof and dustproof IP67-rated carrying case
  • Metal mounting panel for securing IBR600C and optional battery pack
  • -40 to 85°C operating temperature range
  • Cooling fan with exhaust port (-DC battery version)
  • Two RJ45 ports and power connector with protective circular covers


Battery Power (Option 1 - Standard)
  • Long-life rechargeable battery
  • Battery operation time up to 18 hours
  • LED indicates charge status
  • AC/DC battery charger included
  • Powers hotspot with battery or AC input (via charger)
PowerAdd Rechargeable Battery Pack
AC Power (Option 2)
  • Accepts 110 VAC power
  • Includes AC cord
  • No battery


Westward Sales provides NetCloud Advanced plans, and other customizations. Contact us for a quote.

Need an IoT Data Plan?

Enable your WSH05B-I600 with a cost-effective monthly data plan to ensure your router is ready to deploy. Select Verizon, T-Mobile, or AT&T, and the data plan size from 100 MB to Unlimited GB. You are billed monthly; there’s no long-term contract. Plus, manage all of your fielded gateways from a single cloud-based web portal.

You can purchase a SIM card from this page. It will be mailed to you in 2 to 3 business days. After you receive your card, sign up for a data plan at Mobility Help Desk. The set up instructions are on this page.

Operation

The WSH05B-I600 portable cellular hotspot case is preconfigured for quick deployment. Before you begin, be sure the battery is fully charged. The system will operate while the battery charger is connected to AC power. An active NetCloud subscription and Verizon, AT&T, or T-Mobile data plan is required.

  1. First, unclasp the latches and open the case
  2. Insert your SIM into the router by removing 18 screws on the cover and 2 screws for the router to access the SIM slot.
  3. Open the fan and air exhaust caps
  4. Press the power button on the top panel
  5. The IBR600C router will connect to a cellular network and establish an Internet connection
  6. Connect devices such as laptops and phones to the WiFi or Ethernet port (two available).

A portable communication case (also known as a pop-up network, rugged W-iFi hotspot, portable cellular hotspot, mobile broadband kit, and network-in-a-box) offers reliability, high performance, and easy field deployment. It accommodates the latest generation of 5G-ready MIMO LTE, CBRS, LTE LAA, and MIMO WiFi wireless networks. By combining an Ericsson Cradlepoint IBR600 cellular router with the latest antenna technology, you get a mobile network to support emergency and remote situations. Contact a Westward Sales network specialist to see how a mobile cellular router system will enhance your communication needs.

Technology
CategoryOutdoor Hotspot
Wireless
5:1 Combination Antennas5:1 (2 LTE, 2 WiFi, GPS)
PatternOmnidirectional
Cellular Frequencies617 MHz - 5925 MHz
Wi-Fi Frequencies2.4 - 2.484 GHz, 4.9 - 5.9 GHz
PolarizationLinear (LTE/WiFi) and RHCP (GPS)
Interfaces
GPSYes
Power
Input VoltageChoice of 12 VDC rechargeable battery or AC input
Battery Specifications23000 mAh capacity, 85 Wh, 12 VDC output, 12 to 14 hours between charges, includes AC/DC charger
Mechanical
Cabling15-inch pigtails
Connector TypeSMA male (LTE and GPS), RP-SMA (WiFi)
Dimensions14.29” x 11.19” x 4.69”
Ratings
CertificationsIP67 rated (when closed)
