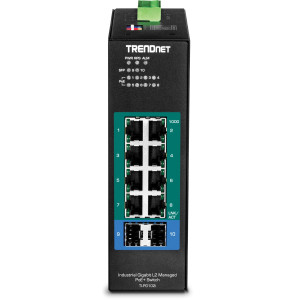

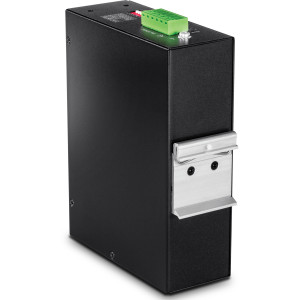

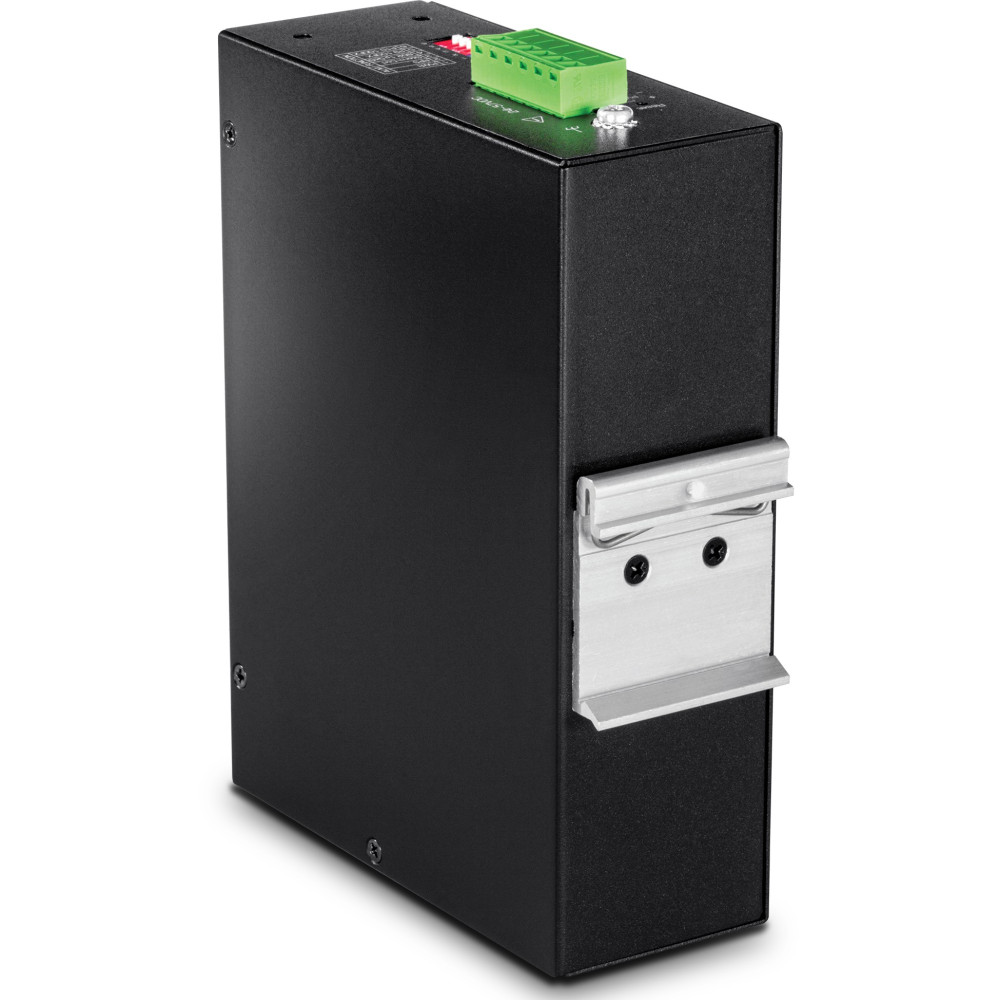

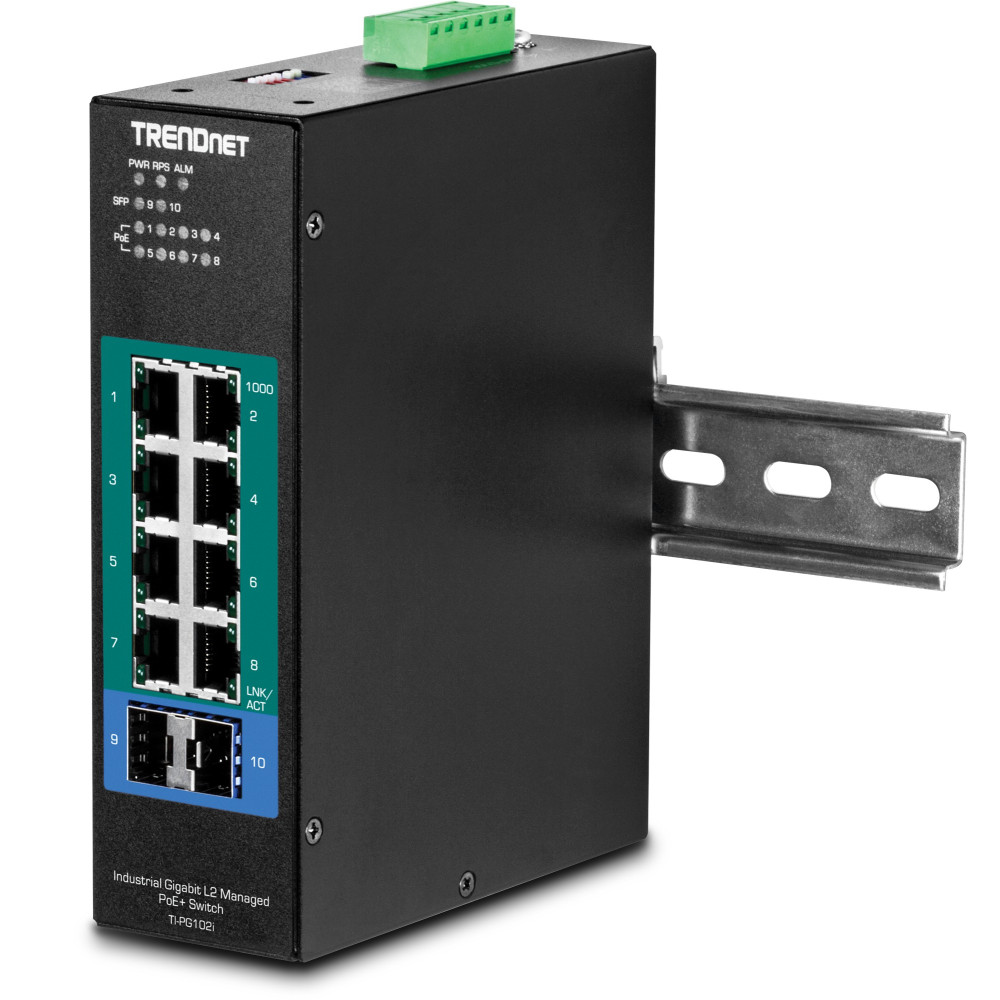

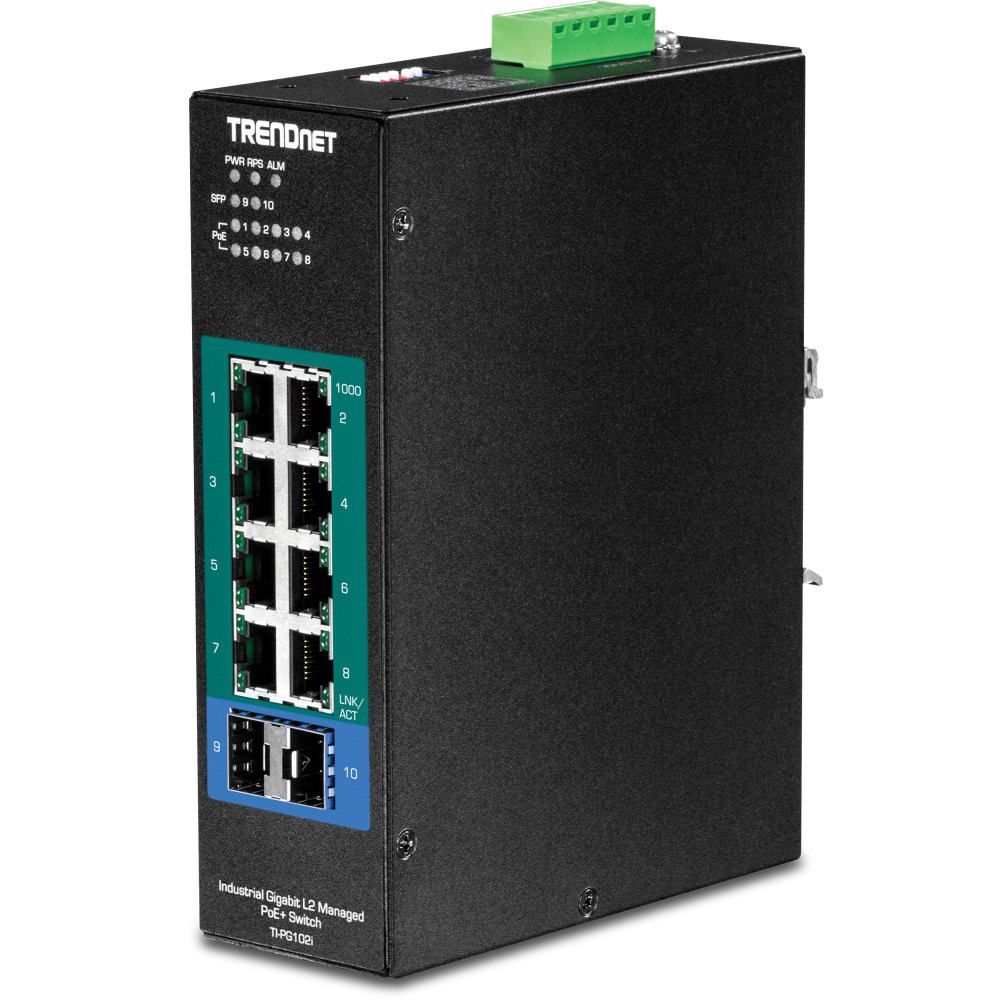

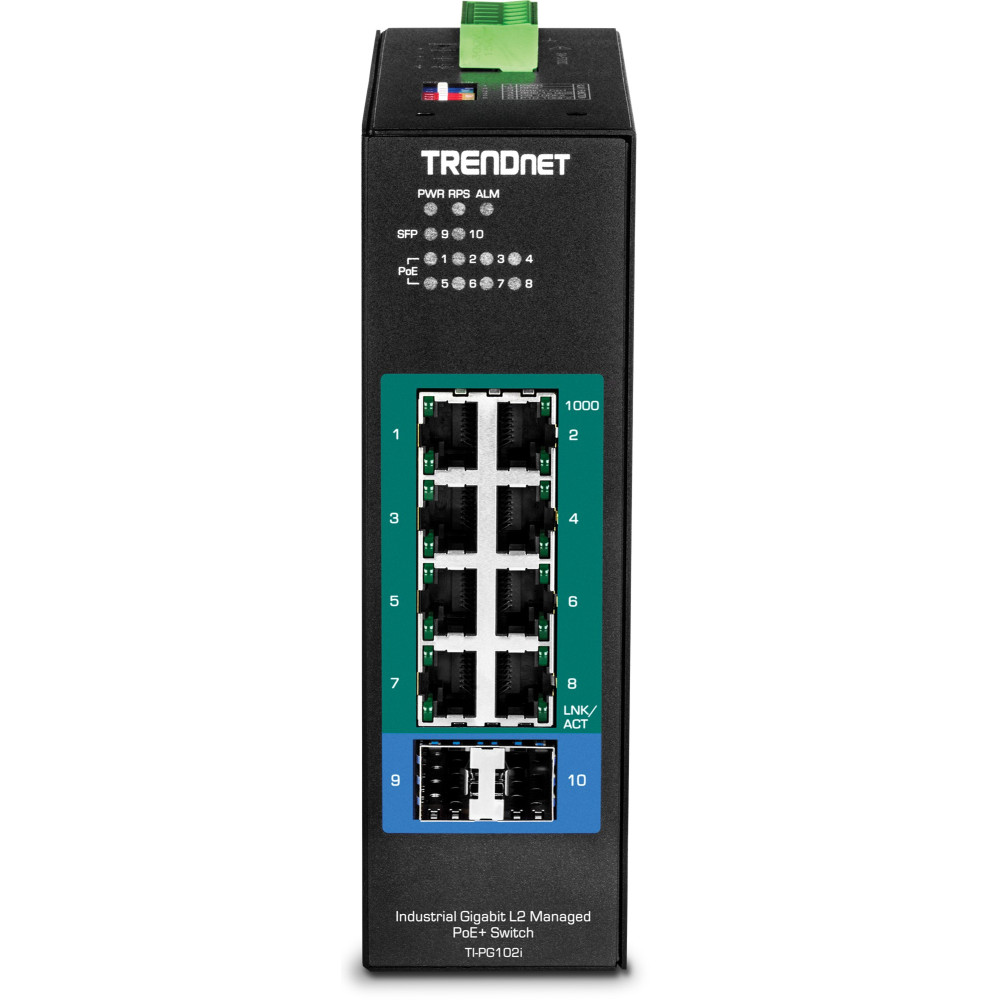

TRENDnet TI-PG102i 10-Port Industrial Gigabit PoE+ Layer 2 Managed DIN-Rail Switch

New TRENDnet TI-PG102i 10-Port Gigabit Ethernet Switch, 8 Gigabit PoE+, 2 SFP slot, 20 Gbps switching capacity, DIN-rail mount
Model: TI-PG102i
Availability: Normally in Stock
Standard Shipping & Handling
Qty: Add to Cart

TRENDnet TI-PG102i 10-Port Managed Gigabit Ethernet Switch, IP40, TRENDnet Hive Compatible

TRENDnet's TI-PG102i 10-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch features eight Gigabit PoE+ ports with a 240W PoE budget, and includes two SFP slots that support both 100Base-FX and 1000Base-FX modules for long distance fiber applications. The hardened switch is equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks.

TRENDnet Hive Cloud Management

TRENDnet Hive is a cloud management platform that provides a centralized cloud-based, remote network management solution for TRENDnet network devices. The TRENDnet Hive cloud networking solution offers better overall visibility of your network devices from a single intuitive and easy-to-use cloud interface. Advanced features supported with the Hive cloud networking solution include event and device hardware monitoring, traffic statistics, notification alerts, and troubleshooting tools. With the TRENDnet Hive network cloud manager, network device provisioning can be more easily accomplished through scheduled or immediate deployment of batch firmware and configuration updates. Reduce the time, complexity, and management costs of your network with the reliable TRENDnet Hive cloud networking solution.

Easily manage and configure the TI-PG102i Managed Switch remotely by updating the switch to the latest firmware for access to TRENDnet Hive.This cloud managed switch requires no additional hardware, server, or personal cloud with TRENDnet’s reliable cloud service. With the purchase of each compatible device the first year of TRENDnet Hive for 'Consumers and End Users' is free or you can upgrade to TRENDnet Hive Pro for 'Integrators and Partners' for a nominal annual fee.

Key Features

  • 8 Gigabit PoE+ ports
  • 2 SFP slots
  • Supports 100/1000Base-FX fiber SFP modules
  • PoE power budget: 240W@48VDC or 124W@24VDC
  • PoE alive check restarts unresponsive PoE powered devices
  • Remote cloud management with TRENDnet Hive (Additional fee applies)
  • 20Gbps switching capacity
  • Hardened IP40 rated metal housing
  • Includes DIN-rail mounting bracket
  • Operating temperature range of -40° - 75° C (-40° - 167° F)
  • Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
  • IEEE 802.1p QoS with queue scheduling support
  • Bandwidth control per port
  • Redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • Supports Ethernet Ring Protection Switching (ERPSv2)
  • Power supply sold separately
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty

In the Box

  1. TI-PG102i
  2. Quick Installation Guide
  3. Removable terminal block
  4. DIN rail mounting bracket

Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.

Technology
CategoryEthernet Switch (PoE)
Total Ports10
Ethernet Ports8 Gigabit PoE+
StandardsIEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab, IEEE 802.1ax, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at
Transfer RateEthernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2Gbps (full duplex)
Jumbo Frame Support10 KB
MAC Table Size8K
Power
PoE Power OutputUp to 30W per port
Power Consumption13W (no PoE load), 253W (full PoE load)
Connection6-pin terminal block
Input Voltage24-57 V DC
Overload ProtectionYes
Mechanical
MountingDIN-rail
Shock / VibrationShock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6)
MaterialIP40 metal case
Weight930g (2.05 lbs.)
Dimensions160 x 120 x 50mm (6.3 x 4.72 x 1.97 in.)
Ratings
Operating Temperature-40° - 75° C (40° - 167° F)
Humidity95% non-condensing
RoHS CompliantYes
CertificationsCE, FCC
MTBF562,234 hours @ 25° C, 142,948 hours @ 75° C
WarrantyLifetime
Tags: TI-PG102i
