Manufacturer: TRENDnet

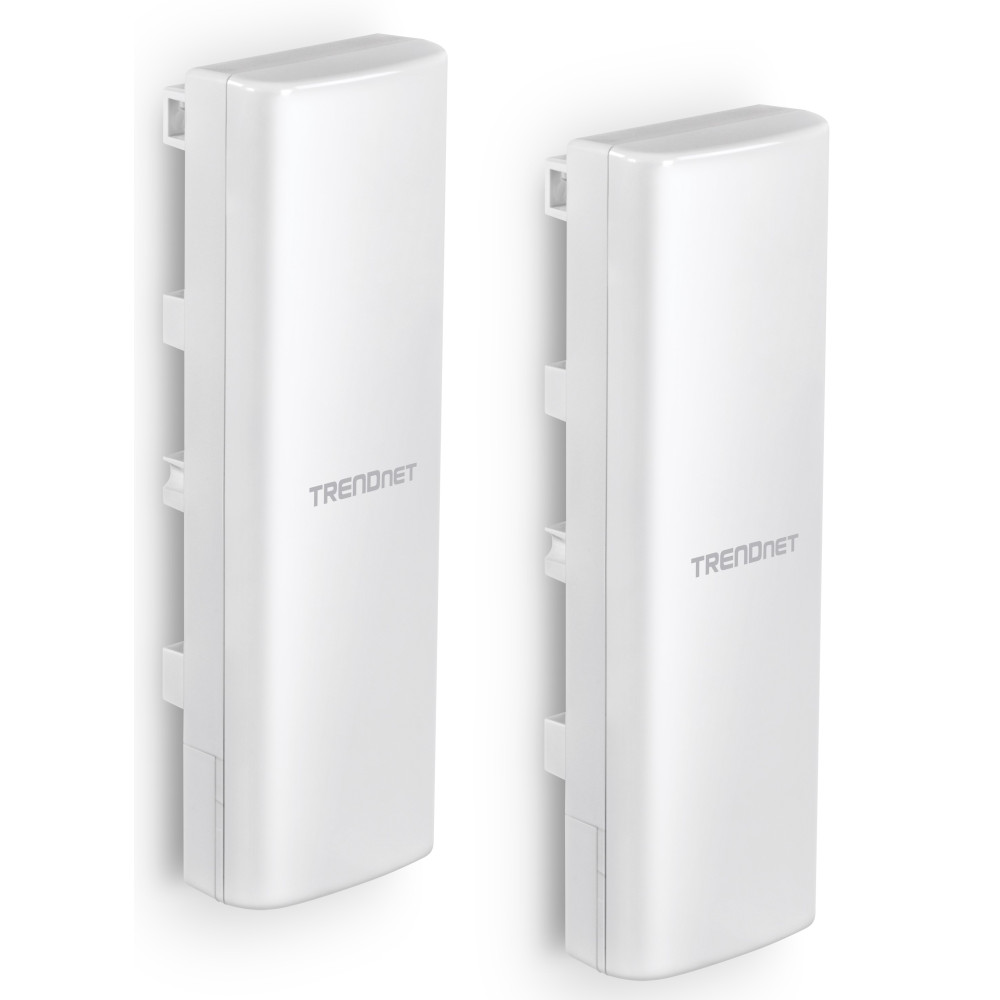

TRENDnet’s 14 dBi WiFi 6 AX1200 Outdoor PoE Preconfigured Point-to-Point Bridge Kit, TEW-940APBO2K, provides reliable, long-range wireless AX1200 point-to-point connectivity. This preconfigured 5GHz outdoor WiFi 6 bridge kit provides installers with the simplest way to create a long-distance wireless point-to-point bridge. The outdoor WiFi 6 bridge kit connects two locations with WiFi 6 AX1200 speed and performance. Faster speeds are possible with this outdoor point-to-point WiFi 6 bridge kit with OFDMA and MU-MIMO technologies. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance on the outdoor wireless access point when multiple devices access the network.
The IP55-rated housing is designed for outdoor environments and includes wall and pole mounting hardware.
| Technology | |
| Category | WiFi Access Point |
| Ethernet Ports | Two Gigabit Ethernet ports, one with PoE |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1d, IEEE 802.1Q VLAN, IEEE 802.1X, IEEE 802.11a, IEEE 802.11k, IEEE 802.11n (5GHz: up to 300Mbps), IEEE 802.11ac (5GHz: up to 867Mbps), IEEE 802.11ax (5GHz: up to 1201Mbps) |
| Wireless | |
| Wi-Fi Frequencies | 5.150 GHz-5.250 GHz, 5.725 GHz-5.850 GHz |
| Gain | 14 dBi |
| WLAN Operation Mode | Supports Access Point, Client Bridge, and Repeater modes |
| Number of Radios | 2 |
| Encryption Security | Wireless encryption: OWE (Opportunistic Wireless Encryption), WPA/WPA2/ WPA3-RADIUS (Enterprise), WPA-PSK/ WPA2-PSK/WPA3-SAE (Personal) |
| Power | |
| Power Consumption | 10.1 W |
| Output Voltage | 54V DC, 0.6 A proprietary/passive |
| Connection | Proprietary PoE power adapters included |
| Input Voltage | 100 - 220V AC, 50/60Hz, 0.8A |
| Mechanical | |
| Mounting | Wall and pole mounting hardware included |
| Weight | 598 g (21.09 oz.) per AP |
| Dimensions | 82 x 257 x 50mm (7.3 x 3.9 x 1.4 in.) per AP |
| Ratings | |
| Operating Temperature | -20 to 60° C (-4 to 140° F) |
| Humidity | 90% non-condensing |
| Certifications | FCC, IP55 |
| Warranty | 3-Year |
| Download Name | File Size |
| TRENDnet TEW-940APBO/TEW-940APBO2K User's Guide | 2.49MB |
| TRENDnet TEW-940APBO2K Datasheet | 971.67KB |
| TRENDnet TEW-940APBO2K Quick Installation Guide | 52.59MB |
