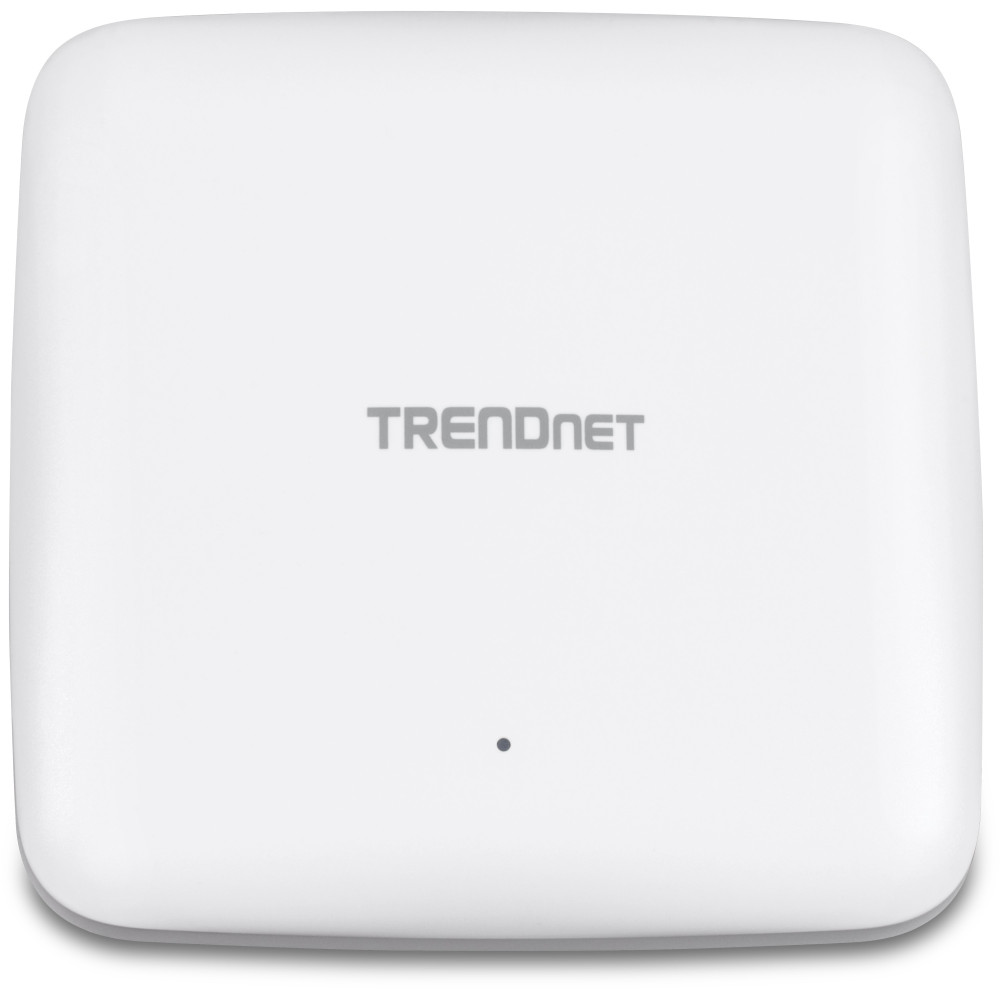

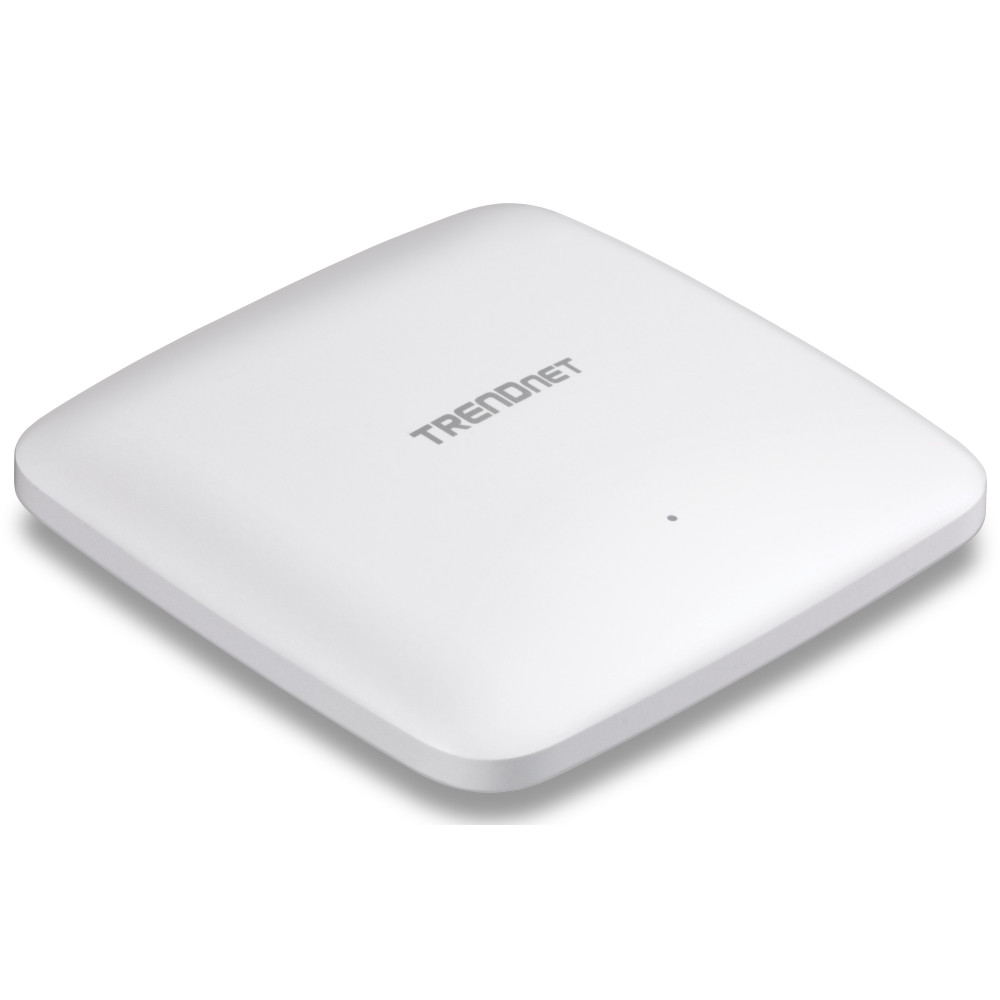

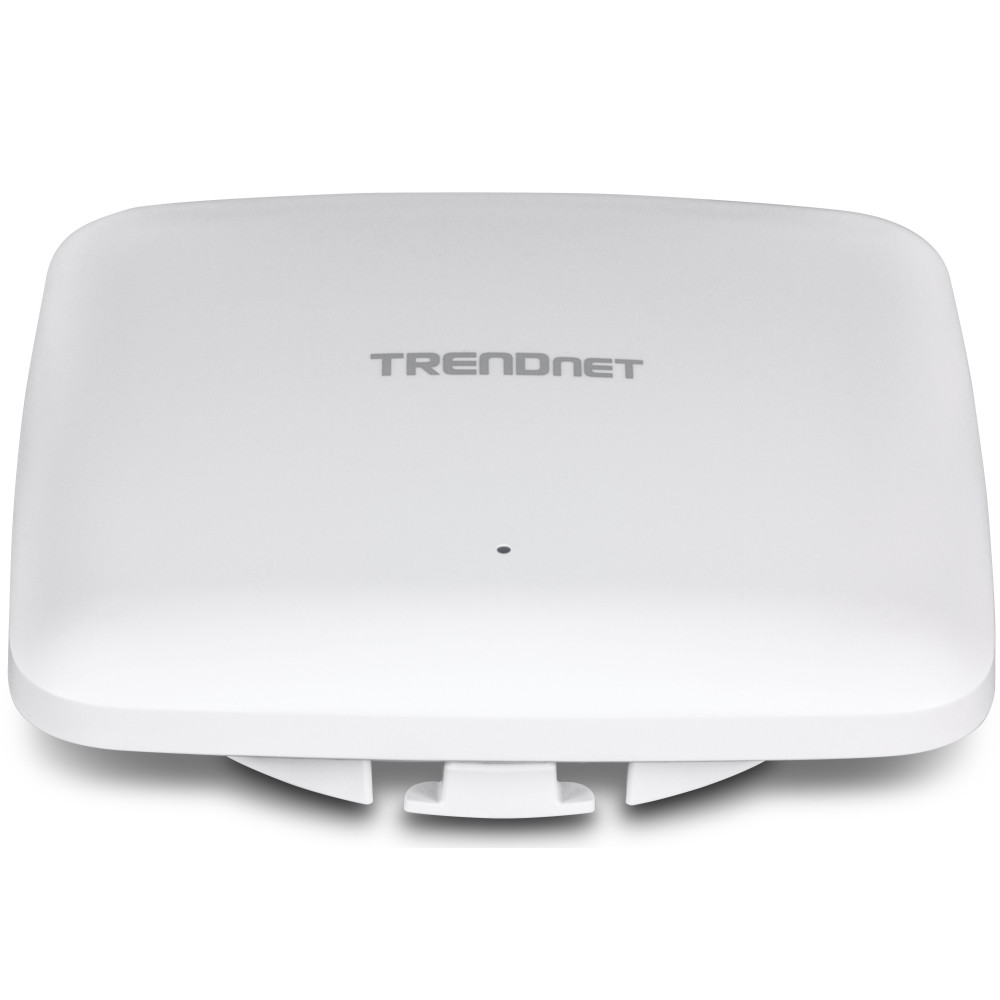

TRENDnet’s TEW-921DAP high-performance AX1800 Dual Band WiFi 6 PoE+ Access Point features two concurrent WiFi bands to maximize device networking speeds with the latest WiFi 6 technology. The two separate high-speed WiFi 6 bands provide speeds up to 1201Mbps on the 5GHz band, and 567Mbps on the 2.4GHz band. Faster speeds are possible on this WiFi 6 access point with 1024-QAM, OFDMA, and MU-MIMO technologies.
This WiFi 6 access point supports innovative networking technology that improves coverage, speed, and capacity. The increase of QAM to 1024-QAM allows data to flow through a much wider ‘pipe’ than previous WiFi technologies. With OFDMA (Orthogonal Frequency-Division Multiple Access), the number of clients that can be connected to this WiFi 6 access point increases. OFDMA efficiently manages traffic in congested areas by separating channel frequencies into different subcarriers. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance on the WiFi 6 AP when multiple devices access the network.

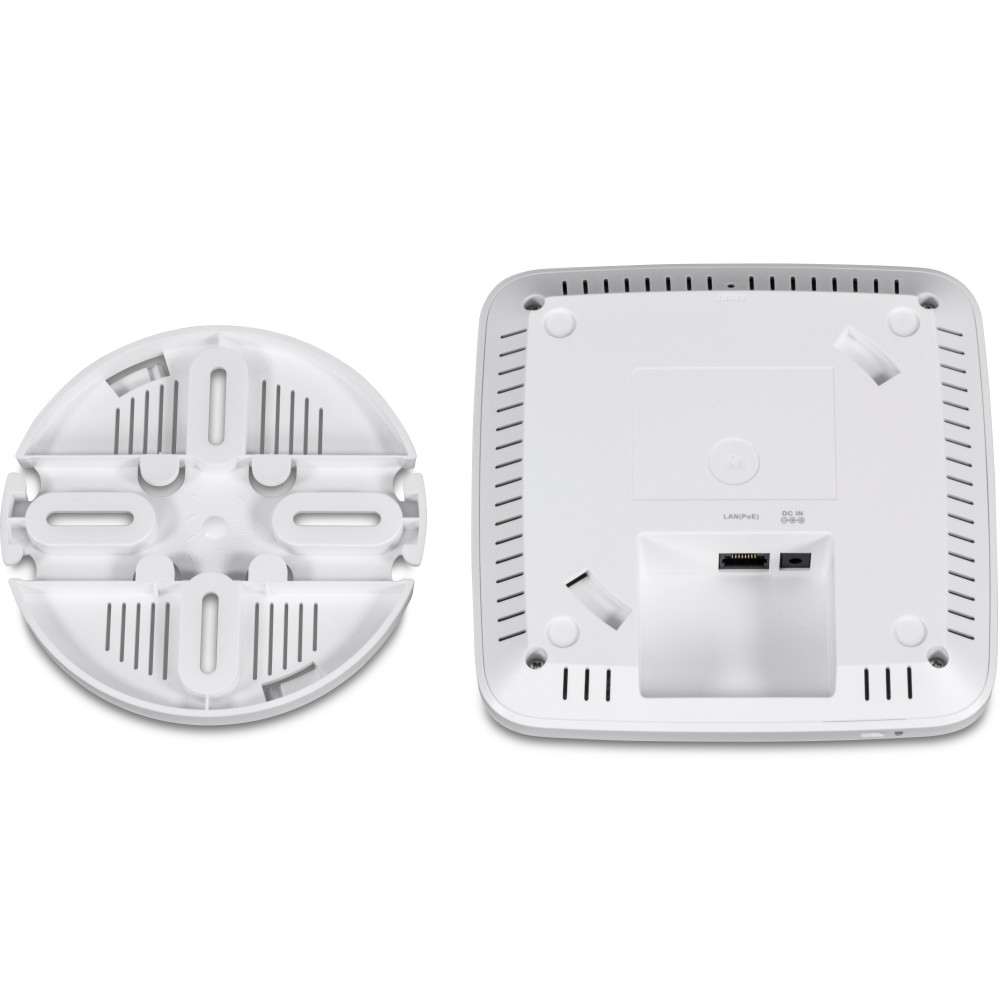

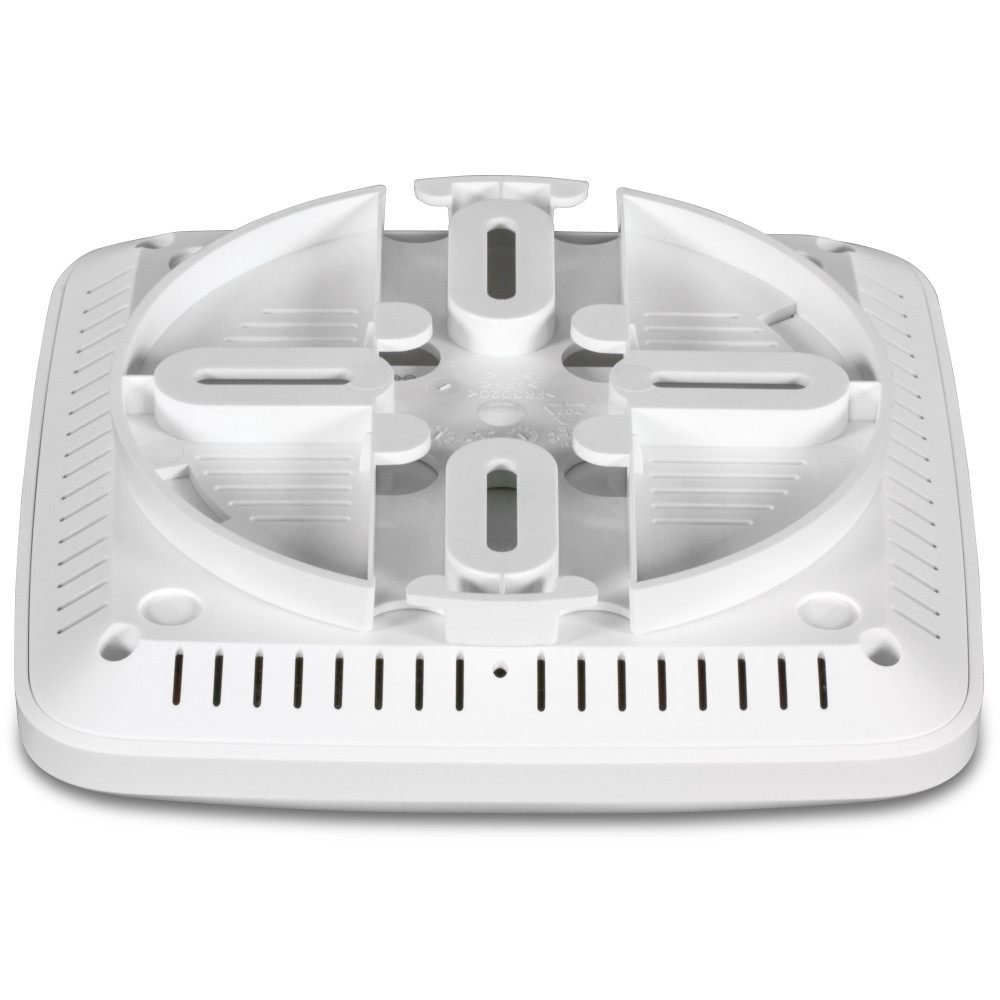

The TEW-921DAP WiFi 6 access point features advanced access control, QoS, traffic management, band steering, and captive portal support. The low-profile housing design seamlessly blends into most environments, with a convenient wall / ceiling mounting plate included. For application flexibility, the TEW-921DAP supports Access Point (AP), Client Bridge, Wireless Distribution System Access Point (WDS AP), WDS Bridge, WDS Station, and Repeater modes.
TRENDnet Hive is a cloud management platform that provides a centralized cloud-based, remote network management solution for TRENDnet network devices. The Hive cloud networking solution offers better overall visibility of your network devices from a single intuitive and easy-to-use cloud interface. Advanced features supported with the Hive cloud networking solution include event and device hardware monitoring, traffic statistics, notification alerts, and troubleshooting tools. With the TRENDnet Hive network cloud manager, network device provisioning can be more easily accomplished through scheduled or immediate deployment of batch firmware and configuration updates. Reduce the time, complexity, and management costs of your network with the reliable TRENDnet Hive cloud networking solution.
Easily manage and configure the TEW-921DAP remotely by updating the AP to the latest firmware for access to TRENDnet Hive.This cloud managed Access Point requires no additional hardware, server, or personal cloud with TRENDnet’s reliable cloud service. With the purchase of each compatible device the first year of TRENDnet Hive for 'Consumers and End Users' is free or you can upgrade to TRENDnet Hive Pro for 'Integrators and Partners' for a nominal annual fee.
Technology | |
Category | WiFi Access Point |

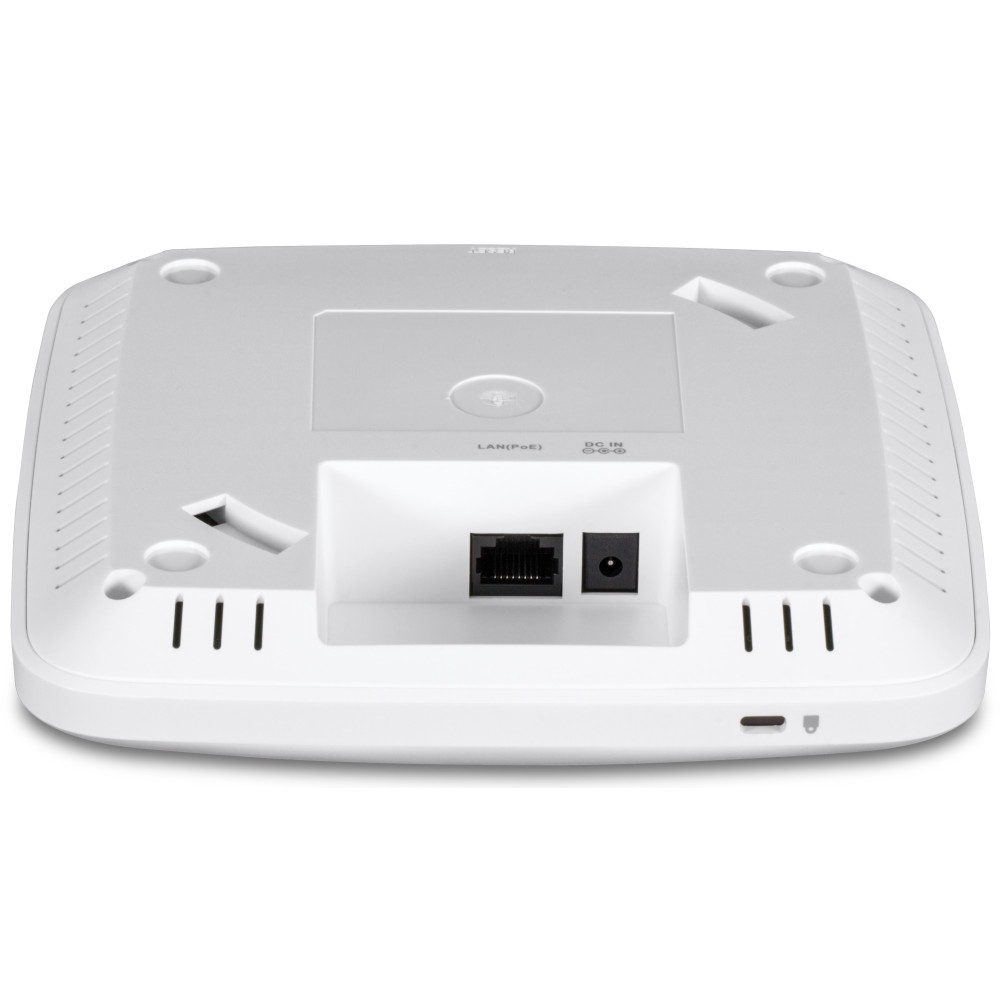

Ethernet Ports | 1 x Gigabit PoE-in LAN port |
Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3at, IEEE 802.1Q, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n (up to 400Mbps), IEEE 802.11r, IEEE 802.11v, IEEE 802.11w, IEEE 802.11ac Wave 2 (up to 867Mbps), IEEE 802.11ax (up to 1201Mbps) |
Wireless | |
Wi-Fi Frequencies | 2.412 - 2.472 GHz, 5.180- 5.320 GHz |
Gain | 4.3 dBi |
WLAN Operation Mode | Supports Access Point, Client Bridge, and Repeater modes |
Encryption Security | WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS, WPA3-PSK |
Power | |
Power Consumption | 15 W |
Mechanical | |
Mounting | Wall, Hardware included |
Weight | 486g (1.07 oz.) |
Dimensions | 160 x 160 x 34mm (6.3 x 6.3 x 1.34 in.) |
Ratings | |
Operating Temperature | -20° - 60° C (-4° - 140° F) |
Humidity | 95% non-condensing |
Certifications | FCC, CE |
Warranty | 3-Year |
Download Name | File Size |
TRENDnet TEW-921DAP Datasheet | 839.57KB |
TRENDnet TEW-921DAP/TEW-925DAP Quick Installation Guide | 5.18MB |
TRENDnet TEW-921DAP User's Guide | 2.11MB |
