TRENDnet’s TEW-925DAP high-performance AX5400 Dual Band WiFi 6 PoE+ Access Point features two concurrent WiFi bands to maximize networking speeds with the latest WiFi 6 technology. The two separate high-speed WiFi 6 bands provide speeds up to 4804Mbps on the 5GHz band and 573Mbps on the 2.4GHz band. The WiFi 6 access point also supports Access Point (AP) and Repeater modes.
Faster speeds are possible on this WiFi 6 access point with 1024-QAM, OFDMA, and MU-MIMO technologies. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network. The wireless access point features access control, bandwidth control, and band steering. The low-profile housing design blends into most environments, and includes a convenient wall / ceiling mounting plate.
TRENDnet Hive is a cloud management platform that provides a centralized cloud-based, remote network management solution for TRENDnet network devices. The Hive cloud networking solution offers better overall visibility of your network devices from a single intuitive and easy-to-use cloud interface. Advanced features supported with the Hive cloud networking solution include event and device hardware monitoring, traffic statistics, notification alerts, and troubleshooting tools. With the TRENDnet Hive network cloud manager, network device provisioning can be more easily accomplished through scheduled or immediate deployment of batch firmware and configuration updates. Reduce the time, complexity, and management costs of your network with the reliable TRENDnet Hive cloud networking solution.
Easily manage and configure the TEW-925DAP remotely by updating the AP to the latest firmware for access to TRENDnet Hive.This cloud managed Access Point requires no additional hardware, server, or personal cloud with TRENDnet’s reliable cloud service. With the purchase of each compatible device the first year of TRENDnet Hive for 'Consumers and End Users' is free or you can upgrade to TRENDnet Hive Pro for 'Integrators and Partners' for a nominal annual fee.
Technology | |
Category | WiFi Access Point |
Ethernet Ports | 1 x 2.5 Gigabit PoE-in LAN port |
Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bz, IEEE 802.1Q, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n (up to 300Mbps), IEEE 802.11r, IEEE 802.11v, IEEE 802.11ac (up to 1733Mbps), IEEE 802.11ax (up to 4804Mbps on 5GHz, up to 573Mbps on 2.4GHz) |
Wireless | |
Wi-Fi Frequencies | 2.412 - 2.472 GHz, 5.180- 5.825 GHz |
Gain | 5 dBi |
WLAN Operation Mode | Supports Access Point and Repeater modes |
Encryption Security | WPA2/WPA3-RADIUS (Enterprise), WPA2/WPA3-SAE (Personal) |
Power | |
Power Consumption | 18 W |
Mechanical | |

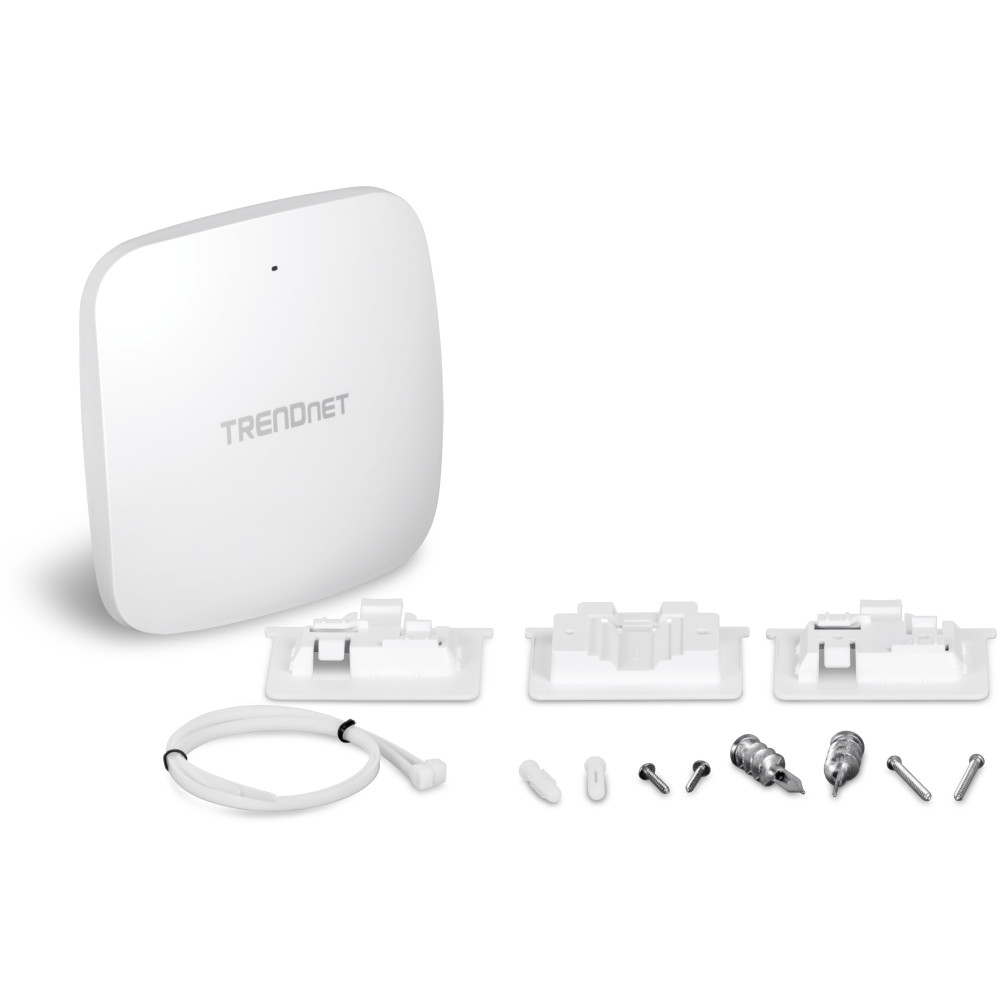

Mounting | Wall or ceiling, Hardware included |
Weight | 600g (21.16 oz.) |
Dimensions | 160 x 160 x 30mm (6.3 x 6.3 x 1.18 in.) |
Ratings | |
Operating Temperature | 0° – 40° C (32° – 104° F) |
Humidity | 90% non-condensing |
Certifications | FCC |
Warranty | 3-Year |
Download Name | File Size |
TRENDnet TEW-823DAP/TEW-923DAP/TEW-925DAP QIG | 3.66MB |
TRENDnet TEW-823DAP/TEW-923DAP/TEW-925DAP User Guide | 1.49MB |
TRENDnet TEW-925DAP Datasheet | 1.11MB |
