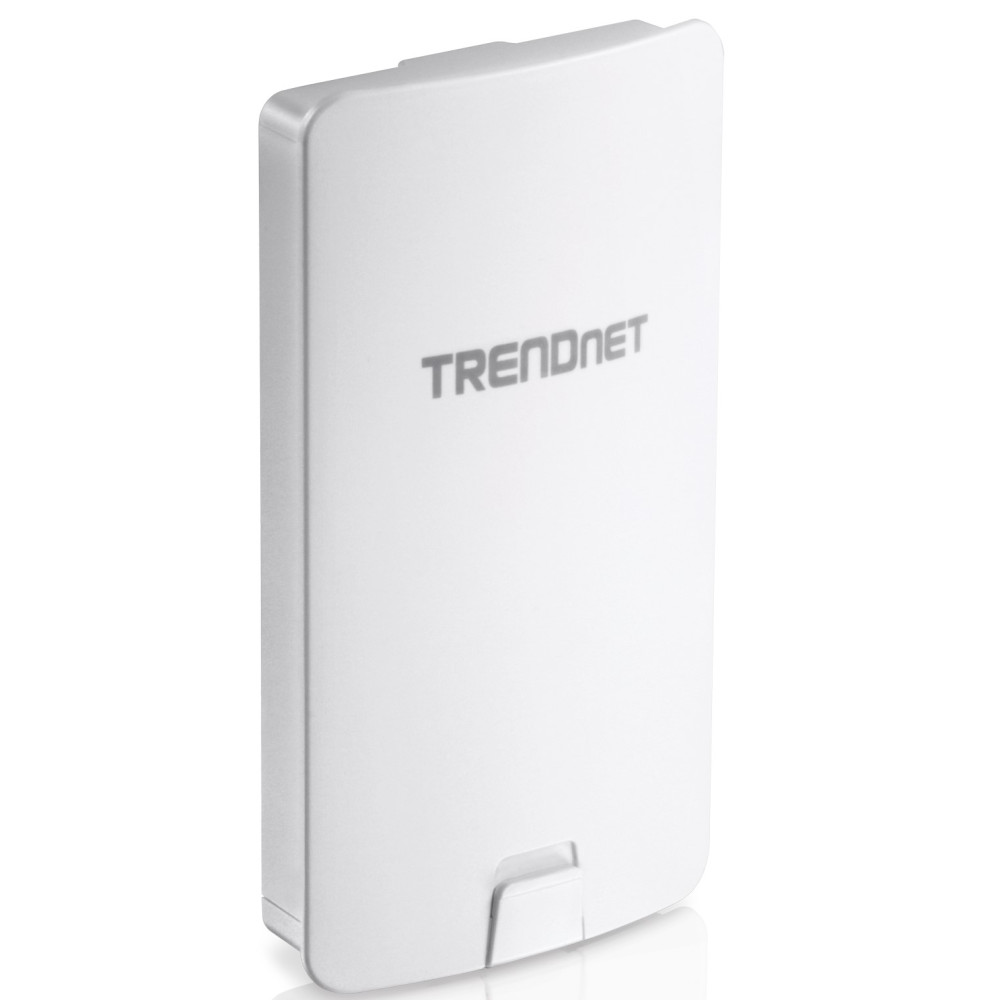

TRENDnet TEW-840APBO 5 GHz Directional PoE Access Point, 14 dBi Antenna, IP56

TRENDnet's TEW-840APBO 14 dBi WiFi AC867 Outdoor Directional PoE Access Point is designed for point-to-point WiFi bridging applications. The outdoor wireless access point supports a variety of installation scenarios with Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes. The IP56 rated housing is designed for outdoor environments, and includes wall and pole mounting hardware. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance on the outdoor wireless access point when multiple devices access the network.

Key Features

  • 5GHz WiFi AC867 point-to-point bridge
  • 14 dBi directional antenna
  • Supports Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes
  • Proprietary PoE power adapter included
  • IP56 outdoor weather rated housing
  • NDAA / TAA compliant (U.S. and Canada only)
  • 3-year warranty



TEW-840APBO Introduction

In the Box

  1. TEW-840APBO
  2. Proprietary/Passive PoE injector (24V DC, 0.6A)
  3. Mounting hardware
Technology
CategoryWiFi Access Point
Ethernet Ports1 x 10/100Mbps PoE-in port, 1 x 10/100Mbps port
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1d, IEEE 802.1Q VLAN, IEEE 802.1X, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11a IEEE 802.11r, IEEE 802.11k, IEEE 802.11n, IEEE 802.11ac
Wireless
Wi-Fi Frequencies5.150 GHz-5.250 GHz, 5.725 GHz-5.850 GHz
Gain14 dBi internal sector antenna
WLAN Operation ModeAccess Point (AP), WDS Access Point, WDS Bridge (CSMA mode only), WDS Station, Client Bridge
Number of Radios1
Encryption SecurityWPA/WPA2-PSK, WPA2-Enterprise
Power
Power Consumption9.5 W
Output Voltage24V DC, 0.6A proprietary/passive PoE injector
ConnectionProprietary PoE power adapter included
Input Voltage100 - 220V AC, 50/60Hz, 0.4A
Mechanical
MountingWall or pole, Hardware included
Weight268g (0.6 lbs.)
Dimensions185 x 100 x 35mm (7.3 x 3.9 x 1.4 in.)
Ratings
Operating Temperature-22° - 60° C (-7.6° - 140° F)
Humidity90% non-condensing
CertificationsFCC, IP56
Warranty3-Year
