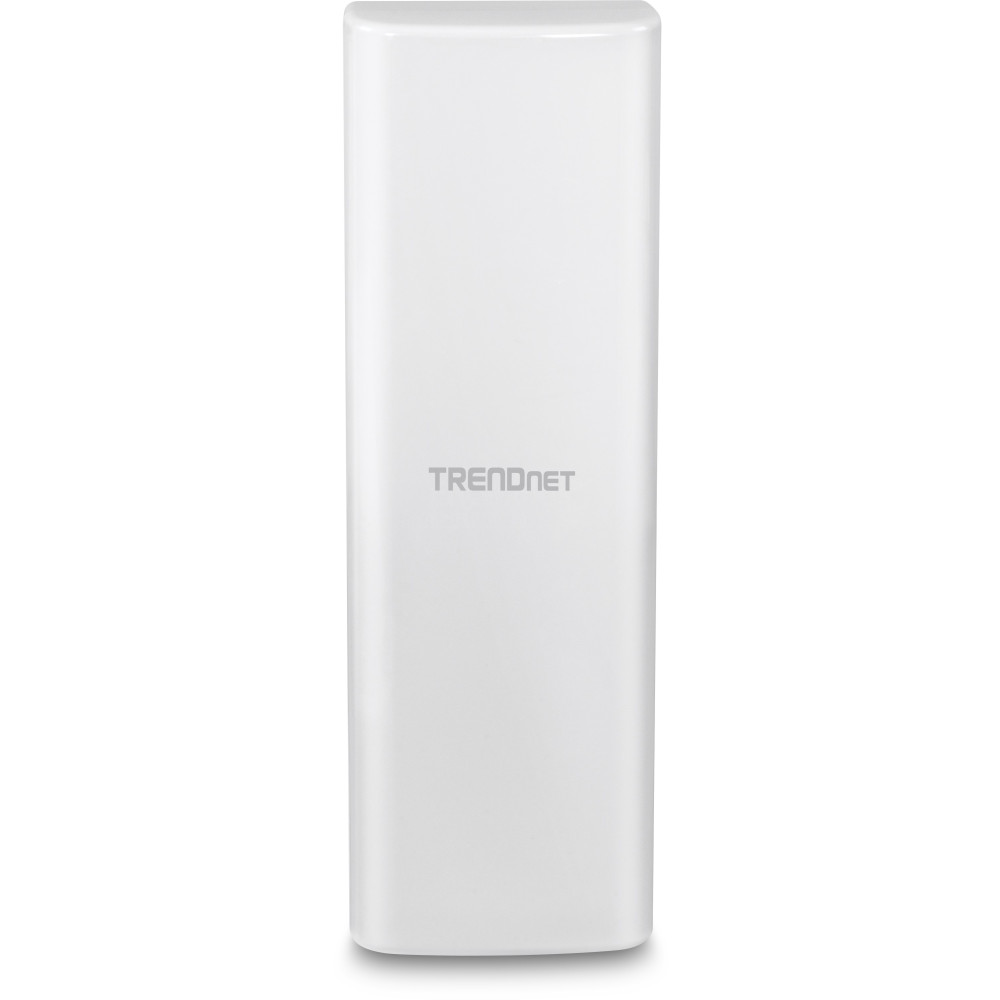

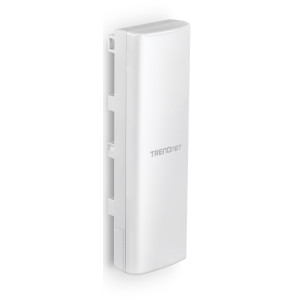

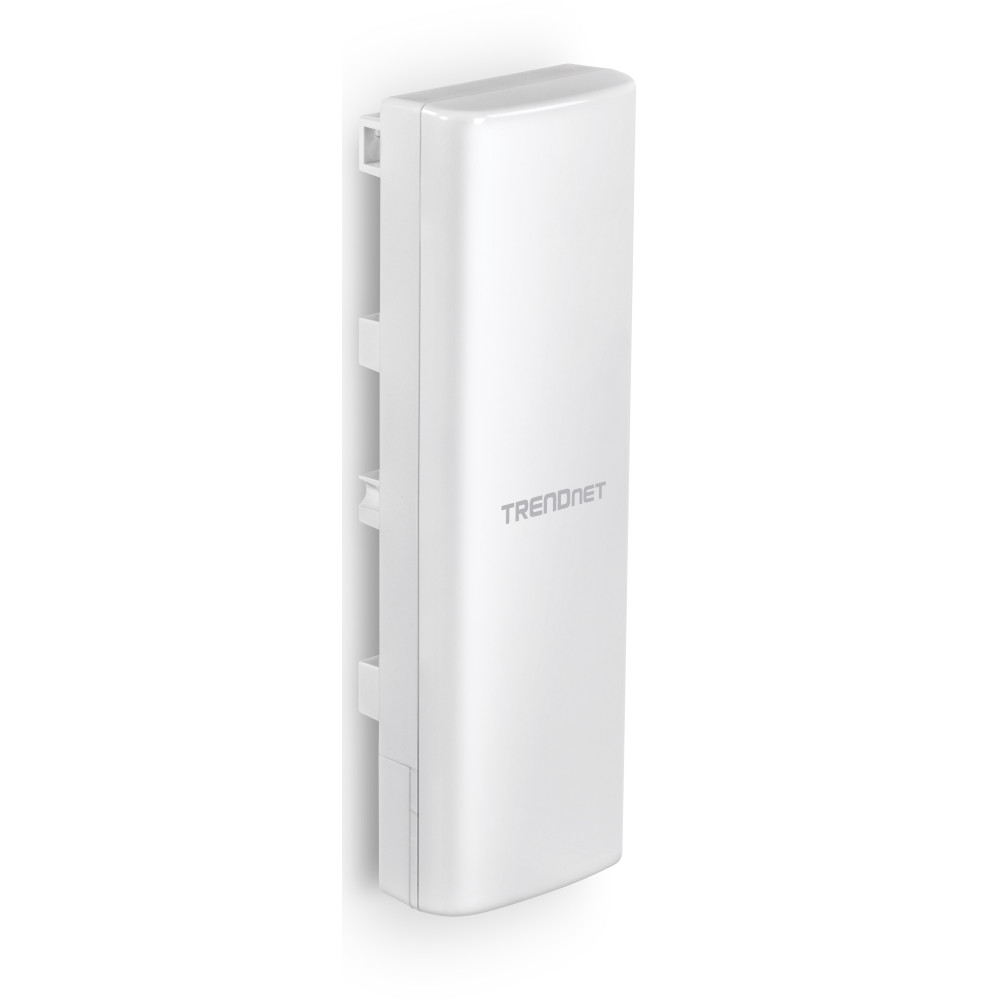

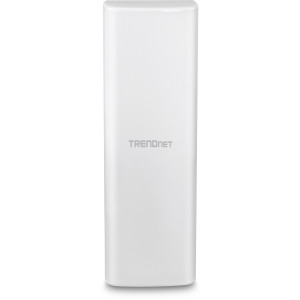

TRENDnet TEW-940APBO 14 dBi WiFi 6 AX1200 Outdoor Directional PoE Access Point

New TRENDnet TEW-940APBO 14 dBi Wireless Outdoor Directional PoE Access Point, PoE power adapter, 5 GHz
Model: TEW-940APBO
Availability: Normally in Stock
Standard Shipping & Handling
Qty: Add to Cart

TRENDnet TEW-940APBO 5 GHz Directional PoE Access Point, 14 dBi Antenna, IP55

TRENDnet's TEW-940APBO 14 dBi WiFi 6 AX1200 Outdoor Directional PoE Access Point is designed for point-to-point WiFi bridging applications. The 5GHz outdoor wireless access point supports wireless point-to-point installation scenarios with Access Point, Client Bridge, and Repeater modes. The IP55 rated housing is designed for outdoor environments, and includes wall and pole mounting hardware. Faster speeds are possible on this WiFi 6 access point with OFDMA and MU-MIMO technologies. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance on the outdoor wireless access point when multiple devices access the network.

Key Features

  • 5GHz WiFi 6 AX1200 point-to-point bridge

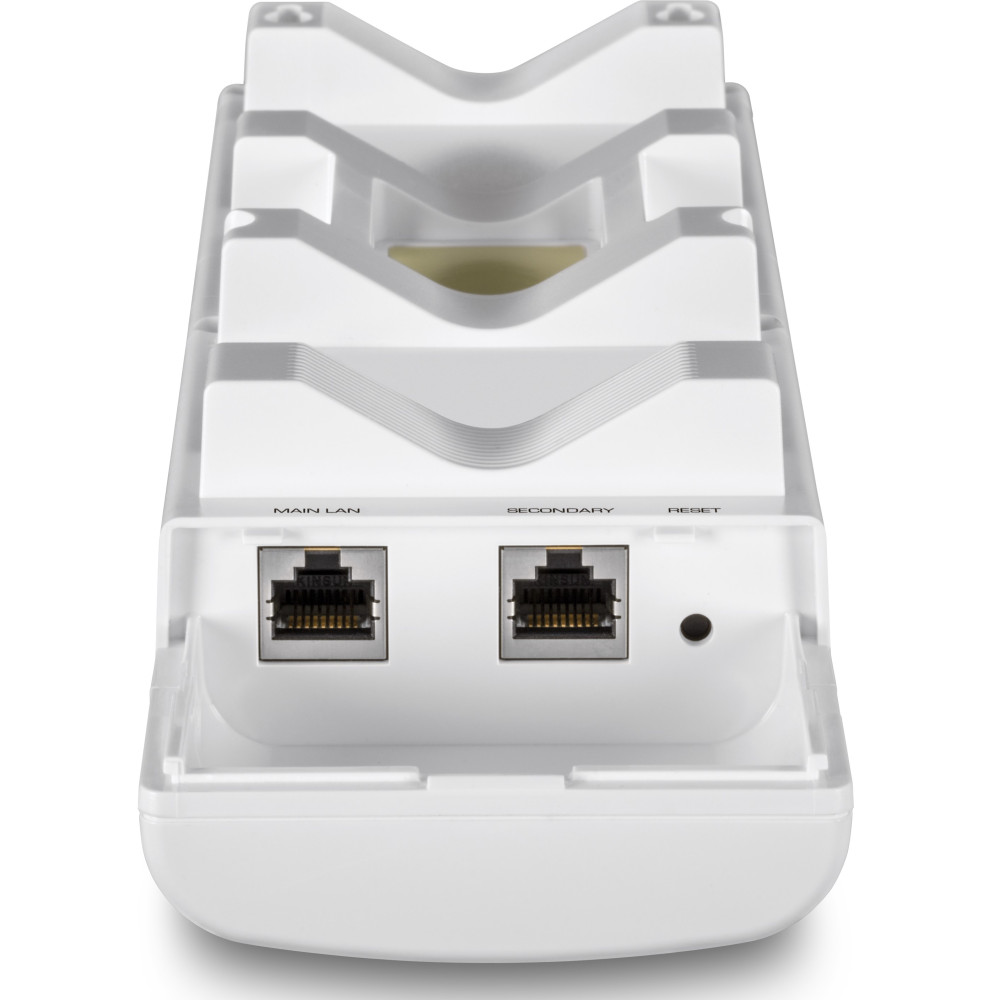

  • 1 x Gigabit PoE (in) port, and 1 x Gigabit port
  • 14 dBi directional antenna
  • Supports Access Point, Client Bridge, and Repeater modes
  • IP55 outdoor weather rated housing
  • Proprietary PoE power adapter included
  • NDAA / TAA compliant (U.S. and Canada only)
  • 3-year warranty

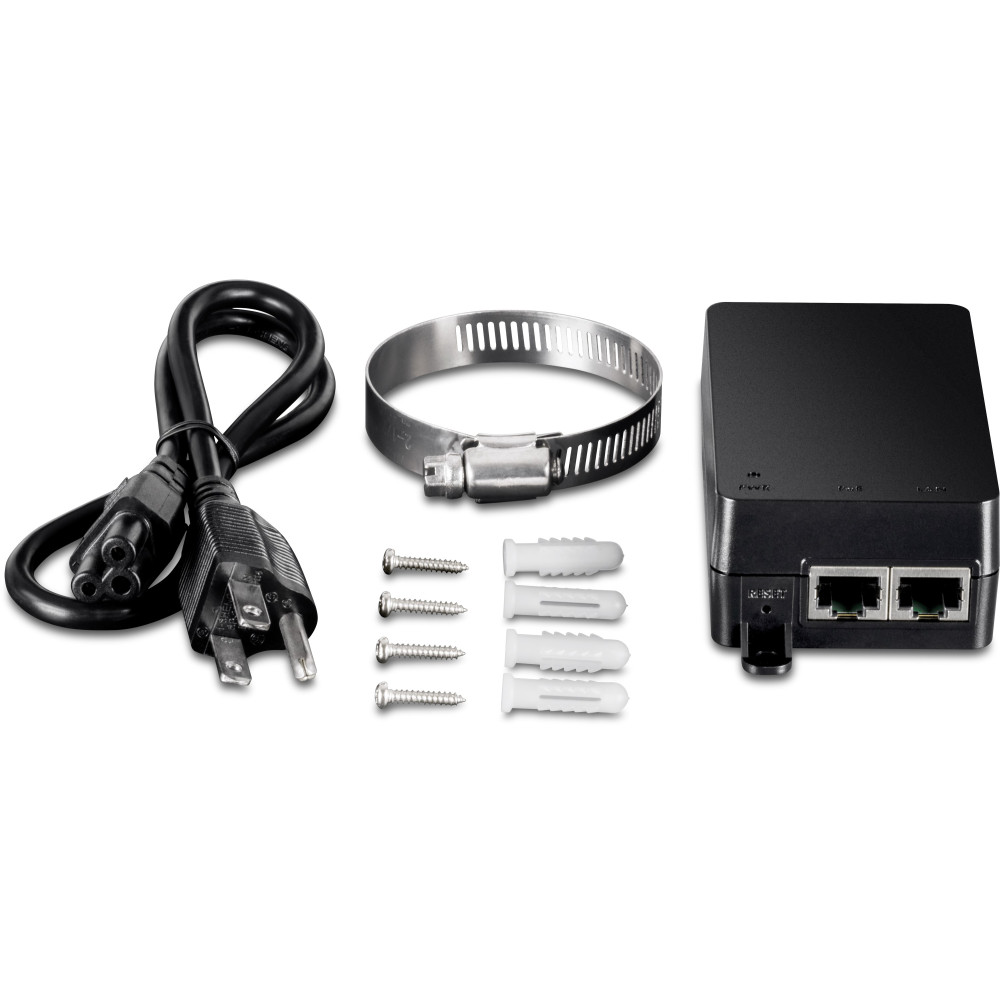

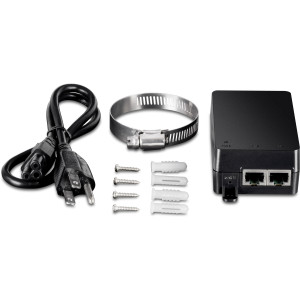

In the Box

  1. TEW-940APBO
  2. Quick Installation Guide
  3. Proprietary/Passive PoE injector (24V DC, 0.6A)
  4. Mounting hardware
Technology
CategoryWiFi Access Point

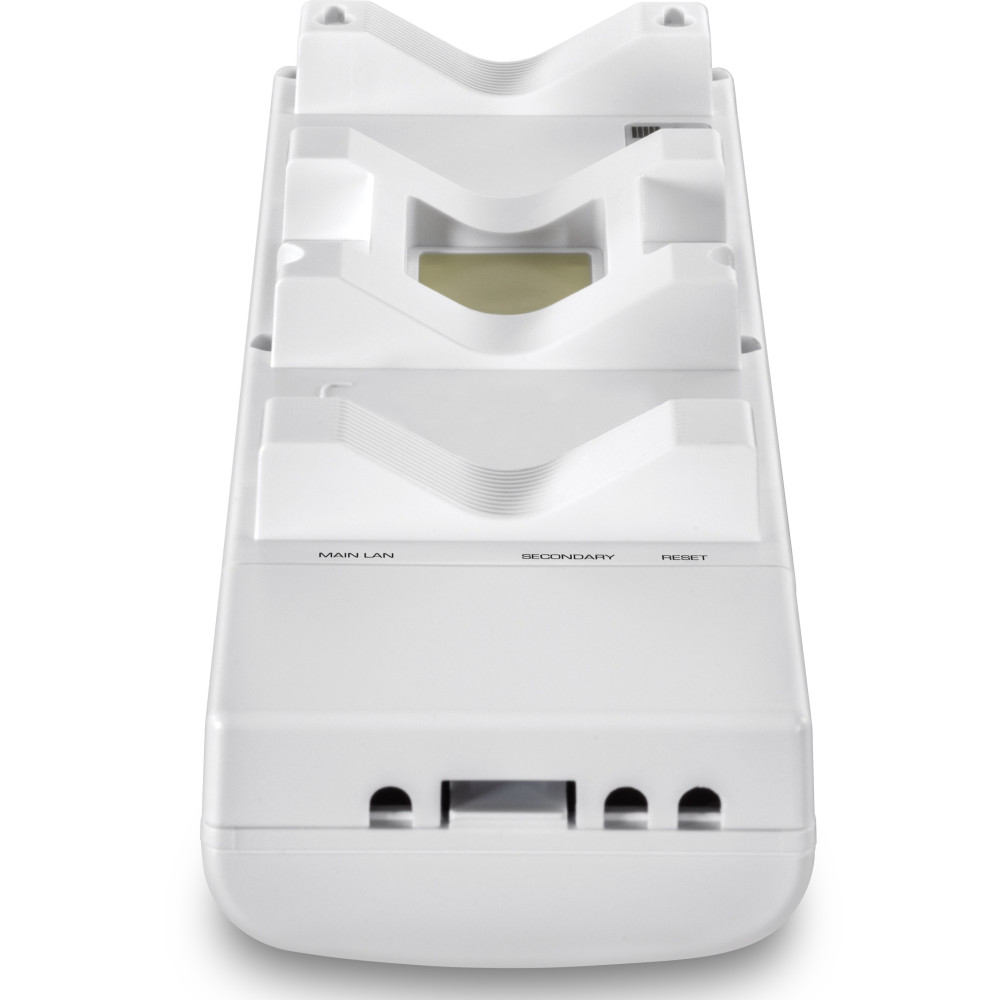

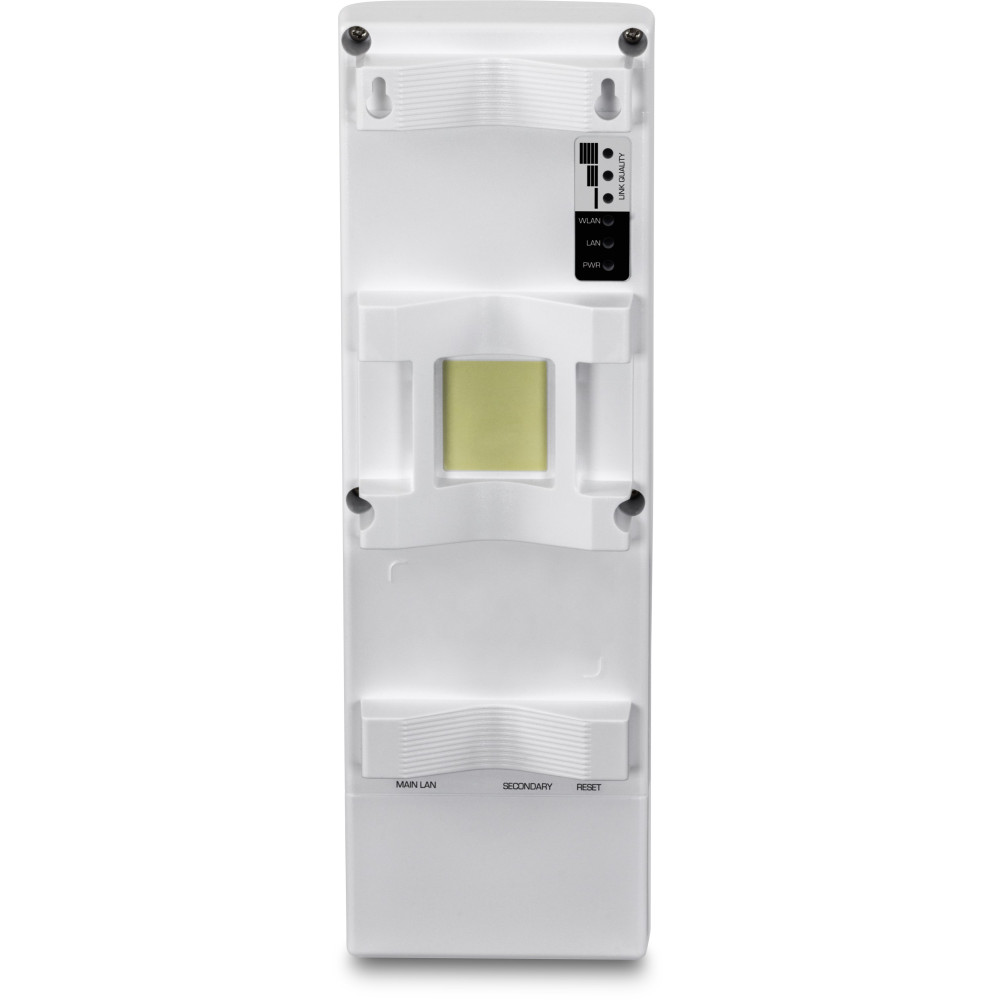

Ethernet Ports1 x Gigabit PoE-in LAN port, 1 x Gigabit LAN port
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1d, IEEE 802.1Q VLAN, IEEE 802.1X, IEEE 802.11a, IEEE 802.11k, IEEE 802.11n (5GHz: up to 300Mbps)*, IEEE 802.11ac (5GHz: up to 867Mbps)*, IEEE 802.11ax (5GHz: up to 1201Mbps)*
Wireless
Wi-Fi Frequencies5.150 GHz-5.250 GHz, 5.725 GHz-5.850 GHz
Gain14 dBi internal sector antenna
WLAN Operation ModeSupports Access Point, Client Bridge, and Repeater modes
Number of Radios1
Encryption SecurityWireless encryption: OWE (Opportunistic Wireless Encryption), WPA/WPA2/ WPA3-RADIUS (Enterprise), WPA-PSK/ WPA2-PSK/WPA3-SAE (Personal)
Power
Power Consumption10.1 W
Output Voltage54V DC, 0.6A proprietary/passive
ConnectionProprietary PoE power adapter included
Input Voltage100 - 220V AC, 50/60Hz, 0.8A
Mechanical

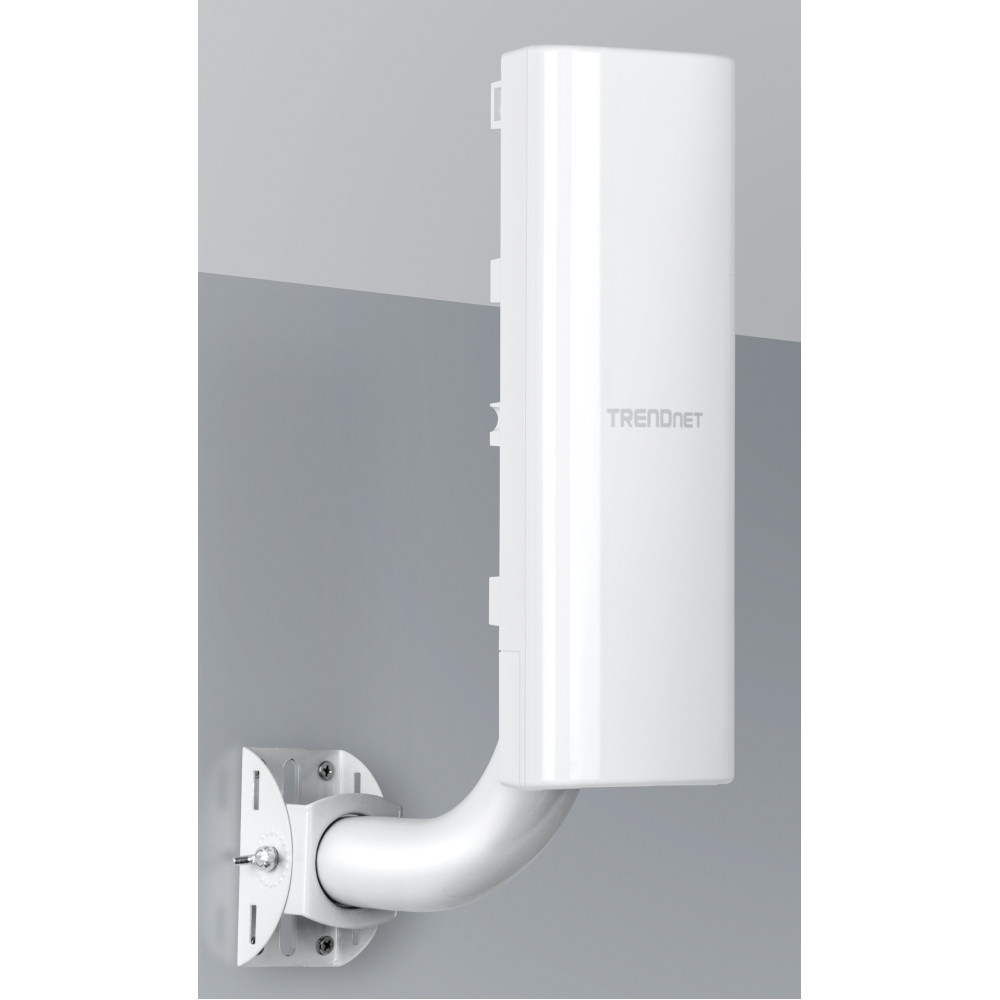

MountingWall or pole, Hardware included
Weight598g (21.09 oz.)
Dimensions82 x 257 x 50mm (7.3 x 3.9 x 1.4 in.)
Ratings
Operating Temperature-20° - 60° C (-4° - 140° F)
Humidity90% non-condensing
CertificationsFCC, IP55
Warranty3-Year
