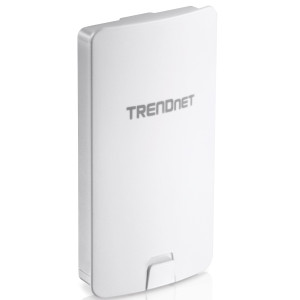

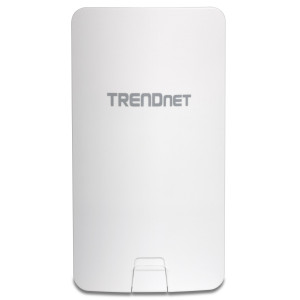

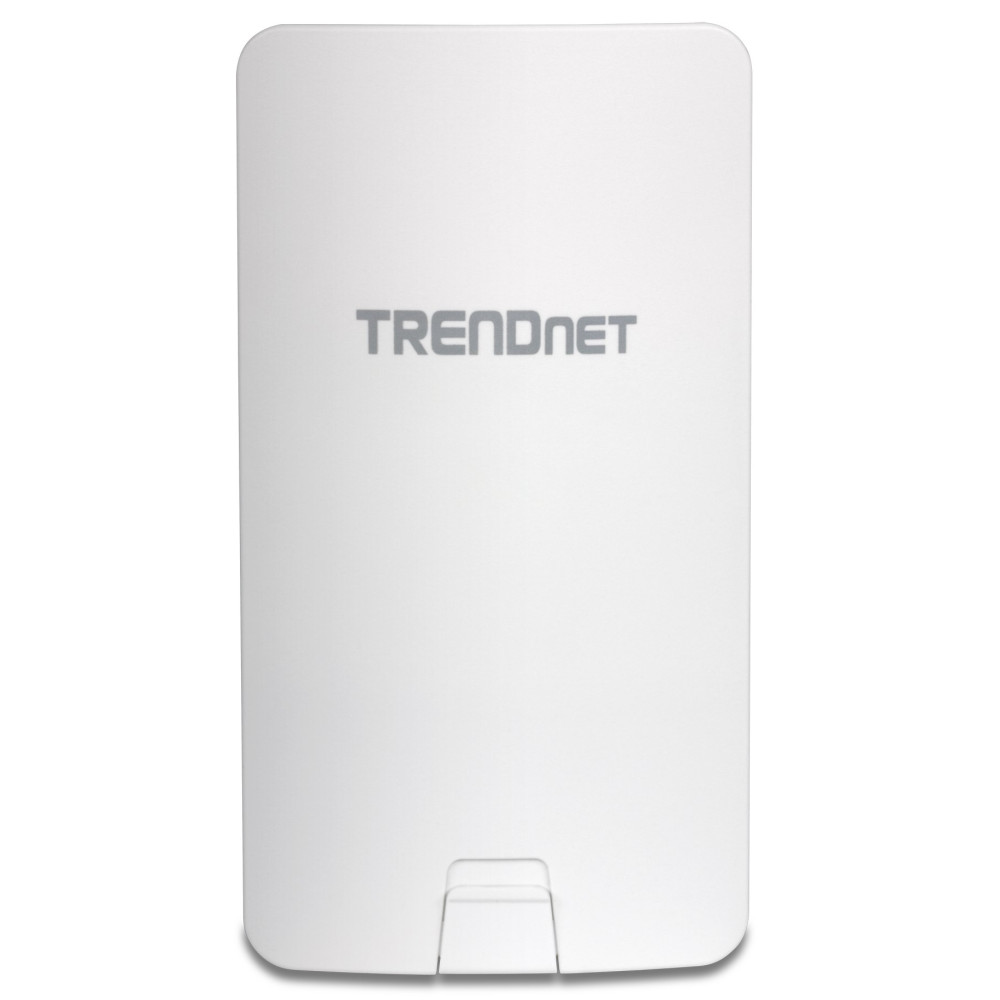

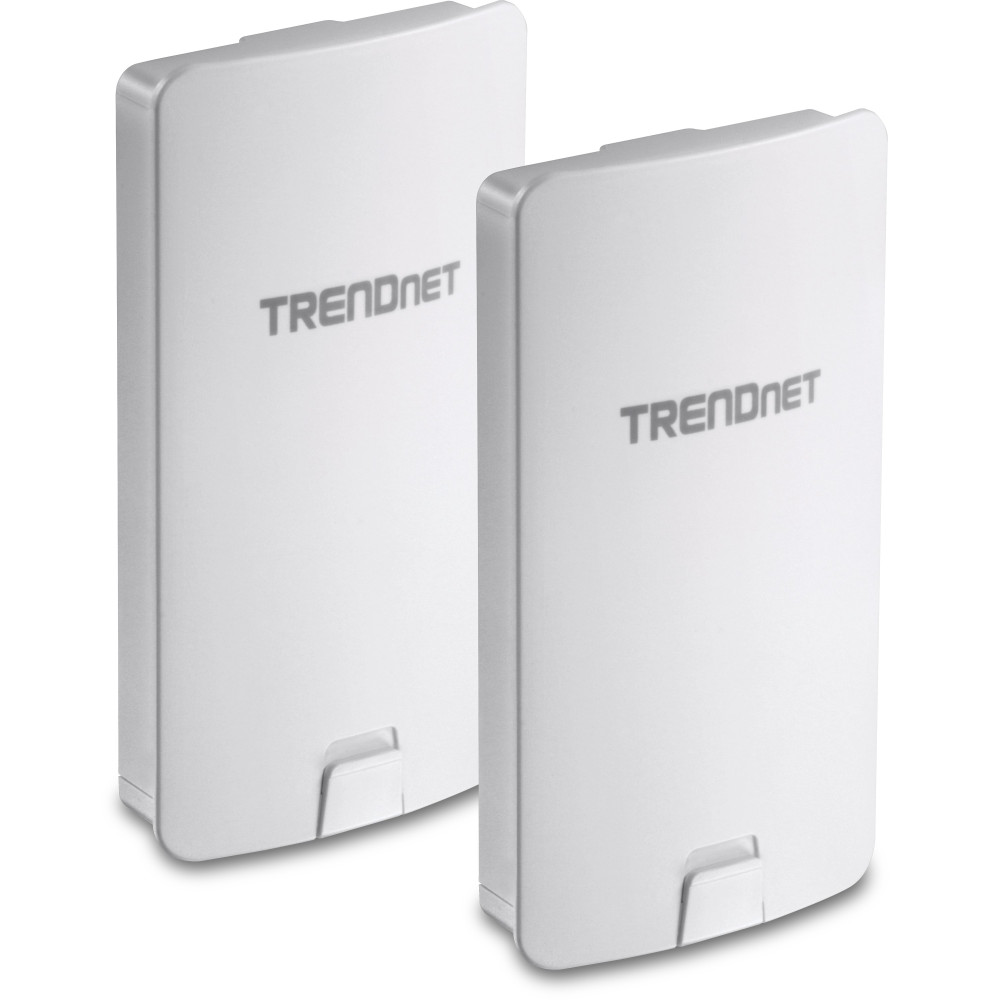

TRENDnet TEW-840APBO2K 14 dBi WiFi Outdoor PoE Preconfigured P2P Bridge Kit

New TRENDnet TEW-840APBO2K Outdoor PoE Preconfigured Point-to-Point Bridge Kit, PoE power adapters, 5 GHz
Model: TEW-840APBO2K
Availability: Normally in Stock
Standard Shipping & Handling
Qty: Add to Cart

TRENDnet TEW-840APBO 5 GHz Outdoor PoE Preconfigured Point-to-Point Bridge Kit

TRENDnet's TEW-840APBO2K 14 dBi WiFi AC867 Outdoor PoE Preconfigured Point-to-Point Bridge Kit provides long-range wireless AC867 point-to-point connectivity.This preconfigured outdoor WiFi bridge kit provides installers the simplest way to create a long-distance wireless point-to-point bridge. The outdoor WiFi bridge kit conveniently links two locations together with wireless AC speed and performance. The IP56 rated housing is designed for outdoor environments, and includes wall and pole mounting hardware.

Key Features

  • 5GHz WiFi AC867 point-to-point bridge kit
  • Includes two preconfigured TEW-840APBO access points
  • 14 dBi directional antenna
  • Supports Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes
  • Proprietary PoE power adapters included
  • IP56 outdoor weather rated housing

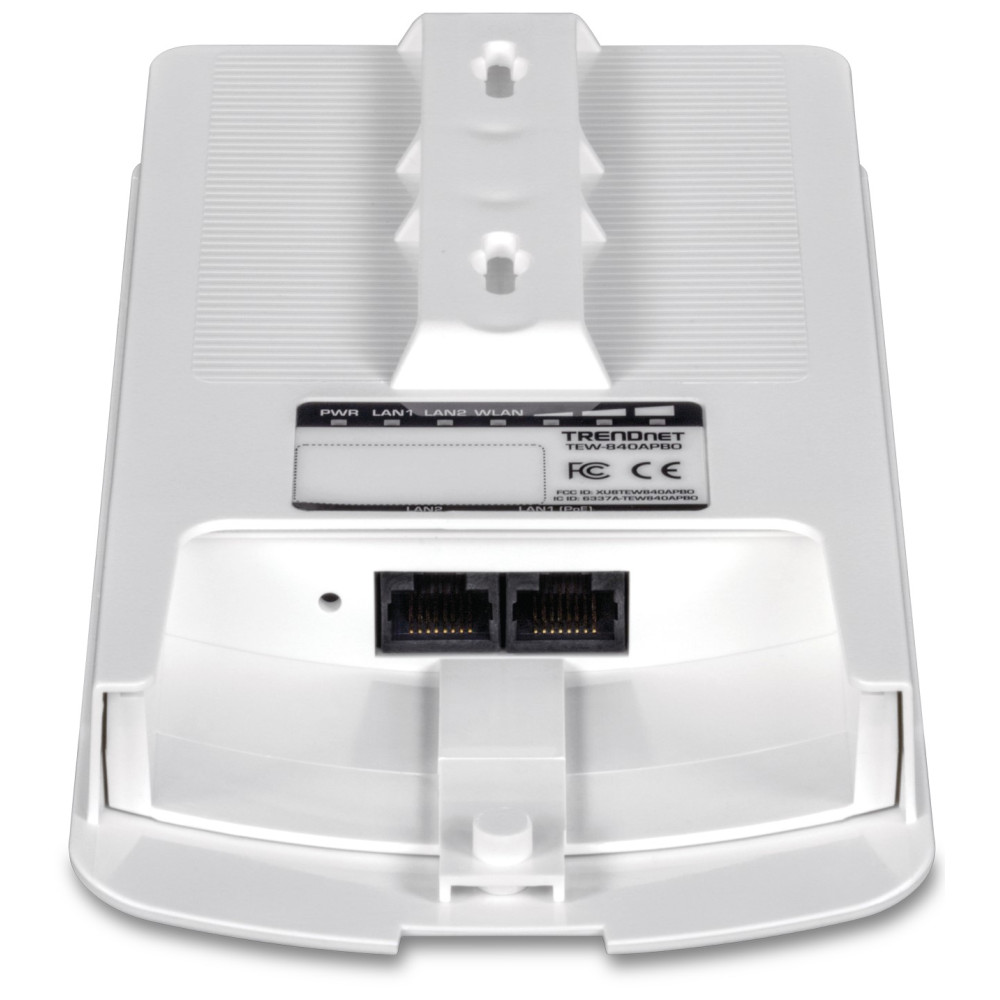

  • 1 x Gigabit PoE (in) port, and 1 x Gigabit port
  • NDAA / TAA compliant (U.S. and Canada only)
  • 3-year warranty



TEW-840APBO Introduction

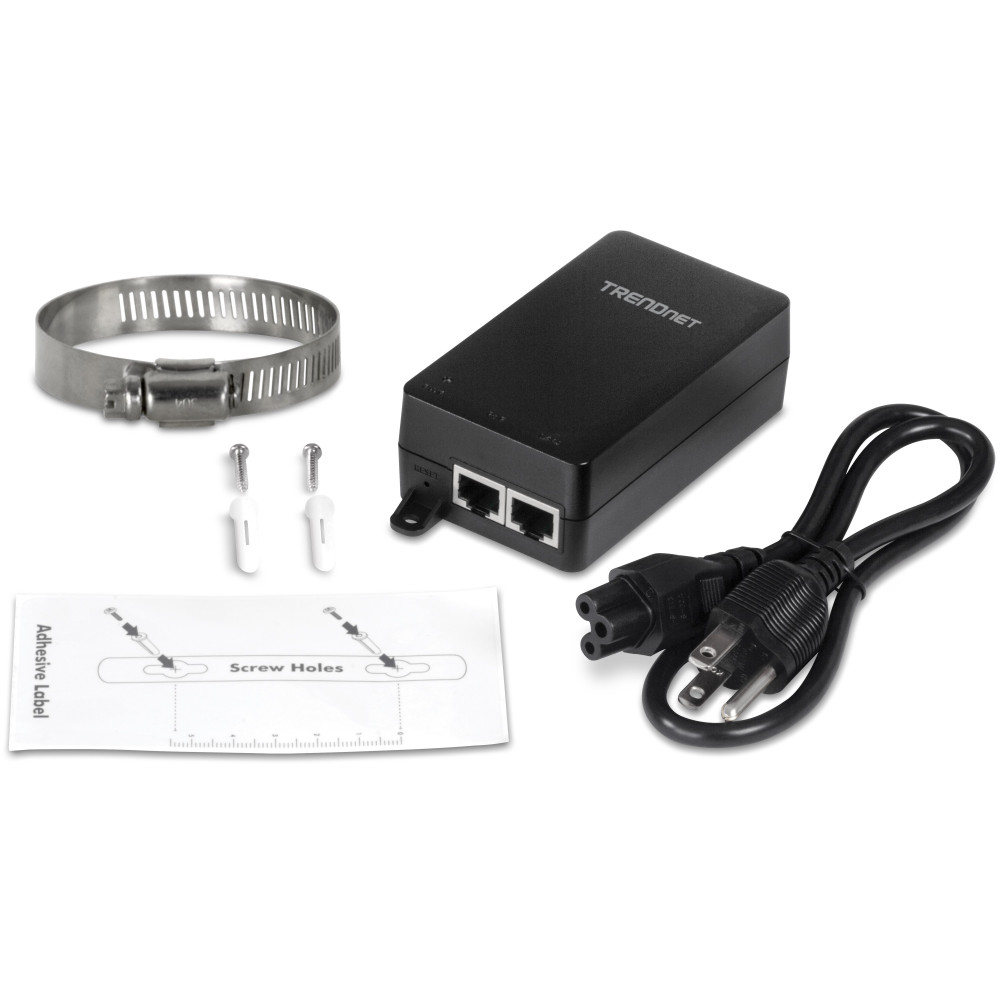

In the Box

  1. 2x TEW-840APBO
  2. Proprietary/Passive PoE injectors (24V DC, 0.6A)
  3. Mounting hardware
Technology
CategoryWiFi Access Point
Ethernet Ports1 x 10/100Mbps PoE-in port, 1 x 10/100Mbps port
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1d, IEEE 802.1Q VLAN, IEEE 802.1X, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11a IEEE 802.11r, IEEE 802.11k, IEEE 802.11n, IEEE 802.11ac
Wireless
Wi-Fi Frequencies5.150 GHz-5.250 GHz, 5.725 GHz-5.850 GHz
Gain14 dBi internal sector antenna
WLAN Operation ModeAccess Point (AP), WDS Access Point, WDS Bridge (CSMA mode only), WDS Station, Client Bridge
Encryption SecurityWPA/WPA2-PSK, WPA2-Enterprise
Power
Power Consumption9.5 W
Output Voltage24V DC, 0.6A proprietary/passive PoE injector
ConnectionProprietary PoE power adapters included
Input Voltage100 - 220V AC, 50/60Hz, 0.4A
Mechanical

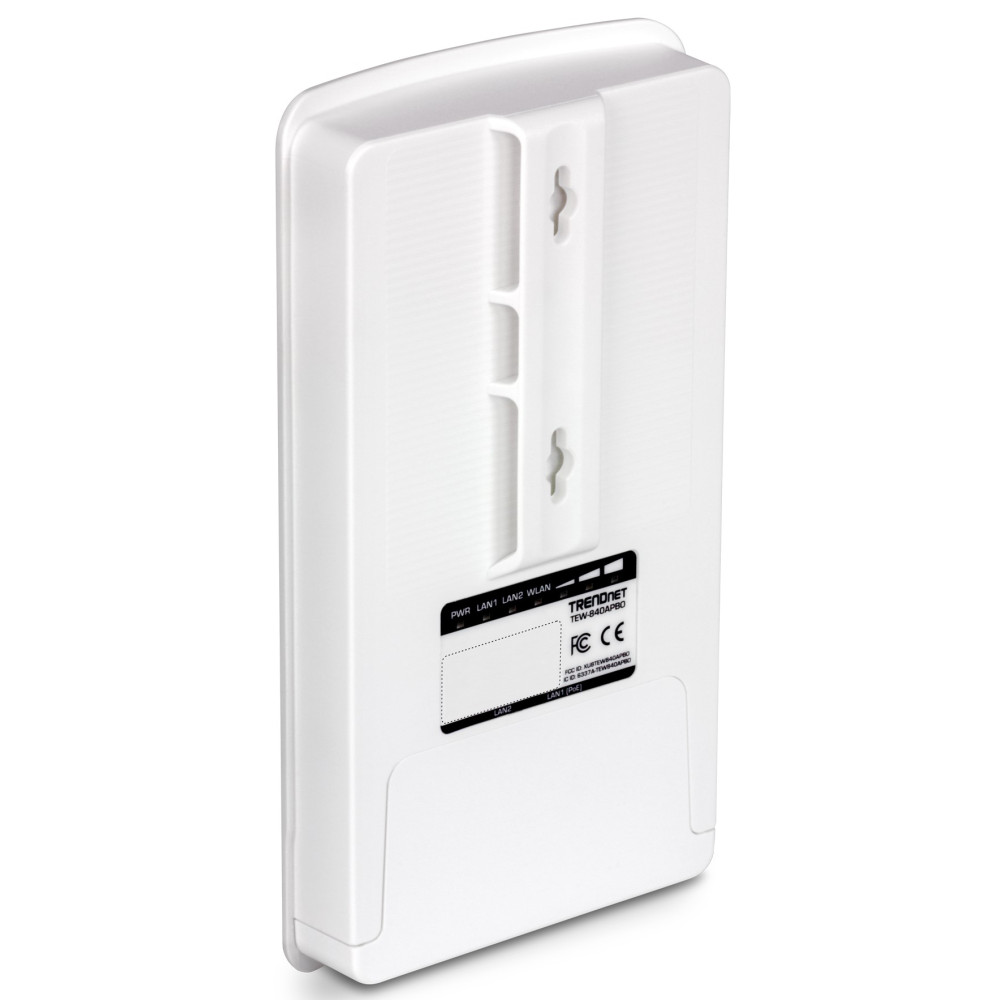

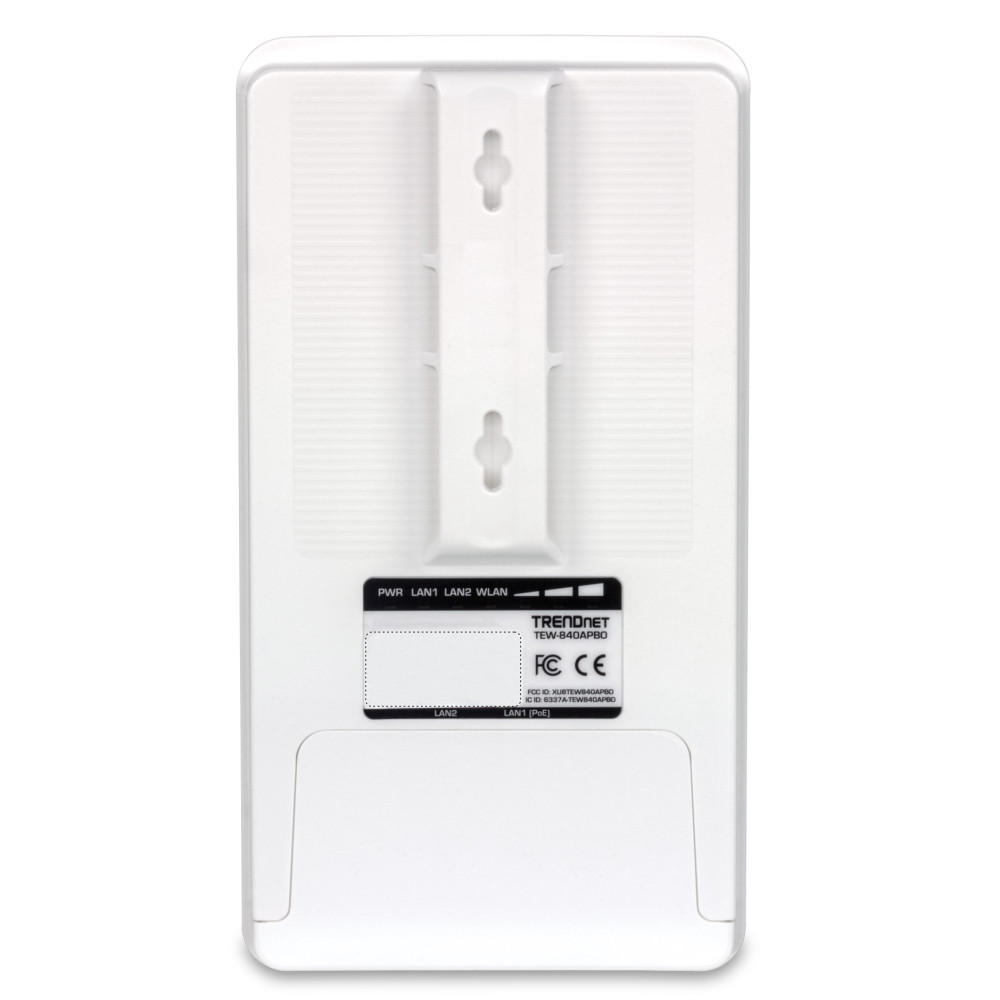

MountingWall or pole, Hardware included
Weight268g (0.6 lbs.) per access point
Dimensions185 x 100 x 35mm (7.3 x 3.9 x 1.4 in.) per access point
Ratings
Operating Temperature-22° - 60° C (-7.6° - 140° F)
Humidity90% non-condensing
CertificationsFCC, IP56
Warranty3-Year
