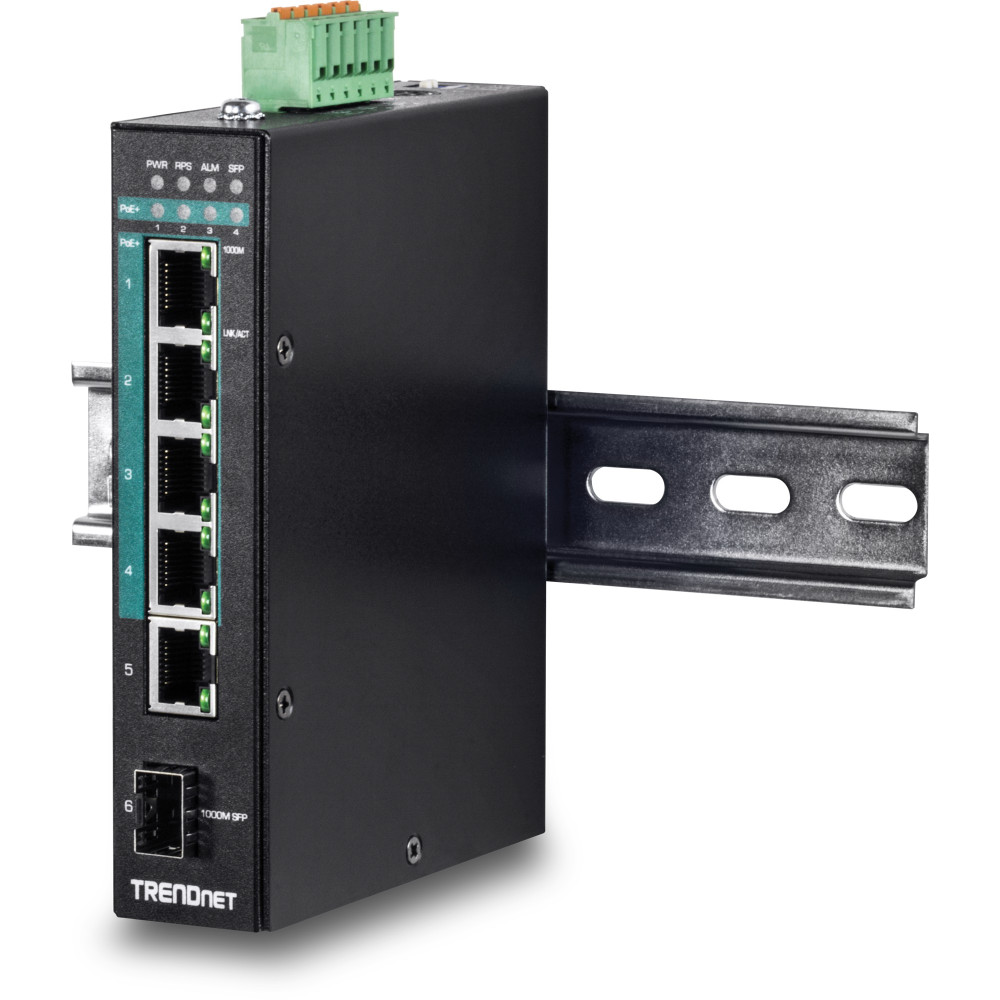

TRENDnet TI-PG541i 6-Port Industrial Gigabit PoE+ Layer 2 Managed DIN-Rail Switch

New TRENDnet TI-PG541i 6-Port Gigabit Ethernet Switch, 4 Gigabit PoE+, 1 Gigabit, & 1 SFP slot, 12 Gbps switching capacity, DIN-rail mount
Model: TI-PG541i
Availability: Normally in Stock
Standard Shipping & Handling
Qty: Add to Cart

TRENDnet TI-PG541i 6-Port Managed Gigabit Ethernet Switch, IP40, TRENDnet Hive Compatible

TRENDnet's TI-PG541i 6-Port Hardened Industrial Gigabit PoE+ Layer 2 Managed DIN-Rail Switch has four Gigabit PoE+ ports, one Gigabit port, one Gigabit SFP slot and a 120 Watts PoE budget. The switch is equipped with an IP40 rated metal enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate within a wide temperature range (- 40 - 70 °C (- 40 - 158 °F)) for harsh environments. L2 management include features such as PoE port control, VLAN, multicast, and QoS which allow for network integration flexibility.

TRENDnet Hive Cloud Management

TRENDnet Hive is a cloud management platform that provides a centralized cloud-based, remote network management solution for TRENDnet network devices. The TRENDnet Hive cloud networking solution offers better overall visibility of your network devices from a single intuitive and easy-to-use cloud interface. Advanced features supported with the Hive cloud networking solution include event and device hardware monitoring, traffic statistics, notification alerts, and troubleshooting tools. With the TRENDnet Hive network cloud manager, network device provisioning can be more easily accomplished through scheduled or immediate deployment of batch firmware and configuration updates. Reduce the time, complexity, and management costs of your network with the reliable TRENDnet Hive cloud networking solution.

Easily manage and configure the TI-PG541i Managed Switch remotely by updating the switch to the latest firmware for access to TRENDnet Hive.This cloud managed switch requires no additional hardware, server, or personal cloud with TRENDnet’s reliable cloud service. With the purchase of each compatible device the first year of TRENDnet Hive for 'Consumers and End Users' is free or you can upgrade to TRENDnet Hive Pro for 'Integrators and Partners' for a nominal annual fee.

Key Features

  • Hardened IP40 rated metal enclosure with integrated DIN-Rail mount
  • Wide operating temperature range - 40 to 70 °C (-40 to 158 °F)
  • 4 Gigabit PoE+ (802.3at) ports, 1 Gigabit port, and 1 Gigabit SFP slot
  • 120W total power budget
  • Remote cloud management with TRENDnet Hive (Additional fee applies)
  • Dual redundant power inputs and alarm relay output
  • CLI (Telnet), Web (HTTP), SNMP v1/2c management
  • 802.1Q/MAC-Based VLAN and IGMP Snooping support
  • 802.1p/DSCP/Queue Scheduling (SP/WFQ/WRR) QoS support
  • Power supply sold separately
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty

In the Box

  1. TI-PG541i
  2. Quick Installation Guide

Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.

Technology
CategoryEthernet Switch (PoE)
Total Ports6
Ethernet Ports4 Gigabit PoE+, 1 Gigabit port
StandardsIEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Transfer RateEthernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2Gbps (full duplex), SX/LX: 2000 Mbps (full duplex)
Jumbo Frame Support10 KB
MAC Table Size8K
Power
PoE Power OutputUp to 30W per port
Power ConsumptionMin: 10 Watts, Max: 130 Watts (with PoE+)
Connection6-pin terminal block
Input Voltage48-57 V DC
Overload ProtectionYes
Mechanical
MountingIntegrated DIN-rail
Shock / VibrationShock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6)
MaterialIP40 metal case
Weight528g (1.17 lbs.)
Dimensions135 x 120 x 31 mm (5.31 x 4.72 x 1.22 in.)
Ratings
Operating Temperature-40° - 70° C (40° - 158° F)
Humidity95% non-condensing
RoHS CompliantYes
CertificationsCE, FCC
MTBF180,136 hrs @ 65 °C, 435,905 hrs @ 25 °C
WarrantyLifetime
Tags: TI-PG541i
