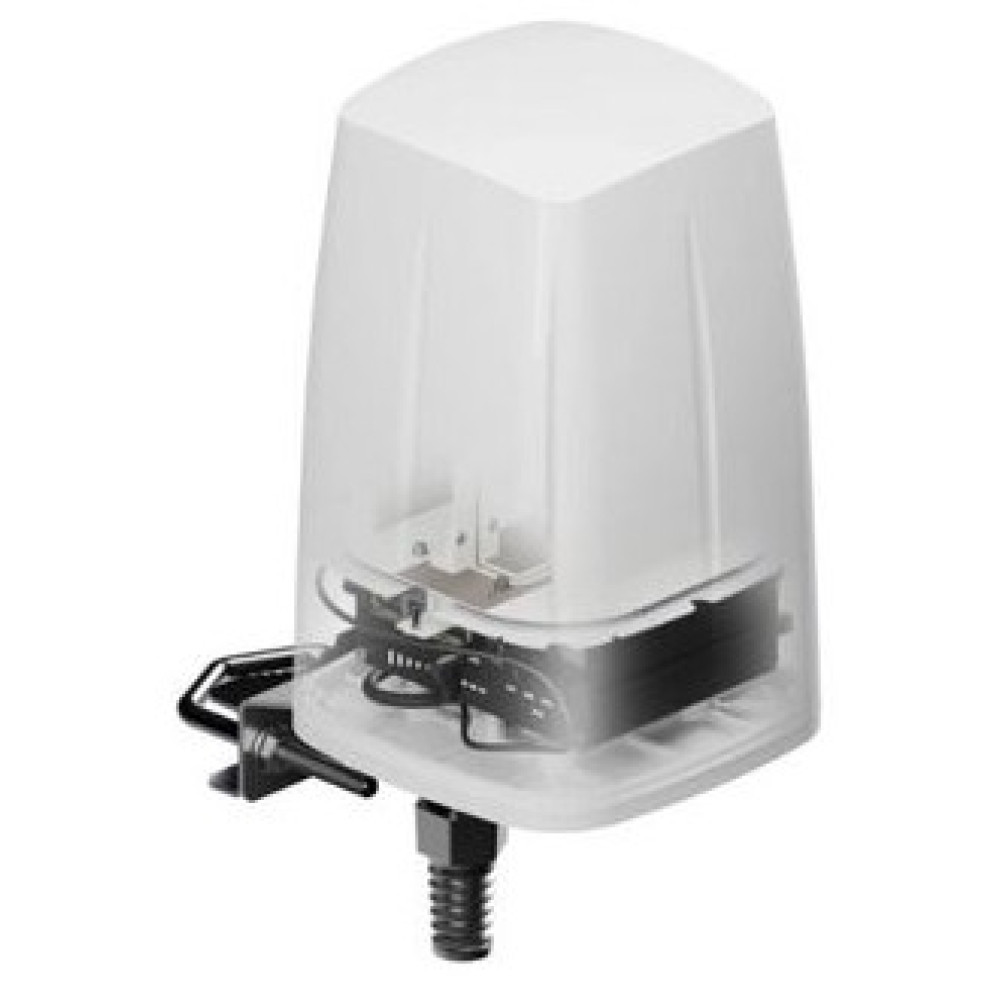

The Teltonika PR1IC970 is a professional-grade, multi-band outdoor antenna designed specifically for use with the RUTX11 industrial router. It functions as a 6-in-1 solution, integrating antennas for LTE, Wi-Fi, GNSS (GPS), and Bluetooth into a single, rugged enclosure.
This antenna is designed for stationary installations only and should not be used on moving objects or in high-vibration environments.
| Technology | |
| Category | Antenna |
| Wireless | |
| 6:1 Combination Antennas | 6:1 (2 LTE 2 WiFi GPS BT) |
| Pattern | Omnidirectional |
| Cellular Frequencies | 617-960, 1700-2200, 3300-4300 MHz |
| Wi-Fi Frequencies | 2400-2500, 4700-6000 MHz |
| VSWR | <2.50 |
| Gain | 4.5 dBi (LTE), 7.5 dBi (WiFi) |
| Electrical | |
| Impedance | 50 ohms |
| Interfaces | |
| GPS | 1560-1610 MHz |
| Mechanical | |
| Cabling | RG316, RG174 |
| Connector Type | SMA male (LTE), RP-SMA (WiFi) |
| Mounting | Wall, ceiling, mast |
| Color | White |
| Weight | 1500 g |
| Dimensions | 347 x 160 x 189 mm |
| Ratings | |
| Operating Temperature | -40 °C - +75 °C |
| RoHS Compliant | Yes |
| Certifications | IP68 |
| Download Name | File Size |
| Teltonika PR1IC970 Datasheet | 451.27KB |
