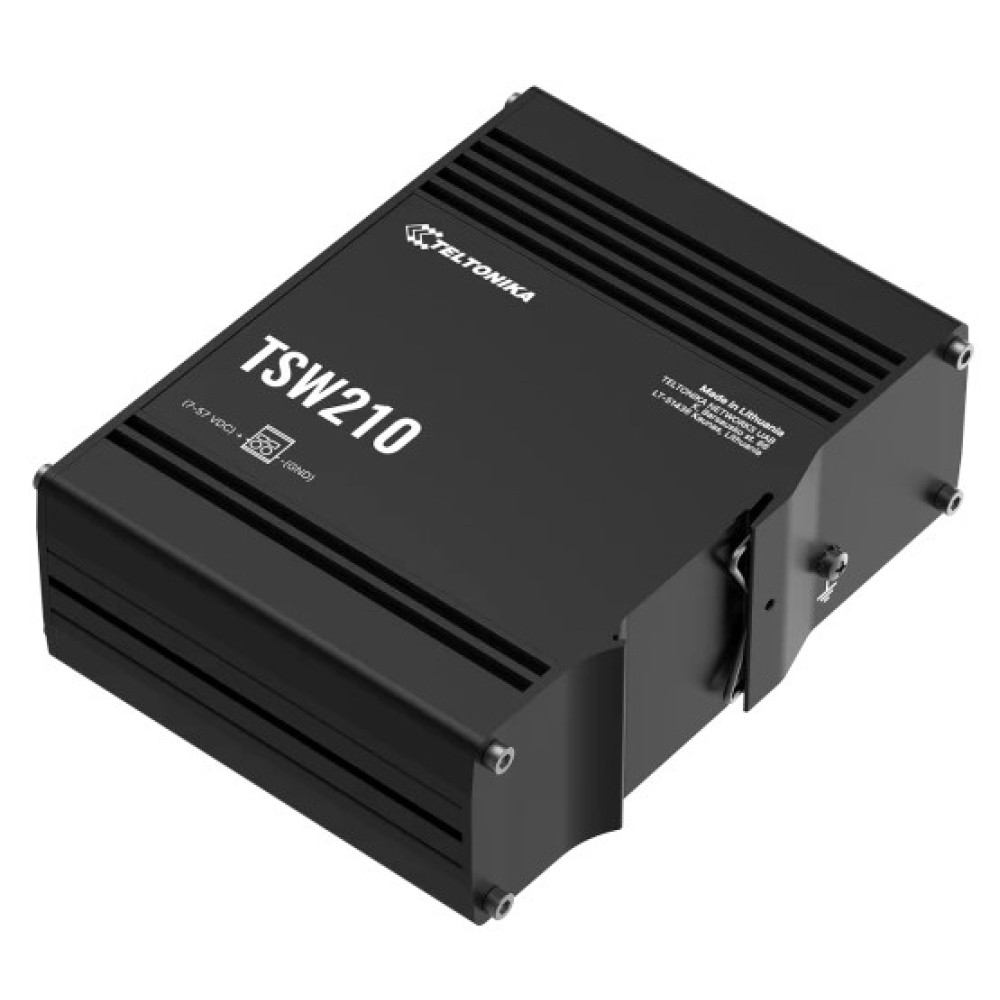

Centralizing your network with simplicity is the job for an unmanaged industrial switch, such as the TSW210. Designed with 2 SFP ports for long-range fiberoptic communication and 8 Gigabit Ethernet ports for up to 1000 Mbps of download/upload speed, this industrial switch can effortlessly maintain a wired connection with the server and the manufacturing line’s devices. Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort of installing power. This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.
The TSW210 excels in optimizing your resource management. As an unmanaged switch, it’s designed for plug-and-play and doesn’t require any configuration to start using it. This makes it ideal for rapid growth and crunch periods - when time is a valuable resource and devices need to join a network quickly and without too much of a hassle. This switch comes with the standard package of high quality and industrial environment suitability, including compact design, rugged aluminum housing, DIN rail, and other mounting options. It has a 2-pin industrial DC power socket with a 7-57 VDC input voltage range and can withstand extreme temperatures of -40°C to +75°C. This makes this device flexible in its utility and applicable in a wide range of settings.
For affordability and performance, it’s hard to compete with the TSW210. You’ll not only save money with this switch, but you’ll also reduce spending on network management and upkeep. Get in touch with our team today to discuss your network requirements. We’ll outfit your project with the right devices that get the job done.
Technology | |
Category | Ethernet Switch |
Total Ports | 10 |
Ethernet Ports | 8 Gigabit Ethernet (10/100/1000TX) |
Fiber Ports | 2 SFP Slots |
Processing Type | Store and Forward |
Standards | IEEE 802.3, 802.3u, 802.3x, 802.3at |
Protocol | CSMA/CD |
MAC Table Size | 2 kB |
Power | |
Power Consumption | 1.03 W idle and 3.71 W peak |
Input Voltage | 7 to 57 VDC |
Reverse Polarity Protection | Yes |
Overload Protection | Yes |
Mechanical | |
Enclosure | Aluminum Casing |
Dimensions | 132 x 44 x 95 mm |
Weight | 1 lbs. |

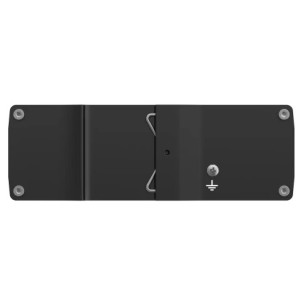

Mounting | DIN-rail or wall mount |
Ratings | |
Operating Temperature | -40 to 75°C |
Humidity | 10 to 90% non-condensing |
Warranty | 24 months |
Download Name | File Size |
Teltonika TSW210 Datasheet | 1.09MB |
Teltonika TSW210 Quick Start Guide | 242.18KB |
Teltonika TSW210 Flyer | 1.54MB |
