Teltonika TSW100 5-Port Unmanaged PoE Switch

Teltonika TSW100 5-Port Unmanaged PoE Switch with rugged aluminum housing
Model: TSW100
Availability: IN STOCK
Standard Shipping & Handling
Qty: Add to Cart

Teltonika TSW100 5-Port Unmanaged Gigabit Ethernet Switch with 4 PoE+ ports and 1 Gigabit Port

The TSW100 from Teltonika is a 5-port unmanaged Ethernet switch featuring four (4) Gigabit Power over Ethernet (PoE+) ports and one standard Gigabit port. It supports the IEEE802.3af/at specification, offering a maximum of 30 watts of power per port. The TSW100 is an extremely cost-effective PoE switch ideal for security, industrial, and cost-sensitive networks. Use it to quickly add PoE devices like IP cameras, wireless access points, sensors, and alarm systems to your network.

The TSW100 suits indoor and outdoor applications like surveillance, traffic monitoring, facility management, machines, and remote monitoring. The fanless metal enclosure endures operating temperatures ranging from a low of -40 to 75°C, and it accepts broad power input from 7 – 57 VDC. The unit may be DIN-rail or flange mounted into an enclosure. With a 5-year warranty, you can trust the TSW100 will operate reliably in your system.

Key Features

  • 5-Port Unmanaged Power over Ethernet switch
  • 4 Gigabit PoE (10/100/1000TX) ports,
  • IEEE 802.3at/af compliant with 30 watts per port
  • 1 standard Gigabit Ethernet port, Auto MDI
  • Store-and-forward switching architecture
  • 2K MAC address table
  • Wide power input range from 7 to 57 VDC
  • 4-pin industrial DC power socket
  • Extended operating temperature from -40°C to 75°C
  • AC/DC power adapter included
  • 5-year warranty

For affordability and performance, it’s hard to compete with the TSW100. You’ll not only save money with this PoE switch, but you’ll also reduce spending on network management and upkeep. Get in touch with our team today to discuss your network requirements. We’ll outfit your project with the right devices that get the job done.

TSW100 Quick Start Video


Unboxing the TSW100

Technology
Total Ports5
TypeEthernet Switch (with PoE)
Ethernet Ports4 Gigabit (10/100/1000TX) PoE/PoE+ ports and 1 Gigabit port, Auto MDI / MDI-X
Processing TypeStore and Forward
StandardsIEEE 802.3, 802.3u, 802.3az, 802.3af, 802.3at
ProtocolCSMA/CD
Transfer Rate10 Gbps bandwidth (non-blocking) with 128 kB packet buffer
MAC Table Size2 kB
Power
PoE Power OutputMaximum 30 watts per PoE port
Power Consumption2 W idle, 9 W with no PoE, 129 W with PoE maximum
Connection 4-pin industrial DC power socket
Input Voltage7 to 57 VDC
Mechanical

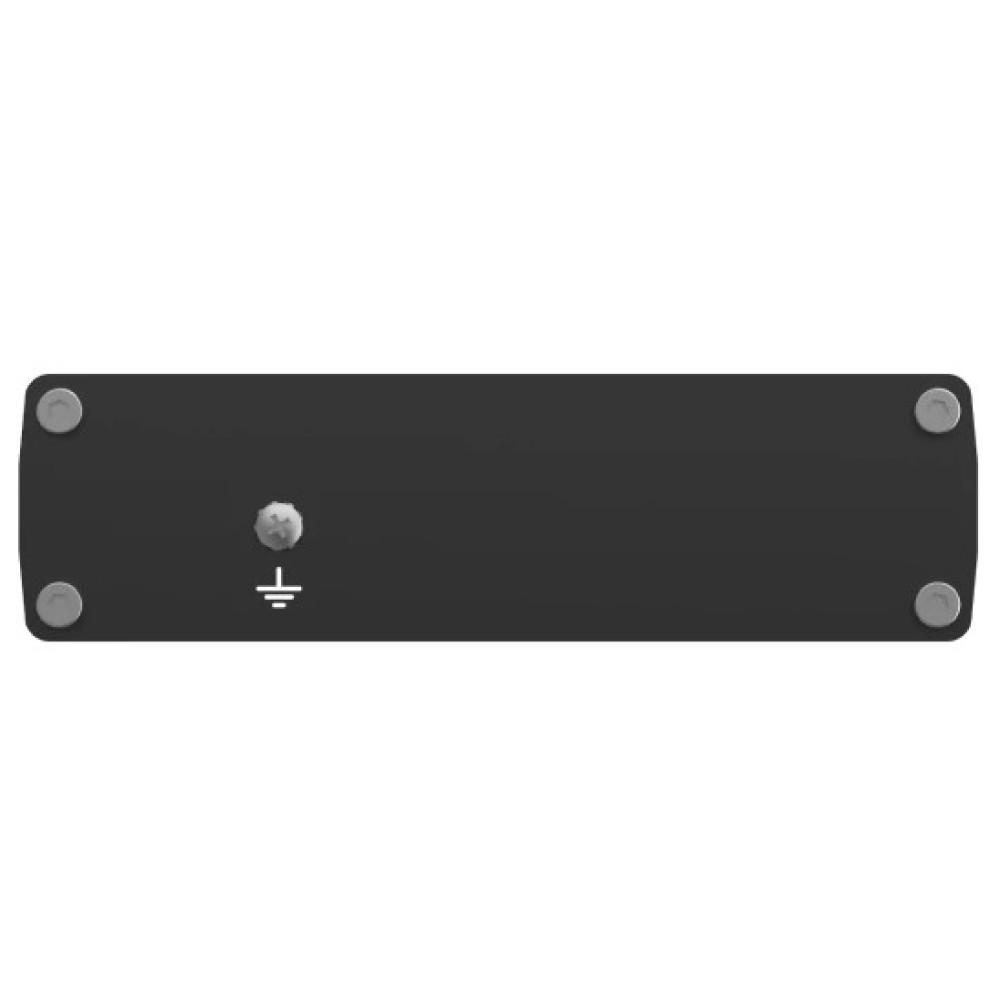

EnclosureAluminum case with grounding screw
Dimensions115 x 32 x 95 mm
MountingDIN-rail or wall mount
LED IndicatorsPower and LAN status
Ratings
Operating Temperature-40 to 75°C
Humidity10 to 90% non-condensing
Warranty5 years
