Teltonika TSW202 10-Port Managed Switch with 8 Gigabit PoE+ Ports, 2 SFPs

Teltonika TSW202 10-Port Industrial Managed Ethernet Switch, 8 Gigabit PoE+ Ports, 2 SFP Slots

The TSW202 is a managed PoE+ Ethernet switch, designed to provide granular network management capabilities while centralizing power distribution. This PoE+ switch enables flexibility over solution management and power supply and enhances M2M communication by supporting a wide range of industrial protocols, including EtherNet/IP, PROFINET, and MRP.

The TSW202 is equipped with 2 SFP ports for long-range Fiber-optic communication and has eight Gigabit Ethernet ports that support IEEE802.3af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. Now you may connect more devices and power them up simultaneously with a power budget of 240W.

The TSW202 features a rugged and durable design, with resistance to unfavorable conditions and harsh temperature ranges. It comes with wall and DIN rail mounting options for easy installation. This switch will fit in virtually any enterprise, retail or industrial scenario with high-bandwidth far apart applications that require a reliable data connection and power supply.

This 10-port Ethernet switch is compatible with Teltonika’s Remote Management System (RMS) - a user friendly and customizable remote management tool. This managed switch is the ideal choice for a network infrastructure consisting of numerous end devices, all demanding uninterrupted control.

Key Features

• 8 Gigabit PoE+ ports
• Supports auto MDI/MDIX crossover
• 2 SFP ports
• 2-pin industrial DC power socket
• Input voltage range of 7 to 57 VDC without PoE and 44 to 57 VDC with PoE
• PoE standards IEEE802.3af and 802.3at
• IP30 rated
• -40 °C to 75 °C operating temperature
• Anodized aluminum housing and panels
• Dimensions: 132 x 44.2 x 122.2 mm

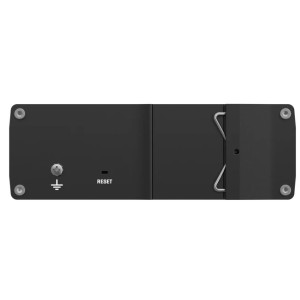

• Integrated DIN rail bracket, wall mounting (additional kit needed)

TSW202 Overview

In the Box

1. TSW202
2. Quick Start Guide

For affordability and performance, it’s hard to compete with the TSW202. You’ll not only save money with this switch, but you’ll also reduce spending on network management and upkeep. Get in touch with our team today to discuss your network requirements. We’ll outfit your project with the right devices that get the job done.
