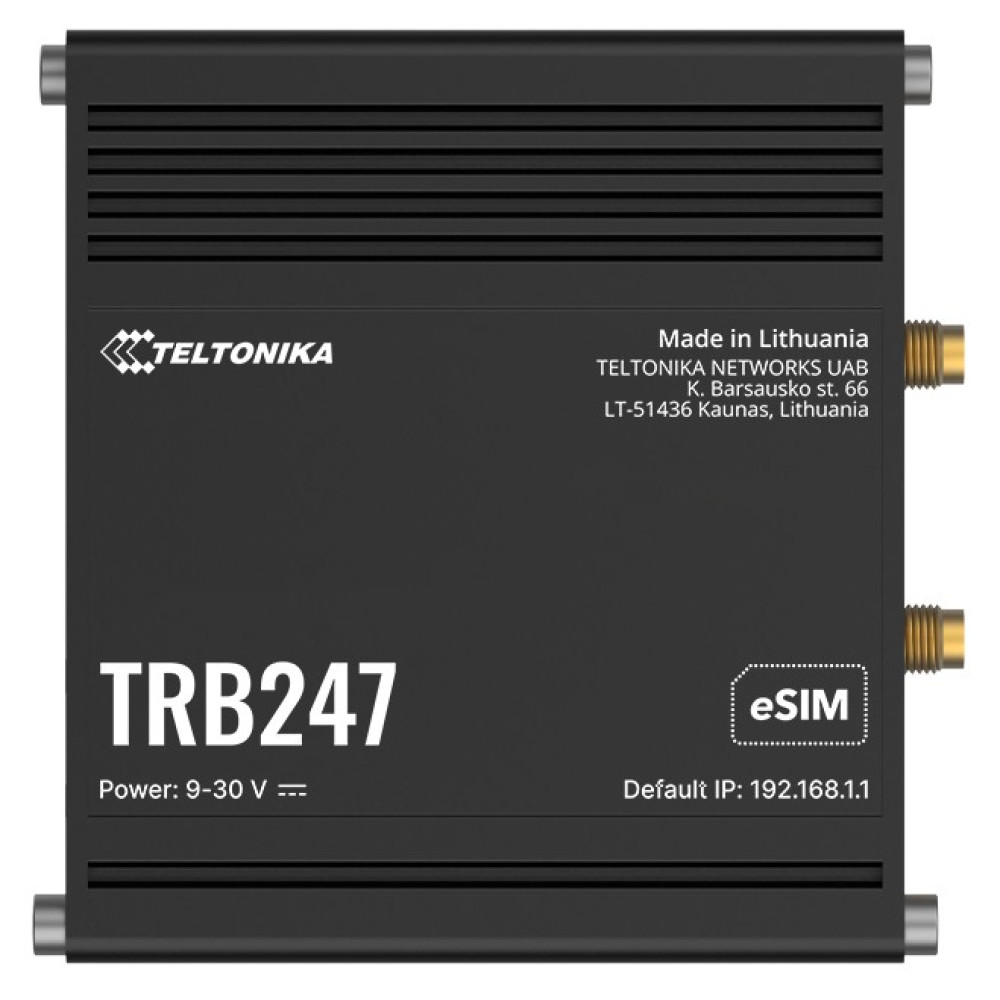

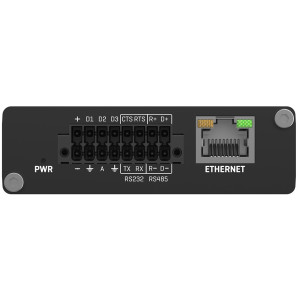

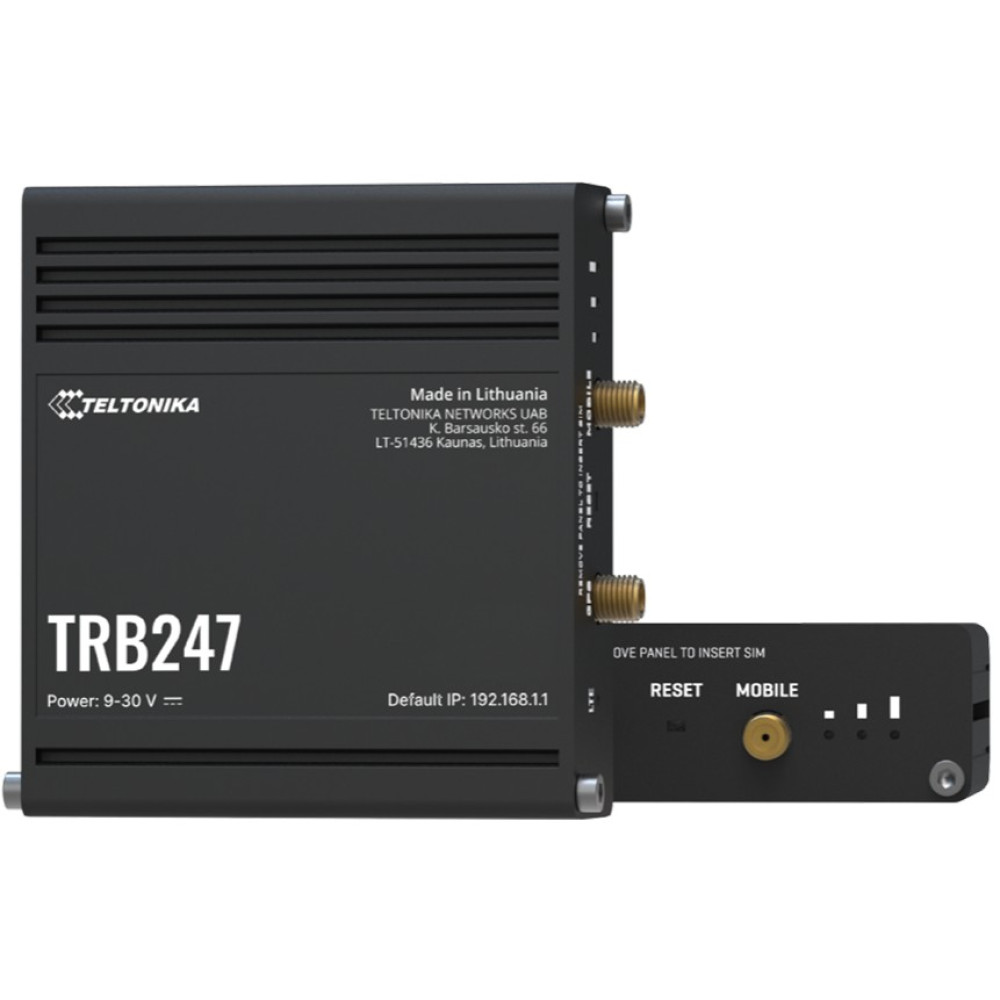

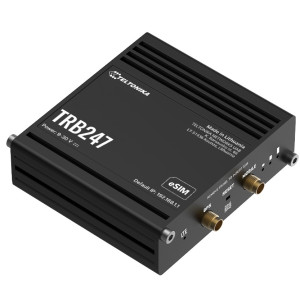

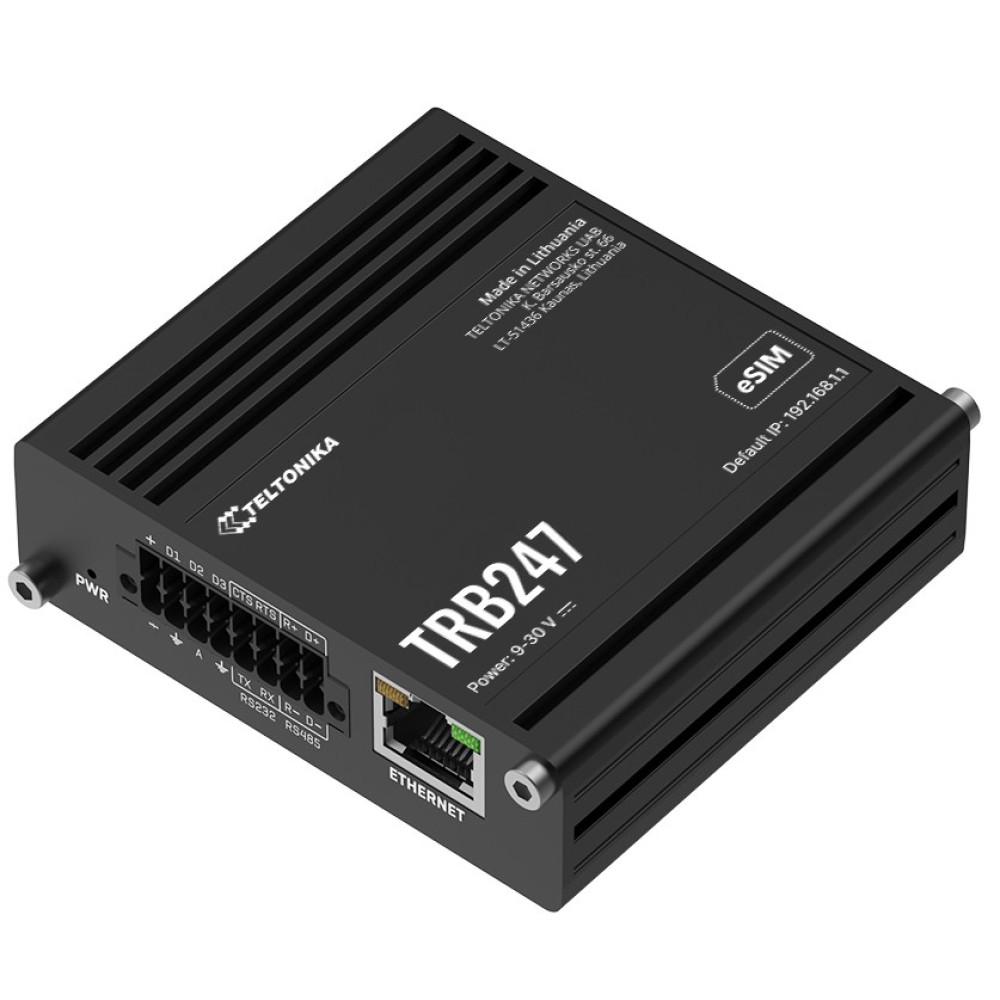

Tailored for the North American market, the TRB247 is a compact IoT gateway with reliable LTE Cat 1 bis connectivity. It bridges legacy systems with modern cloud platforms, offering seamless integration with a Gigabit Ethernet port, configurable I/O ports, and RS232/RS485 interfaces. Dual SIM and optional eSIM with failover and native industrial protocol support ensure reliability and compatibility with IIoT infrastructure.
The TRB247 is a sturdy industrial-grade gateway stored in an aluminum housing and can withstand temperatures of -40 °C to 75 °C. It may also operate in humid conditions (10% to 90%), which is entirely sufficient for construction site requirements.
For affordability and performance, it’s hard to compete with the TRB247. You’ll not only save money with this Gateway, but you’ll also reduce spending on network management and upkeep. Get in touch with our team today to discuss your network requirements. We’ll outfit your project with the right devices that get the job done.
| Technology | |
| Category | Industrial Gateway |
| Total Ports | 1 |
| Ethernet Ports | 1x 10/100 Mbps |
| Standards | IEEE 802.3, IEEE 802.3u, 802.3az |
| Network Management | |
| Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP(S), SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN |
| Power | |
| Power Consumption | Idle: < 1.7 W, Max: < 2.6 W |
| Connection | 2-pin in 16-pin industrial terminal block |
| Input Voltage | 9 to 30 VDC |
| Mechanical | |
| Enclosure | Anodized aluminum housing and panels |
| Mounting | DIN rail, wall mount, flat surface (all require additional kit) |
| LED Indicators | 1 x connection status LED, 3 x connection strength LEDs, 1 x power LED, 1 x Eth port status LED |
| Antenna Connection | 2 x SMA for LTE and GNSS |
| Weight | 181 g |
| Dimensions | 83 x 25 x 82.6 mm |
| Ratings | |
| Operating Temperature | -40 to 75°C |
| Humidity | 10 to 90% non-condensing |
| Certifications | IP30 |
| Download Name | File Size |
| Teltonika TRB247 Datasheet | 2.89MB |
| Teltonika TRB247 Flyer | 1.76MB |
| Image | Model | Product Name | Price | |
 |
DIN-RAIL | DIN-Rail Track, Choice of 10 or 20 Inches Length | $8.00 | |
 |
PR5MEC00 | Teltonika PR5MEC00 DIN Rail Mounting Kit | $8.00 | |
 |
PR5MEC11 | Teltonika PR5MEC11 Compact DIN Rail Mounting Kit | $4.00 | |
 |
PR5MEC12 | Teltonika PR5MEC12 Flat Surface Mounting Kit | $4.00 | |
 |
PR5MEC23 | Teltonika PR5MEC23 DIN Rail Kit Adapter | $27.10 | |
 |
PR5MEC22 | Teltonika PR5MEC22 Surface Clip Holder Kit | $4.00 | |
 |
PR3PRUS6 | Teltonika PR3PRUS6 US 2-Pin Power Supply, 9W | $13.60 | |
 |
PR3PDNP0 | Teltonika PR3PDNP0 DIN Rail Power Supply | $45.80 | |
 |
PR1KCS28 | Teltonika PR1KCS28 3-in-1 Roof Mount Antenna with 2G/3G/4G LTE, WiFi, and GNSS | $66.30 |
