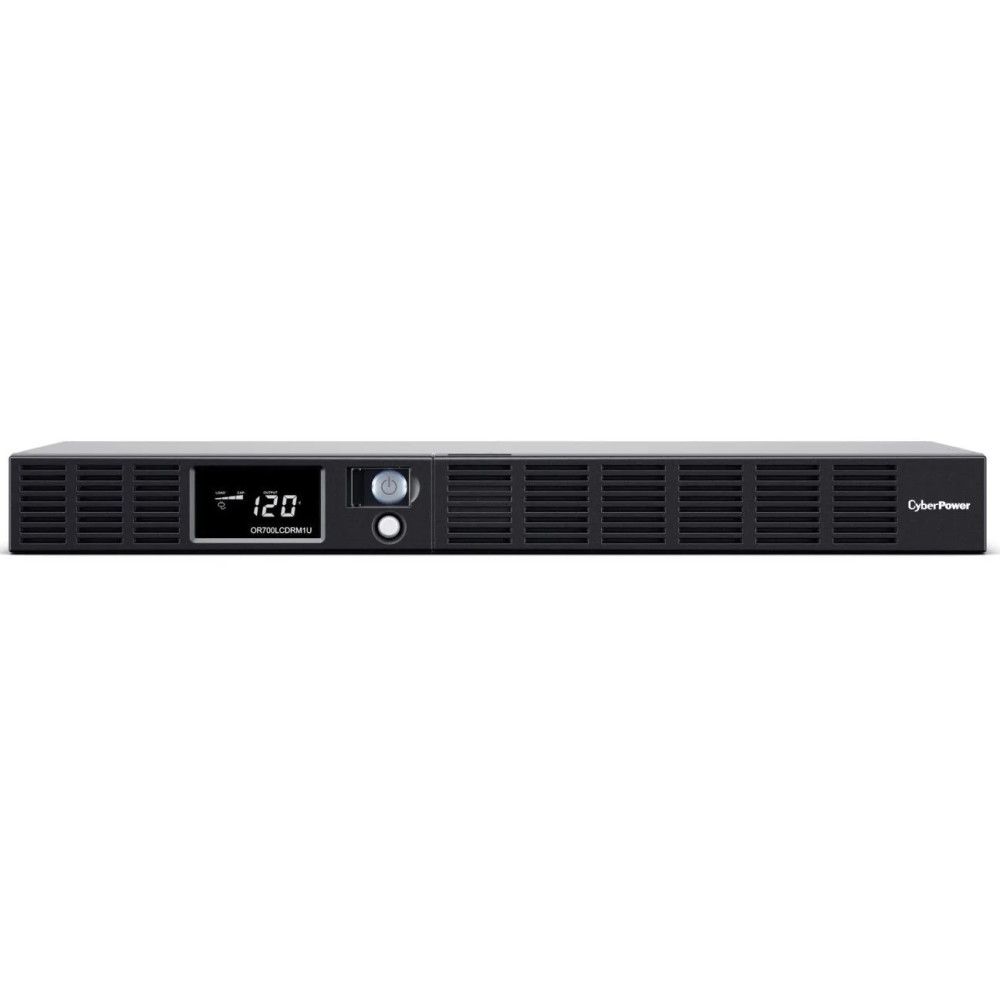

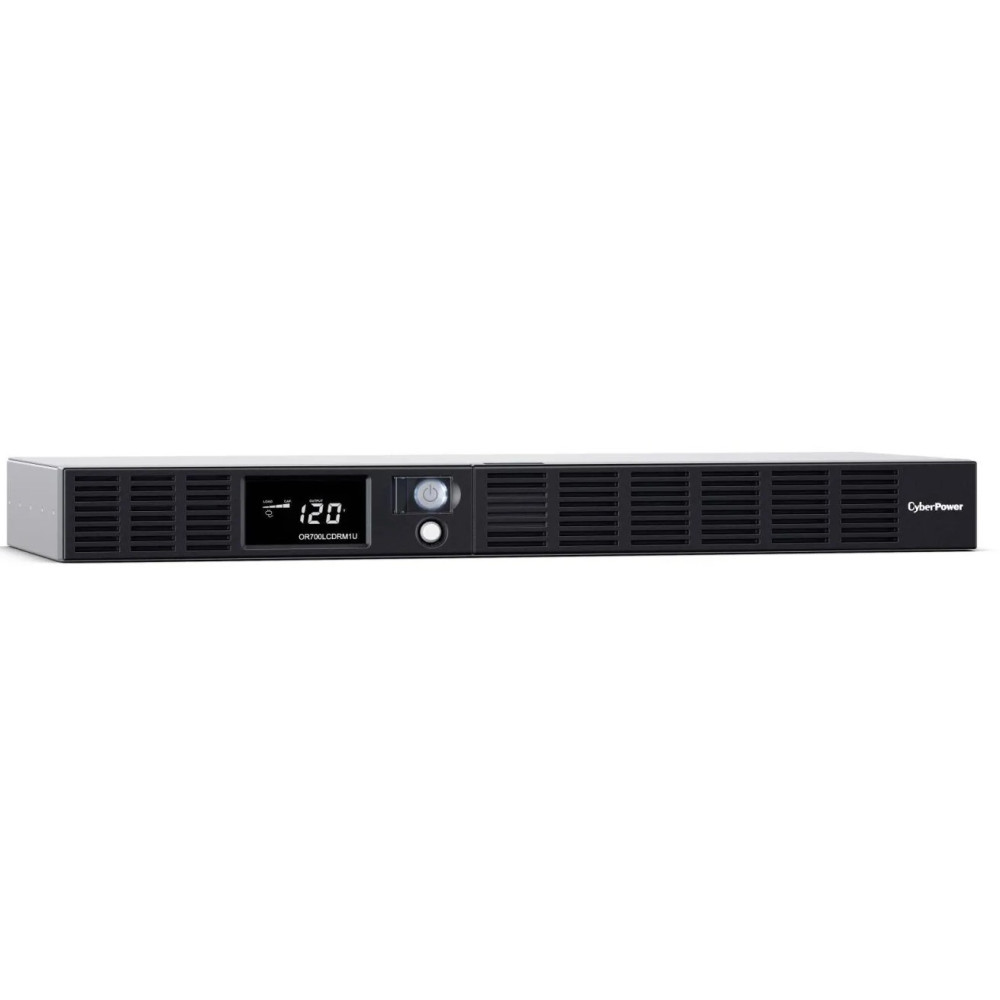

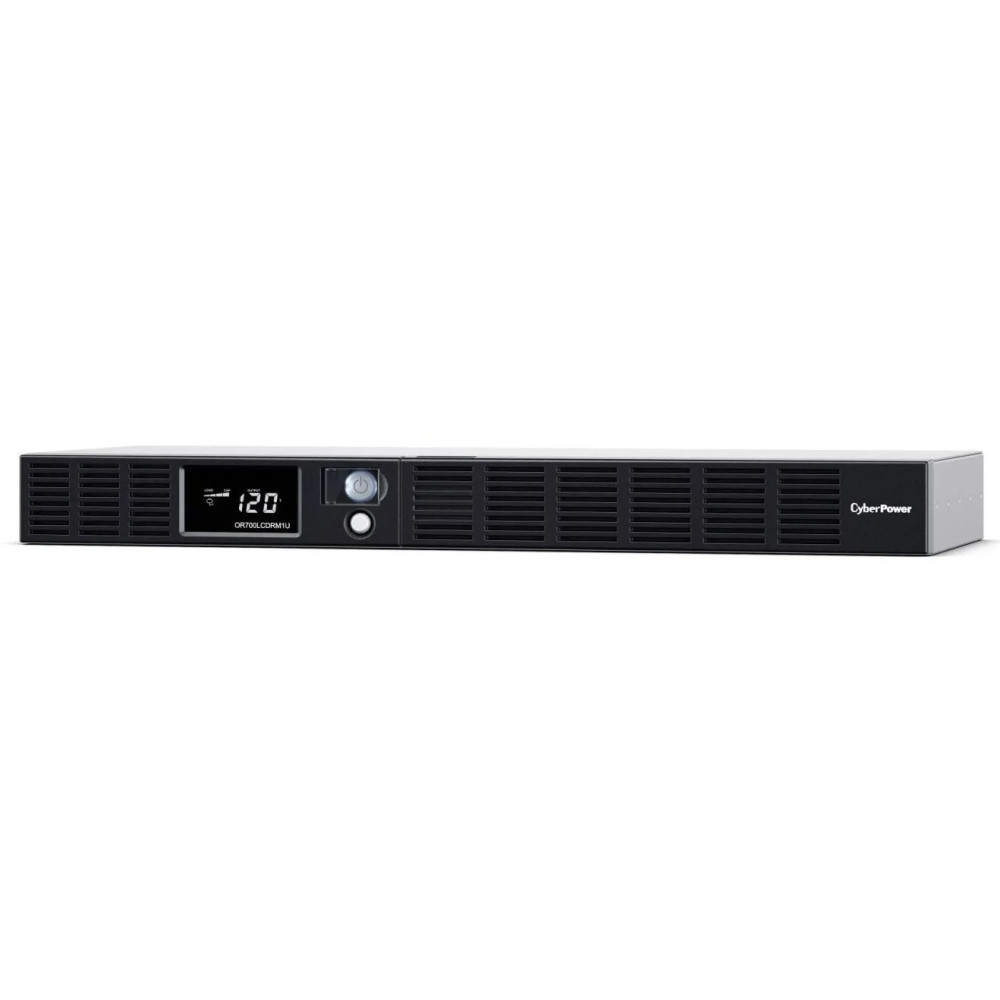

CyberPower OR700LCDRM1U 700VA/400W Smart App LCD Rackmount UPS

CyberPower OR700LCDRM1U Rackmount UPS with Multifunction LCD Panel, Simulated SineWave

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR700LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR700LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

PowerPanel Business Edition Software is a free download and provides IT professionals with tools for monitoring and managing the UPS and backup power.

This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR700LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

Typical Applications

• Workstations
• Corporate Servers
• Automatic Voltage Regulation
• Department Servers
• Network Devices
• Telecom Installations

Key Features

• Capacity: 700 VA / 400 W
• Line Interactive topology
• Waveform: Simulated Sine Wave
• Output: 120 VAC +/- 10%
• Runtime (half/full): 11 minutes / 3 minutes
• Plug type & cord: NEMA 5-15P, 10-ft. cord

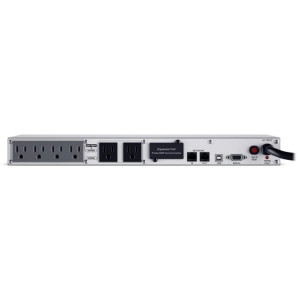

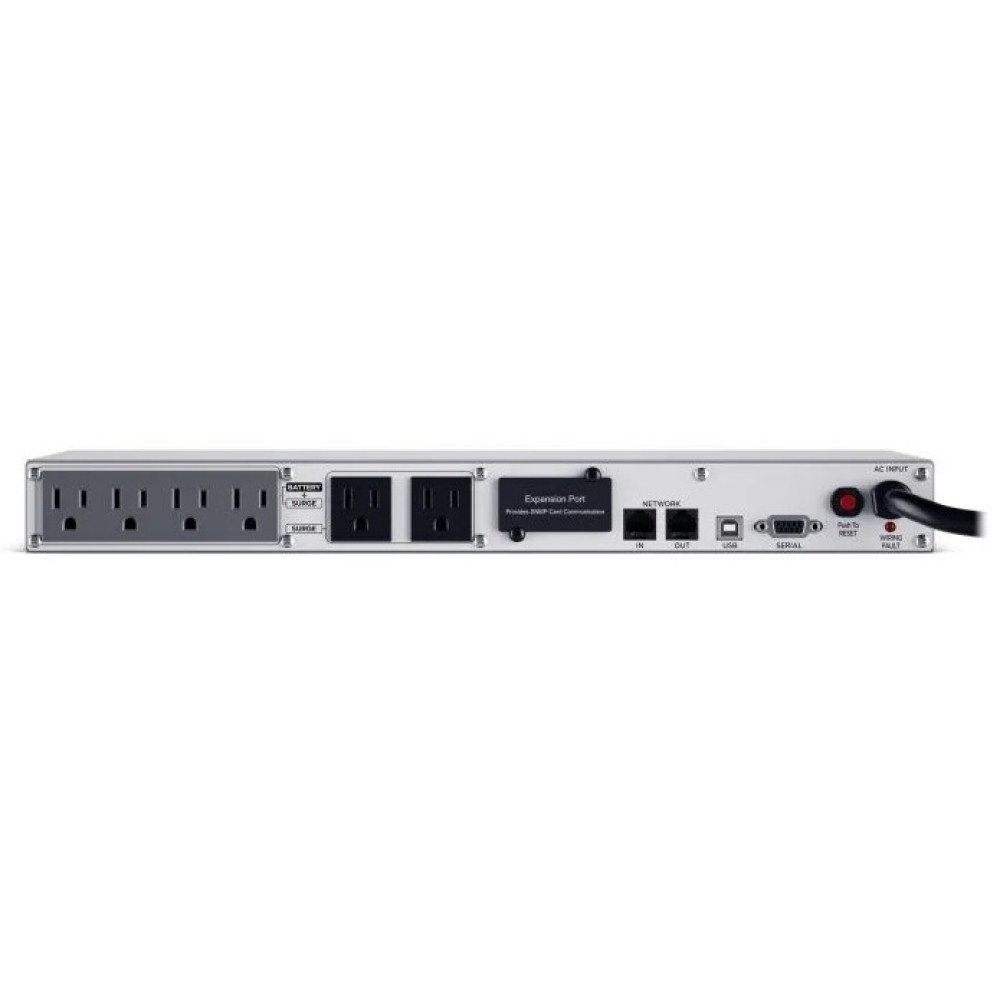

• Outlets: 6 NEMA 5-15R (2 surge, 4 surge + battery backup)
• USB, Relay, SNMP
• Data line protection: Network
• PowerPanel Business Management software
• Remote management with optional RMCARD205
• ENERGY STAR certified
• 3-Year Warranty
• $300,000 Connected Equipment Guarantee

In the Box

1. UPS System
2. User Manual
3. (2) Rackmount brackets
4. USB A+B Type Cable

CyberPower manufactures professional grade UPSs to satisfy a wide range of battery backup requirements. The OR700LCDRM1U is a cost-effective feature-rich power protection for networking, servers, and telecommunications equipment. To find out which CyberPower UPS model is best for your project, contact Westward Sales today!
