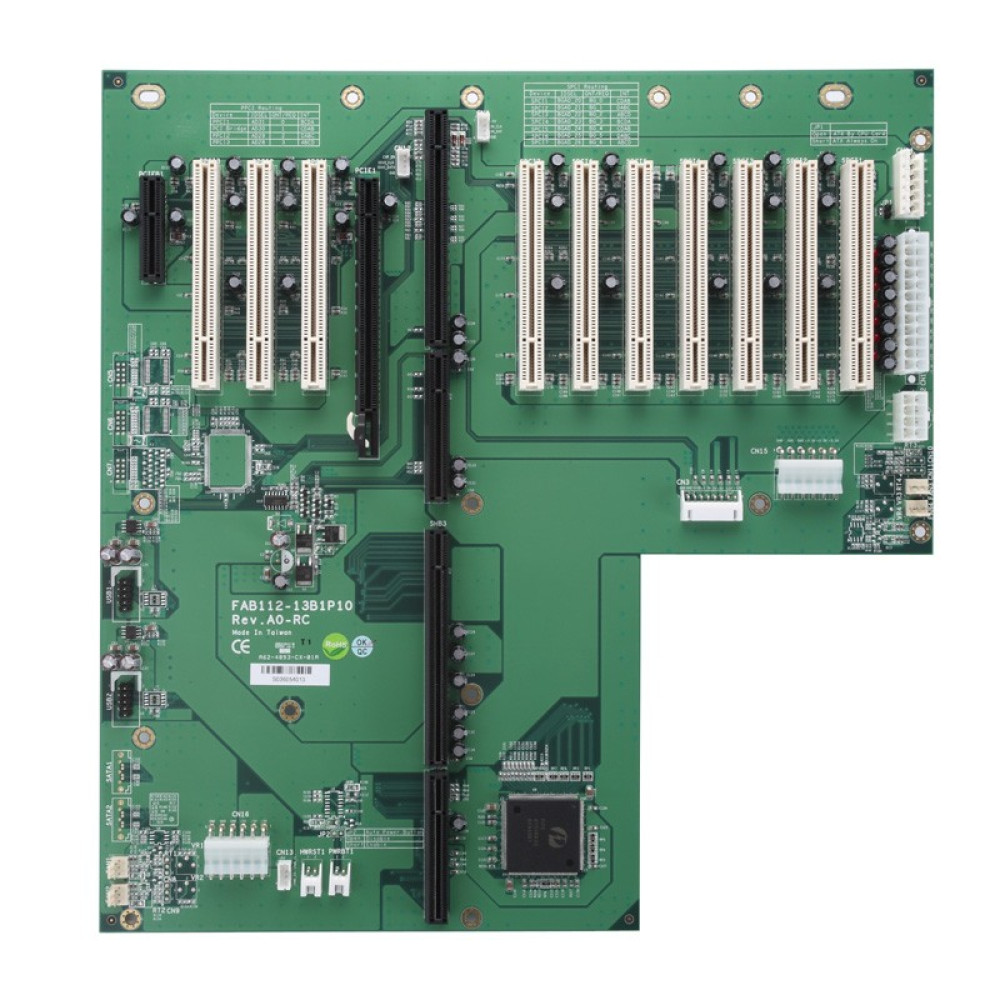

The FAB112 is a 13-slot, ATX-supported, PICMG 1.3 bus passive backplane designed for industrial computing applications. It is used to provide expansion slots and connectivity for a single board computer (SBC) and other peripheral cards within a compatible chassis.

It offers one PCIe x16 slot, one PCIe x4 slot and ten 32bit/33MHz PCI slots as well as the PICMG 1.3 slot for the SHB (system host board). The onboard 24-pin ATX power connector and 8-pin connector for the thermal detected board are featured. Furthermore, the backplane supports two USB ports. The FAB112 is typically used in industrial PCs and embedded systems where high reliability, a large number of legacy PCI expansion slots, and standard ATX power supply support are required. It is compatible with specific Axiomtek chassis, including the AX61400 and the AX6156LE.

Key Features

• Designed for PICMG 1.3 SBC
• Compatible with the AX61400 and AX6156LE chassis
• Supports one PICMG 1.3 CPU card slot, one PCIe x4 slot, one PCIe x16 slot, and ten 32bit/33MHz PCI slots
