Axiomtek FAB209 3-slot ATX-Supported 1U Butterfly PICMG 1.3 Bus Passive Backplane

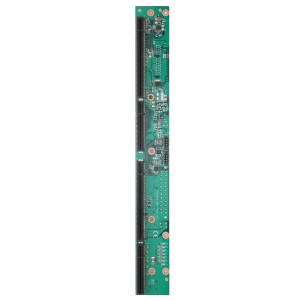

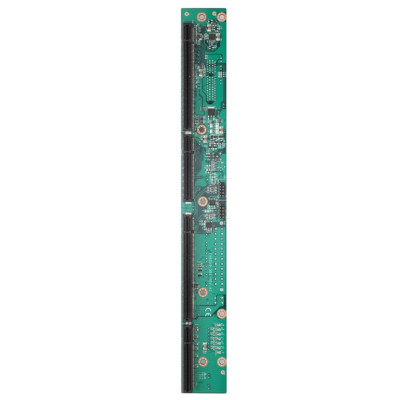

New AxiomtekFAB209 PICMG 1.3 SSBC Express Full-size Backplane with 3 PCI slots
AxiomtekFAB209 PICMG 1.3 SSBC Express Full-size Backplane with 3 PCI slots AxiomtekFAB209 PICMG 1.3 SSBC Express Full-size Backplane with 3 PCI slots
Model: FAB209
Availability: Contact Westward Sales
Standard Shipping & Handling
NCNR: YES
$112.00
Qty: Add to Cart
Add to Wish List Add to Compare

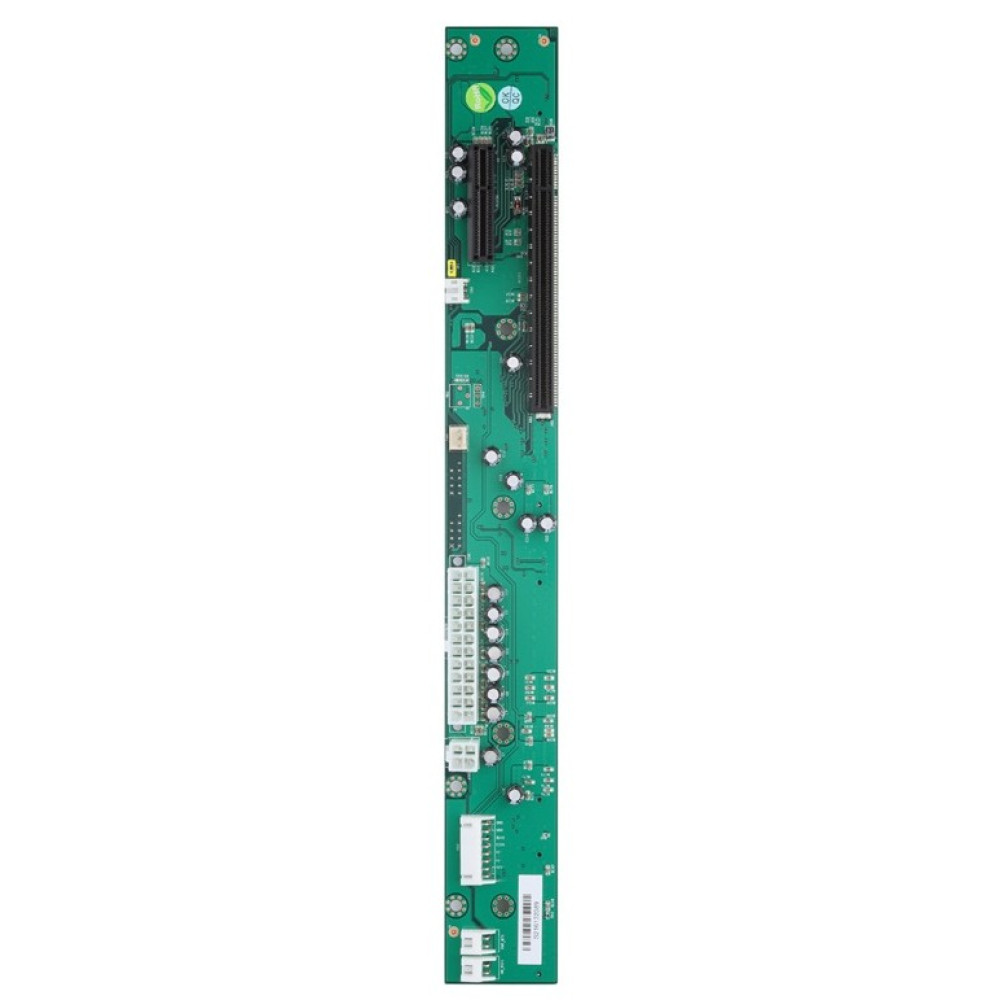

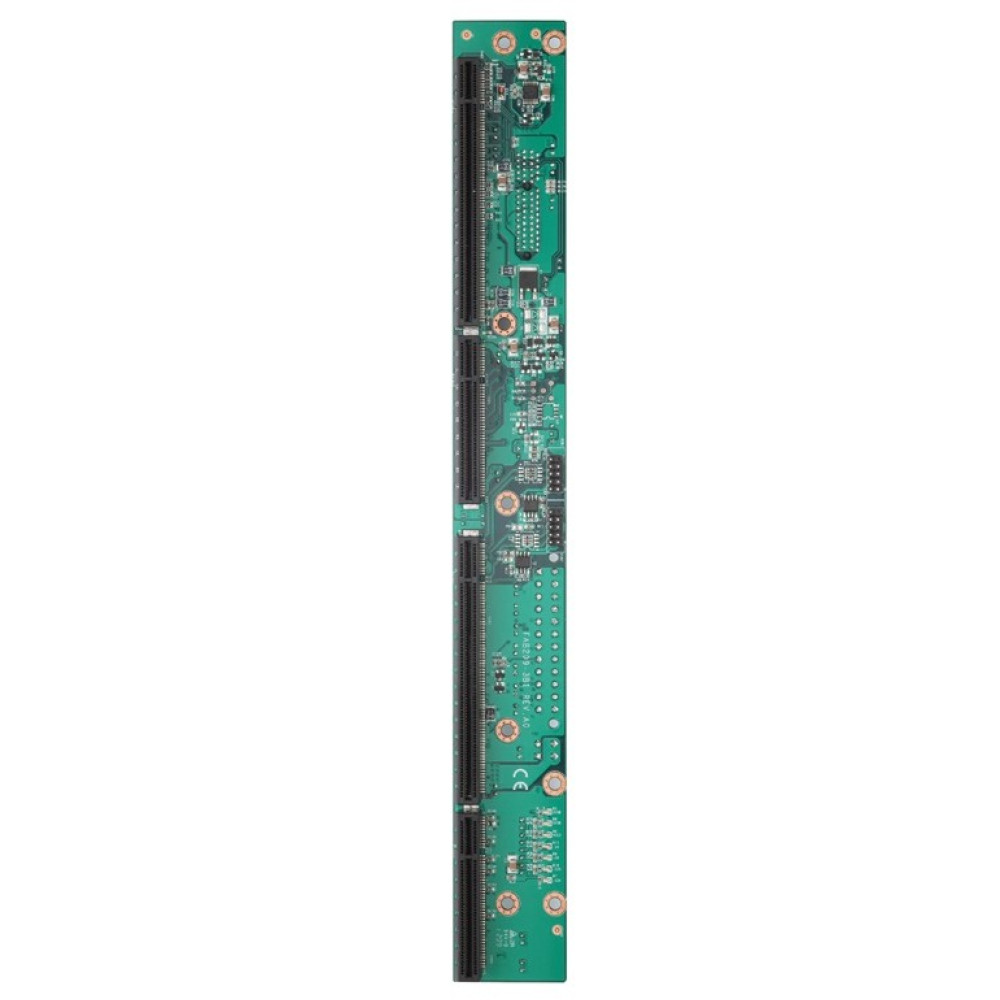

Axiomtek FAB209 High Bandwidth PICMG 1.3 Butterfly Backplane

The FAB209 is a 3-slot, ATX-supported PICMG 1.3 bus passive backplane designed specifically for use in a 1U industrial computer chassis. It is compatible with the AX61120TB.

Key Features

  • Designed for PICMG 1.3 SBC
  • Compatible with AX61120TP chassis
  • Supports one PICMG 1.3 CPU card slot, one PCIe x4 slot and one PCIe x16 slot
Computing
System Type Backplane & Chassis
Download Name File Size
Axiomtek PICMG 1.3 SHB Express Full-size Backplanes625.27KB
Axiomtek FAB209 Quick Installation Guide118.59KB
Tags: FAB209, FAB209-3B1-RC
