Axiomtek FAB116 8-slot ATX-supported PICMG 1.3 Bus Passive Backplane

Axiomtek FAB116 High Bandwidth PICMG 1.3 Backplane for I/O Intensive Applications

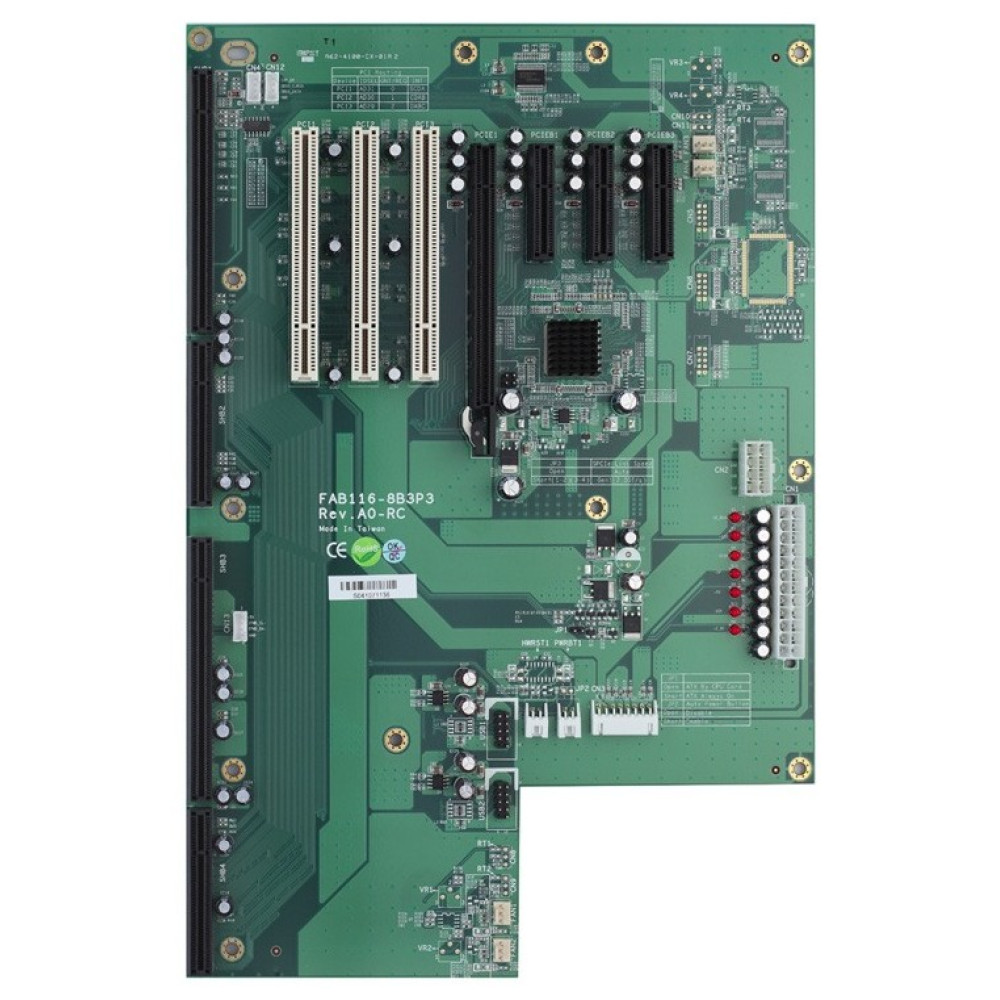

The FAB116 is an 8-slot, ATX-supported, PICMG 1.3 bus passive industrial backplane designed for use with a System Host Board (SHB) or single board computer (SBC) in industrial PC chassis. It serves as a robust and flexible foundation for industrial PC systems requiring a mix of high-bandwidth PCIe and legacy PCI expansion options, supporting various peripheral cards for specific application needs.

It provides a slot for a PICMG 1.3 CPU card, along with multiple expansion slots, including one PCIe x16, three PCIe x4, and three PCI slots. It includes a 24-pin ATX power connector and is compatible with specific Axiomtek chassis like the AX60551 and AX60552.

Key Features

• Designed for PICMG 1.3 SBC
• Compatible with AX60551 and AX60552 chassis
• Supports one PICMG 1.3 CPU card slot, three PCIe x4 slots, one PCIe x16 slot, and three 32bit/33MHz PCI slots
