Manufacturer: Axiomtek
Axiomtek's Pico-ITX SBCs, measuring at the size of 100 mm x 72 mm, provide system developers and OEMs with ultra-compact yet highly integrated platforms that deliver excellent computing performance at remarkably low power consumption. The Pico-ITX SBCs meet customer's demands in compact-size, fanless operation, low power consumption and versatile I/O.

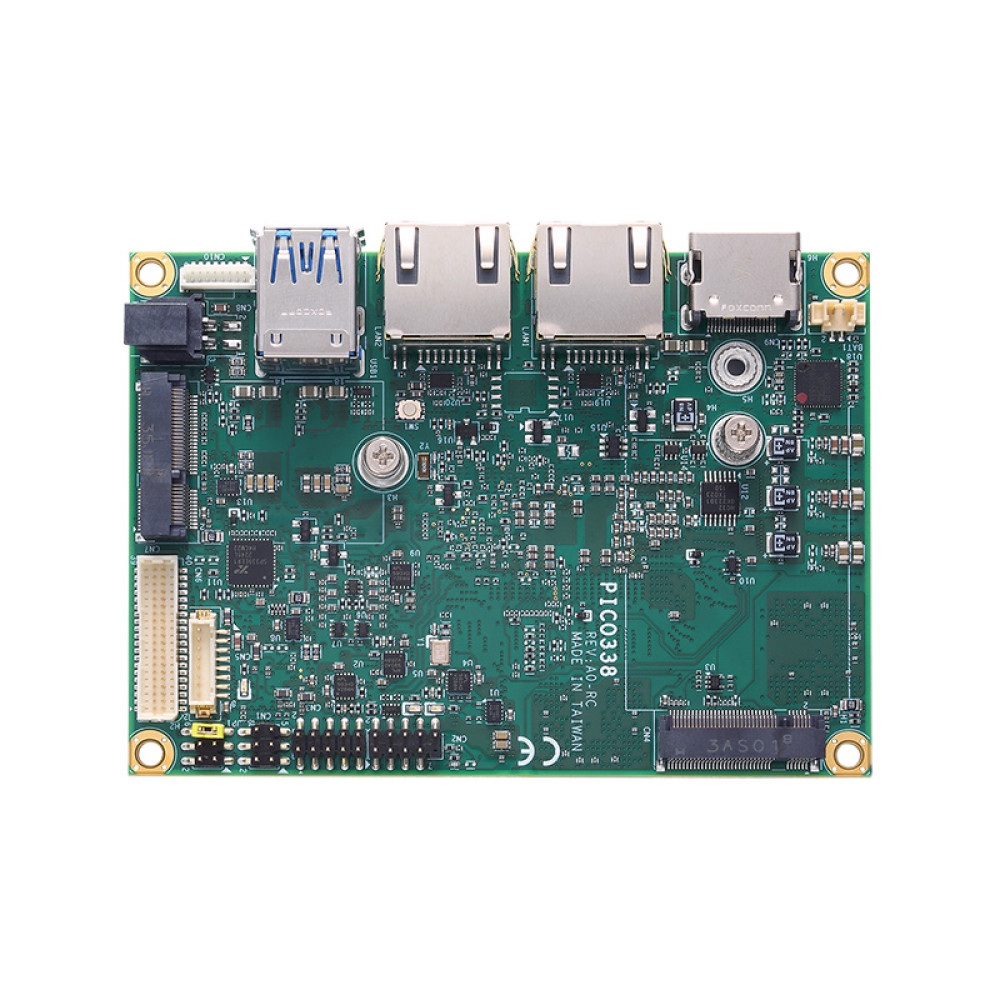

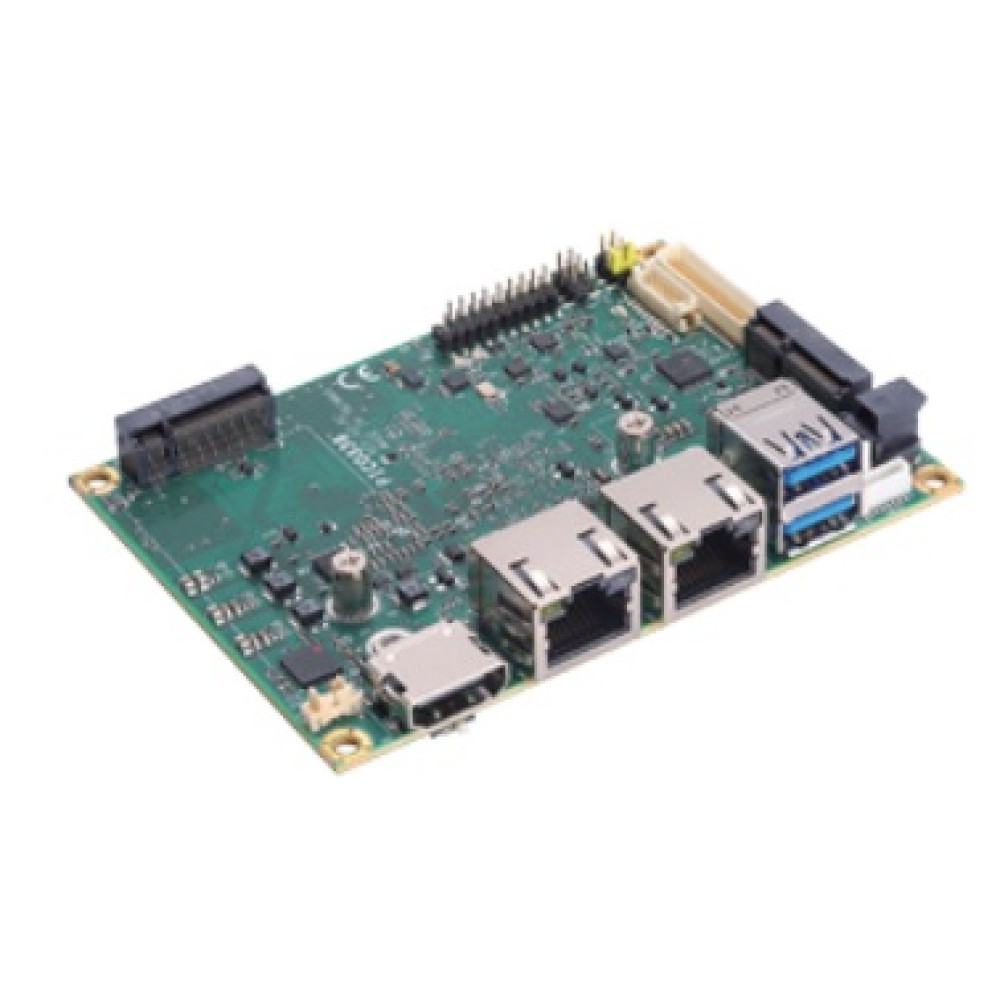

Featured here is the PICO338, a palm-sized fanless pico-ITX motherboard powered by the Intel N97 or Core i3-N305 processor. The PICO338 is a low power-consumption 2.5-inch embedded board that is expandable, rugged, feature-rich, and versatile to help facilitate quick deployment.
The PICO338 is equipped with 8GB LPDDR5 onboard. A dual-display capability is available through 18/24-bit single/dual channel LVDS and HDMI. For storage, there is one M.2 key B slot and one PCLe NVMe SSD onboard. Moreover, the pico-ITX form factor single board computer features 12V DC power supply input with AT Auto Power On function.
The slim and lightweight PICO338 comes with various expansion interfaces within its limited dimensions. This fanless embedded motherboard features two 2.5 GbE ports for customers who need mass data transmission or LAN port teaming functions for each virtual machine. The PICO338 is suitable for various industrial environments with an operating temperature range of -20°C to +70°C. This rugged pico-ITX embedded motherboard is designed for a wide range of applications including factory automation, Industrial IoT gateway systems, machine vision and more.
The board provides rich I/O connectivity including two USB 2.0 ports, two USB 3.2 ports, one RS-232/422/485 port, two 2.5 GbE LAN ports with Intel I225 Ethernet controller, one HD audio link, and 4-channel digital I/O. The PICO338 offers watchdog timer and hardware monitoring for reliable operation.
PICO338-N97-8GB, Intel processor N97, 8GB LPDDR5, HDMI, LVDS, and two 2.5 GbE LAN
PICO338-N305-8GB, Same as above with Intel Core i3-N305
Customize your PICO338 Pico-ITX Motherboard by calling us today. Our industrial computing and IoT networking devices improve every facet of your operation. Saving you time and money is our business. Contact Westward Sales to learn more.
| Computing | |
| System Type | Single Board Computer |
| Form Factor | Pico-ITX |
| CPU | Intel N-Series | Intel Core i9/i7/i5/i3 |
| CPU Chipset | SoC Integrated |
| System Memory Configuration | 8GB LPDDR5 onboard (16GB optional) |
| Maximum System Memory | 16 MB |
| BIOS | AMI |
| Watchdog Timer | 255 levels, 0 to 255 sec. |
| Expansion Slots | 1 x M.2 Key E 2230 (PCIe x1/USB 2.0), 1 x M.2 Key B 3042/3052 (PCIe x1/USB 3.2), optional |
| Video | |
| Display Type | 1x HDMI, 1x LVDS |
| Interfaces | |
| USB | 2x USB 2.0, 2x USB 3.2 |
| Audio | HD Audio link via pin header |
| Battery | |
| Battery Type | Lithium 3V/220mAH |
| Power | |
| Input Voltage | 2x2-pin connector, +12V DC-in only, AT Auto Power On function supported |
| Mechanical | |
| Dimensions | 100 x 72 mm, 1.6 mm thick |
| Ratings | |
| Operating Temperature | -20°C to +70°C (-4°F to +140°F) |
| Humidity | 10 to 95% non-condensing |
