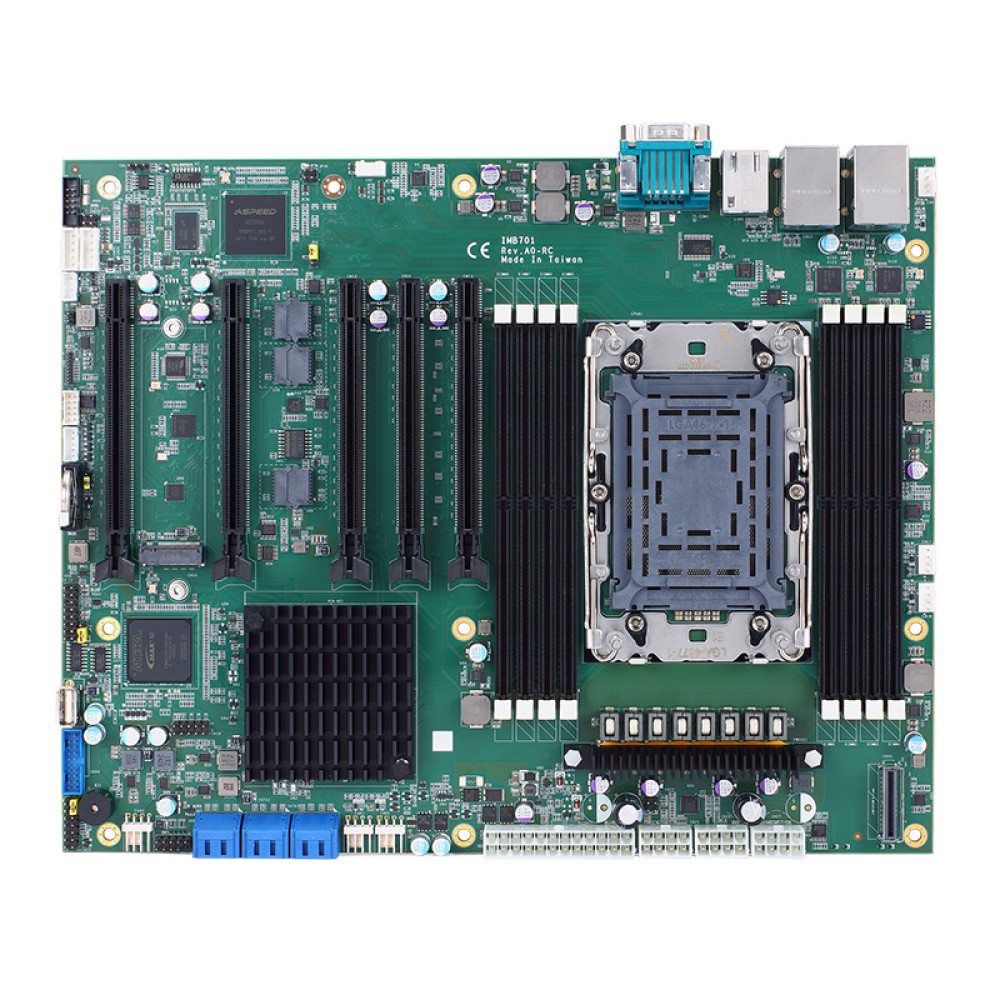

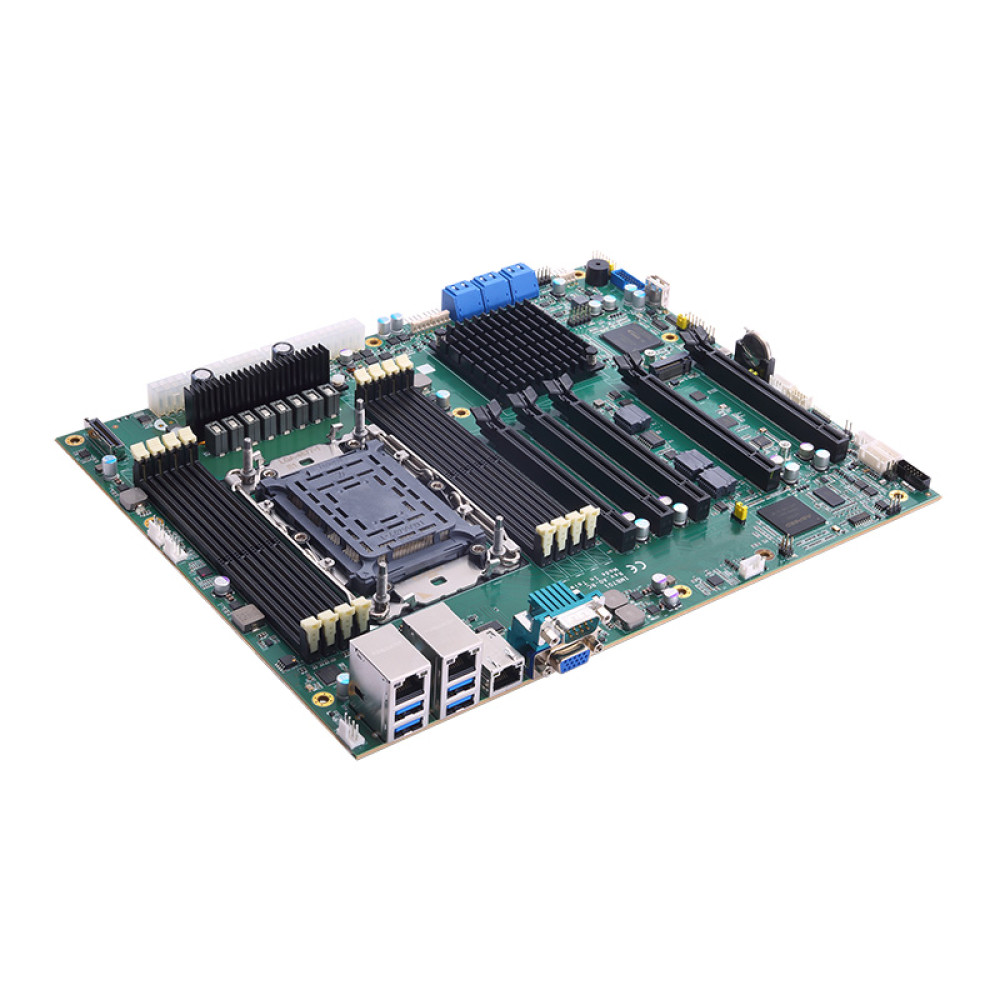

Axiomtek IMB701 Server Grade ATX Motherboard, Intel Xeon with C741 Chipset

Axiomtek IMB701ATX Motherboard, 5th/4th Gen Intel Xeon, C741chipset, VGA, up to 512GB memory
Model: IMB701
Availability: Contact Westward Sales
Standard Shipping & Handling
NCNR: YES
Qty:

Axiomtek IMB701 ATX Motherboard Powered by the 5th/4th Gen Intel Xeon Scalable for AI & HPC Applications

The IMB700 is a server-grade ATX motherboard powered by the latest LGA4677 socket 5th/4th Gen Intel Xeon scalable processor with the Intel C741 chipset.

Axiomtek’s IMB701 is built on the server-grade 5th/4th Gen Intel Xeon Scalable platform. To respond to the need for heavy workload processing and intensive computing data transmission, the IMB701 has eight 288-pin DDR5-5600 RDIMM sockets with a memory capacity of up to 512GB. It also features rich data storage and flexible expandability to satisfy customer-specific needs in deep learning AI, video surveillance, industrial automation and other diverse applications.

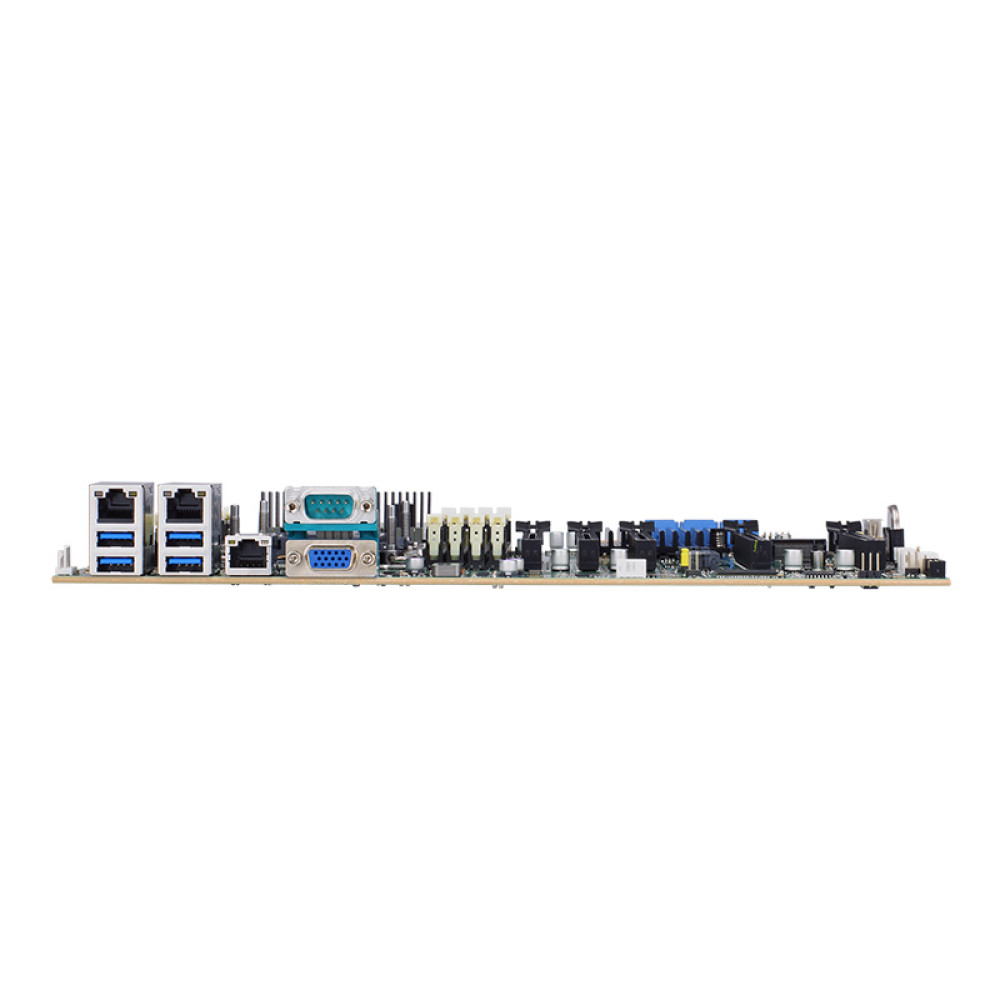

The IMB701 offers rich expandability with five PCIe x16 slots and M.2 Key M 2280 interface with PCIe x4 signal for adding GPUs, capture cards, RAID cards, high-speed NVMe storage, etc. Six SATA-600 ports with integrated RAID 0/1/5/10 are available for reliable data storage and protection. For a wide range of I/Os, it has an internal USB dongle, four internal USB, four USB 3.2 Gen1 ports, one RS-232 DB9 port, two GbE LAN ports with Intel Ethernet controller i210-AT, one VGA port, eight-channel programmable digital I/O port, one HD audio interface, SMBus, and one PS/2 keyboard and mouse. It can operate under a wide temperature range from 0°C to +60°C for use in harsh environments. More features include watchdog timer and hardware monitoring functions.

Key Features
  • 5th/4th gen Intel Xeon Scalable processors (Platinum, Gold, Silver, and Bronze), up to 350W TDP
  • 8 DDR5-5600 R-DIMM ECC, up to 512GB memory
  • 5 PCIe x16
  • Supports M.2 Key M and MCIO
  • Supports IPMI 2.0 and Redfish API
  • Supports multiple graphic cards
  • Supports internal USB dongle

Our industrial computing and IoT networking devices improve every facet of your operation. Saving you time and money is our business. Contact Westward Sales to learn more about the IMB701 Motherboard.

Technology
CategoryIndustrial Motherboard
Computing
CPUIntel Xeon
CPU ChipsetIntel C741
Maximum System Memory512 MB
System Memory Configuration8 x DDR5-5600 R-DIMM ECC, up to 512GB memory
BIOSAMI
Expansion Slots5 PCIe x16 and NVMe M.2 Key M 2280 (PCIe Gen4 x4)
Watchdog Timer255 levels, 1 to 255 sec.
Video
Display Type1x VGA
Interfaces
USB4 x USB 3.2 Gen1, 2 x Internal USB 3.2 Gen1, 2 x Internal USB 2.0, 1 x Internal USB 2.0 Type-A (for license dongle)
AudioHD audio interface (2x8 pin header)
Mechanical
Dimensions305 x 244 mm, 2.54 mm thick
Ratings
Operating Temperature0°C to +60°C (+32°F to +140°F)
Humidity10 to 95% non-condensing
Download NameFile Size
Axiomtek IMB701 Datasheet483.05KB
Tags: IMB701
