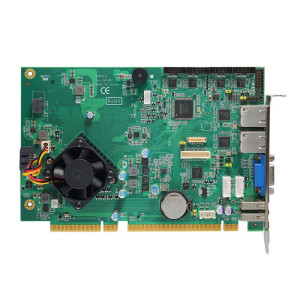

Axiomtek SHB150R PICMG 1.3 Full-Size SBC Card with Intel CPU Options & Chipsets

New Axiomtek SHB150R PICMG 1.3 Full-Size CPU Card, Intel C246, Q370, or H310 Chipset, USB 3.2, Dual GbE LAN, and DVI-I
Model: SHB150R
Availability: Contact Westward Sales
Standard Shipping & Handling
NCNR: YES
Qty:

Axiomtek SHB150R PICMG 1.3 Full-Size CPU Card with Intel C246/Q370/H310 Chipset, USB 3.2, Dual LAN, DVI-I

Axiomtek's PICMG 1.3 full-size CPU cards (338 x 126 mm) offer high performance PCI Express slot as interface to the backplane, and improve I/O bandwidth and graphic performance from the original PICMG 1.0 specification. Featured here is the SHB150R with scalable CPU options including the Intel Xeon, 9th/8th generation Intel Core, Intel Pentium or Intel Celeron processors with the Intel C246/Q370/H310 chipset. The system host board has a maximum of six SATA-600 ports supporting software RAID 0/1/5/10 for data redundancy. The SHB150R features rich I/O options and high-speed transfer interfaces as well as superior graphics capability, making it an ideal solution for smart factory automation.

Axiomtek’s SHB150R comes with two 288-pin DDR4-2666/2400 Long-DIMM sockets with up to 64GB of system memory. It has one M.2 Key M 2280 SSD slot with a PCIe x4 interface (Intel C246 or Q370). The full-size PICMG 1.3 system host board delivers a true high definition visual experience with the Intel HD Graphics and offers triple display configurations (Intel C246 or Q370) via DVI-I and DisplayPort++ (internal header) ports. For reliable operation in harsh environments, the SHB150R is capable of withstanding a wide operating temperature range of 0°C to 60°C. It is compatible with Windows 10 and Linux operating systems.

The SHB150R is equipped with flexible I/O connectivity and high-speed transfer interfaces such as PCIe x16 Gen3, USB 3.1 and SATA 3, and accommodates up to 64GB of DDR4 memory. The Intel Coffee Lake-based SHB150R supports Intel AMT and vPro for easy remote management and monitoring and optional Trusted Platform Module (TPM) 2.0 for optimum security.

The SHB150R adopts a rich array of I/O interfaces including two RS-232 ports, two RS-232/422/485 ports, two Gigabit LAN with Intel Ethernet controller i211-AT and Intel Ethernet connection i219-LM, two USB 3.1 Gen2 ports (Intel C246 or Q370), four USB 3.1 Gen1 ports, six USB 2.0 ports, one HD Codec audio, one parallel port (LPT) and one PS/2 keyboard and mouse. To enhance the application flexibility, the PCIe x16 Gen3, PCIe x4 and conventional PCI slots on the board deliver an optimum solution for machine vision and automation applications. The powerful industrial single board computer also supports watchdog timer and hardware monitoring functions.

Key Features
  • LGA1151 9th/8th gen Intel Core i7/i5/i3, Xeon E (Inte C246), Pentium or Celeron processor (up to 95W)
  • Intel C246/Q370/H310 chipset
  • 2 DDR4-2666/2400 Long-DIMM for up to 64GB of memory
  • Supports Intel AMT and vPro (C246/Q370)
  • TPM 2.0 supported (optional)
  • Supports M.2 Key M (C246/Q370)
Configurations

SHB150RDGG-Q370 w/PCIex4 BIOS, PICMG 1.3 full-size CPU card with LGA1151 socket, Intel Q370, DVI-I, 2 GbE LAN, and PCIe x4
SHB150RDGG-Q370 w/PCIex1 BIOS, Same as above with PCLe x1

SHB150RDGG-H310 w/PCIex4 BIOS, PICMG 1.3 full-size CPU card with LGA1151 socket, Intel H310, DVI-I, 2 GbE LAN, and PCIe x4
SHB150RDGG-H310 w/PCIex1 BIOS, Same as above with PCLe x1

SHB150RDGG-C246 w/PCIex4 BIOS, PICMG 1.3 full-size CPU card with LGA1151 socket, Intel C246, DVI-I, 2 GbE LAN, and PCIe x4
SHB150RDGG-C246 w/PCIex1 BIOS, Same as above with PCLe x1

Accessories Available
  1. 2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
  2. 1 x Dual USB 3.2 (Gen1x1) cable with bracket, L=400 mm
  3. 1 x Dual USB 3.2 (Gen2x1) cable with bracket, L=400 mm
  4. PS/2 keyboard & mouse cable with bracket
  5. SATA signal cable/red, L=500mm
  6. AX93242-RC HD audio converter kit
  7. 1 x COM port cable with bracket, P=2.54 mm, L=300 mm
  8. 2 x COM port cable with bracket, P=2.54 mm, L=300 mm
  9. DVI-I to DVI-D+VGA Y cable
  10. TPM 2.0 module (AX93515)
  11. DisplayPort++ kit with bracket

Customize your SHB150R CPU card by calling us today. Our industrial computing and IoT networking devices improve every facet of your operation. Saving you time and money is our business. Contact Westward Sales to learn more.

Technology
CategoryIndustrial Motherboard
Computing
Form FactorPICMG
CPUIntel Core i9/i7/i5/i3 | Intel Pentium | Intel Celeron | Intel Xeon
CPU ChipsetIntel C246/Q370/H310 chipset
Maximum System Memory64GB
System Memory ConfigurationIntel C246: 2 x 288-pin 2666/2400 with ECC un-buffered Long-DIMM, up to 64GB Intel, Q370/H310: 2 x 288-pin 2666/2400 un-buffered Long-DIMM, up to 64GB
BIOSAMI UEFI
Expansion Slots1 x PCIe x16 Gen3, 1 x PCIe x4 or 4 x PCIe x1 Gen3, 4 x 32-bit PCI bus masters
Watchdog Timer255 levels, 1 to 255 sec.
Video
Display Type1 x DVI-I, 1 x DisplayPort++ (internal header)
Interfaces
USBUSB 3.2 Gen1/Gen2 - see datasheet
AudioHD Codec audio as Mic-in/Line-in/Line-out/Speaker-out with audio kit AX93242 (optional)
Battery
Battery TypeLithium 3V/220mAH
Mechanical
Dimensions338 x 126 mm, 1.6 mm thick
Ratings
Operating Temperature0°C to +60°C (+32°F to +140°F)
Humidity10 to 95% non-condensing
