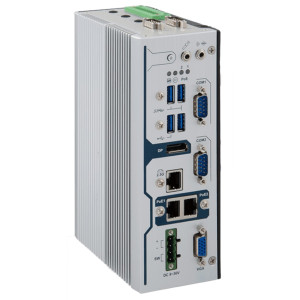

The SP-244C-TGLU is part of ARBOR's SB series of Industrial embedded box computers and is a cost-effective industrial PC with high stability and long service life. It features Intel's Tiger Lake i3-1115G4 or i5-1135G7 Processor. The SB series industrial PC chassis is made of aluminum alloy to prevent harsh environmental damage. With the compact size, multiple I/O interfaces, and high performance of the SP-244-TGLU industrial PC, users can install it with various installation methods, including wall-mounted and desktop installations. This fanless device is an ideal solution for businesses seeking to boost their advertising capabilities and interactive communication.
The SP-244 TGLU fanless box computer is an ideal and cost-effective solution for your industrial computing requirements. With the added feature of DIN Rail PC compatibility, it exhibits versatility and reliability. Save space and optimize your operations with this fanless box computer.
SB-244-11115G4-R4S128, Fanless System with 4GB RAM & 128GB SSD, Intel Tiger Lake i3-1115G4 , 4xLAN, 4xCOM, 6xUSB, 2xHDMI, 1xDP, 10-36V DC
SB-244-11135G7-R4S128, Same as above with Intel Tiger Lake i5-1135G7
* Contact Westward Sales today to customize your SB-244 TGLU Industrial Box Computer.
Technology | |
Category | Industrial Computer |
Computing | |
System Type | Embedded Computers |
CPU | Intel Core i9/i7/i5/i3 |
Maximum System Memory | 32 GB |
System Memory Configuration | 4GB WT DDR4 SO-DIMM pre-installed |
Expansion Slots | 1x E-Key M.2 2230 slot (PCIe X1 / USB2.0 signal supported), 1x mPCIe (PCIe/ USB2.0/USB 3.0 signal supported) |
Drive Storage | 128GB M.2 WT SSD pre-installed |
Operating Systems | Windows 10, Ubuntu 20.04 |
Interfaces | |
LAN Ports | 4 Gigabit Ethernet |
USB | 3x USB3.2 Gen. 2, 3x USB2.0 |
Total Serial Ports | 4 |
Serial | 4x RS232/422/485 |
Audio | Line-out & Mic-in |
Power | |
Input Voltage | 10 to 36V DC |
Mechanical | |
Enclosure | Aluminum alloy |
Dimensions | 224 (W) x 140 (H) x 49.2 (D) mm |
Weight | 1.6 kg |
Mounting | Desk-Mount, Wall-Mount, DIN-Rail, VESA mount |
Shock / Vibration | 10g 11ms operation, 30g 11ms Non-operation / 5~500Hz, 2Grms operation |
Ratings | |
Operating Temperature | -20° to 50°C |
Storage Temperature | -40 to 85°C |
Humidity | 5 to 95% non-condensing |
Certifications | CE, FCC |
Download Name | File Size |
ARBOR SB-244 TGLU Datasheet | 714.51KB |
ARBOR SB-244 TGLU User's Manual | 3.83MB |
ARBOR SB Series Comparison Guide | 643.23KB |
