Manufacturer: ARBOR Technology
ARBOR offers robust computing solutions for rail, marine, in-vehicle, and fleet management applications. From compact designs for confined spaces to devices that are resistant to excessive vibration and shock, ARBOR manufactures tailored computers to fulfill your requirements. Their rugged mobile computers are used in transportation applications, such as vehicle tracking and route optimization, to provide data, maintain communications, and enhance safety. They have also been installed by the military, emergency services, public transportation authorities, and by private fleet owners.

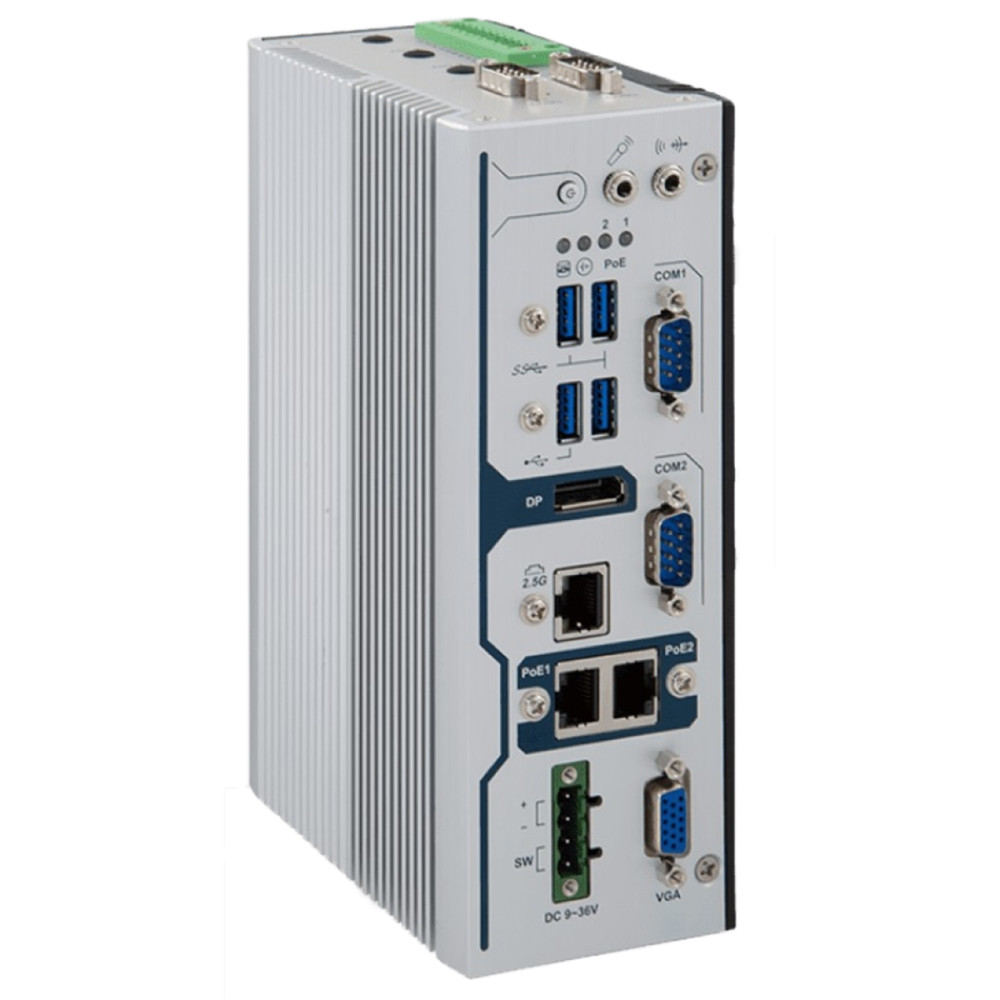

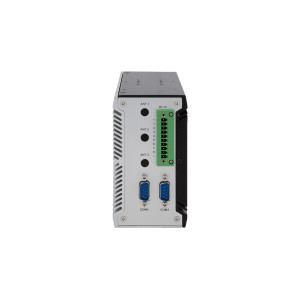

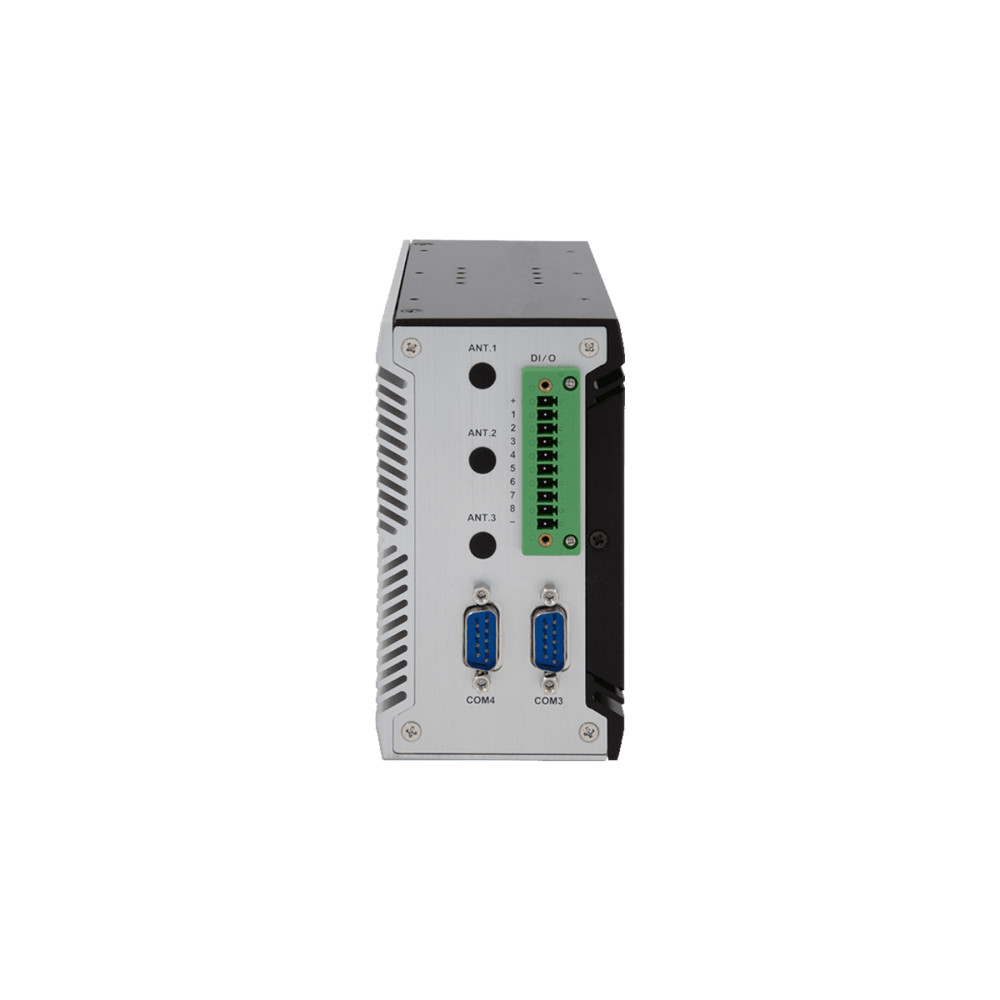

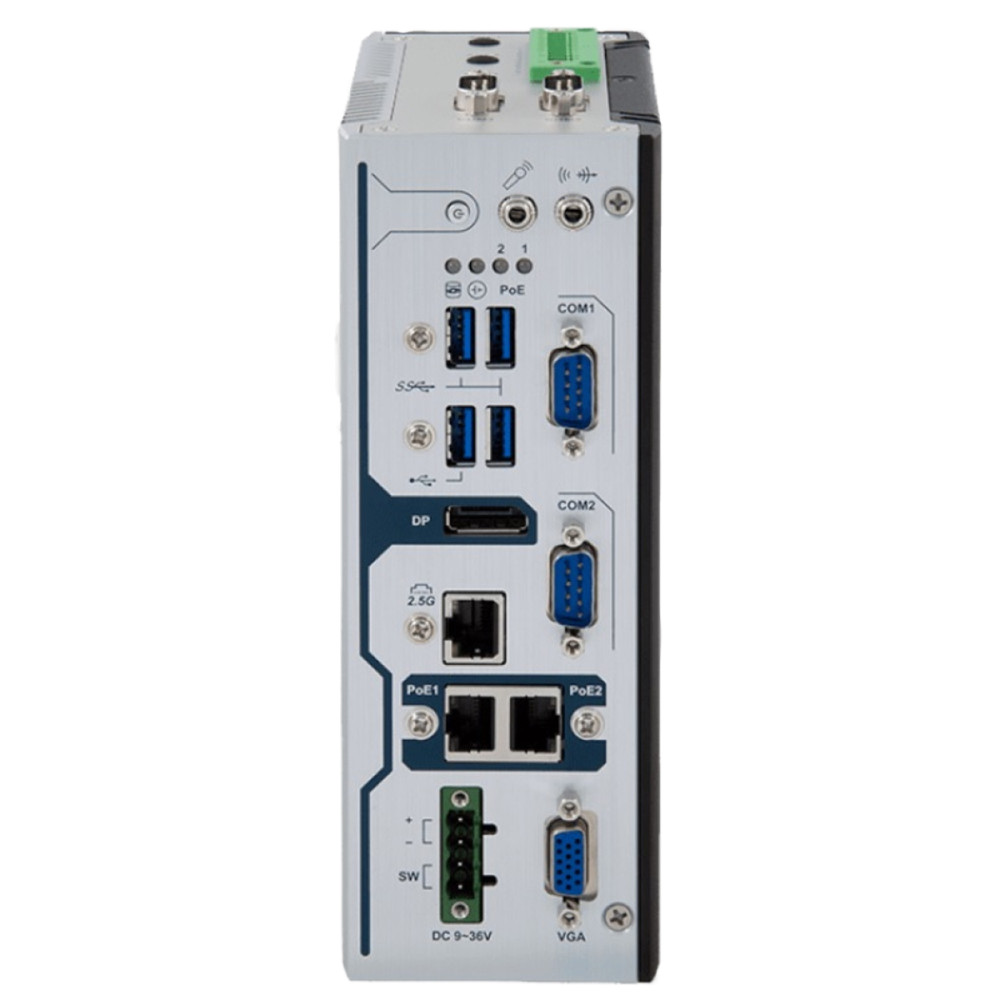

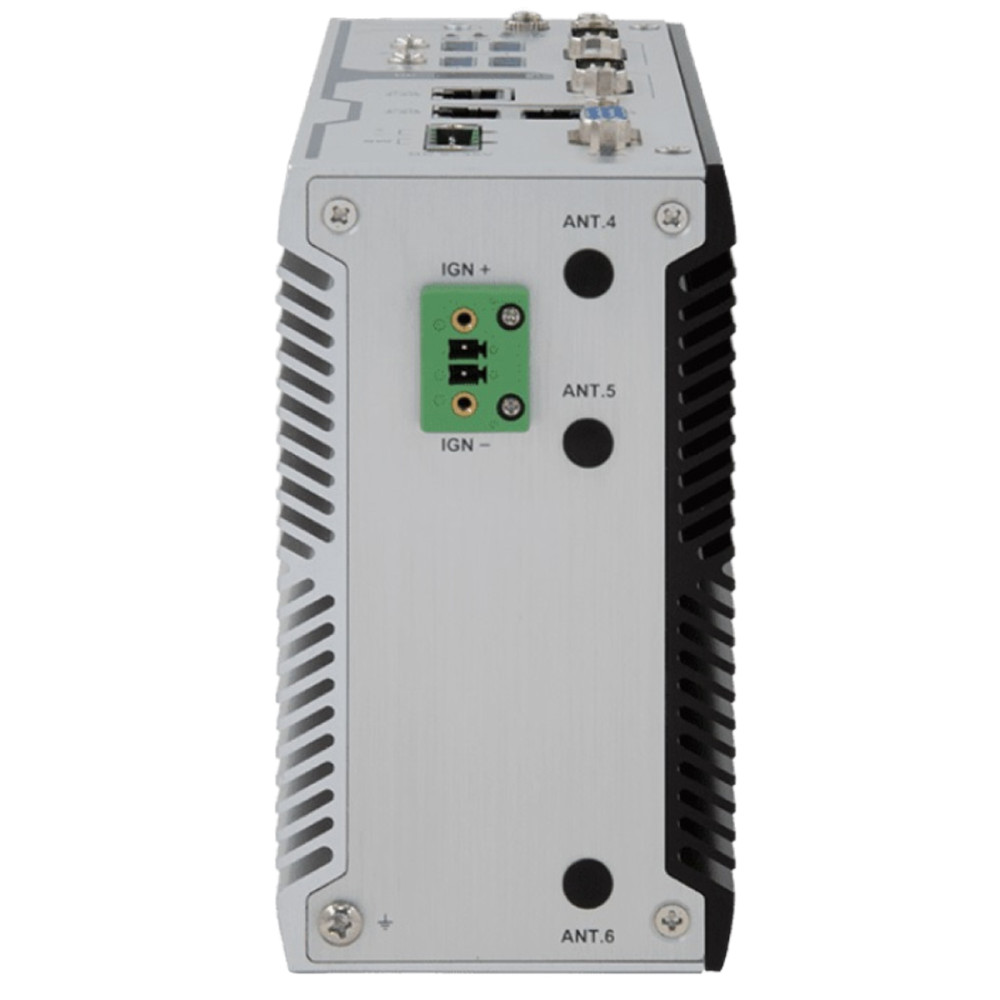

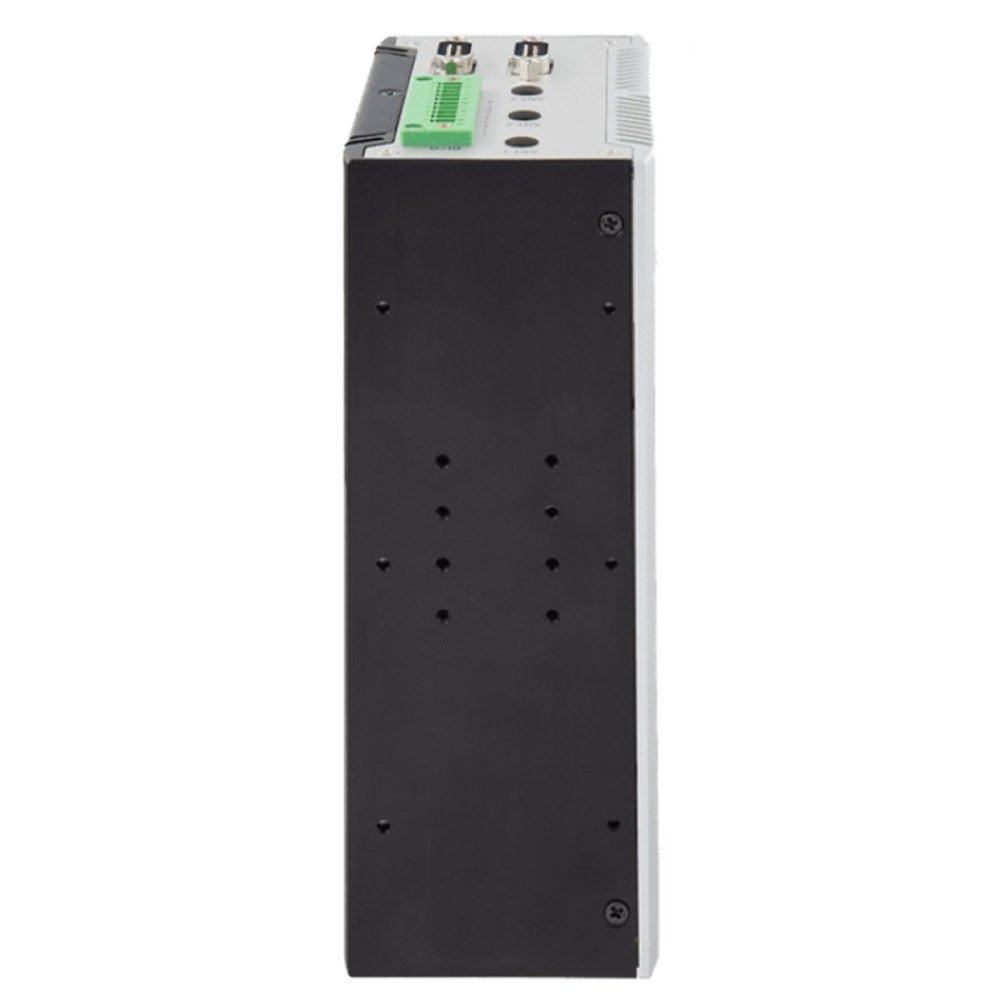

Featured here is the ARES-5320 rugged mobile transport solution, offering advanced technology to meet the demands of today's transportation industry. It features three LAN ports, eight COM ports, sixteen DI/DO ports, and four USB ports.
*Contact Westward Sales today to customize your ARES-5320 Embedded Computer.
| Computing | |
| System Type | Industrial PC |
| CPU | Intel Atom |
| System Memory Configuration | 1 x 260-pin DDR4 SO-DIMM sockets, supporting 3200MHz SDRAM up to 32GB |
| Maximum System Memory | 32 GB |
| Drive Storage | 1 x Onboard 64G eMMC, 1 x Full-size mSATA slot (colay w/ mPCIe), 1 x 2.5” SSD/HDD tray (For A & P ver.) |
| Expansion Slots | 1 x Full-size mPCIe slot (USB2.0, colay w/ mSATA) w/ 1 x nano SIM slot, 1 x Full-size mPCIe slot (PCIe x1 + USB2.0), 1 x Half-size mPCIe slot (PCIe x1 + USB2.0) |
| Operating Systems | Windows 10 IoT / Windows 11 IoT / Ubuntu |
| Interfaces | |
| LAN Ports | 3 2.5 Gigabit Ethernet |
| USB | 3x USB-A 3.2 Gen 1 (5Gbps), 1x USB-A 2.0 |
| Total Serial Ports | 8 |
| Serial | 2 x RS232 (Default) /422/485, 2 x RS232, 4 x 2kV isolated RS232/422/485 (For -ISO ver.) |
| Video Ports | 1 x DP++, 1 x VGA |
| Audio | 1 x Mic-in, 1 x Line-out |
| Power | |
| Input Voltage | 9 to 36V DC |
| Input Connection | 4-pin Terminal Block |
| Mechanical | |
| Mounting | DIN rail, Wall mount |
| Shock / Vibration | IEC 68-2-27 |
| Weight | 1.9 kg |
| Dimensions | 70 x 125 x 190 mm |
| Ratings | |
| Operating Temperature | -20 - 70°C |
| Storage Temperature | -40 to 80°C |
| Humidity | 10 - 95% non-condensing |
| Certifications | CE, FCC (Class A) E-Mark |
| Download Name | File Size |
| ARBOR ARES-5320 Series Datasheet | 1.14MB |
| ARBOR ARES-5320 Series User's Manual | 8.63MB |
