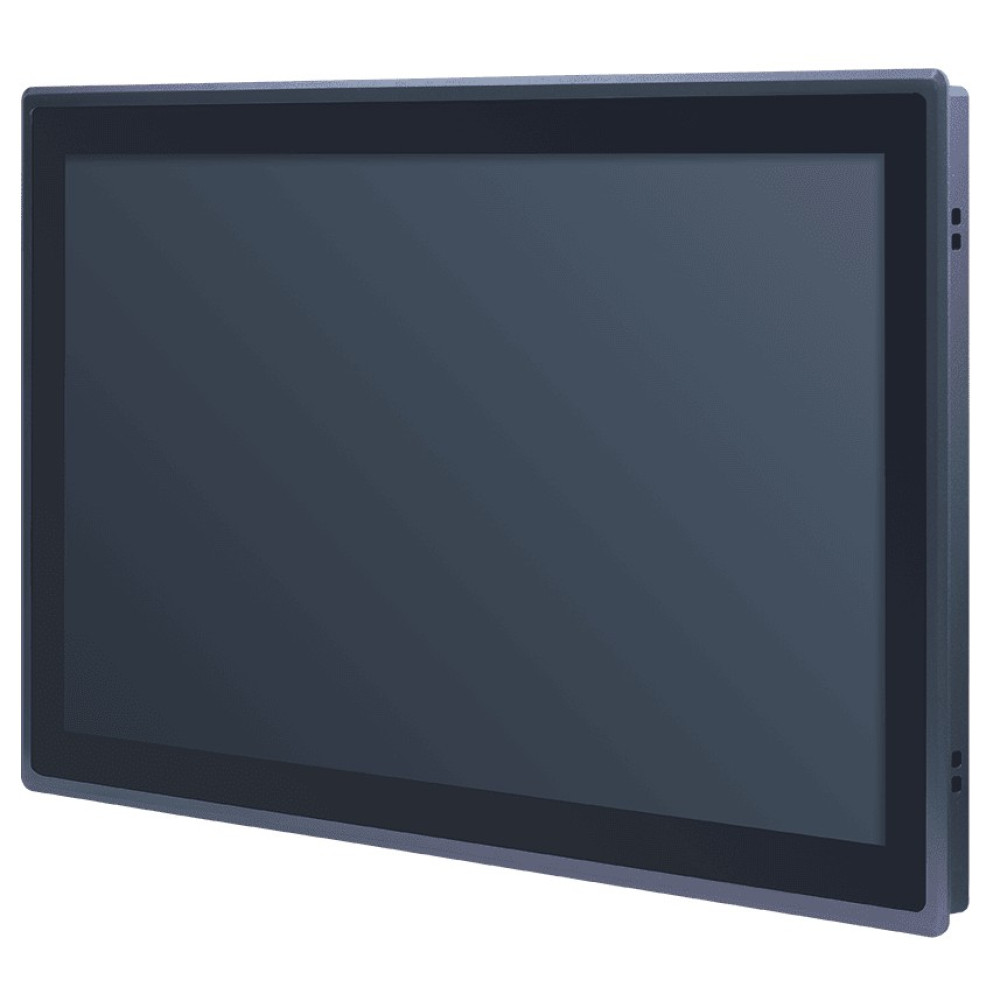

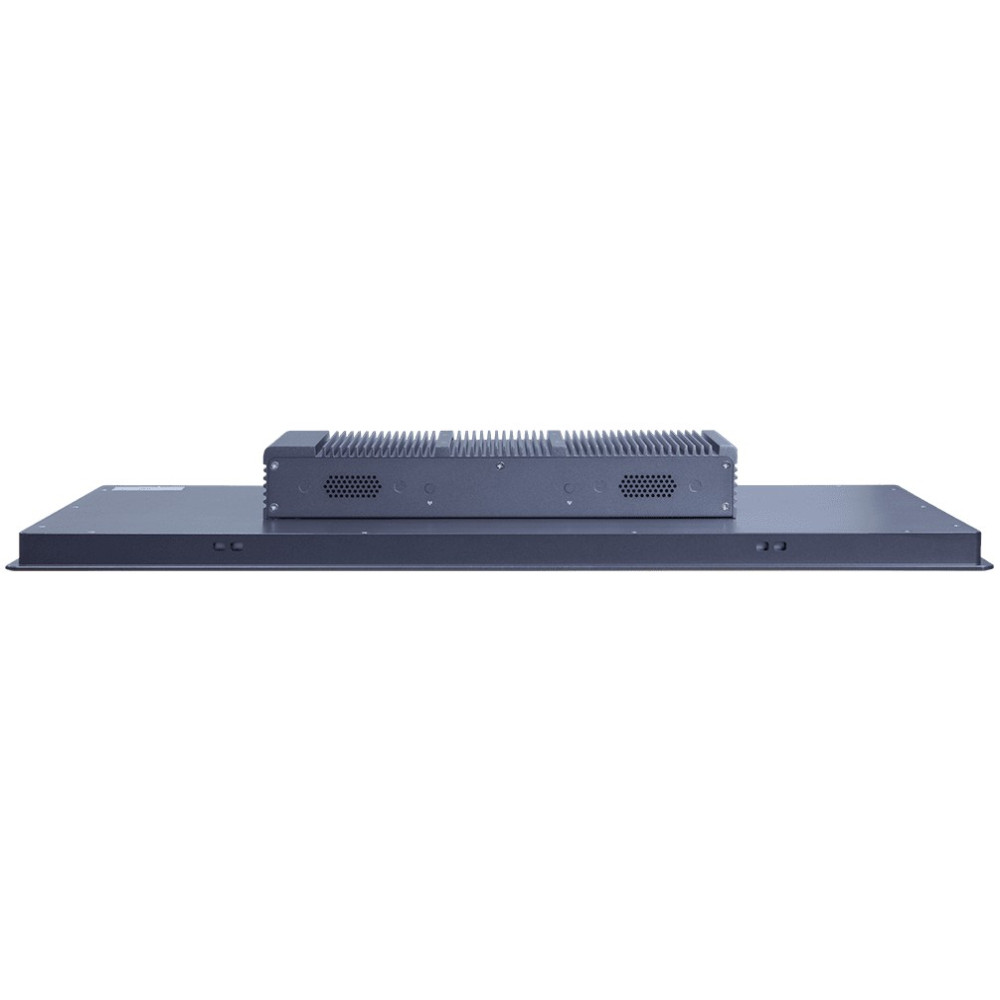

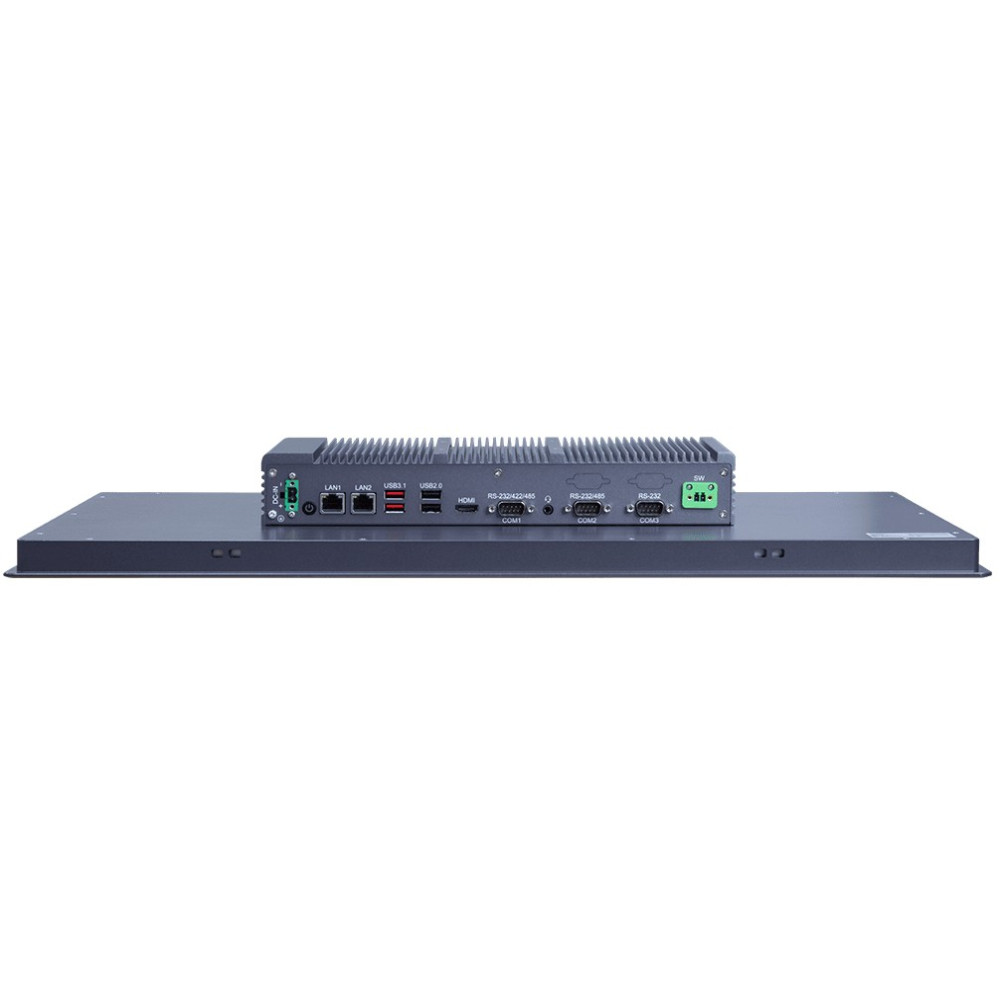

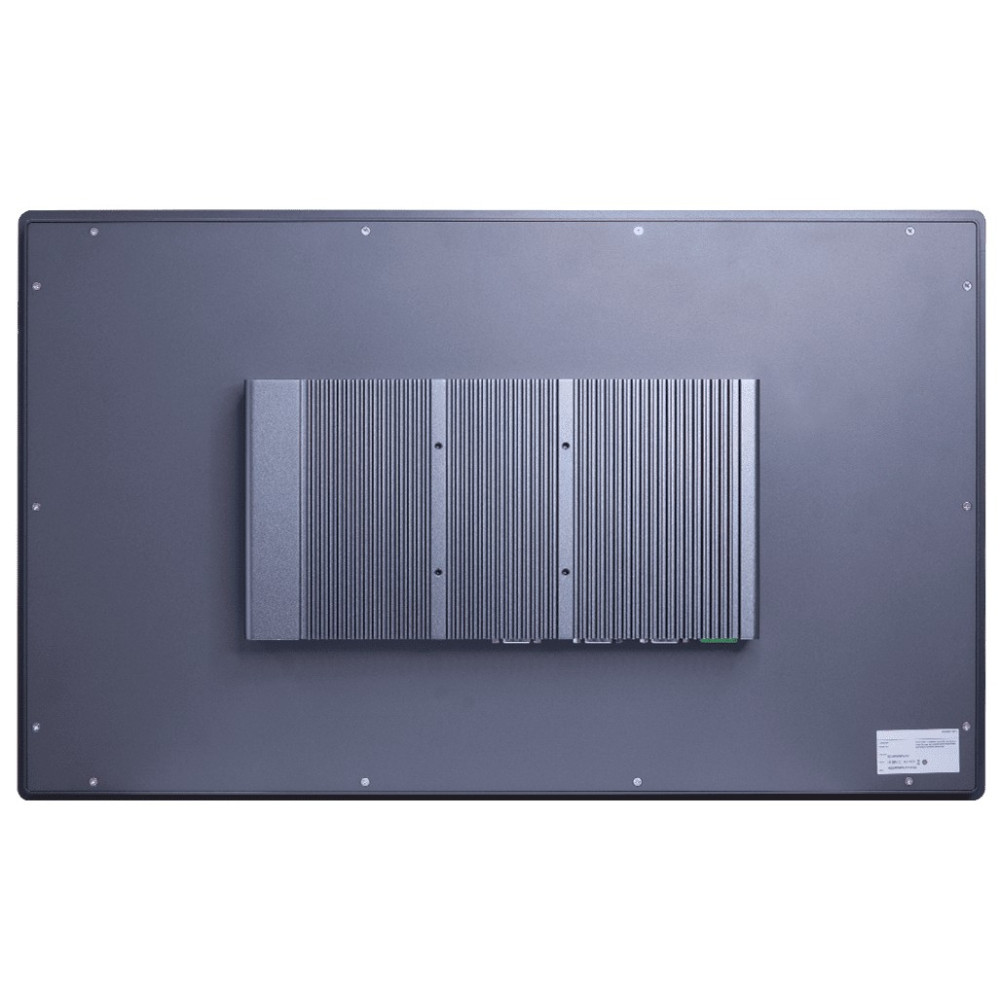

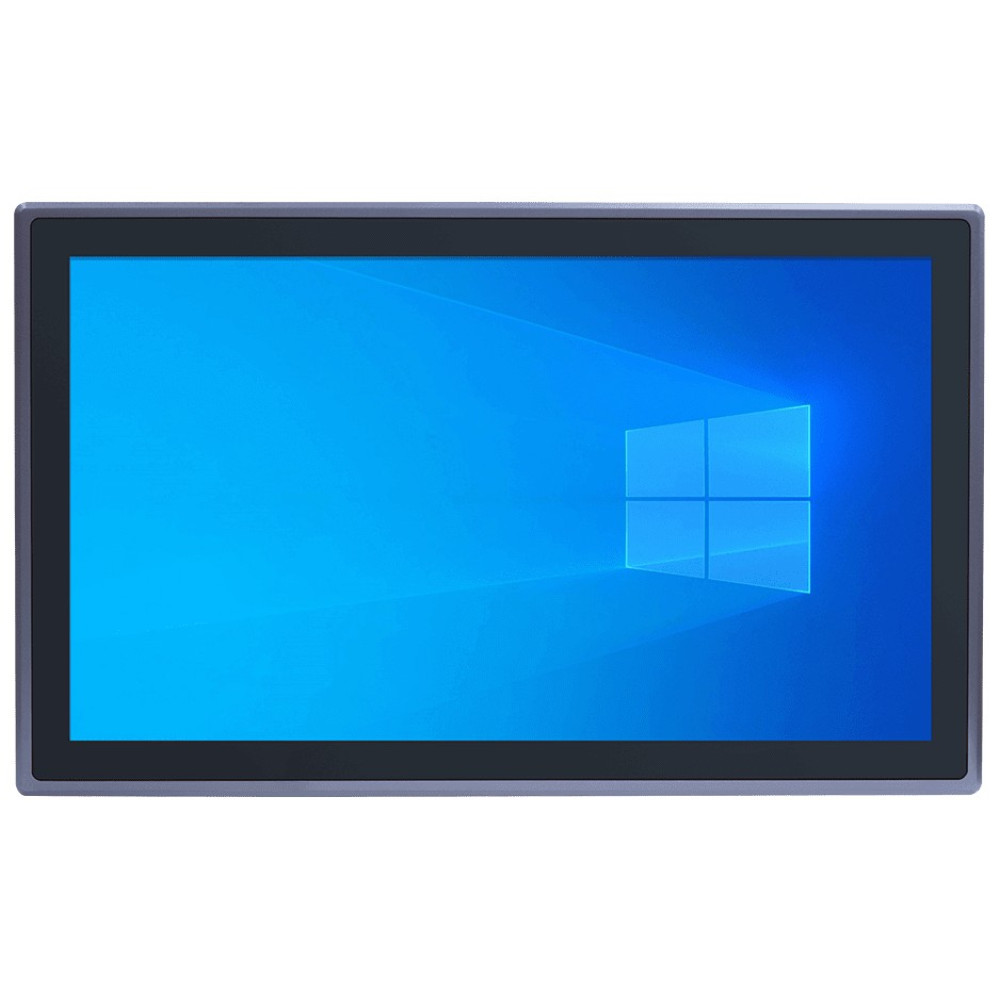

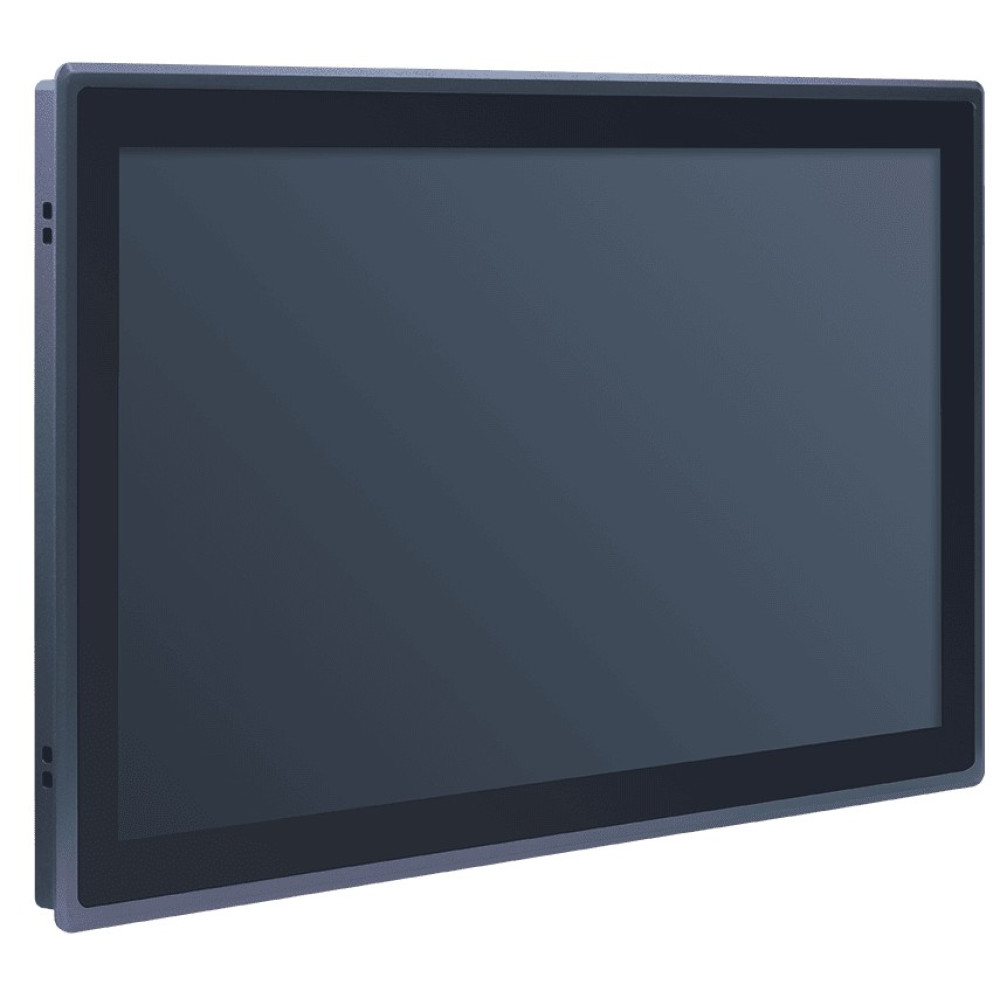

Manufacturer: ARBOR Technology
The SP-241C-1N305 is part of ARBOR's SP series of Industrial Panel PCs and is a cost-effective all-in-one computer with high stability and long service life. Powered by the 12th Gen Intel Alder Lake-N i3-N305, this Panel PC delivers 8-core performance at just 15W. Benchmarks show it rivals the Tiger Lake i5 while offering superior cost efficiency, and delivers 1.6x the performance of the previous Tiger Lake i3. With DDR5 memory providing 1.5x the bandwidth of DDR4, greater capacity, and lower power, it enhances speed, multitasking, and energy savings - making it an ideal high-performance, cost-effective solution for industrial applications such as human-machine interface, production management, and environmental monitoring.
The SP-241C-1N305 Panel PC delivers speed, scalability, and customization. DDR5 memory and NVMe storage enable fast, reliable multitasking, while modular connectivity supports Wi-Fi/Bluetooth, COM port options, and expandable storage. Combining performance, flexibility, and expandability, it’s a future-ready solution for evolving industrial applications.
Engineered for harsh environments, this Panel PC combines durability with adaptability. Its IP66-rated front panel is dustproof, water-jet resistant, and features a 10-point industrial-grade capacitive touchscreen. The 23.8" display (with LED backlight that supports 250 nits brightness) and lightweight design simplify integration, while rich I/O ensures compatibility with both modern and legacy systems. Ideal for smart manufacturing, automation, outdoor kiosks, and commercial displays, it delivers rugged reliability, seamless integration, and lower total cost.
The robust, fanless, and stylish design excels in any environment. This SP panel PC can meet different installations in various fields and supports standard VESA and panel mount. Upgrade your operations today with this touch panel HMI.
| Computing | |
| System Type | Panel PC |
| CPU | Intel Core i9/i7/i5/i3 |
| System Memory Configuration | 8GB RAM pre-installed |
| Maximum System Memory | 16 GB |
| Drive Storage | 128GB SSD pre-installed |
| Expansion Slots | 1 x M.2 E-key 2230 (PCIe x1/USB 2.0 signal) support CNVi, 1 x 8bit GPIO 3.3V(jumper)/5V(default), Power voltage (optional), 2 x RS232 (optional) |
| Operating Systems | Windows 10/11, Ubuntu 22.04 |
| Video | |
| Diagonal | 23.8" |
| Display Type | HDMI |
| Resolution | 1920 x 1080 |
| Touchscreen | Capacitive Multi-Touch |
| Brightness | 250 nits |
| Interfaces | |
| LAN Ports | 2 2.5 Gigabit Ethernet |
| USB | 2x USB 3.2, 2x USB 2.0 |
| Total Serial Ports | 3 |
| Serial | 1x RS232/422/485, 1x RS232/RS485, 1x RS232 |
| Video Ports | 1 HDMI |
| Audio | Line-out & Mic-in 2 in 1 |
| Power | |
| Input Voltage | 10 to 36V DC |
| Mechanical | |
| Enclosure | Aluminum alloy front panel |
| Mounting | Wall mount, Panel mount, VESA mount |
| Shock / Vibration | Operation: 10G@11ms Non-operation: 30G@11ms / Operation: 5~500Hz, 2Grms |
| Weight | 8.2 kg |
| Dimensions | 594.3(W) x 366.6(H) x 70(D) mm |
| Ratings | |
| Operating Temperature | -10 to 60°C |
| Storage Temperature | -40 to 70°C |
| Humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC |
| Download Name | File Size |
| ARBOR SP-241C-1N305 Datasheet | 870.42KB |
| ARBOR SP-XXXC-1N305 Series User's Manual | 12.95MB |
| Image | Model | Product Name | Price | |
 |
PAC-120W-FSP-SPA | ARBOR PAC-120W-FSP-SPA AC/DC Adapter Kit, 19V, 120W, 2 Wire, USA Power Cord | $80.00 |
