Manufacturer: ARBOR Technology

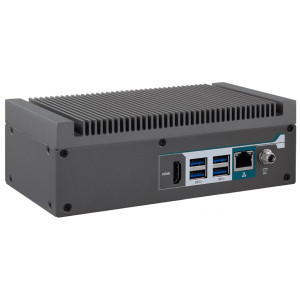

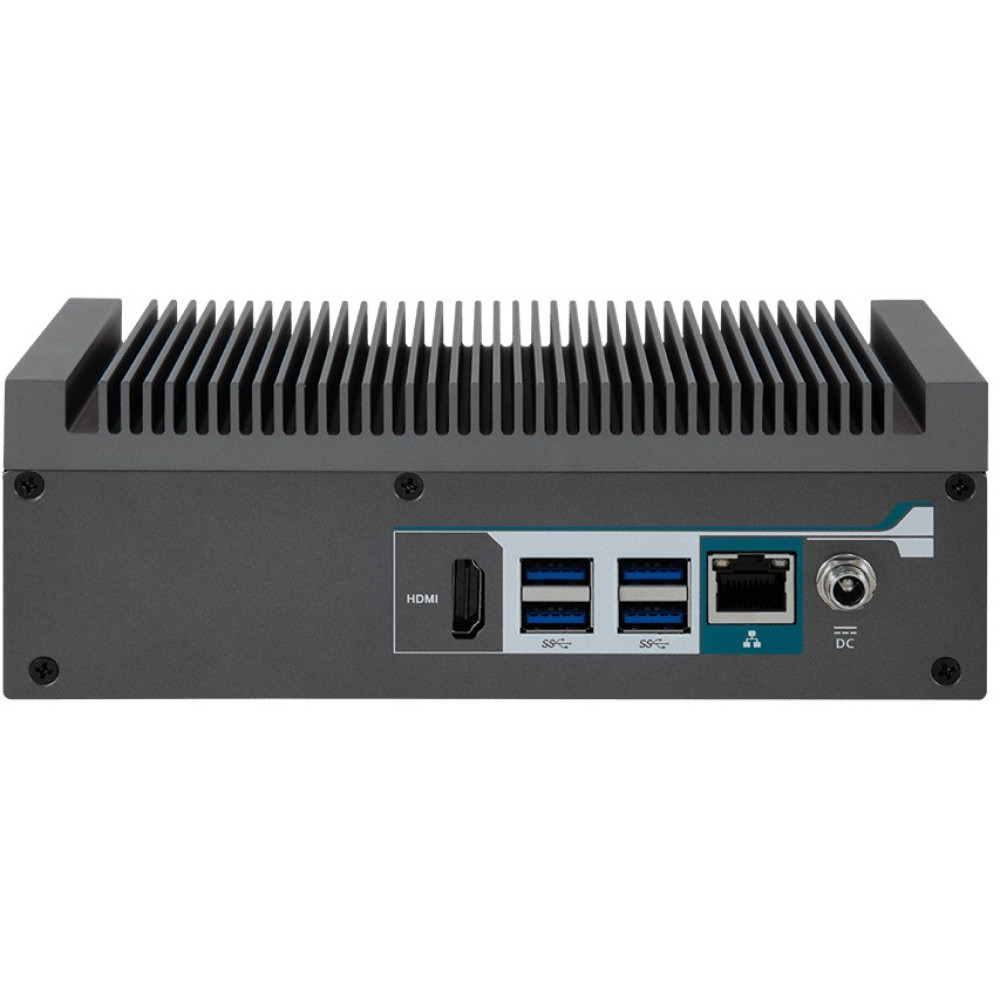

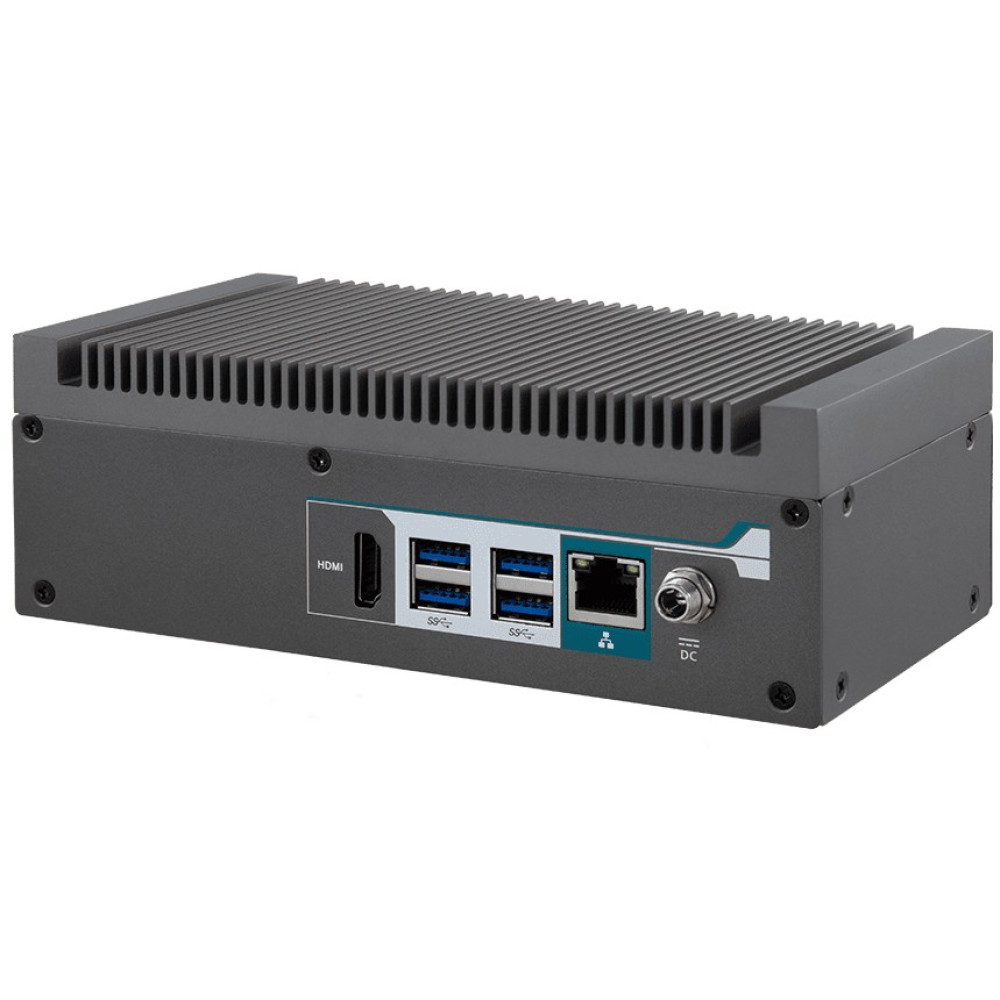

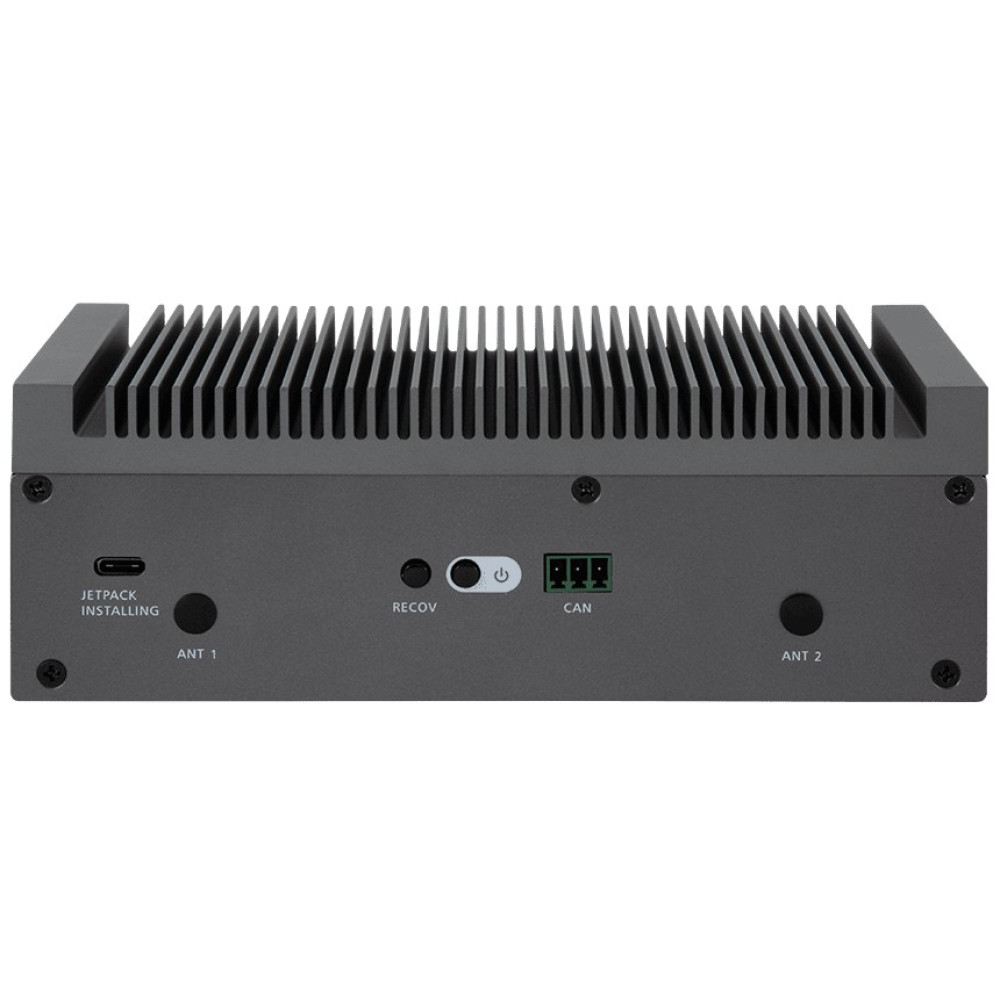

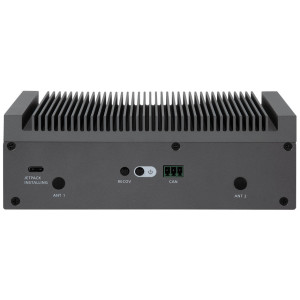

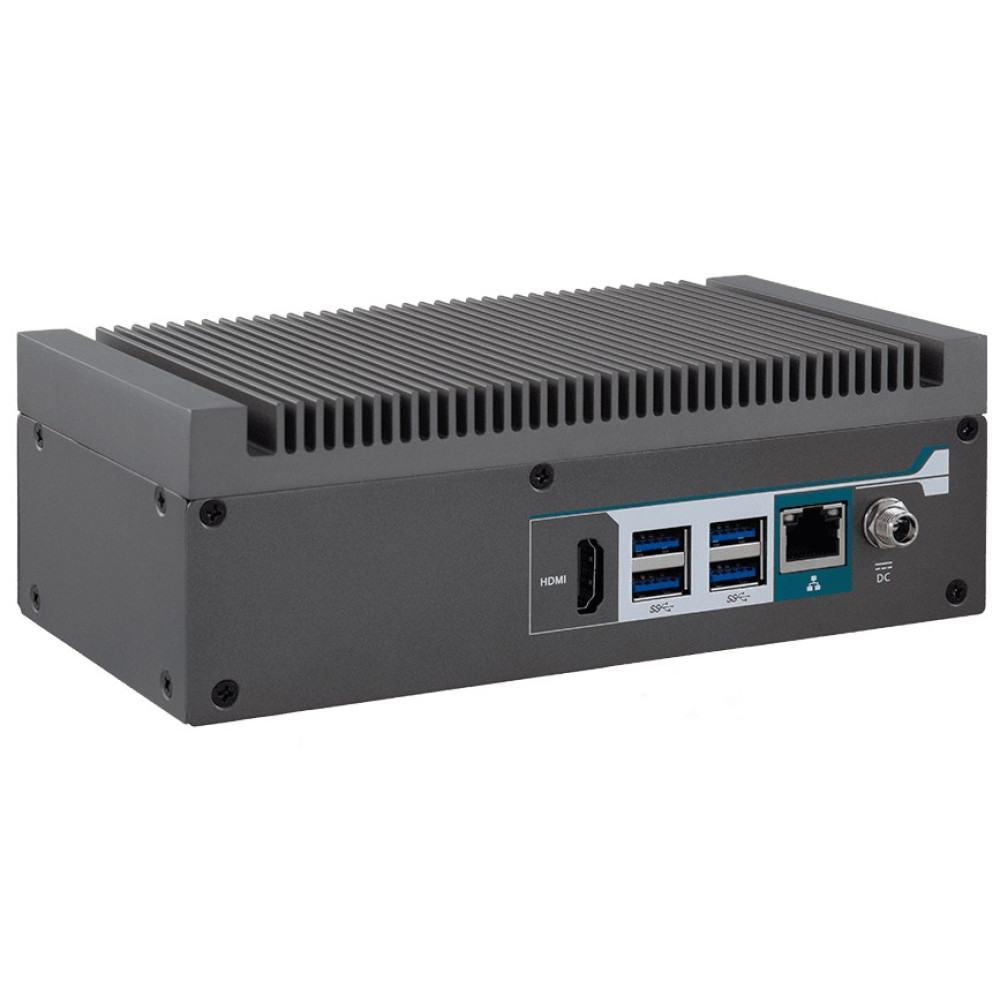

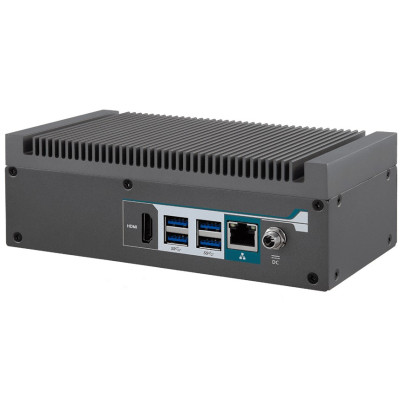

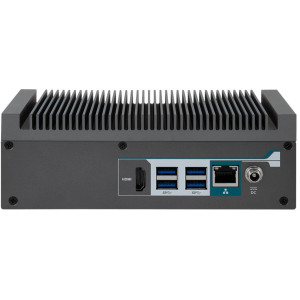

ARBOR’s Edge AI Computing products deliver high-performance AI processing at the industrial edge.The AEC-2001 is a rugged, fanless edge AI embedded computer designed for robotics, vision, and embedded edge applications. It is built around the NVIDIA Jetson Orin Nano platform, specifically featuring a 6-core Arm Cortex-A78AE v8.2 64-bit CPU and a 1024-core NVIDIA Ampere architecture GPU with 32 Tensor cores.
The system comes with 8GB of LPDDR5 DRAM memory and 256GB NVMe SSD for storage, which is expandable up to 1TB. Key connectivity options include one Gigabit Ethernet port, four USB 3.2 Gen 1 ports, a USB 2.0 Type-C recovery port, and one HDMI 2.0 port that supports 4K resolution at 30Hz.
Designed for harsh environments, the AEC-2001 accepts a wide range DC power input (9V to 24V), operates in temperatures from -20°C to 65°C, and is built with a durable, fanless chassis. It operates using Linux Ubuntu 22.04 with the NVIDIA JetPack 6.2. It is a highly reliable solution for real-time analytics and autonomous computing at the edge.
Contact Westward Sales today to customize your AEC-2001 AI Embedded Computer.
| Technology | |
| Category | Edge Computer |
| Computing | |
| System Type | AI / GPU Computer |
| CPU | NVIDIA Jetson |
| CPU Chipset | 6-core Arm Cortex-A78AE v8.2 64-bit |
| GPU | NVIDIA Ampere |
| System Memory Configuration | 8GB LPDDR5 DRAM |
| Maximum System Memory | 8 GB |
| Expansion Slots | 1 x M.2 M-Key 2280 Socket (for NVMe SSD), 1 x M.2 E-Key 2230 Socket (for WiFi module), 1 x CAN 2.0 (3-pin terminal block), 1 x OOB supported (Optional) |
| Operating Systems | Ubuntu 22.04 / NVIDIA JetPack 6.2 |
| Interfaces | |
| LAN Ports | 1 Gigabit Ethernet |
| USB | 4 x USB 3.2 Gen1 |
| Video Ports | HDMI 2.0 |
| Audio | No |
| Power | |
| Input Voltage | 9 to 24V DC |
| Mechanical | |
| Mounting | Desk-Mount, Wall-Mount |
| Antenna Connection | Antenna hole for WiFi |
| Weight | 1.25 kg |
| Dimensions | 180 x 96 x 60.9 mm |
| Ratings | |
| Operating Temperature | -25°C to 65°C (-13°F to 122°F) |
| Storage Temperature | -40 to 85°C (-4 - 149°F) |
| Humidity | 5 - 95% non-condensing |
| EMC | CE,FCC |
| Download Name | File Size |
| ARBOR AEC-2001 Datasheet | 566.89KB |
