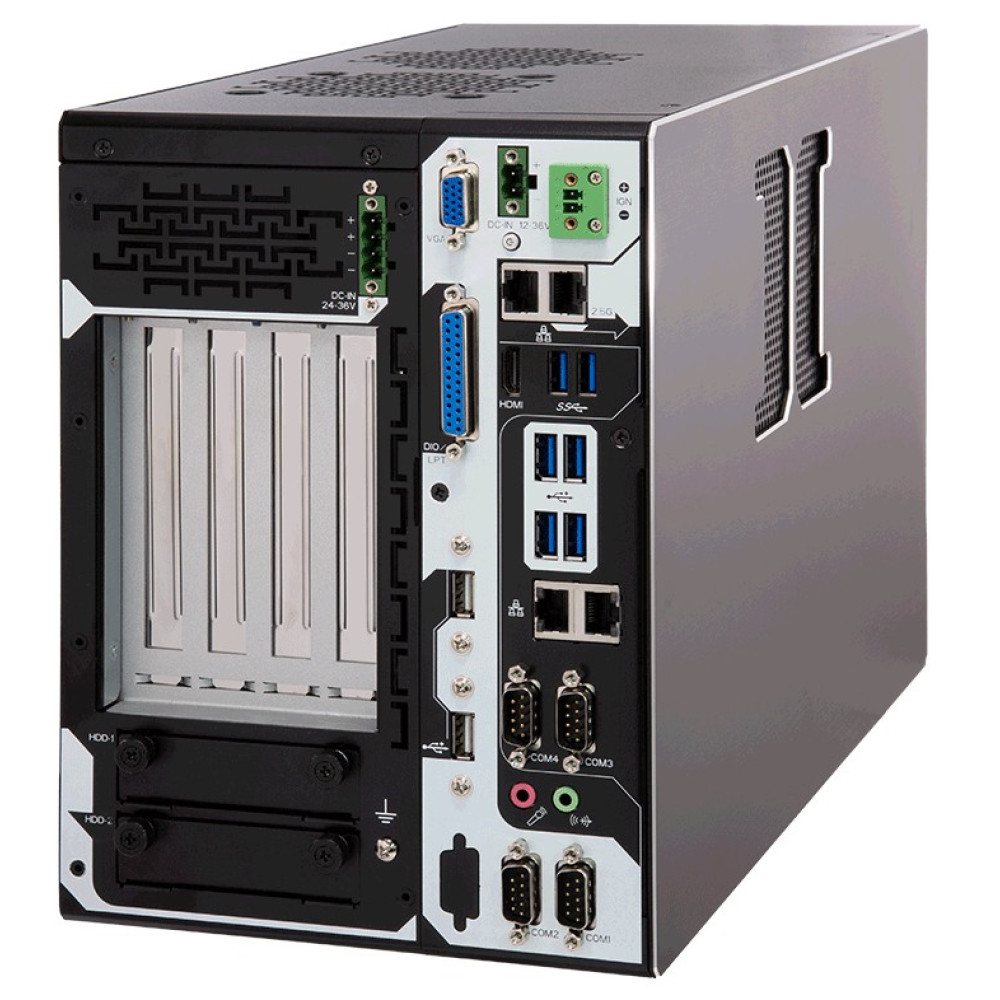

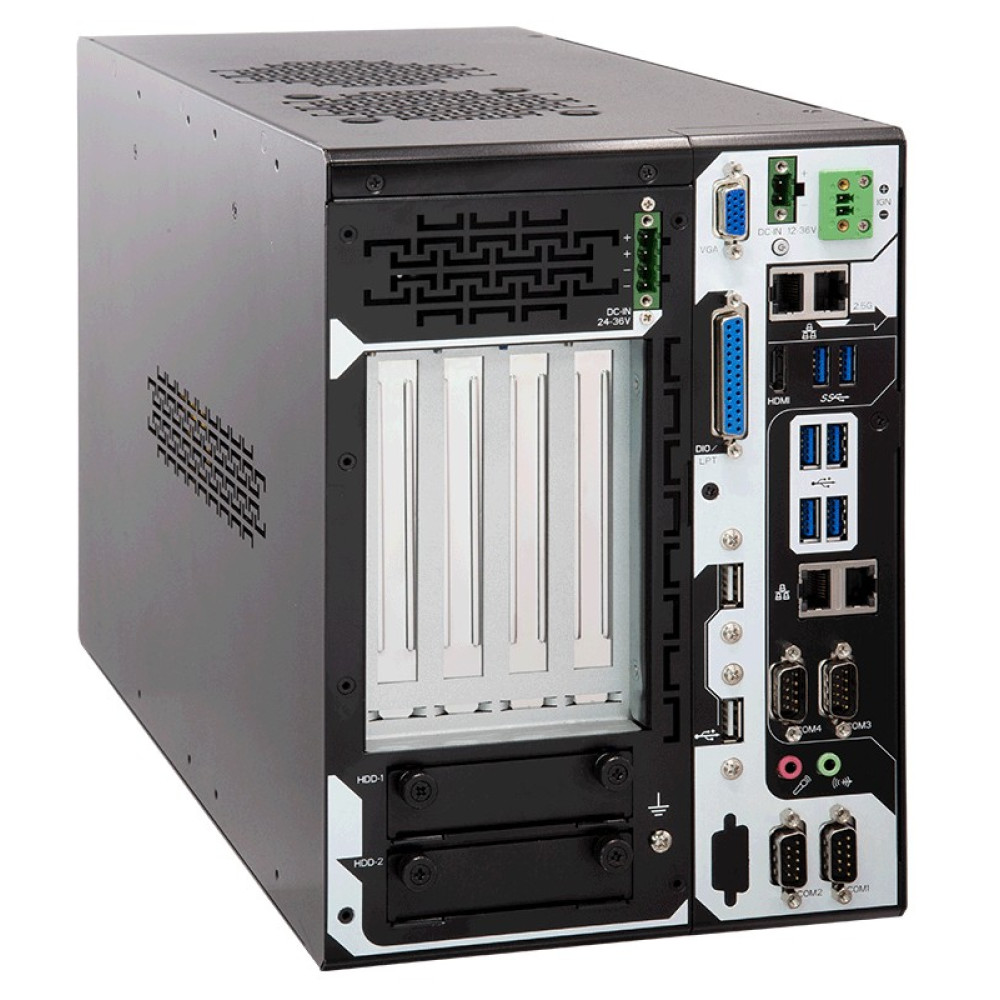

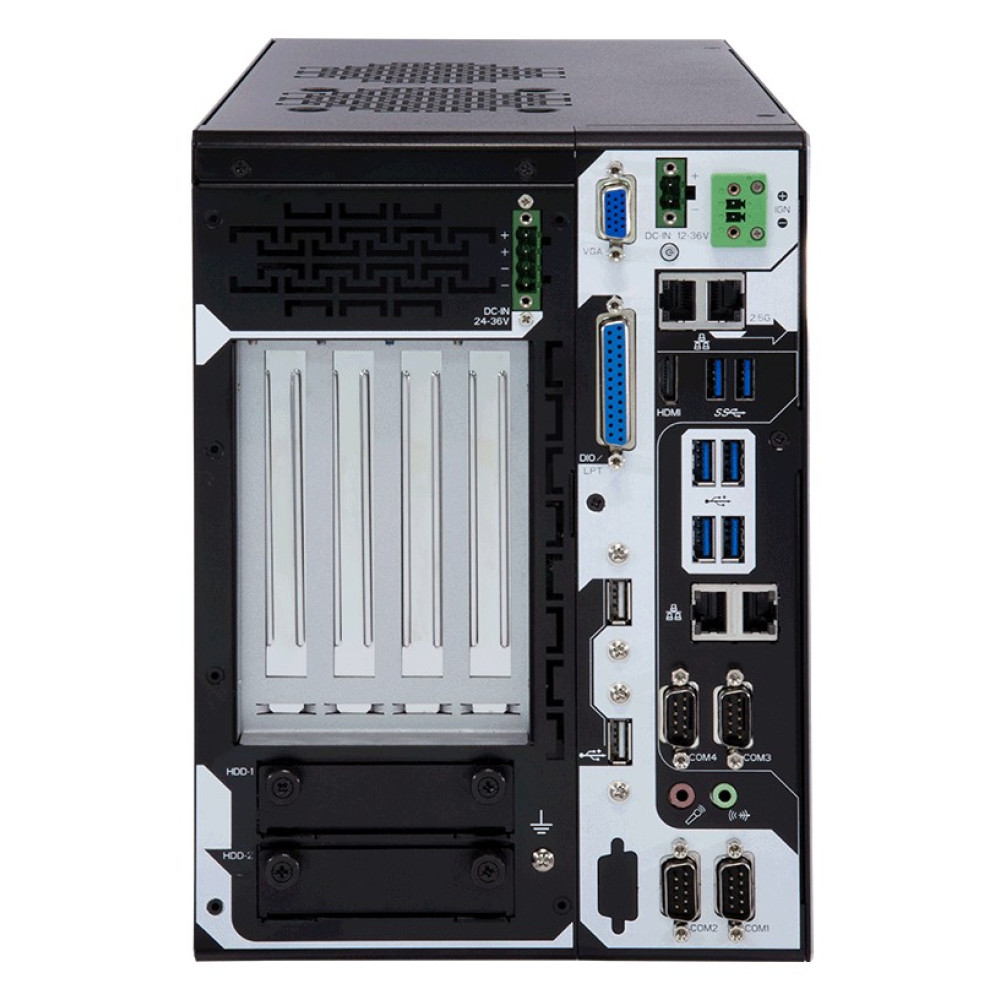

ARBOR's edge AI computing solutions deliver unparalleled performance in harsh environments and offer wide-temperature operation to prevent thermal throttling. Highlighted here is the FPC-9108-L2U4-G3 Robust Box PC with 10th generation Intel Xeon Core i9 / i7 / i5 / i3 processor in LGA1200 socket. It features rich I/O including 4x Serial, 8x USB and 4x Ethernet ports. The FPC-9108-L2U4-G3 also supports 1x HDMI and 1x DB-15 female connector for analog RGB.
Seamlessly integrate advanced AI algorithms directly into your industrial processes, enabling real-time analytics, predictive maintenance, and autonomous computing at the edge. With robust computing power and a wide range of application support, ARBOR's edge AI platforms redefine productivity and efficiency in your operations.
Accessories Available
* Contact Westward Sales today to customize your FPC-9108-L2U4-G3 Robust Box PC.
Technology | |
Category | Industrial Computer |
Computing | |
System Type | AI GPU Computers |
CPU | Intel Core i9/i7/i5/i3 | Intel Xeon |
Maximum System Memory | 64 GB |
System Memory Configuration | 2x 260-pin DDR4 SO-DIMM sockets, supporting 2933 (i9/ i7 CPU)/2666( i5/ i3 CPU)/ 2400 MHz (Pentium/ Celeron CPU) SDRAM up to 64GB (ECC / Non-ECC) |
Expansion Slots | See datasheet |
Drive Storage | 2x 2.5” drive bays, 1 x M.2 B key |
Operating Systems | Windows 10 IOT Enterprise 2019, Linux (Kernel: 4.9) |
Interfaces | |
LAN Ports | 3 Gigabit Ethernet | 1 2.5 Gigabit Ethernet |
USB | 6x USB 3.2 Gen1/2 2.0 ports, 2x USB 2.0 ports |
Total Serial Ports | 4 |
Serial | 2x RS-232/422/485, 2x RS-232 |
Video Ports | 1x HDMI , 1x VGA |
Audio | Mic-in/Line-out |
Power | |
Input Voltage | 9 to 36V DC |
Mechanical | |
Mounting | Wall-Mount |
Shock / Vibration | Operating 40G (11ms), Non-operating 60G with MIL-STD-810G |
Material | Metal |
Weight | 7.4kg (16.31Ib) |
Dimensions | 181 x 380 x 250 mm |
Ratings | |
Operating Temperature | -20 - 55°C (-4 - 131°F), ambient w/ air flow, for 65W TDP CPU need to configure TDP to 35W via BIOS setting |
Storage Temperature | Varies depending on configuration (See Datasheet) |
Humidity | 10 - 95% @ 50°C (non-condensing) |
Certifications | CE, FCC Class A |
Download Name | File Size |
ARBOR FPC-9108-L2U4-G3 Datasheet | 1.48MB |
ARBOR FPC-9108 Series User's Manual | 10.33MB |
