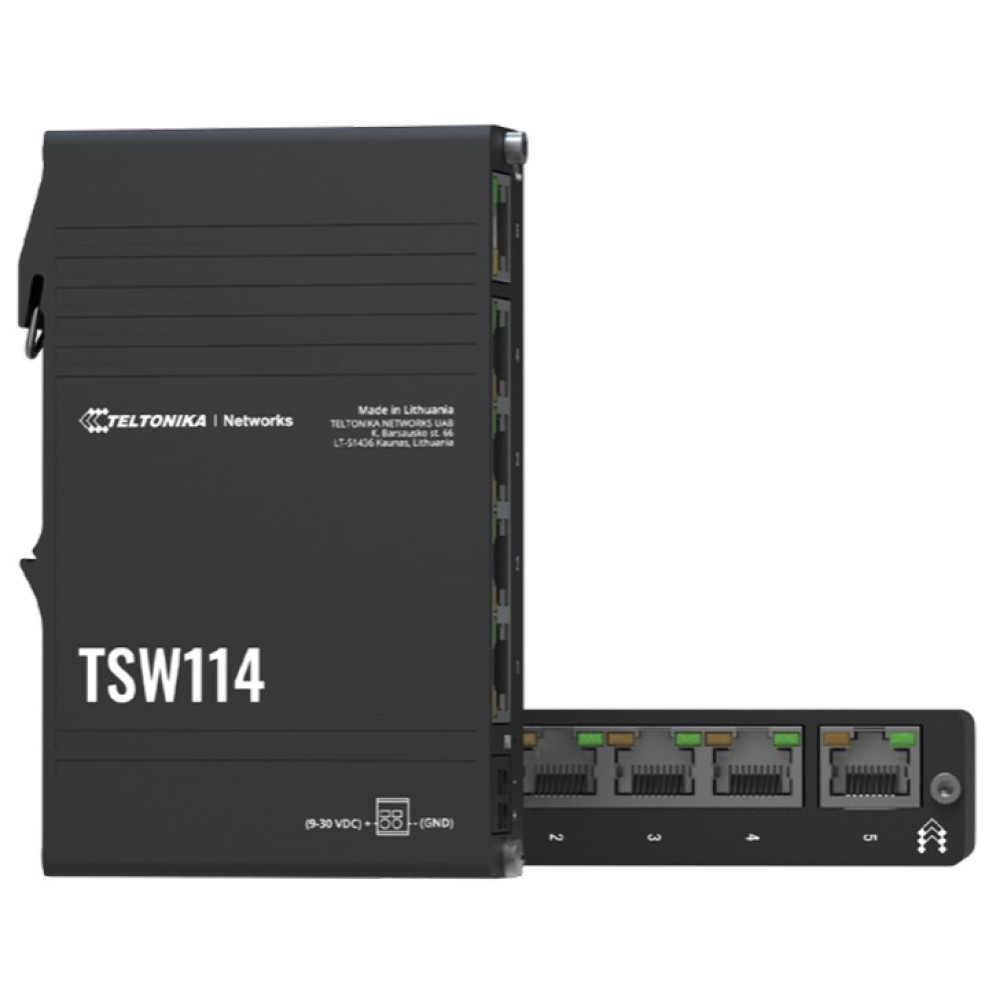

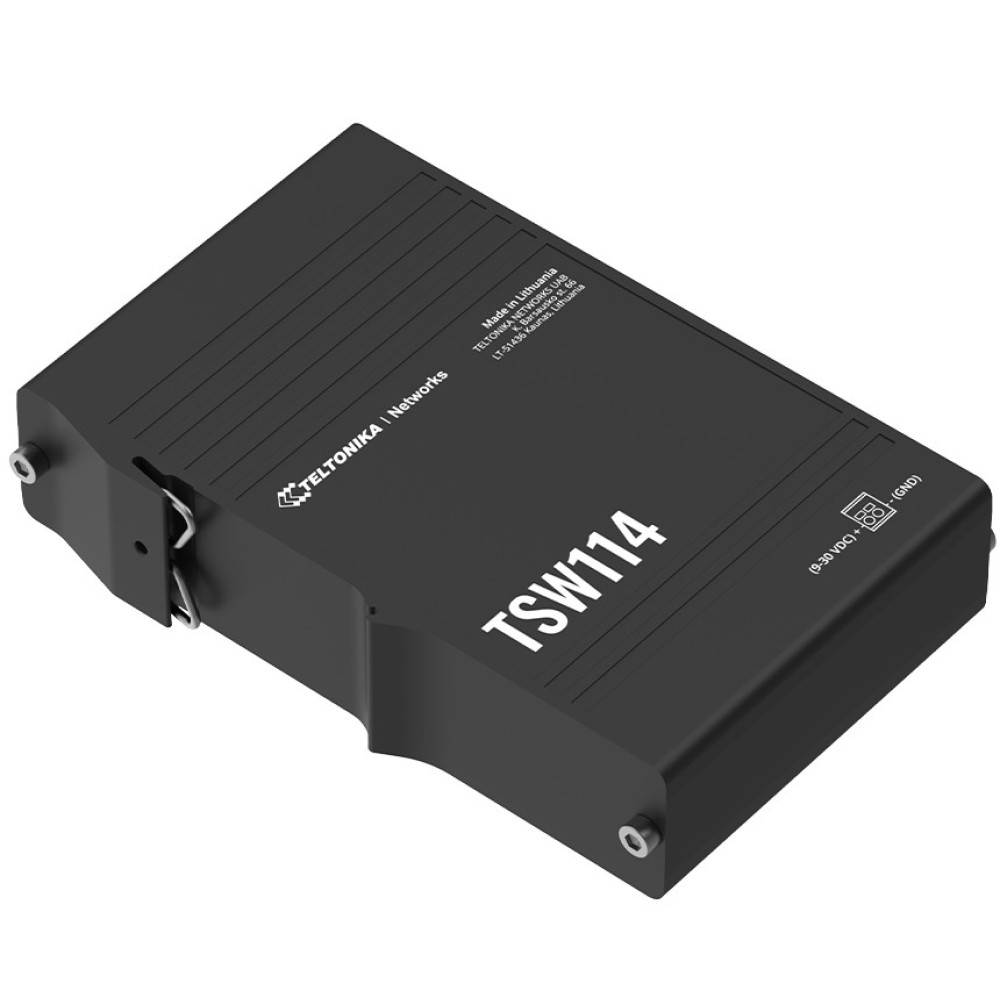

The TSW114 is an affordable way to simplify your connectivity with its plug and play nature. It is designed to be used in manufacturing facilities, warehouses, and any other scenarios where network connectivity is essential but space for additional devices is the main challenge.

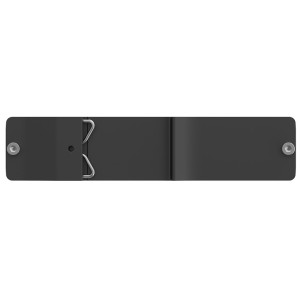

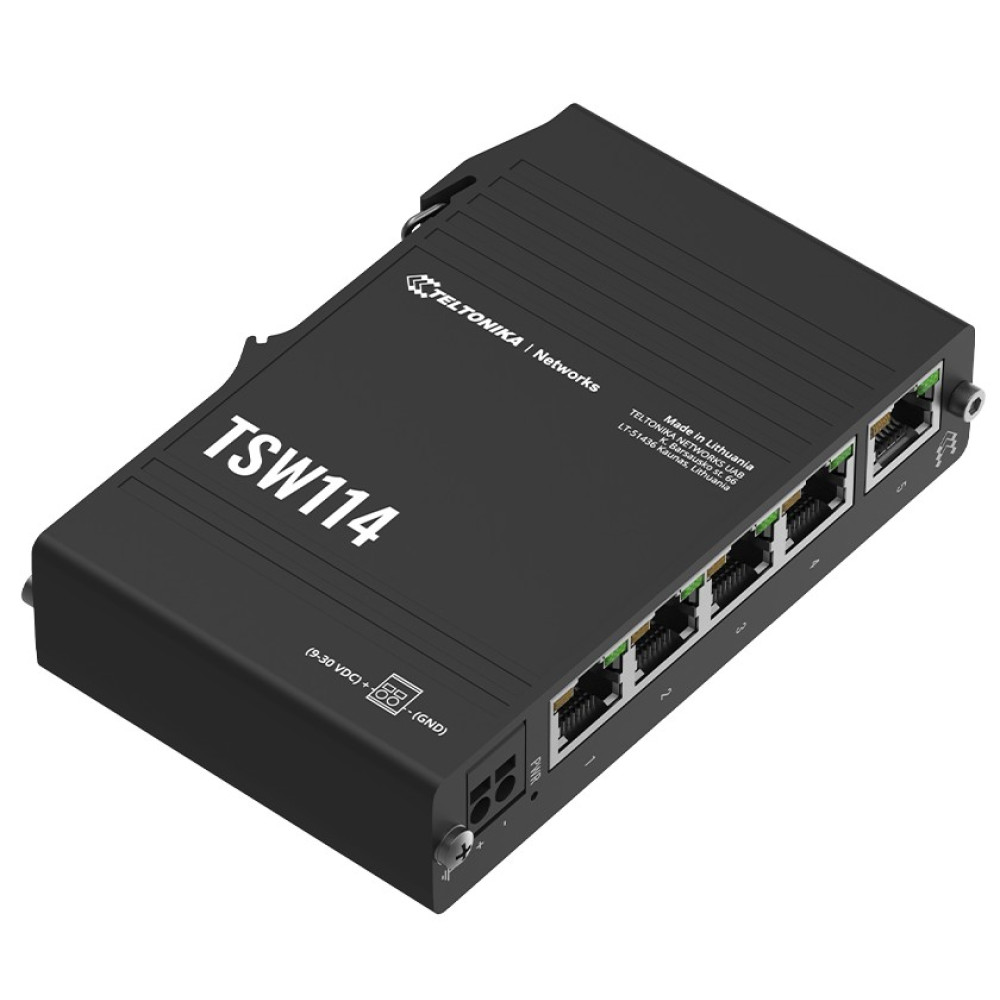

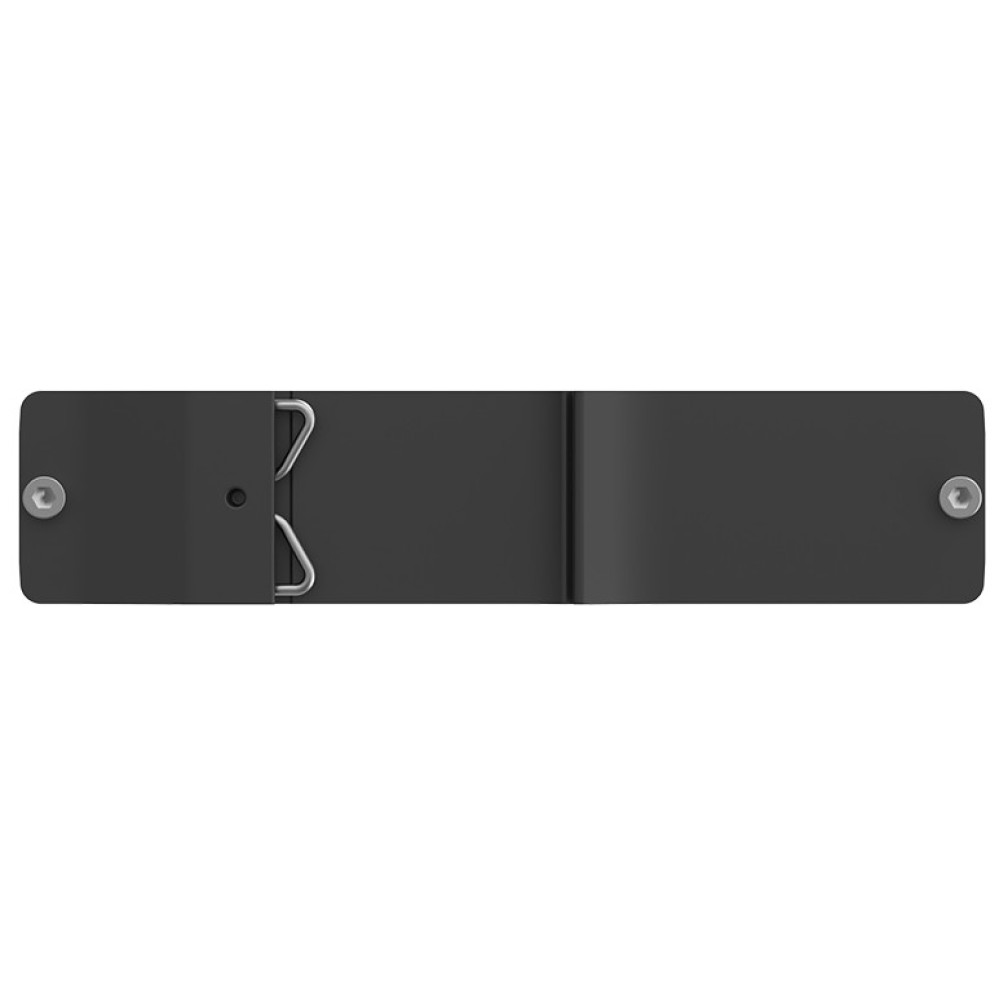

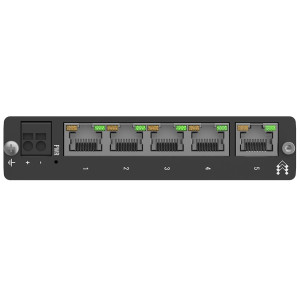

The TSW114 is ready to comply with existing connectivity, deploying, and space factors because it comes with an integrated DIN rail bracket that makes device installation very easy, quick, and, most importantly – convenient. The switch is equipped with 5 Gigabit Ethernet ports, a 2-pin DC socket, and a grounding screw right next to it for enhanced device protection. All of these features are front-facing, meaning all wires can be plugged into one side of the device, making any solution instantly scalable. Multiple TSW114 switches can be placed side-by-side, taking very little space while supporting robust network connectivity. It’s also noteworthy that the TSW114 has a wide range of power supply voltages (9-30 V) and can take power from cables without needing additional wiring or power plugs.
A factory environment requires a rugged device. Therefore, a product with sturdy aluminum housing is the best option. The TSW114 operates in a wide range of temperatures - from -40° C to 75° C, so it offers a broad amplitude of application scenarios.
For affordability and performance, it’s hard to compete with the TSW114. You’ll not only save money with this switch, but you’ll also reduce spending on network management and upkeep. Get in touch with our team today to discuss your network requirements. We’ll outfit your project with the right devices that get the job done.
| Technology | |
| Category | Ethernet Switch |
| Total Ports | 5 |
| Ethernet Ports | 5 Gigabit Ethernet (10/100/1000TX) |
| Standards | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az |
| MAC Table Size | 2 kB |
| Power | |
| Power Consumption | Idle: 0.3 W / Max: 2.3 W |
| Connection | 2-pin industrial DC power socket |
| Input Voltage | 9 - 30 VDC |
| Mechanical | |
| Enclosure | Aluminum Casing, IP30 |
| Mounting | Integrated DIN rail bracket; wall mount and flat surface (additional kit needed) |
| Weight | 174 g |
| Dimensions | 113.1 x 27.4 x 80.5 mm |
| Ratings | |
| Operating Temperature | -40 to 75°C |
| Humidity | 5 to 95% non-condensing |
| Warranty | 24 months |
| Download Name | File Size |
| Teltonika TSW114 Datasheet | 2.06MB |
| Teltonika TSW114 Flyer | 1.17MB |
