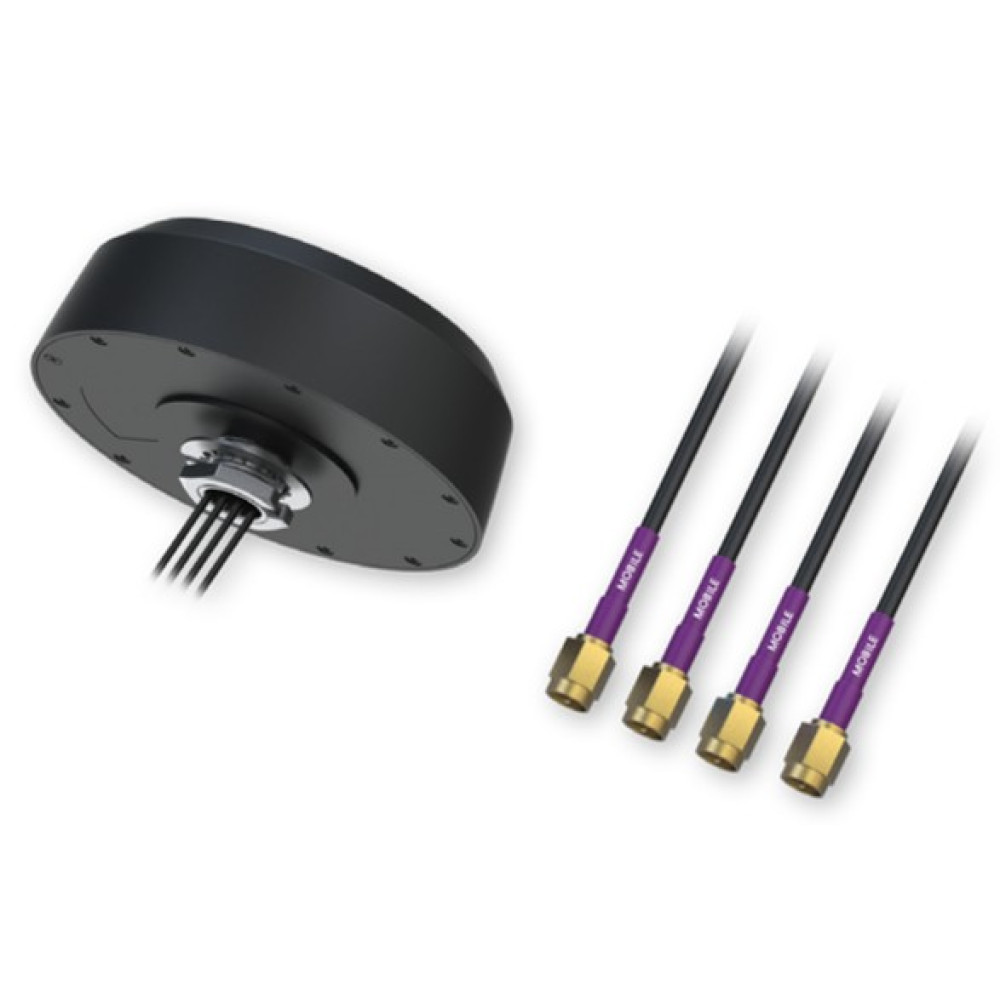

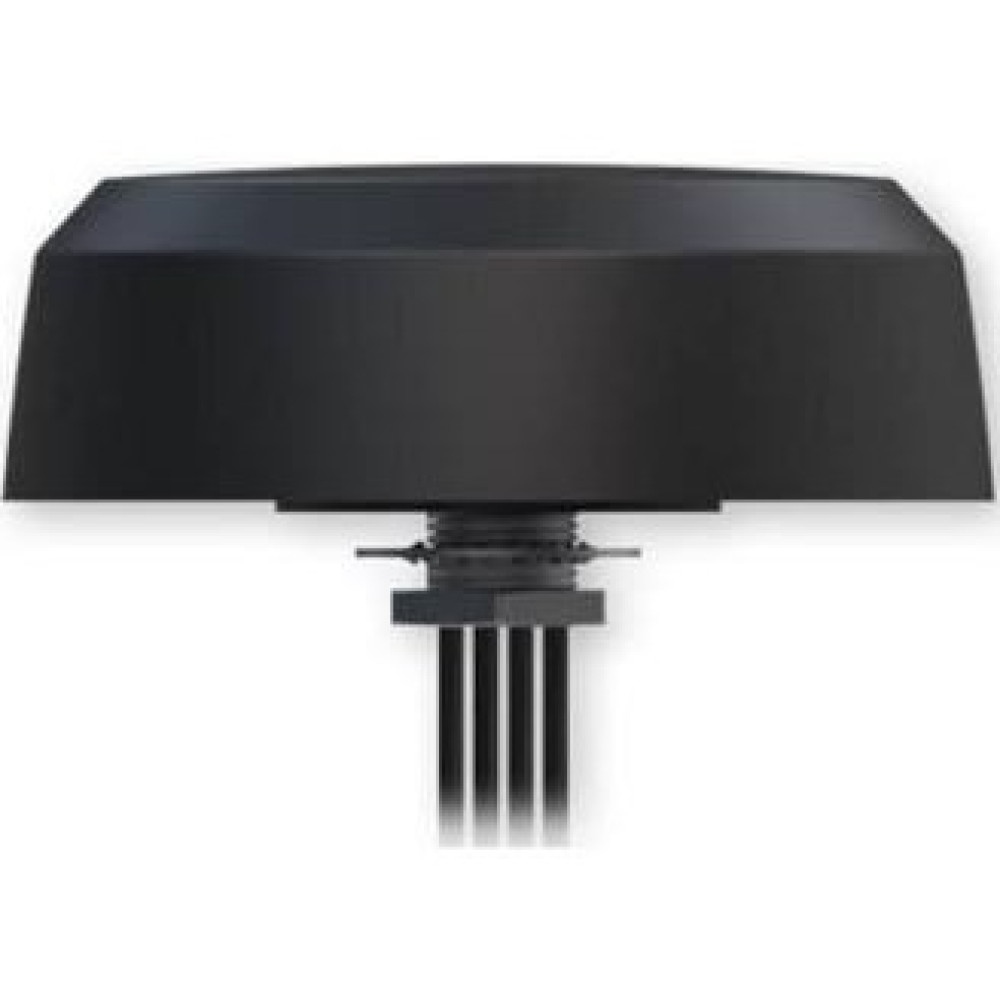

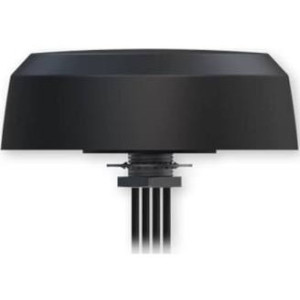

The Teltonika PR1KC647 is a high-performance 5G Combo MIMO mobile roof antenna designed specifically to maximize connectivity for networking solutions. It is a robust, omnidirectional dome antenna that supports a wide frequency range from 600 MHz to 6000 MHz, making it compatible with both LTE and 5G networks.
The PR1KC647 is particularly suited for mobile applications in challenging environments. It features a heavy-duty design with IP67 and IP69K ratings, providing exceptional protection against dust and high-pressure water ingress.

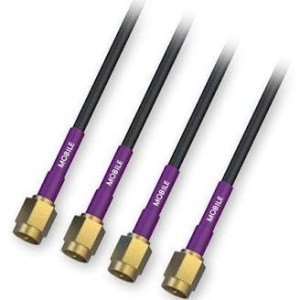

It operates safely between -40 and 85°C, making it tougher than most outdoor temperatures worldwide. The PR1KC647 antenna includes four ALS302 cables that are 3000 mm in length.
| Technology | |
| Category | Antenna |
| Wireless | |
| 4:1 Combination Antennas | 4:1 (4 LTE) |
| Cellular Frequencies | 617 - 960 / 1400 - 6000 MHz |
| VSWR | ≤3.4 |
| Gain | 4.7 dBi |
| Electrical | |
| Impedance | 50 ohms |
| Interfaces | |
| GPS | No |
| Mechanical | |
| Cabling | 4 ALS302, 3 meters |
| Connector Type | SMA male |
| Mounting | Screw (M27 nut) |
| Color | Black |
| Weight | 701 g |
| Dimensions | 78.2 mm(H) x 167 mm (Diameter) |
| Ratings | |
| Operating Temperature | -40 °C - +85 °C |
| RoHS Compliant | Yes |
| Certifications | IP67 and IP69K |
| Download Name | File Size |
| Teltonika PR1KC647 Datasheet | 441.29KB |
