Taoglas FXP302.A.001 2:1 Cellular and WiFi Flex PCB Antenna with I-PEX Connector

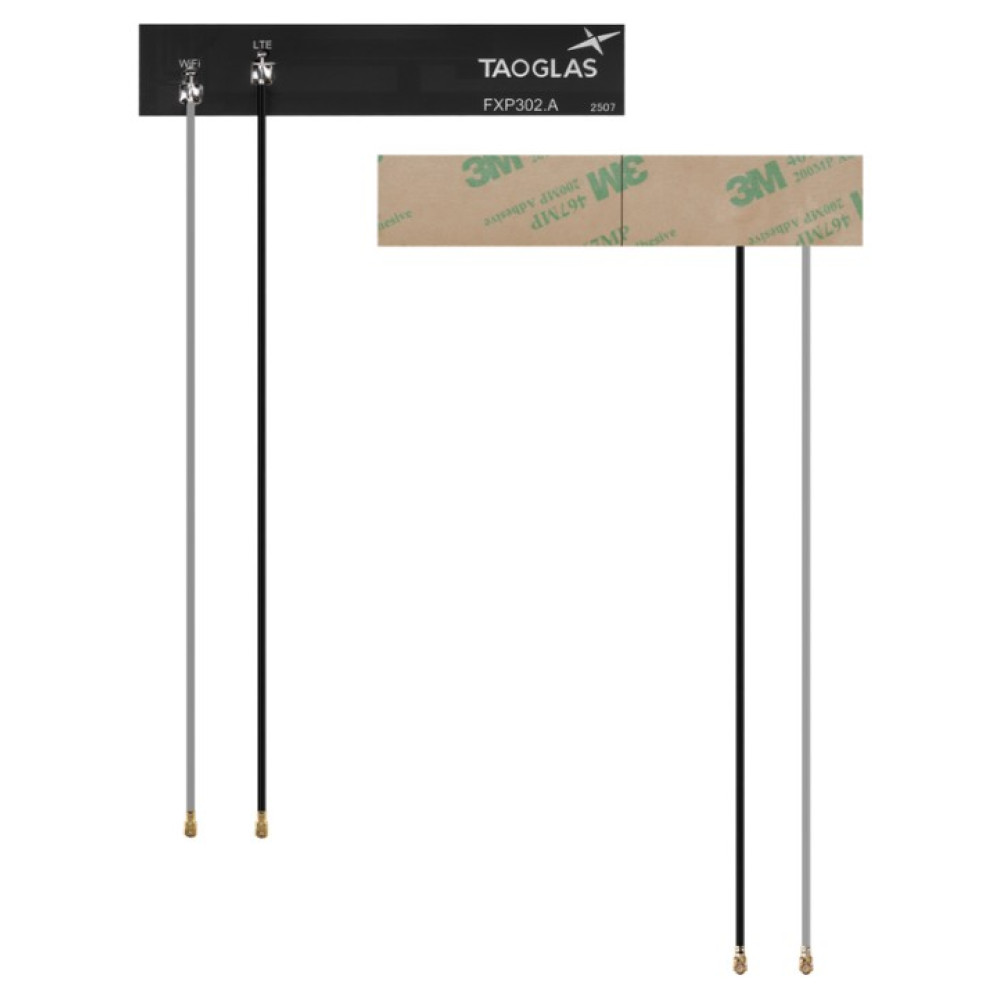

Taoglas FXP302.A.001 2-in-1 Super Compact Wi-Fi & Cellular Flex PCB Antenna

The FXP302 is an ultra-thin, ground-plane independent antenna designed for seamless integration into compact wireless devices. It is designed to cover Cellular (600 MHz–8000 MHz) and Wi-Fi (2.4 / 5.8 / 7.125 GHz).

With its flexible polymer construction (105 x 20 x 0.24 mm), the FXP302 provides excellent efficiency, ground-plane independence, and easy integration into compact wireless devices - ideal for applications requiring robust global connectivity across multiple wireless standards.

By integrating Cellular and Wi-Fi capabilities into a single compact antenna, it delivers a space-saving and cost-efficient solution. This allows designers to incorporate advanced wireless communication and precise positioning into their products without needing multiple antennas.

Installation is streamlined via a "peel-and-stick" 3M adhesive backing, allowing for secure mounting on non-metal surfaces like plastic or glass. With peak gains of up to 3.57 dBi for Cellular and 3.24 dBi for Wi-Fi, the FXP302 allows designers to cover multiple bands with a single antenna, reducing cost, complexity, and time-to-market. The antenna is supplied with a pre-assembled cable and connector for plug-and-play integration.

Key Features

• Super Compact Flexible PCB Combination Antenna
• Cellular covering 600 MHz – 8000 MHz
• Wi-Fi covering 2.4 GHz, 5.8 GHz & 7.125 GHz
• Cable: 150mm of 1.37 Coaxial
• Connector: I-PEX MHFI
• Dimsensions: 105 x 20 x 0.24 mm
• RoHS & Reach Compliant
