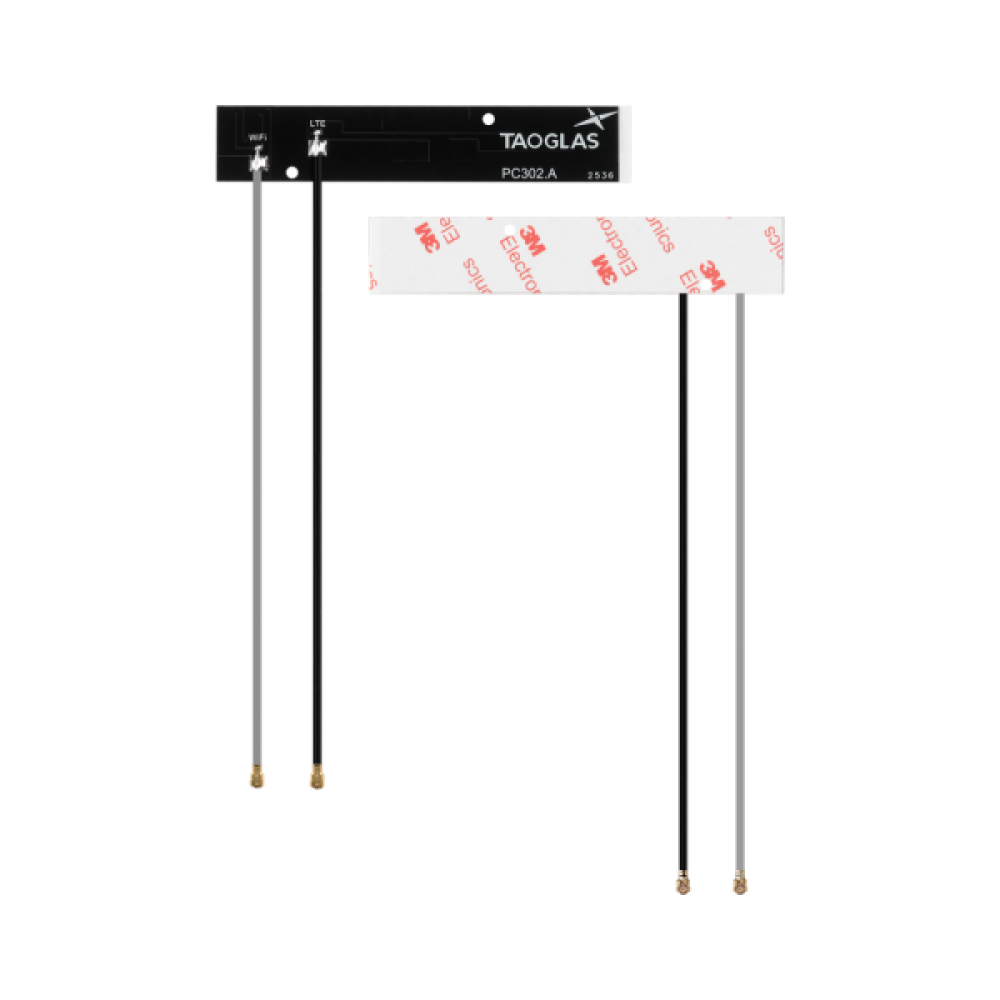

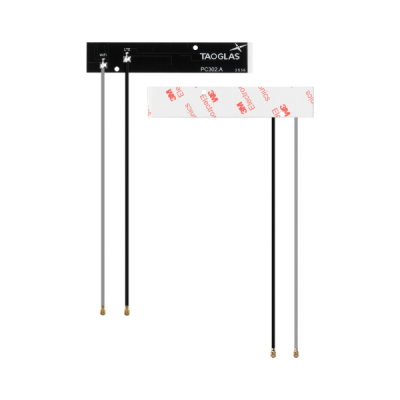

Taoglas PC302.A.001 2-in-1 Cellular & WiFi FR4 PCB Antenna with I-PEX Connector

Taoglas PC302.A.001 2-in-1 WiFi and Cellular FR4 PCB Antenna, I-PEX MHF I Connector

The Taoglas PC302 is a compact, rigid FR4 PCB antenna engineered for high-efficiency wireless communication across Wideband Cellular (600MHz–8GHz) and Tri-band Wi-Fi (2.4/5.8/7.125 GHz) frequencies. By integrating these capabilities into a single, ground-plane independent solution (105 x 20 x 1.1 mm), it allows designers to achieve robust global connectivity without the need for multiple antennas, effectively reducing BOM costs and design complexity.

This space-saving antenna is ideal for telematics, e-mobility, smart agriculture, and IoT wearables. Installation is simplified via a "peel-and-stick" 3M adhesive backing, providing secure mounting on non-metal surfaces such as plastic or glass. With peak gains ranging from 1 to 5 dBi, the PC302 ensures reliable performance while accelerating time-to-market. Each unit comes plug-and-play ready with customizable cable and connector options, including color-coded cabling to streamline production assembly and minimize errors.

Key Features

• 2.4 GHz: 2.5dBi, 56% Efficiency
• Cable: 150 mm of 1.37 mm diameter coax
• Connector: I-PEX MHF I (U.FL compatible)
• Dimensions: 105 x 20 x 1.1 mm
• RoHS Compliant
