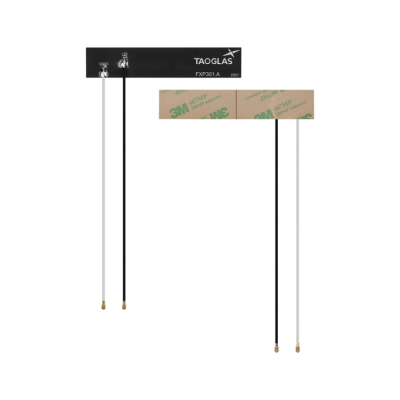

Taoglas FXP301.A.001 2:1 GNSS and Cellular Flex PCB Antenna with I-PEX Connector

Taoglas FXP301.A.001 2-in-1 Super Compact GNSS & Cellular Flex PCB Antenna

The FXP301 is an ultra-thin, ground-plane independent antenna designed for seamless integration into compact wireless devices. By combining Wideband Cellular (600 MHz - 8 GHz) and GNSS (L1/G1/B1/L-Band) into a single flexible polymer strip, it eliminates the need for multiple antennas, significantly reducing BOM costs, assembly time, and potential failure points. Its flexible construction makes it particularly resilient in high-vibration applications such as drones and UAVs.

Installation is streamlined via a "peel-and-stick" 3M adhesive backing, allowing for secure mounting on non-metal surfaces like plastic or glass. This space-saving solution provides peak gains of 1 to 4 dBi, ensuring robust global connectivity for asset tracking, e-mobility, smart agriculture, and wearable healthcare devices. The antenna comes plug-and-play ready with customizable cables and connectors, including color-coding options to simplify identification during mass production.

Key Features

• Covers Extended Cellular Frequencies of 600 - 8000 MHz
• GNSS frequencies of 1542 - 1602MHz
• Dimensions: 105 x 20 x 0.24mm
• Cables: 150mm of Ø1.37mm
• Connectors: I-PEX MHF I (U.FL Compatible)
• RoHS & Reach Compliant
