Taoglas FXP303.A.001 3:1 GNSS, Cellular & WiFi Flex PCB Antenna, I-PEX Connector

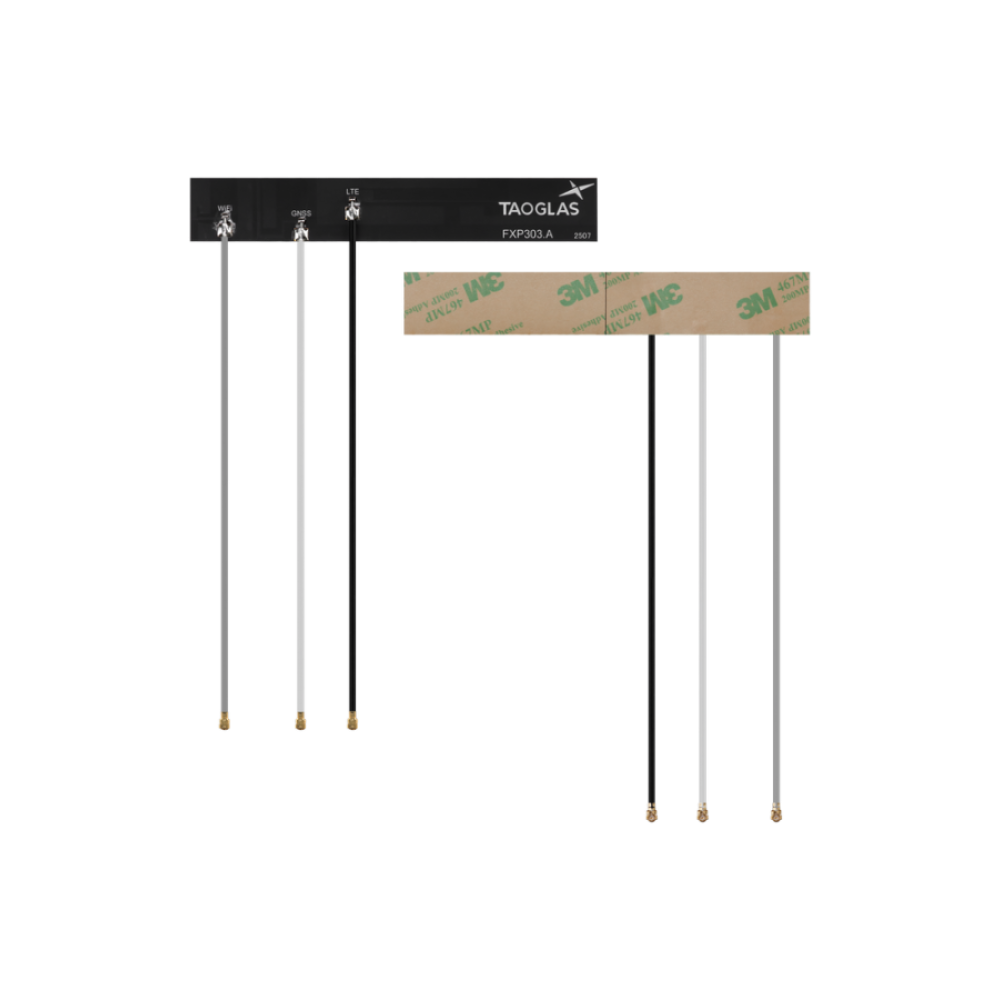

Taoglas FXP303.A.001 3-in-1 Super Compact GNSS, Cellular, & WiFi Flex PCB Antenna

The Taoglas FXP303 is an ultra-thin (0.24mm), high-performance antenna designed to consolidate Wideband Cellular (600 MHz–8 GHz), Tri-band Wi-Fi (2.4/5.8/7.125 GHz), and GNSS (L1/B1I/G1/L-Band) into a single, compact solution. Measuring 130 x 20 mm, this ground-plane independent antenna is constructed from flexible polymer, making it an ideal choice for space-constrained devices and high-vibration environments such as drones and UAVs.

By replacing three separate antennas with one integrated plane, the FXP303 significantly reduces BOM costs, simplifies cable management, and minimizes mechanical failure points. Installation is fast and secure via a "peel-and-stick" 3M adhesive backing, suitable for non-metal surfaces like plastic or glass. With peak gains of 1 to 4 dBi across all bands, it provides robust global connectivity for asset tracking, telematics, and connected healthcare. The antenna is plug-and-play ready with customizable, color-coded cables and connectors to streamline production and eliminate assembly errors.

Key Features

• Super Compact Flexible PCB Combination Antenna
• GNSS covering L1, B1I, G1 and L-Band
• Cellular covering 600 MHz – 8000 MHz
• Wi-Fi covering 2.4 GHz, 5.8 GHz, 7.125 GHz
• Cable: 150mm of 1.37 Coaxial
• Connector: I-PEX MHFI
• Dims: 130 x 20 x 0.24 mm
• RoHS & Reach Compliant
