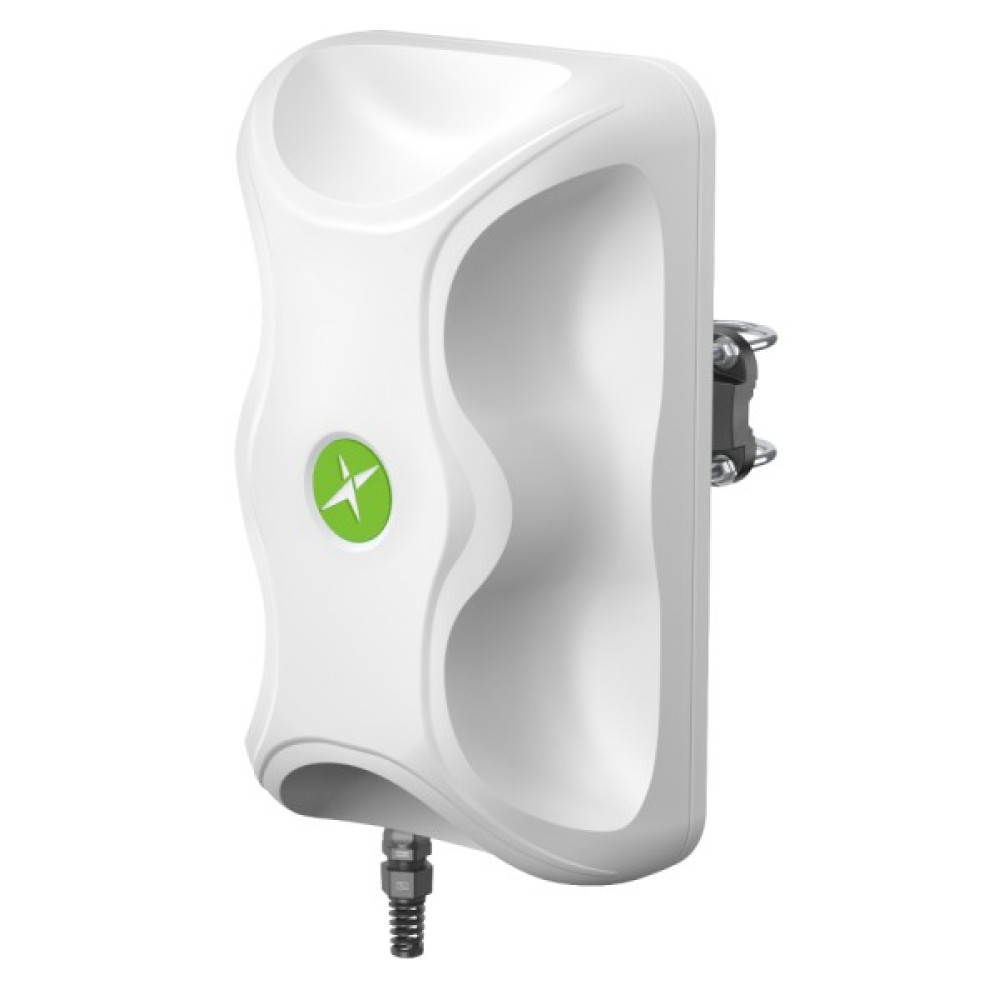

Taoglas THDRBR1 (Thunder) Integrated 5G Directional Antenna for MAX BR1 Mini 5G

Taoglas THDRBR1 6:1 All-in-One Antenna and Router Enclosure for the MAX BR1 Mini 5G by Peplink

The Taoglas THDRBR1 (Thunder Series) Integrated Directional antenna for the Peplink MAX BR1 Mini 5G router is designed for use in a variety of wireless communication applications. This all-in-one product consists of multi-band 5G and Wi-Fi antennas, integrated in IP67 enclosure. It offers 7.5 dBi gain and wide beam width, which makes it suitable for use in both urban and rural environ­ments. Combining the THDRBR1 with the Peplink MAX BR1 Mini 5G router (with  WiFi) inside gives you complete outdoor solution with multiple use cases such as public transportation, energy, mining, IoT and much more.

Common Applications for the THDRBR1 include:

• Remote and Hybrid Work Environments
• Branch and Retail Locations
• Industrial and Rugged Environments
• High-Bandwidth Applications
• Critical Communications and Public Safety

The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-6000 MHz, the THDRBR1 is a fantastic solution for wideband cellular applications.

This enclosure is also available as a Directional antenna. See the THORBR1.

Key Features

• Integrated 5G/LTE Omnidirectional Antenna

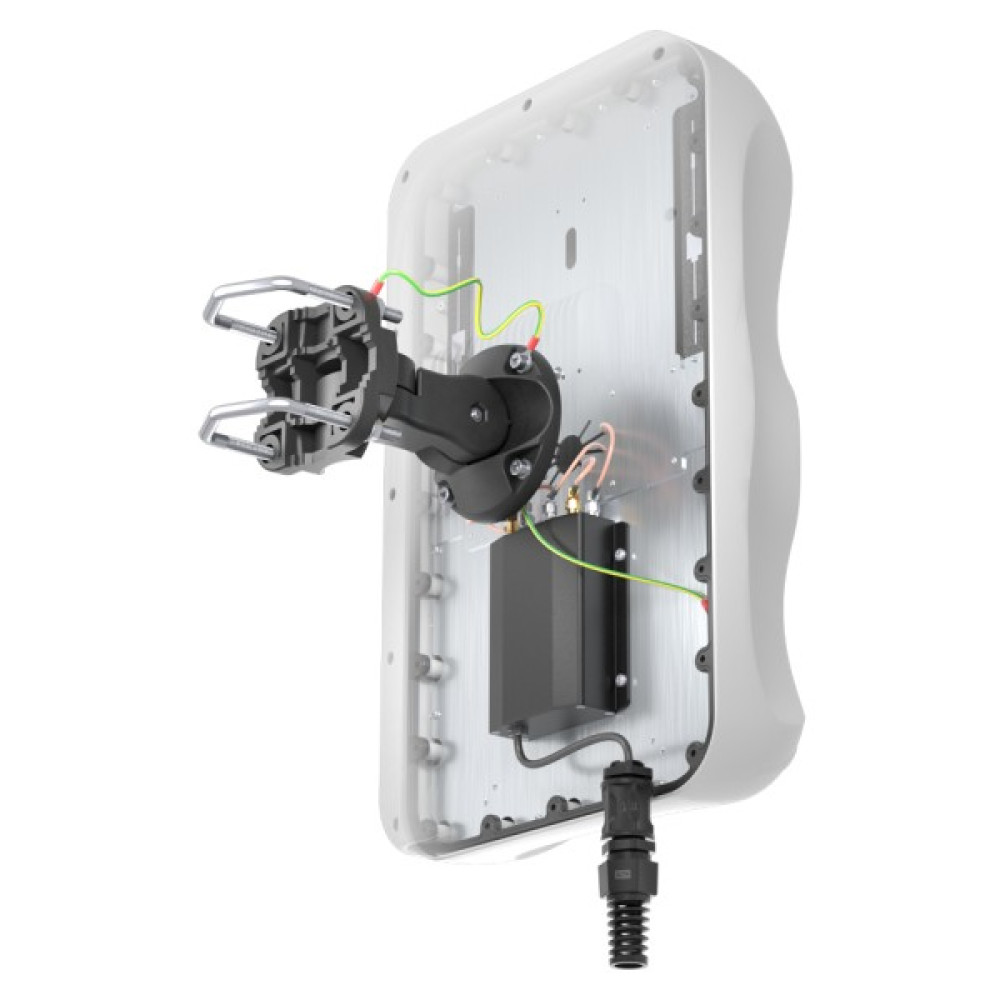

• Cavity to install the Peplink MAX BR1 Mini 5G Router (with Wi-Fi)

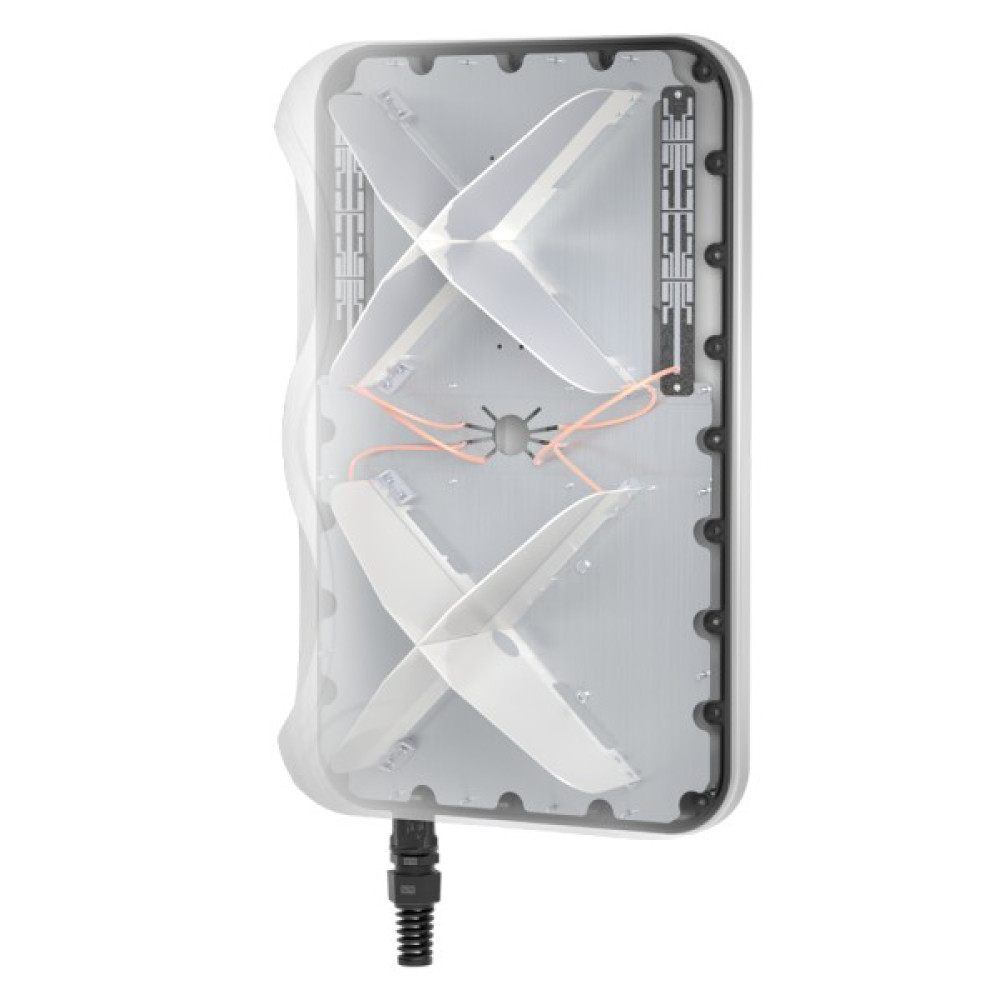

• Four 5G/LTE antennas covering 600-6000 MHz
• Two dual-band Wi-Fi omnidirectional antennas

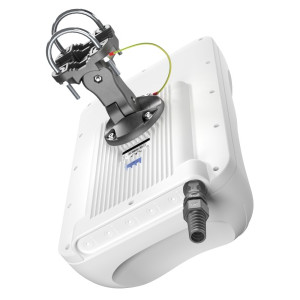

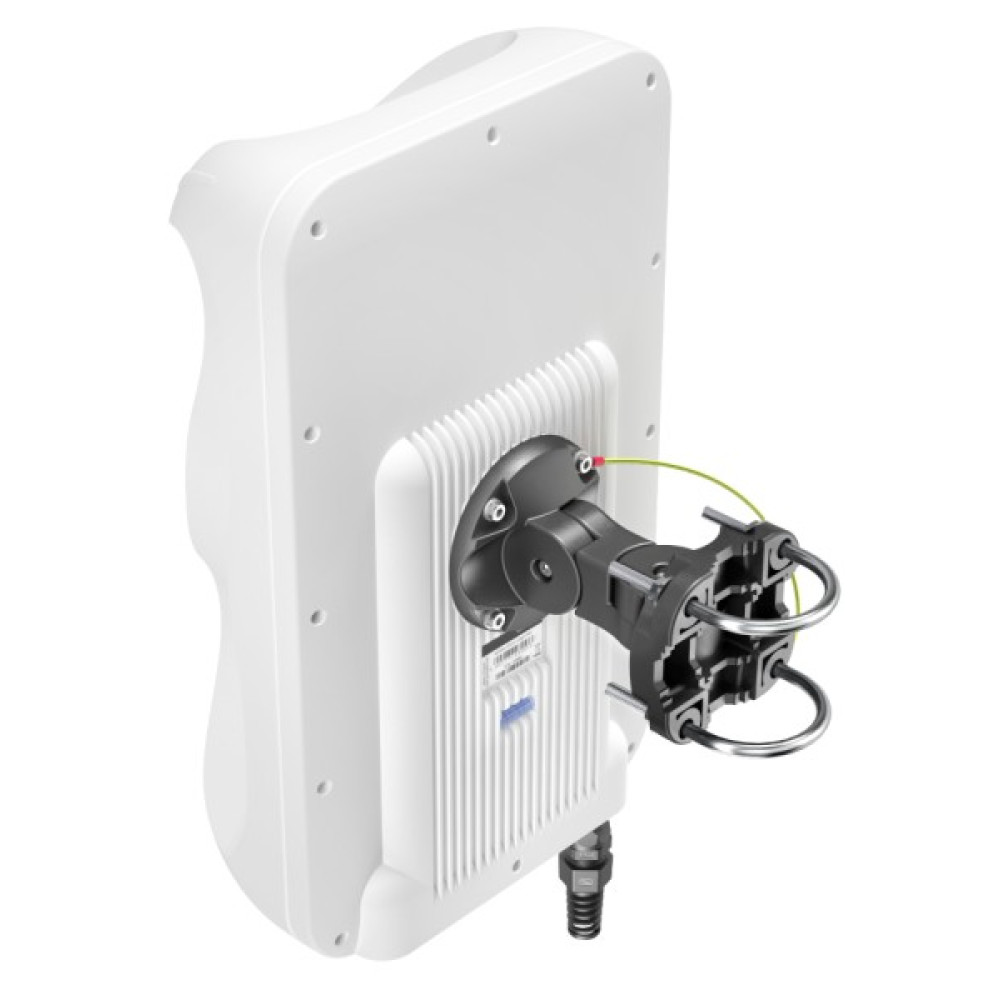

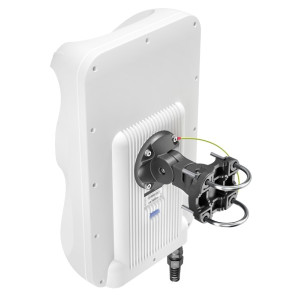

• Wall or Pole mount
• IP67 rated waterproof enclosure
• Connector: RJ45
• Dimensions: 480 x 290 x 175 mm
• RoHS and Reach Compliant

Whether you’re operating in urban centers or off-the-grid locations, the Thunder THDRBR1 ensures consistent, high-speed connectivity for mission-critical applications. To understand its full potential, our sales team is standing by to help you with your wireless needs! Contact us at Westward Sales today.
