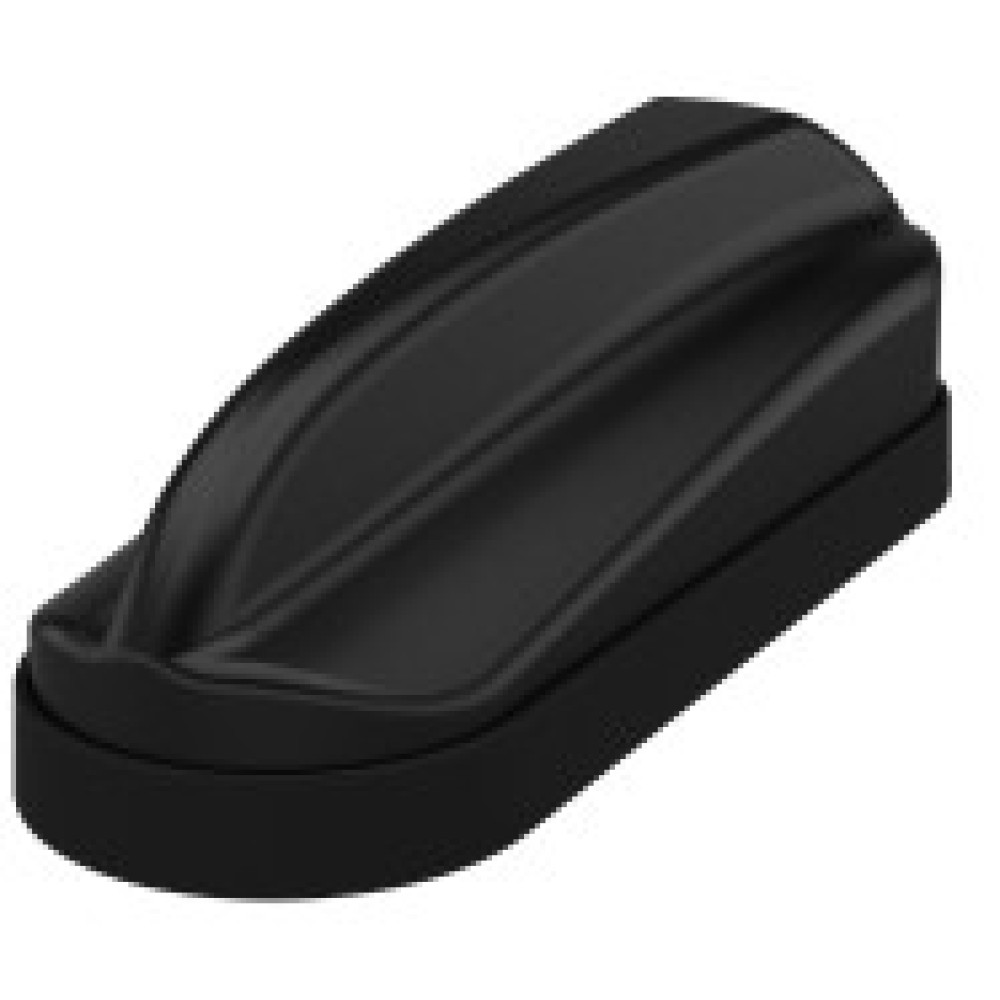

Semtech 6001576 3-in-1 Sharkfin Antenna with MIMO 5G/4G and GPS

Semtech Airlink 6001576 3:1 RedCap Antenna with MIMO 5G/4G and GPS

The 3-in-1 antenna, 6001576, provides a MIMO cellular 5G/4G (617-960/1710-4200 MHz) with L1/L5 GPS/GNSS in a compact Sharkfin style antenna housing. The cellular elements are omnidirectional allowing easy placement of the antenna on the vehicle and the antenna can be installed on a conductive or non-conductive panel without significant detriment to performance. The sleek sharkfin styling creates a low visual impact on vehicles and the compact footprint allows installation where roof real-estate is limited including between the ribs on a Ford Explorer / Interceptor. The antenna is installed using a single M18 / 3/4” hole maximizing vehicle resale value and seals to IP69K when properly installed protecting the antenna and vehicle from water ingress. The antenna is supplied with 4m (13’) long low loss flame retardant coaxial extension cables to simplify installation. The cables are compliant with UN ECE R118 making the antenna suitable for installation on buses and coaches.

Key Features

• Omnidirectional 3-in-1 antenna for RedCap routers
• 2x2 MIMO LTE, 617-960 / 1710-4200 MHz ranges
• GPS with 1559-1612 - 1164-1189 MHz patch type element
• 4 dBi peak gain
• 4-meter (13-foot) long low-loss cables
• -40 to 80°C operating temperature range
• IP69K rated in black color
• Compatible with the Semtech RX400 and EX400 routers
