Semtech 6001561 4-in-1 Dome Antenna with MIMO 5G/4G, WiFi, and GPS

Semtech Airlink 6001561 4:1 RedCap Antenna with MIMO LTE, WiFi, & GPS

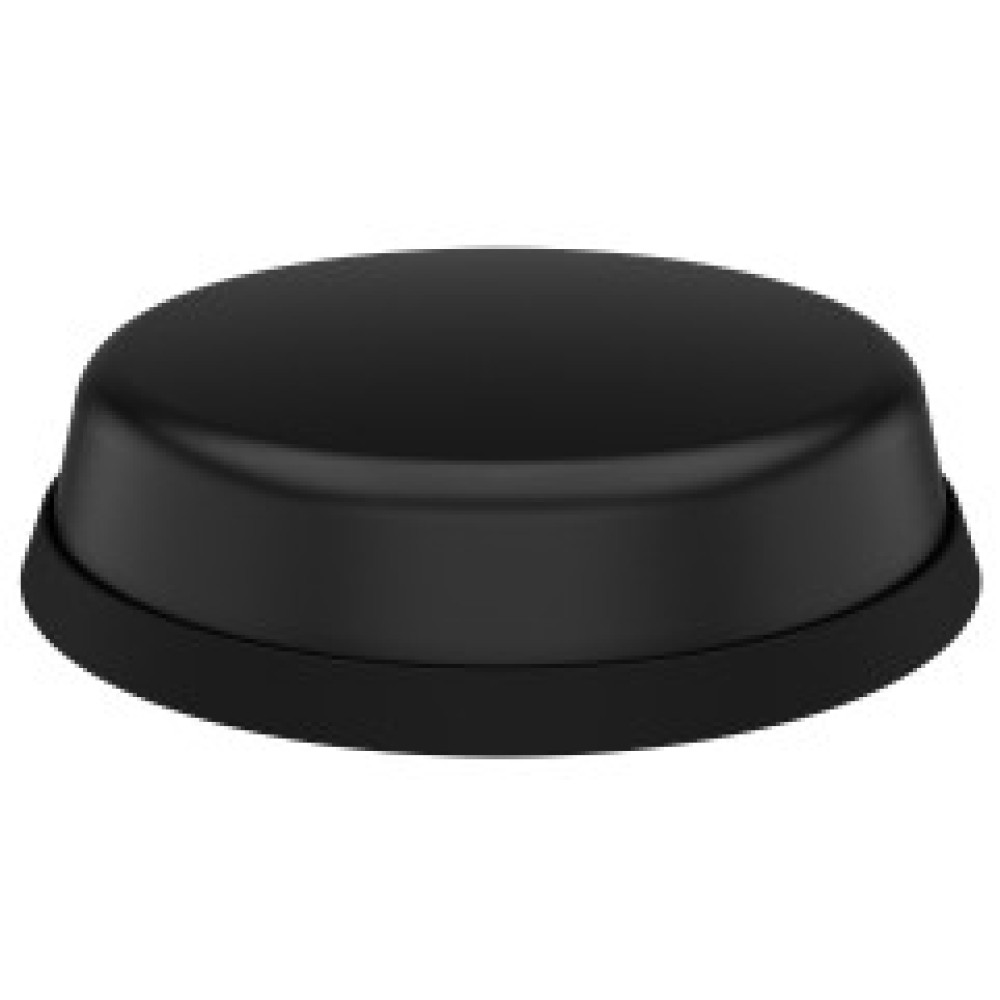

The 4-in-1 dome antenna, 6001561, features an ultra low profile housing which contains MIMO antenna function for 5G/4G, an active L1/L5 antenna for GPS/GNSS with 30db/26dB gain LNA and SISO antenna functionality for 2.4/5.15-6 GHz WiFi. This tough hockey puck style antenna has low visual impact and is engineered for demanding applications with a flame retardant, impact resistant and ingress protected housing rated to IP69K and IK10. Supplied with 2m (6.6’) low loss double shielded CS30 cables and requiring only a single hole for installation, this 4-in-1 dome antenna is easy to install and ideal for industrial applications.

Key Features

• Omnidirectional 4-in-1 antenna for RedCap routers
• 2x2 MIMO LTE, 698-960 / 1710-4200 MHz ranges
• Dual-band WiFi supports 2.4 / 5.15-6.0 GHz
• GPS with 1559-1612 - 1164-1189 MHz patch type element
• 4 dBi peak gain
• 2-meter (6.6-foot) long low-loss cables
• -40 to 80°C operating temperature range
• IP69K rated dome in black color
• Compatible with the Semtech RX400 and EX400 routers
