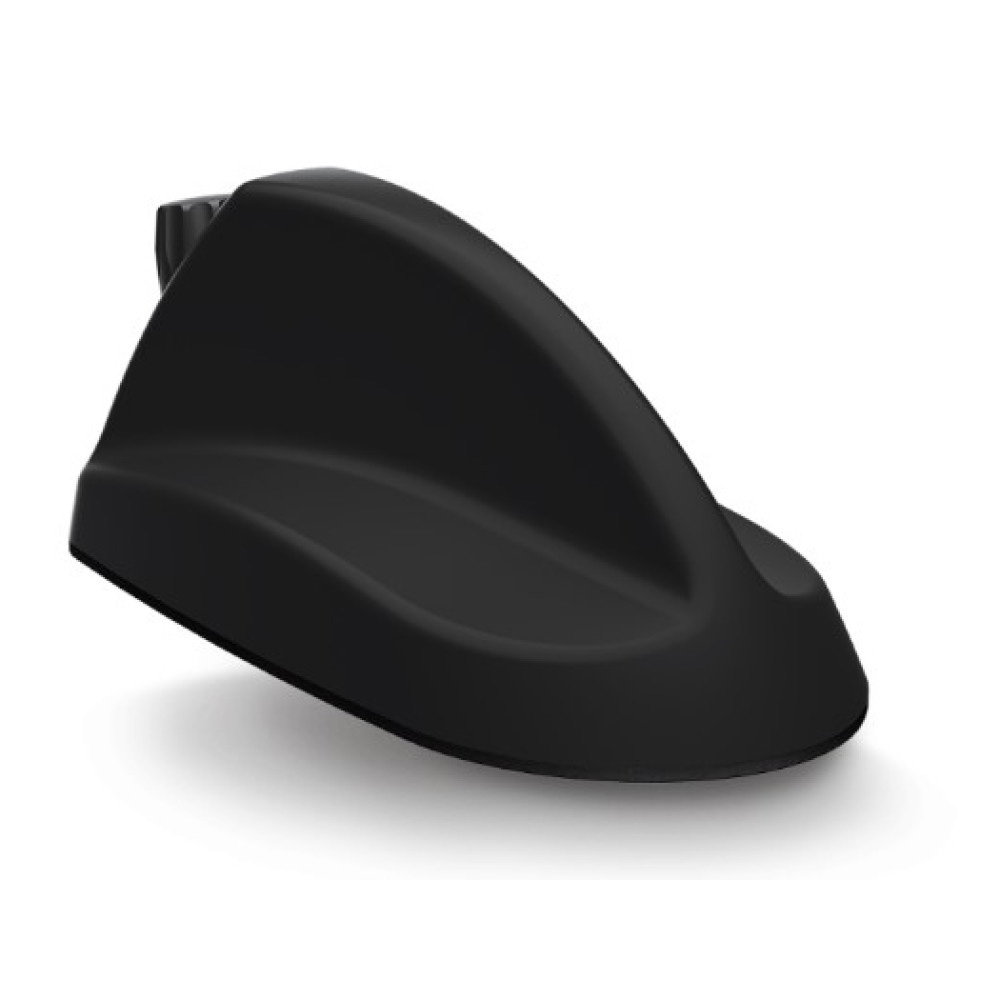

The GP-IN2756 Sharkee provides antenna coverage for GPS and LTE within one OEM sharkfin style housing. The antenna is trusted by public safety, utilities and transportation companies all over the world and it upgrades the range with an improved GPS module with advanced filtering and 4G/5G coverage. The GP-IN2756 offers two internal antenna systems, GPS and 4G/5G cellular (698-960/1710-3800 MHz), and an optional whip mounting for VHF or UHF whips. Requiring only a single hole fixing, the GP-IN2756 reduces vehicle damage, cost of installation and visual impact while protecting vehicle resale value.
The GP-IN2756 is suitable for the public safety (covert and discreet), industrial and transportation sectors, where a cost effective, efficient and robust antenna is essential to the application. The GP-IN2756 is a kit containing a 2-in-1 version of the GPSB5G antenna and a complete set of extension cables. The 5-meter long low-loss cables are double shielded, terminating with TNC connectors for the cellular and GPS connections. It is suitable for fitment to M3 category vehicles.
Technology | |
Category | Antenna |
Wireless | |
2:1 Combination Antennas | 2:1 (LTE, GPS) |
3:1 Combination Antennas | 3:1 (LTE, GPS, RF) |
Pattern | Omnidirectional |
Cellular Frequencies | 698 - 960 MHz, 1710 - 3800 MHz |
VSWR | <2.5:1 |
Gain | 7 dBi peak gain |
Power | 60 W maximum input |
Interfaces | |
GPS | GPS L1, 1575 MHz |
Mechanical | |
Cabling | 5-meter (16.5 ft.) pre-installed |
Connector Type | TNC |
Dimensions | 120 mm L x 60 mm W x 50 mm H |
Mounting | Panel mount with 19 mm (3/4") bushing |
Color | Black |
Ratings | |
Operating Temperature | -40 to 80°C |
Certifications | IP66 |
Download Name | File Size |
Panorama GPSB Series Install Instructions | 438.39KB |
Panorama GPSB5G Datasheet | 2.89MB |
