Manufacturer: Panorama Antennas

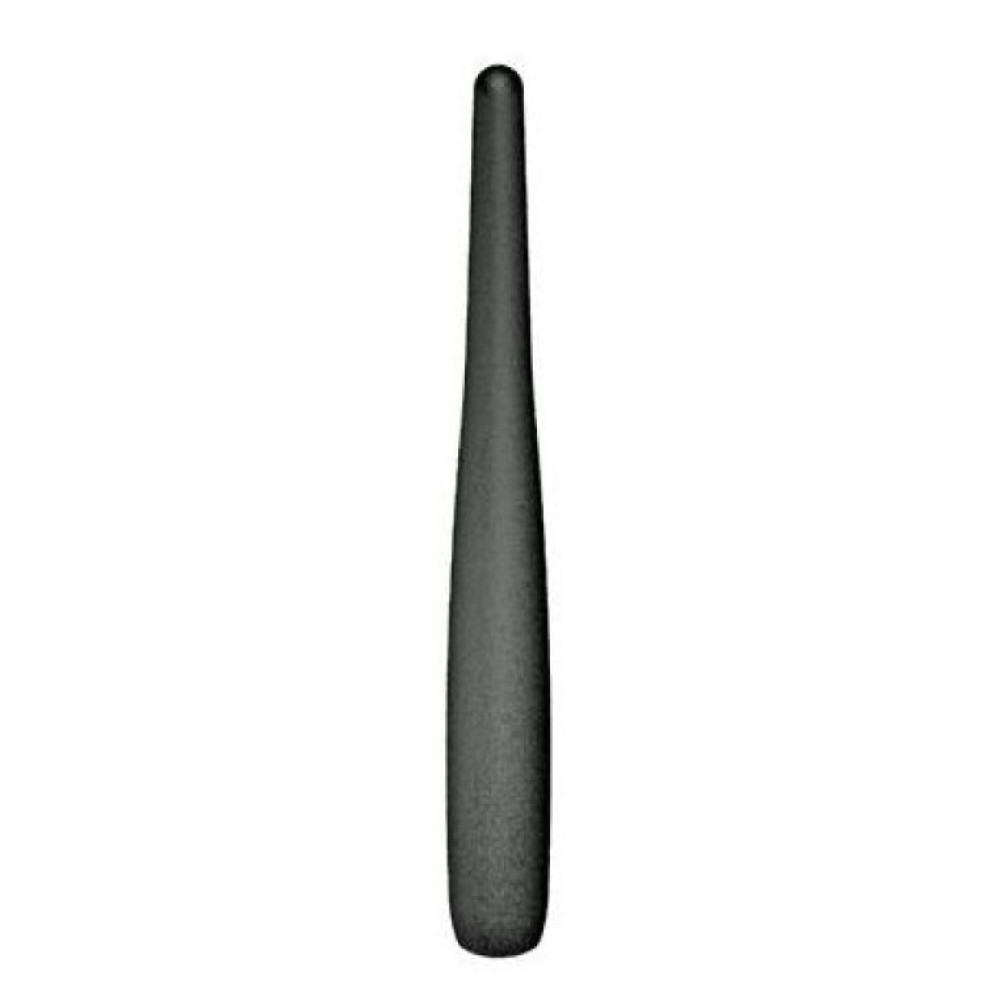

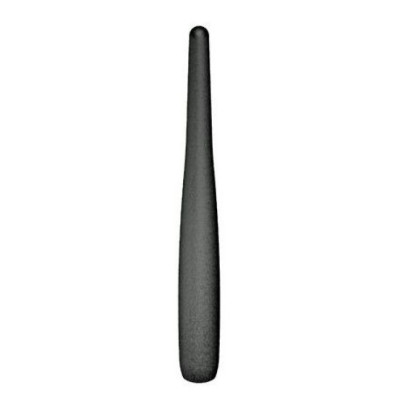

The ASF-BADEP3G is a compact, semi-flexible cellular whip antenna which operates on six major cellular, GSM, and LTE bands to support 2G, 3G, and 4G cellular technologies. The antenna’s stylish, flexible design makes it both discreet in appearance and resistant to weather damage. The antenna features an M6 x 0.75 terminal and mounts to Panorama combination (GPSB, GPSK, GPSKM), Eurobase (EB), and light-duty magnetic (MAR) bases.
| Technology | |
| Category | Antenna |
| Wireless | |
| Single / SISO Antennas | Cellular |
| Pattern | Omnidirectional |
| Cellular Frequencies | 698 - 960 MHz, 1710 - 2170 MHz |
| Gain | 2 dBi peak gain |
| Power | 60 W maximum input |
| Mechanical | |
| Antenna Connection | Whip antenna mount with M6x0.75 thread |
| Color | Black |
| Dimensions | 10.5 mm diameter x 100 mm H |
| Ratings | |
| Operating Temperature | -40 to 80°C |
| Download Name | File Size |
| Panorama ASF-BADEP3G Datasheet | 252.4KB |
