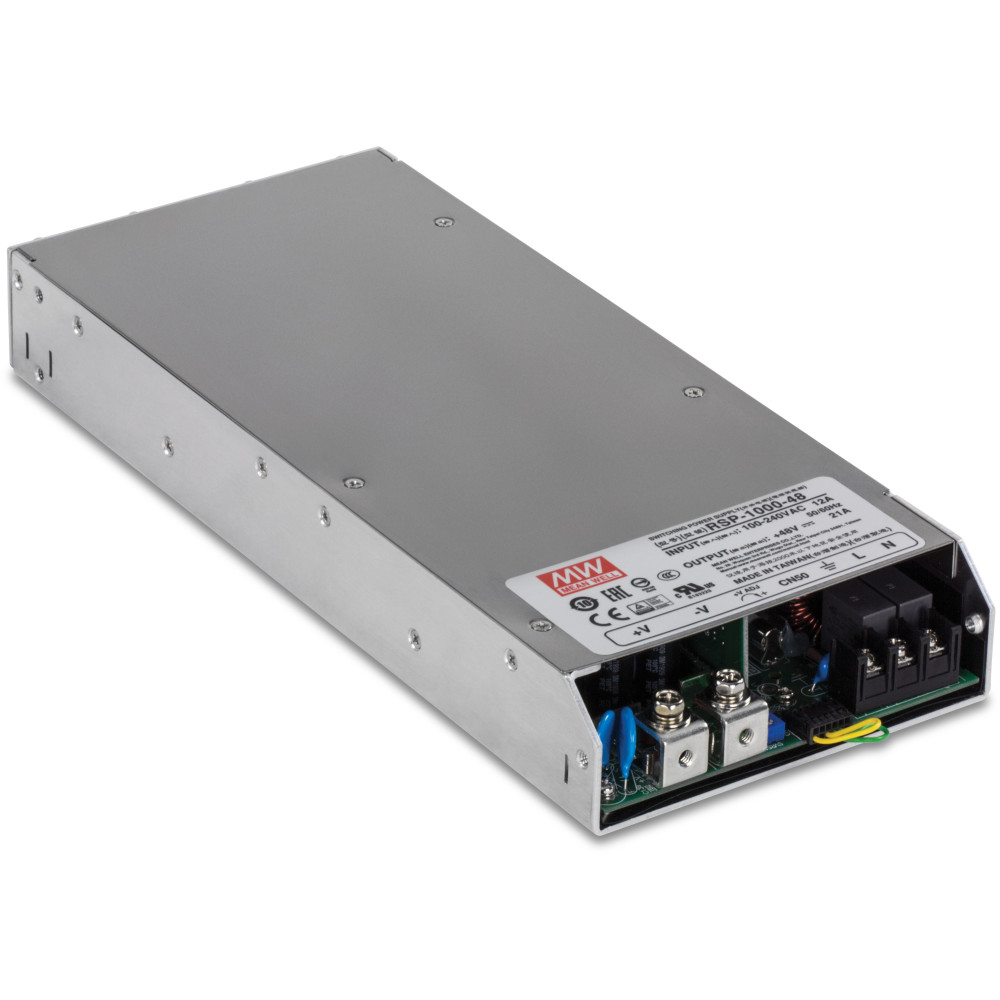

MEAN WELL RSP-1000 (-24,-48) 1000-Watt Industrial Power Supply, 24V or 48V Output

RSP-1000 1000 Watts Industrial Rackmount Power Supply, 48 VDC Output with PFC

The RSP-1000 is a 1KW single output enclosed type AC/DC power supply with a 1U low profile. This series operates for 90-264 VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, with a working temperature up to 60°C. The RSP-1000 provides vast design flexibility by equipping various built-in functions such as the output programming, active current haring, remote ON-OFF control, auxiliary power, etc.

Key Features

• Universal AC input
• Built-in active PFC function
• High efficiency up to 90%
• Forced air cooling by built-in DC fan
• Output voltage programmable
• Active current sharing up to 4000W (3+1)
• Built-in remote ON-OFF control, DC OK signal and remote sense function
• 5V/0.5A auxiliary output
• Protections: Short circuit, overload, over voltage, over temperature
• -20° - 60° C (-4° - 140° F) operating temperature range
• 5-year warranty
