Manufacturer: InHand Networks

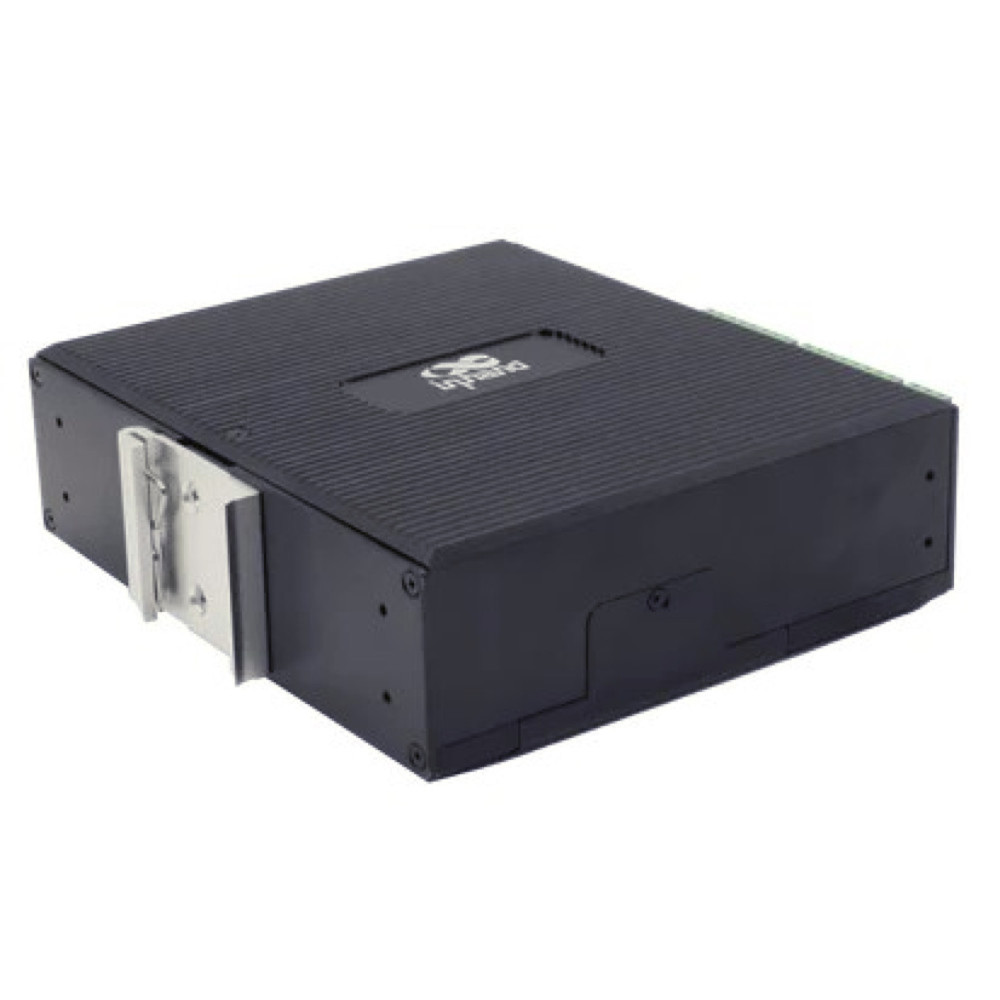

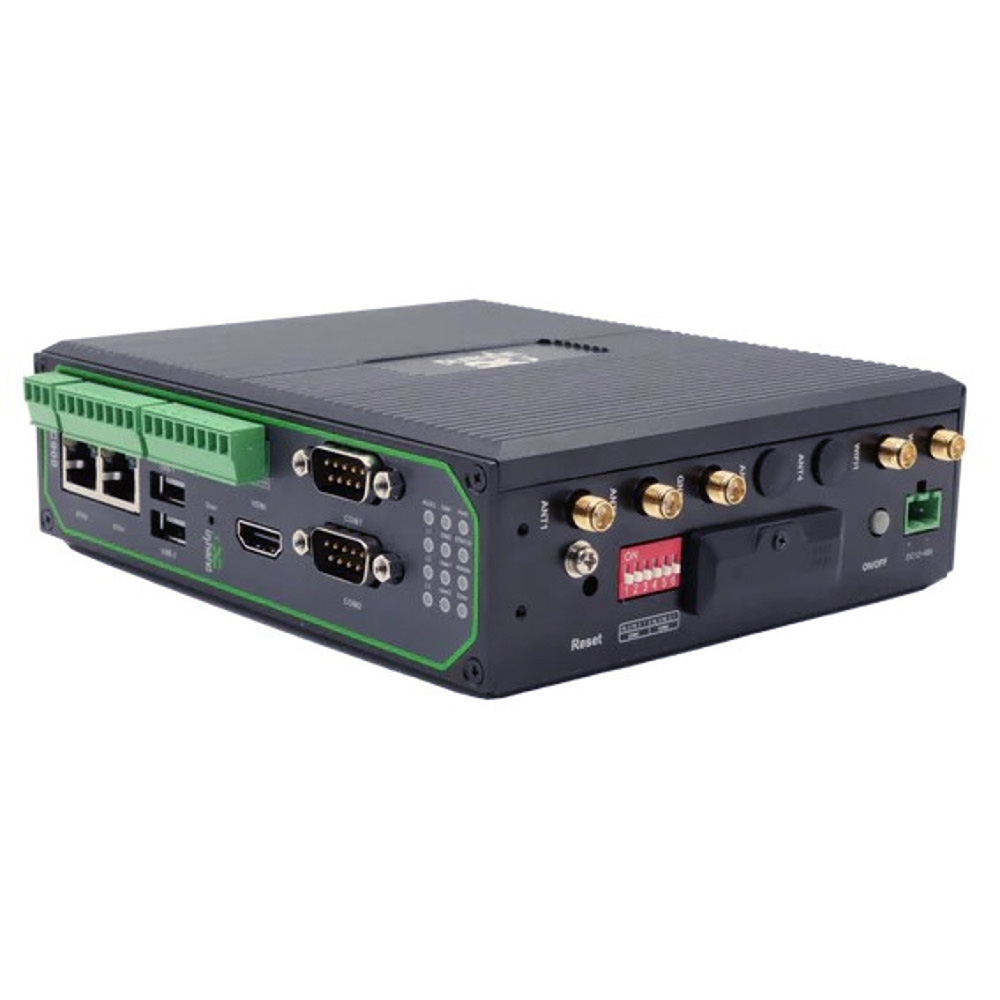

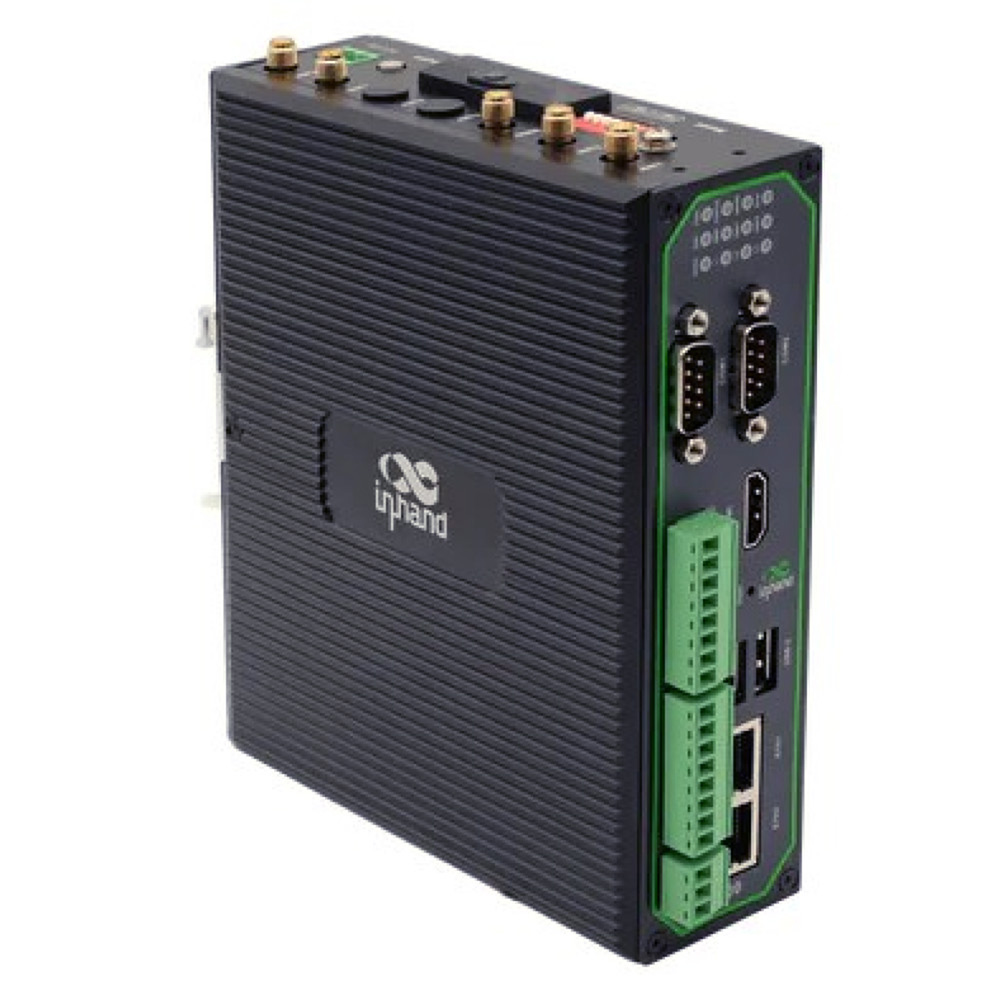

The EC942 series edge computer is a high-performance edge computer developed for industrial IoT applications. The EC942 provides a powerful computing platform with an ARM Cortex-A55 quad-core processor at 2.0 GHz, 4 GB of RAM, and 16GB of eMMC flash. Based on Debian 10, the EC942 provides a secondary development platform with support for C/C++, Java, Python, .NET, JavaScript, and more, making it easy for users to develop and port applications. With the built-in DeviceSupervisor Agent, the device provisioning process is easier than ever. The EC942 supports Secure Boot, TPM 2.0, and other security features to ensure the security of user software and data.
Typical applications for the EC942 include: Smart Factory, Industrial Robots, Smart Energy, and Special Equipment Safety.
Enable your EC942 with a cost-effective monthly data plan to ensure your router is ready to deploy. Select Verizon or AT&T and the data plan size from 100 MB to 5 GB. You are billed monthly; there’s no long-term contract. Plus, manage all of your fielded gateways from a single cloud-based web portal.
Purchase a SIM card from this page. It will be mailed to you in 2 to 3 business days. Then, after you receive your card, sign up for a data plan at Westward Connect.

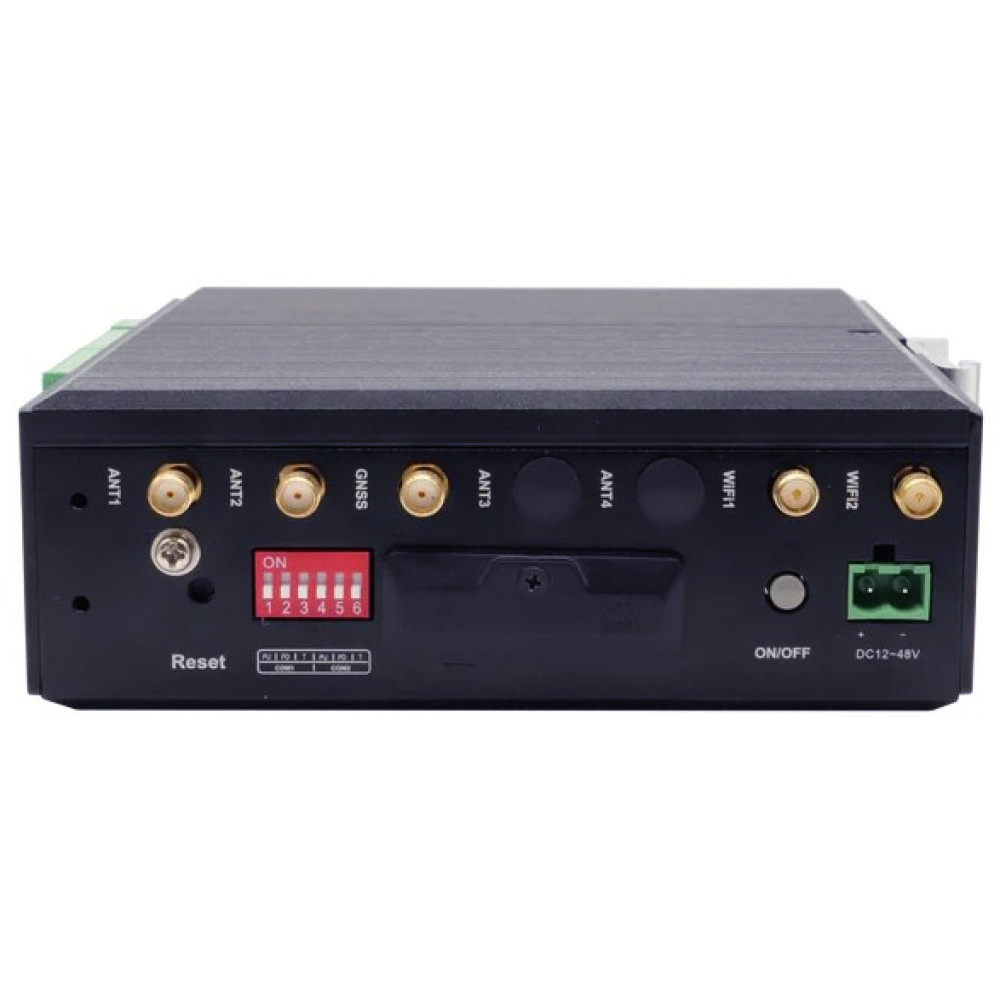

There are 5 antenna interfaces in the EC942, but the number of antennas varies depending on the configuration. For mobile and industrial applications, consider these high-performance antennas.
EC942-B-FQ38-B, Edge Computer with ARM Cortex-A55@2.0 GHz Quad Core CPU, LTE CAT4, no WiFi, no I/O, no GPS, no CAN, no TPM
EC942-H-FQ38-B, same as above with WiFi, 4 DI/DO, GPS, CAN, TPM
EC942-B-EN00-B, Edge Computer with ARM Cortex-A55@2.0 GHz Quad Core CPU, No cellular, no WiFi, no I/O, no GPS, no CAN, no TPM
EC942-H-EN00-B, same as above with WiFi, 4 DI/DO, GPS, CAN, TPM
* Contact Westward Sales if Bluetooth is required for this Edge Computer.
| Technology | |
| Ethernet Ports | 2 Gigabit Ethernet (10/100TX) |
| Computing | |
| System Type | DIN-Rail Computer |
| CPU | ARM Cortex |
| System Memory Configuration | 4 GB LPDDR and 16 GB eMMC Flash |
| Watchdog Timer | Device self-diagnosing, auto-recovers from operation faults |
| Operating Systems | Linux Debian 10.0 |
| Cellular Interface | |
| Carrier | AT&T, Verizon, and T-Mobile |
| SIM Holder | 2x MicroSIM |
| Networks | LTE CAT 4 |
| Network Management | |
| Authentication | CHAP/PAP |
| Network Access | APN, VPDN |
| System Configuration | InHand DeviceLive, HTTP, HTTPS, SSH,etc. |
| Protocols | Modbus RTU Master/Slave, Modbus TCP Master/Slave, EtherNet/IP, ISO on TCP, OPC UA Client/Server, Mitsubishi MC3C/3E/3C OverTCP, Mitsubishi CPU Port, FINSUDP, HostLink, PPI |
| Reliability | Dual SIM, Multi-Level link detection, auto-redials once disconnected |
| Cloud Protocols | Supports cloud-based parameter configuration, container management, application and firmware management |
| Interfaces | |
| LAN Ports | 2 Gigabit Ethernet |
| USB | USB 2.0 (2x Type A, 1x Type C) |
| Serial | 2x RS-232/485/422, DB9 |
| GPS | Optional |
| Power | |
| Connection | Industrial terminal block |
| Input Voltage | 12 to 48V DC |
| Reverse Polarity Protection | Yes |
| Mechanical | |
| Enclosure | Metal |
| Mounting | Wall mount or DIN-rail |
| Shock / Vibration | IEC60068-2-27, IEC60068-2-6 |
| LED Indicators | PWR, STATUS, WARN, Error, SIM (2), LTE (3), 4G/5G, User (2) |
| Weight | 810 g |
| Dimensions | 47.3 x 162.7 x 148.3 mm |
| Ratings | |
| Operating Temperature | -20° to 70°C |
| Storage Temperature | -40° to 85°C |
| Humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, PTCRB, Verizon |
| EMC | EN61000-4-2, EN61000-4-3, EN61000-4-4,EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-12 |
| Download Name | File Size |
| InHand EC942 Series Datasheet | 1.75MB |
| InHand EC942 Series Flyer | 1004.57KB |
| InHand EC942 Series User Manual | 2.73MB |
