Manufacturer: Black Box

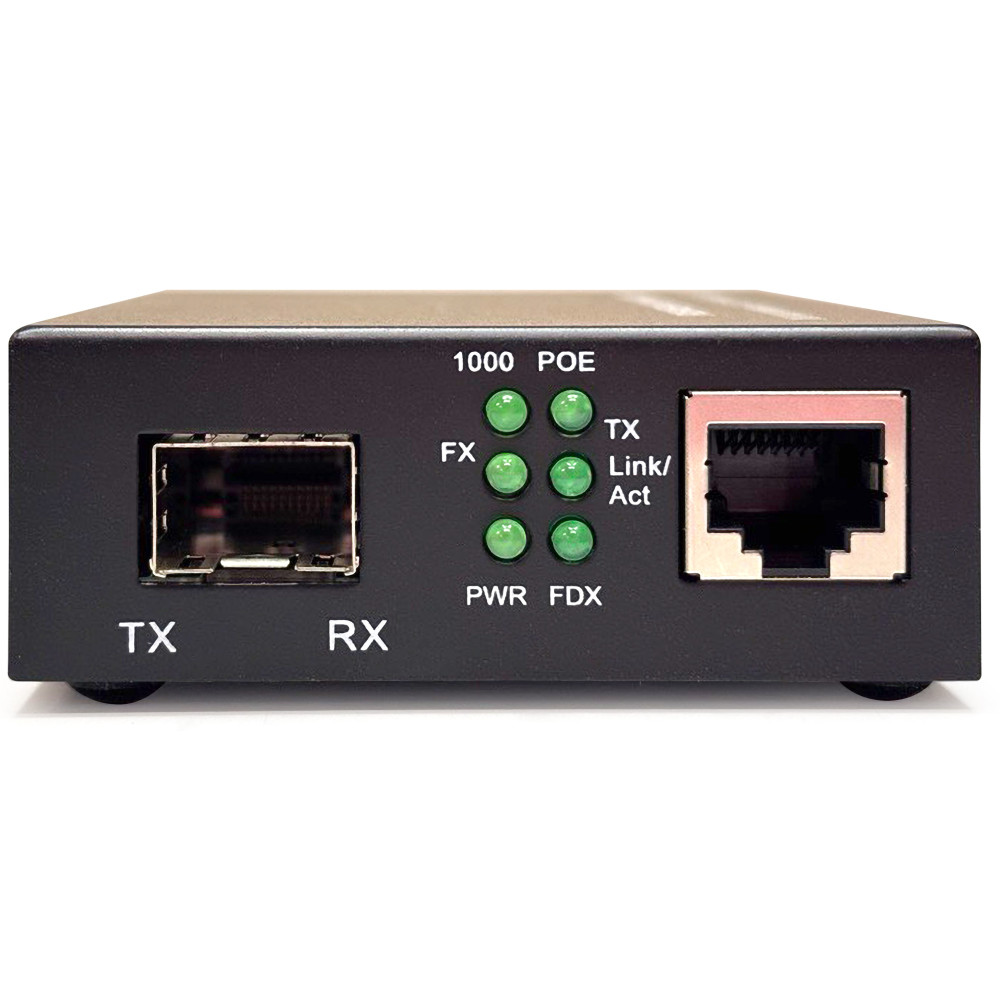

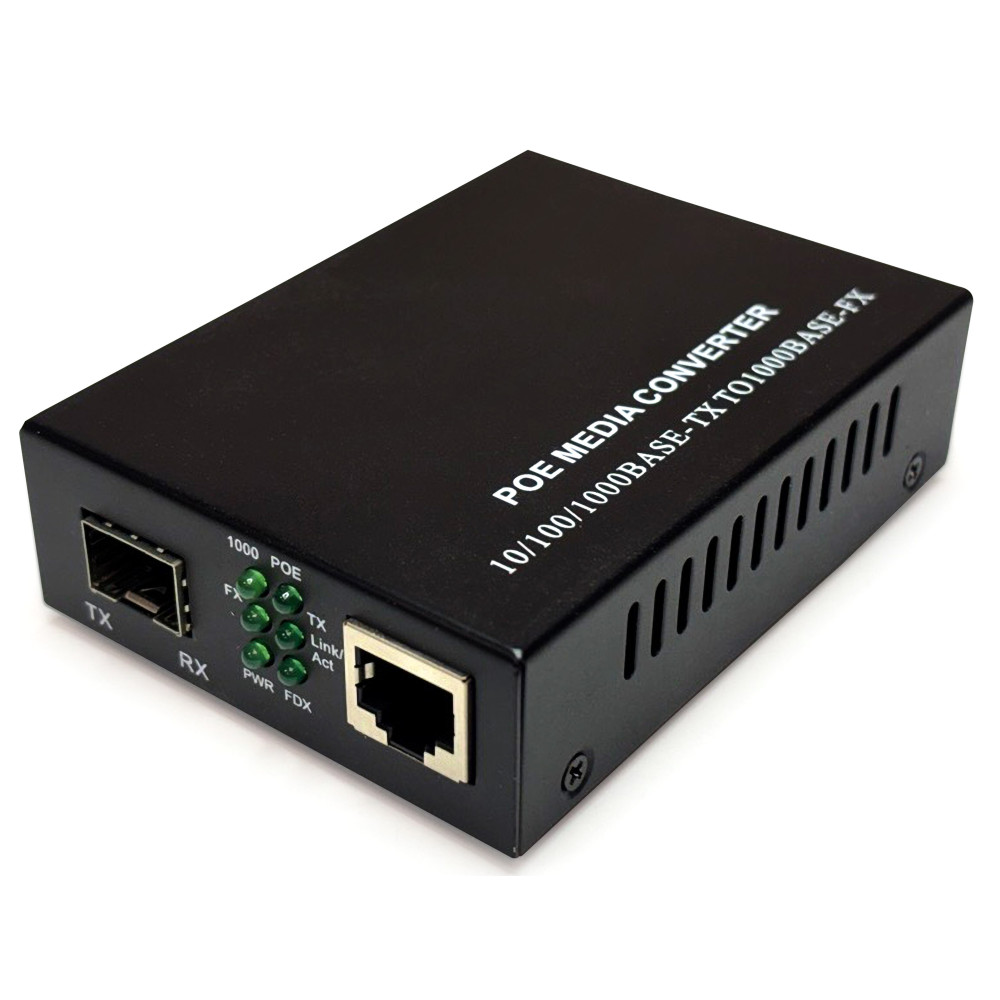

Use the LPS600A-SFP PoE PSE Media Converter 10/100/1000BASE-T to 1000BASE-SX/LX to connect two types of network segments easily and inexpensively. It features a UTP RJ-45 port and a fiber port. This SFP model in the series is customizable using swappable SFPs for singlemode or multimode applications.

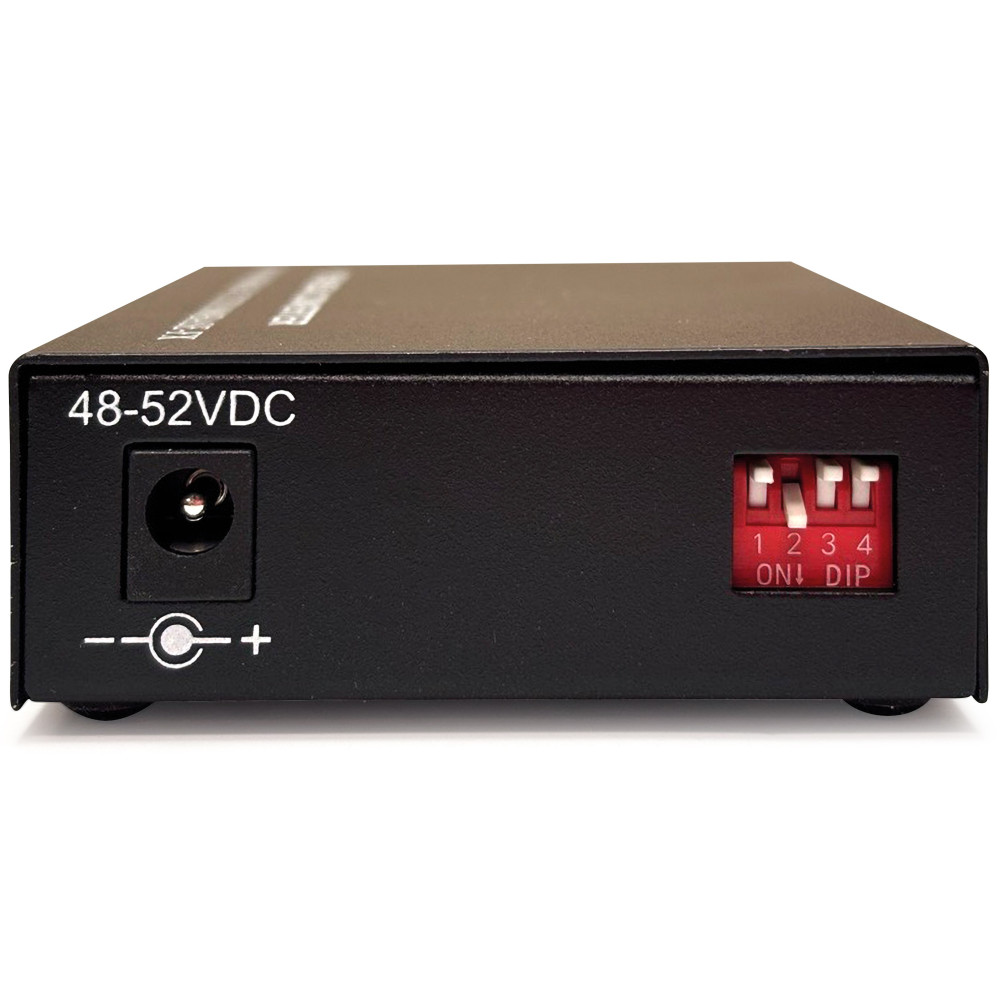

The media converter automatically detects 10-/100-/1000-Mbps bandwidth on the copper side and supplies power to PoE+ powered devices. The converter includes an AC power supply to power the unit.
| Technology | |
| Category | Media Converter |
| Media Converter Type | Fiber to Gigabit Ethernet |
| Total Ports | 2 |
| Fiber Interface | SFP slot |
| Standards | IEEE802.3AT, IEEE802.1Q, IEEE802.3Z |
| Power | |
| PoE Power Output | Up to 30 W per port ((IEEE 802.3at compatible) |
| Ratings | |
| Operating Temperature | 32 to 122° F (0 to 50° C) |
| Storage Temperature | -40 to 158° F (-40 to 70° C) |
| Humidity | 5 to 90% relative, non-condensing |
| Certifications | FCC Class A, CE |
| Download Name | File Size |
| Black Box PoE Series Datasheet | 248.91KB |
| Black Box LPS6 Series Media Converter User Manual | 270.69KB |
| Image | Model | Product Name | Price | |
 |
LFP411 | Black Box LFP411 Gigabit SFP Module Transceiver, Multimode, 850nm, 550 m, LC | $64.29 | |
 |
LFP412 | Black Box LFP412 Gigabit SFP Module Transceiver, Multimode, 1310nm, 2km, LC | $96.47 | |
 |
LFP413 | Black Box LFP413 Gigabit SFP Module Transceiver, Extended Diagnostics, Single-Mode | $70.95 | |
 |
LFP414 | Black Box LFP414 Gigabit SFP Module Transceiver, Singlemode, 1310nm, 30km, LC | $155.26 |
