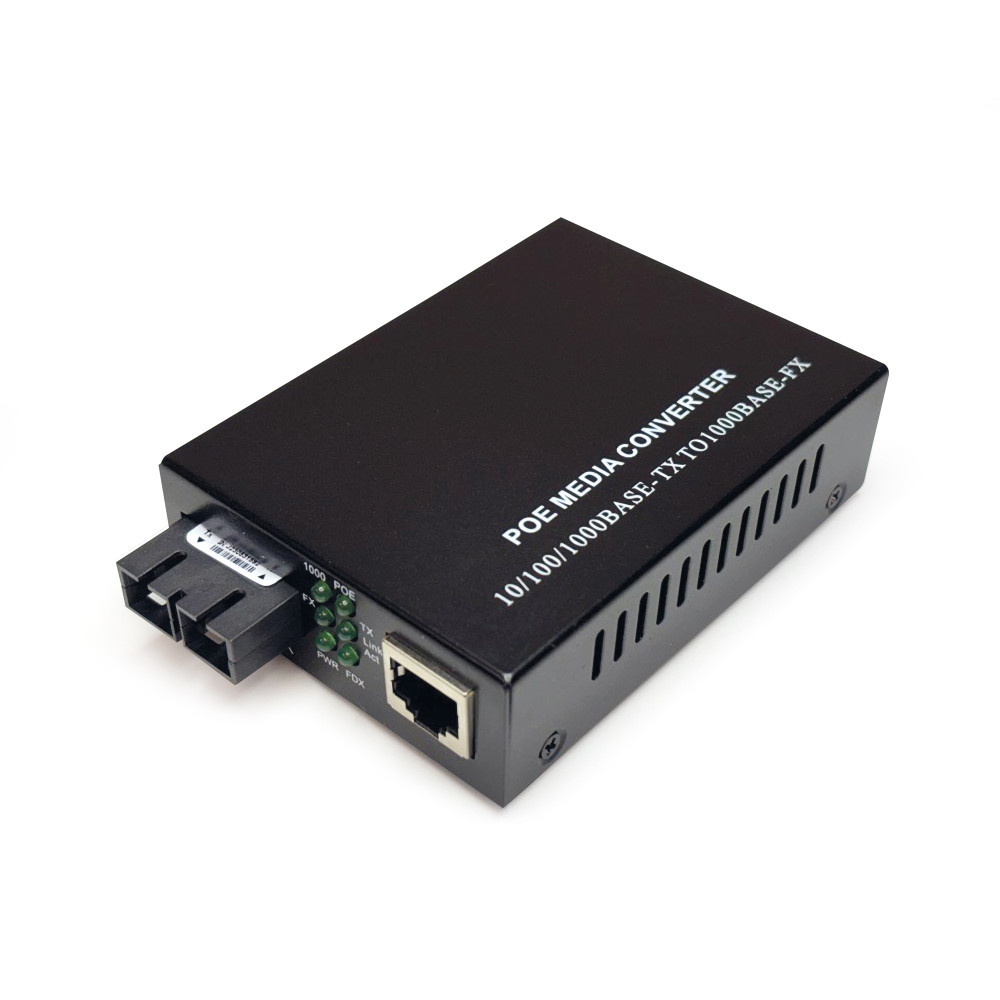

Black Box LPS602A-MM850 Gigabit Ethernet PoE+ Media Converter

Black Box LPS602A-MM850 Gigabit Ethernet PoE+ Media Converter, Multimode Fiber, 850nm, 550m, SC
Model: LPS602A-MM850
Availability: Contact Westward Sales
Standard Shipping & Handling
Qty:

Black Box LPS602A-MM850 Gigabit Ethernet PoE+ Media Converter, Multimode, SC Connectors

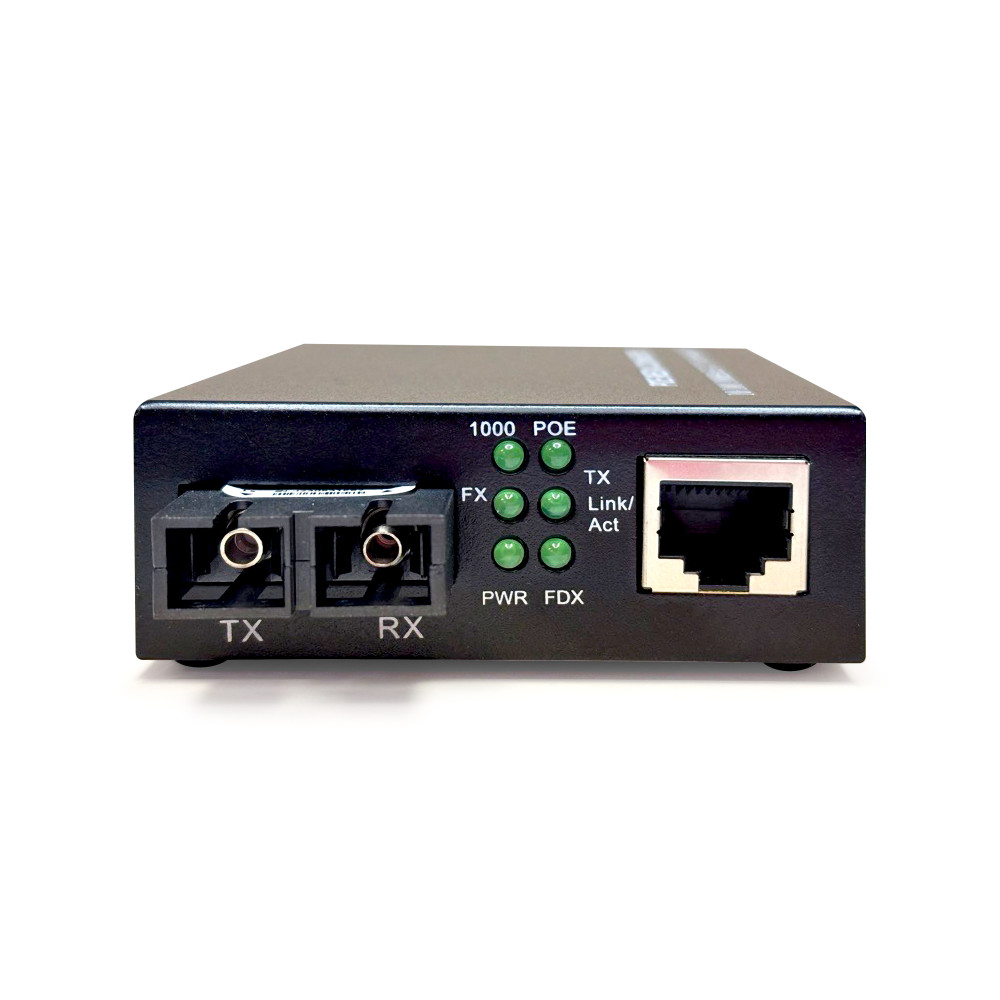

Use the LPS602A-MM850 PoE+ PSE Media Converter, 10/100/1000BASE-T to 1000BASE-SX/LX to connect two types of network segments easily and inexpensively. This Media Converter features a UTP RJ-45 port and a fiber port. The fiber port is a duplex Multi-mode SC connection. The copper port on this Media Converter will auto sense 10/100/1000 Mbps and supply power to PoE+ Powered Devices (PD). Also included will be an AC power supply to power the unit.

Key Features of the LPS602A-MM850

  • Connects 10/100/1000BASE-T to 1000BASE-SX/LX network segments easily and inexpensively
  • Includes an UTP RJ-45 port and a MM SC connector
  • Automatically senses 10/100/1000-Mbps bandwidth
  • Supplies power to PoE+ powered devices (PDs)

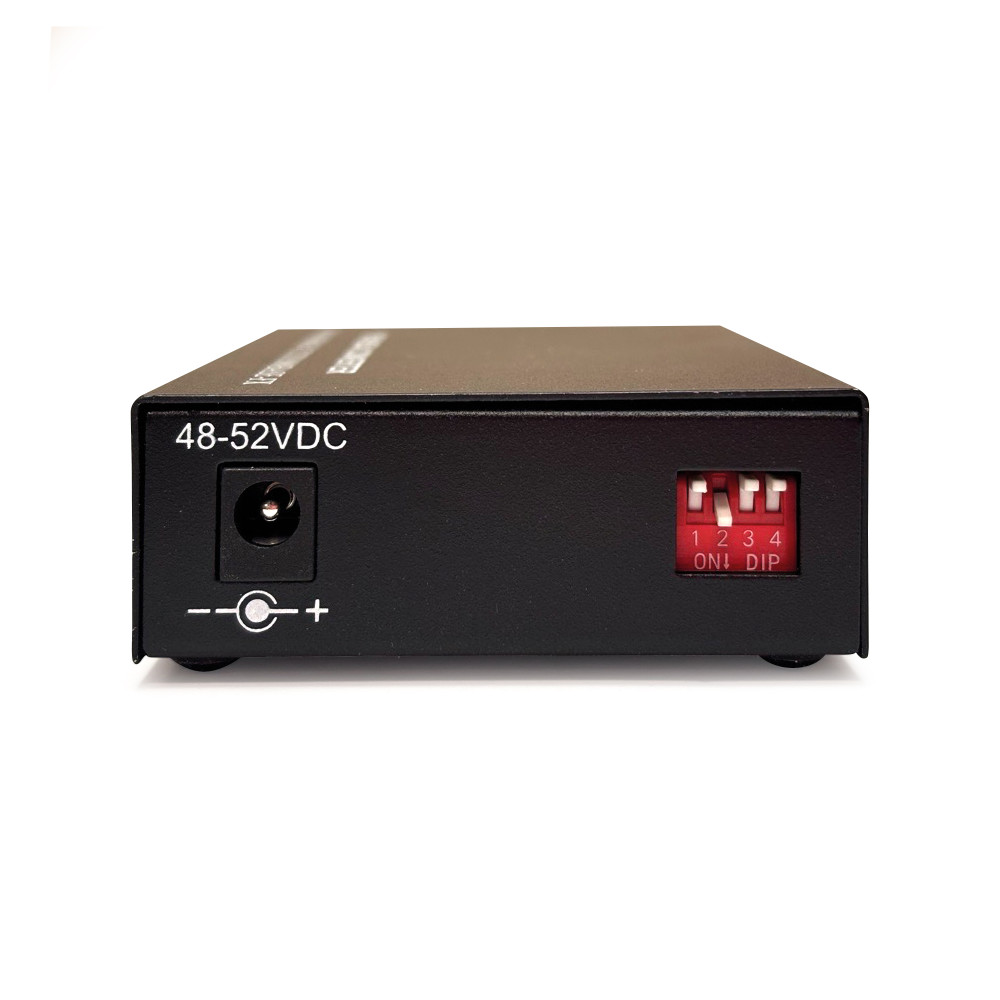

  • Includes an AC power supply
  • 1 Year Double Diamond™ Warranty (Standard) included

In the Box

  1. Gigabit Ethernet (1000-Mbps) PoE+ Media Converter
  2. AC Power Supply
  3. Power Cord
Technology
CategoryMedia Converter
Media Converter TypeFiber to Gigabit Ethernet
Total Ports2
Fiber InterfaceSC Connector
StandardsIEEE 802.1q/IEEE 802.3z 1000Base-TX/FX standard, IEEE 802.3af Interface
Transmission Distance100 meters (330 ft.)
Power
PoE Power Output25.5W max
Mechanical
Weight1.14 lb. (0.52 kg)
Dimensions1" H x 2.81" W x 3.74" D (25.4 x 71.5 x 95 mm)
Ratings
Operating Temperature32 to 122° F (0 to 50° C)
Storage Temperature-4 to +158° F (-20 to +70° C)
Humidity5 to 95% noncondensing
MTBF114,000 hours
