Axiomtek SHB250R PICMG 1.3 Half-Size SBC Cardfor Intel CPU Options & Chipsets

New Axiomtek SHB250R PICMG 1.3 Half-Size CPU Card for Intel Core/Xeon E/Pentium/Celeron Processor, Intel C246/Q370/H310 chipset, SATA 3.0, USB 3.2 Gen1x1, LAN and DVI-I
Model: SHB250R
Availability: Contact Westward Sales
Standard Shipping & Handling
NCNR: YES
Qty:

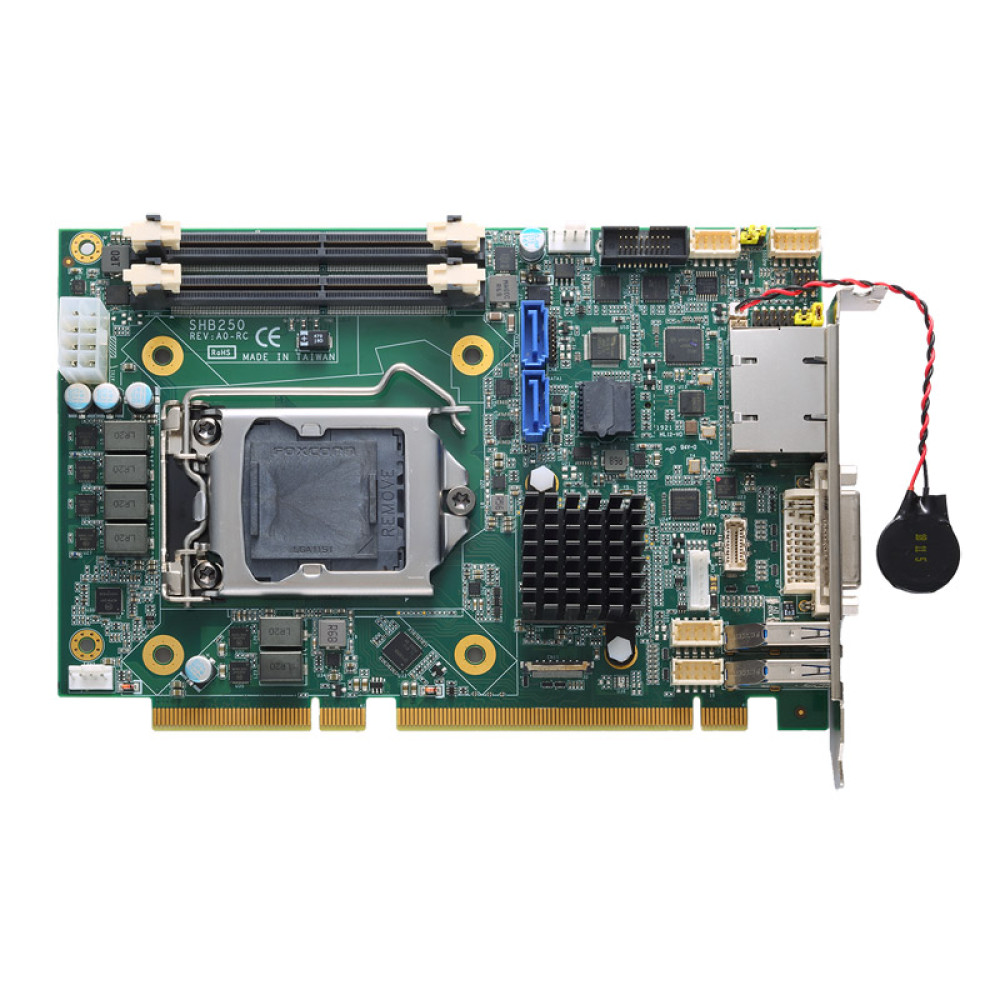

Axiomtek SHB250R PICMG Half-Size CPU Card with Intel C246/Q370/H310 Chipset, USB 3.2, Dual LAN, DVI-I

Axiomtek's PICMG 1.3 half-size CPU cards (185 x 126 mm) offer high performance PCI Express slot as interface to the backplane, and improve I/O bandwidth and graphic performance from the original PICMG 1.0 specification. The PICMG 1.3 half-size SBC is specially designed for space concerned applications. Featured here is the SHB250R supporting scalable CPU options including the LGA1151 9th/8th Generation Intel Core, Intel Xeon E, Intel Pentium or Intel Celeron processors with the Intel C246/Q370/H310 chipset. The powerful SHB250R is the ideal solution for system integrators, OEMs and ODMs searching for a versatile, easy-to-deploy motherboard with high processing powers for a wide range of AIoT applications. Its rich features, superior graphics capability, high expandability and rugged design makes it well-suited for intelligent transportation, smart factory automation, cloud infrastructure, intelligent agriculture or intelligent digital surveillance applications.

The feature-rich SHB250R has two 260-pin DDR4-2666/2400 SO-DIMM sockets for up to 64GB of system memory. It has two SATA-600 ports that support software RAID 0/1/5/10 for data redundancy. The PICMG 1.3 system host board has one M.2 Key M 2242 SSD slot with a PCIe 3.0 x4 or SATA-3 interface. The ;I/O interfaces include two Gigabit LANs with Intel Ethernet controller i211-AT and Intel Ethernet connection i219-LM, two RS-232/422/485 ports, four USB 3.1 Gen1 ports, four USB 2.0 ports, one HD Codec audio, and one PS/2 keyboard and mouse. It delivers high graphical performance with the Intel® HD Graphics and offers triple display support via DVI-I and DisplayPort++ (internal header) ports.

For high expandability, the SHB250R offers one PCIe x16 Gen3 slot and a choice between one PCIe x4 or four PCIe x1 Gen3 slots for a diverse range of configurations. The powerful industrial single board computer has a watchdog timer, hardware monitoring functions as well as smart CPU and smart system fans. For reliable operation, the SHB250R is capable of withstanding a wide operating temperature range of 0°C to +60°C.

Axiomtek’s SHB250R features high processing powers, extensive I/O options and high-speed transfer interfaces for a broad range of high performance applications. It also features optional Trusted Platform Module (TPM) 2.0 support for optimum security, and supports Intel® Active Management Technology (Intel AMT) 11 and Intel vPro for easy remote management and monitoring.

Key Features
  • Scalable CPU options with LGA1151 9th/8th Generation Intel Core i7/i5/i3, Xeon E (Intel C246), Intel Pentium or Intel Celeron ;processors
  • Intel C246/Q370/H310 chipset
  • Two DDR4-2666/2400 SO-DIMM for up to 64GB of memory
  • Expandable with M.2 Key M 2242 slot
  • Features support for Intel AMT 11 and Intel vPro (Intel C246/Q370), and optional support for TPM 2.0
Configurations

SHB250RDGG-Q370, PICMG 1.3 half-size CPU card with LGA1151 socket, Intel Q370, DVI-I, 2 GbE LAN, and PCIe x4
SHB150RDGG-H310, Same as above with Intel H310
SHB150RDGG-C246, Same as above with Intel C246

Accessories Available
  1. 2 x COM port, with bracket, P=1.27 x 2.54, L=300 mm
  2. 1 x USB 3.2 Gen1x1 cable with bracket 20P, L=400 mm
  3. 2 x USB 2.0 cable with bracket 180 mm
  4. PS/2 keyboard & mouse cable
  5. SATA signal cable/red, L=500mm
  6. DVI-I to DVI-D+VGA Y cable
  7. DisplayPort++ kit

Customize your SHB250R CPU card by calling us today. Our industrial computing and IoT networking devices improve every facet of your operation. Saving you time and money is our business. Contact Westward Sales to learn more.

Technology
CategoryIndustrial Motherboard
Computing
Form FactorPICMG
CPUIntel Core i9/i7/i5/i3 | Intel Pentium | Intel Celeron | Intel Xeon
CPU ChipsetIntel C246/Q370/H310 chipset
Maximum System Memory64GB
System Memory ConfigurationC246: 2 x 260-pin 2666/2400 with ECC un-buffered SO-DIMM, up to 64GB, Q370/H310: 2 x 260-pin 2666/2400 un-buffered SO-DIMM, up to 64GB
BIOSAMI UEFI
Expansion Slots1 x PCIe x16 Gen3, 1 x PCIe x4 or 4 x PCIe x1 Gen3
Watchdog Timer255 levels, 1 to 255 sec.
Video
Display Type1 x DVI-I, 1 x DisplayPort++ (internal header)
Interfaces
USB4 x USB 3.2 Gen1x1 (2 ports in I/O, 2 ports in interanal box header), 4 x USB 2.0
AudioHD Codec audio as Mic-in/Line-in/Line-out/Speaker-out with audio kit AX93242 (optional)
Battery
Battery TypeLithium 3V/220mAH
Mechanical
Dimensions185 x 126 mm, 1.6 mm thick
Ratings
Operating Temperature0°C to +60°C (+32°F to +140°F)
Humidity10 to 95% non-condensing
