Axiomtek SHB160 PICMG 1.3 Full-Size CPU Card with Intel Core/Pentium/Celeron

Axiomtek SHB160 3.5” PICMG Full-Size CPU Card with Intel R680E/H610E Chipset, USB 3.2, Dual 2.5GbE LAN, DVI-I

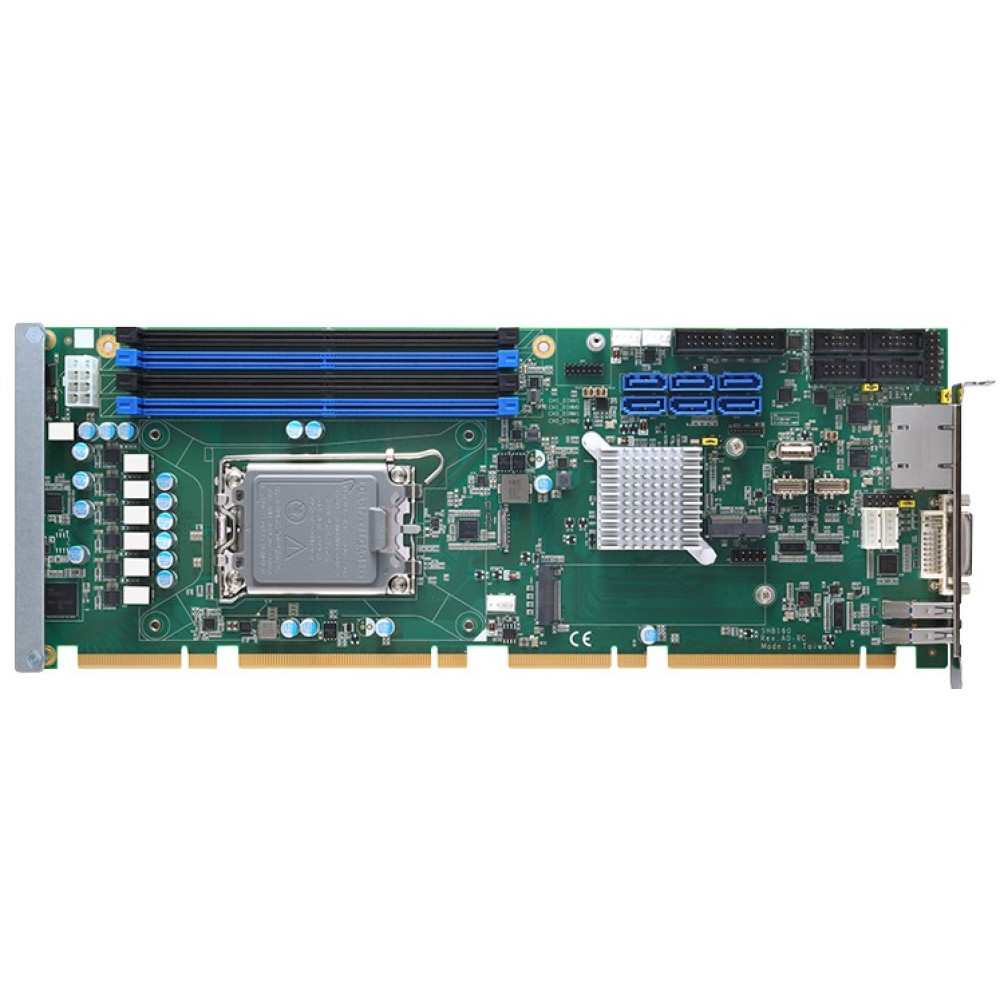

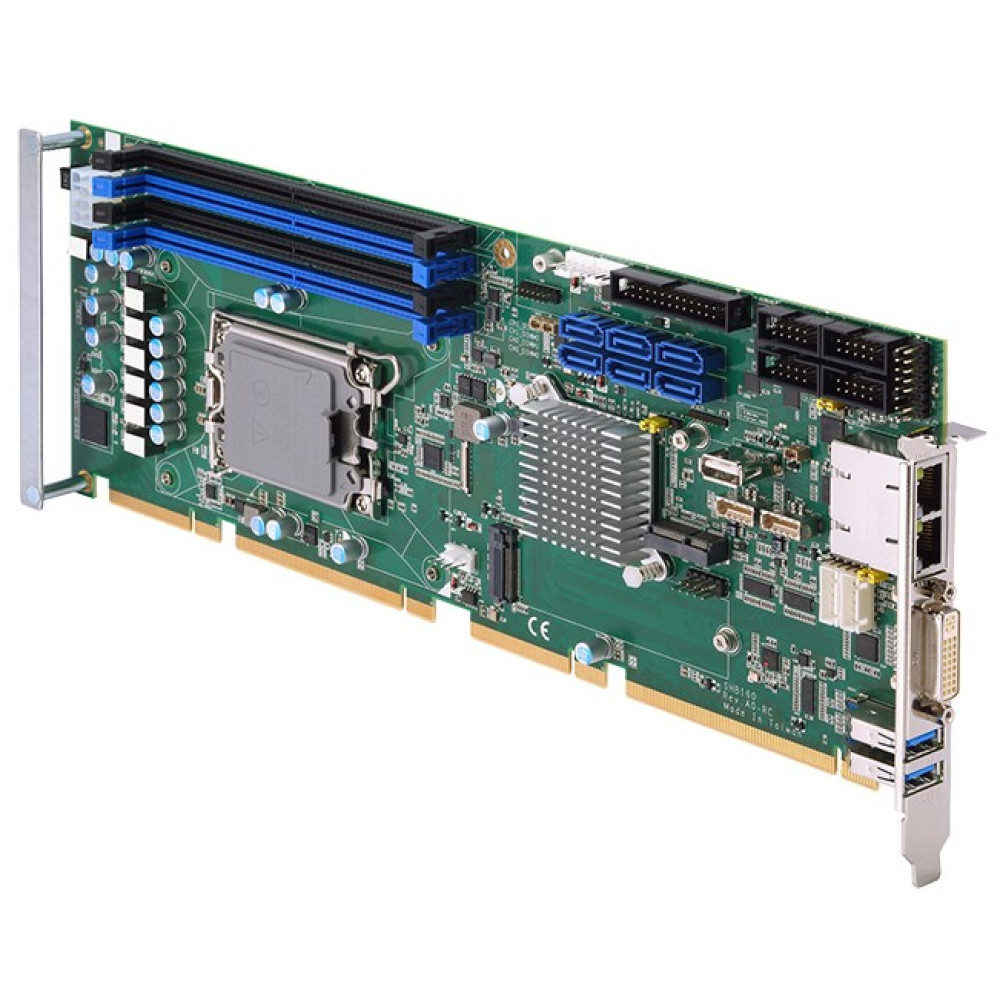

Axiomtek's PICMG 1.3 full-size CPU cards (338 x 126 mm) offer high performance PCI Express slot as interface to the backplane, and improve I/O bandwidth and graphic performance from the original PICMG 1.0 specification. Featured here is the SHB160 full-size single board computer powered by the LGA1700 13th/12th Gen Intel Core i7/i5/i3, Pentium or Celeron processor with the Intel R680E/H610E chipset. The industry-specific SBC supports dual 2.5GbE LAN for the ultimate connection experience with blazing data-transfer speed. It also supports PCIe 4.0 for more flexibility and higher bandwidth to GPUs, SSDs, and other peripherals. Offering superior computing performance, rugged design, flexible I/O expansion as well as enhanced graphics capabilities, the SHB160 aims to satisfy the requirements of AIoT applications such as vision inspection, objective classification, factory automation, intelligent video analysis, and smart city.

Axiomtek’s SHB160 offers up to four DDR5-4400MHz ECC or non-ECC U-DIMM slots for up to 128GB of system memory. The full-size slot CPU card has six SATA-600 ports with software RAID 0/1/5/10 support (Intel R680E chipset) or four SATA-600 ports (Intel H610E chipset). In addition, the SHB160 has one M.2 Key M 2280 slot with PCIe 4.0 x4 signal for NVMe SSD (Intel R680E chipset). It also delivers superior graphics performance with the Intel UHD Graphics and offers dual display configurations via DVI-I and DisplayPort++ (internal header) ports. One PCIe x16 Gen4 slot, one PCIe x4 Gen4 slot or four PCIe x1 Gen4 slots, and four 32-bit PCI bus masters are available on the board to provide an optimum solution with a diverse range of configurations. Equipped with one M.2 Key E 2230 slot, the SHB160 also supports Wi-Fi 6 for faster data transferring while reducing latency and enhancing security.

The SHB160 is designed with advancing computing efficiency, large memory capacity with maximum four DDR5 slots, and high-speed transferring interfaces for a broad range of intensive computing applications. The SHB160 features optional Trusted Platform Module (TPM) 2.0 for optimum security and supports Intel Active Management Technology (Intel AMT) 11 and Intel vPro for easy remote management and monitoring. The powerful industrial single board computer supports watchdog timer, hardware monitoring function as well as smart CPU and smart system fans. To ensure reliable operation across platforms, the SHB160 can withstand a wide operating temperature range of 0°C to 60°C.

The SHB160 has rich I/O interfaces, including two RS-232, two RS-232/422/485, two 2.5G GbE LAN, two USB 3.2 Gen2x1, four USB 3.2 Gen1x1 (Internal box header), three USB 2.0, four USB 2.0 via golden fingers, one PS/2 keyboard internal connector, and one PS/2 mouse internal connector.

Key Features

• LGA1700 13th/12th Gen Intel Core i7/i5/i3, Pentium or Celeron processor (up to 125W)
• Intel R680E/H610E chipset
• 4 DDR5-4400 ECC or non-ECC U-DIMM, up to 192GB (R680E)
• 2 DDR5-4400 non-ECC U-DIMM, up to 64GB (H610E)
• Supports Intel AMT and vPro (R680E)
• Supports RAID 0/1/5/10 (R680E)
• TPM 2.0 supported (optional)
• Supports dual 2.5GbE
• Supports LPT port
• Supports M.2 Key M/ Key E (H610E only supports Key E)
• Supports PCIe 4.0 through the gold fingers

Configurations

SHB160-R680E-DGG PCIex4, PICMG 1.3 Full-size card, Intel R680E Chipset, ECC, DVI-I, 2.5 GbE LAN, 6 SATA, PCLe x4 BIOS
SHB160-R680E-DGG PCIex1, Same as above with PCLe x1 BIOS

SHB160-H610E-DGG PCIex4, PICMG 1.3 Full-size card, Intel H610E Chipset, DVI-I, 2.5 Gb LAN, 6 SATA, PCLe x4 BIOS
SHB160-H610E-DGG PCIex1, Same as above with PCLe x1 BIOS

Accessories Available

1. 2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
2. 1 x Dual USB 3.2 (Gen2x1) cable with bracket, L=400 mm
3. PS/2 keyboard & mouse cable with bracket
4. SATA signal cable/red, L=500mm
5. AX93242-RC HD audio converter kit
6. 1 x COM port cable with bracket, P=2.54 mm, L=300 mm
7. 2 x COM port cable with bracket, P=2.54 mm, L=300 mm
8. DVI-I to DVI-D+VGA Y cable
9. TPM 2.0 module (AX93515)
10. DisplayPort kit
11. 2U special cooler kit for SHB160, compatible, 125W
12. 1U special cooler kit for SHB160, compatible, 65W
13. 1U special cooler with blower fan for SHB160

***Note: All SHB160 series models require specially designed coolers. Please order the complete set from the optional items: the 2U cooler for CPUs with a 125W TDP or the 1U cooler for CPUs with a 65W TDP.

Customize your SHB160 CPU card by calling us today. Our industrial computing and IoT networking devices improve every facet of your operation. Saving you time and money is our business. Contact Westward Sales to learn more.
